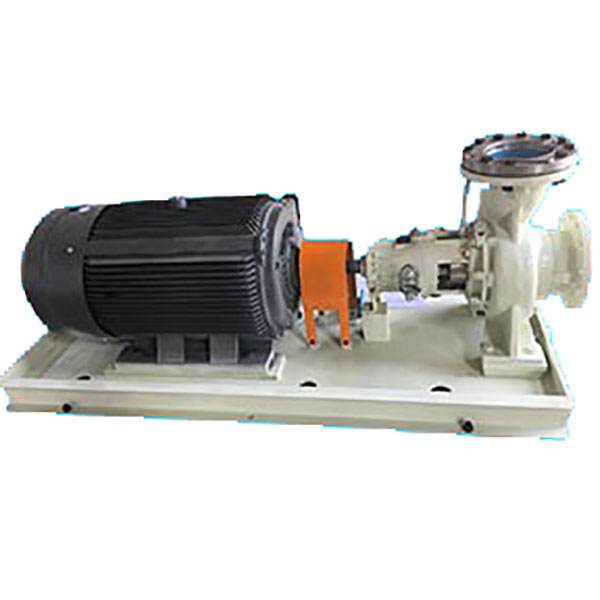

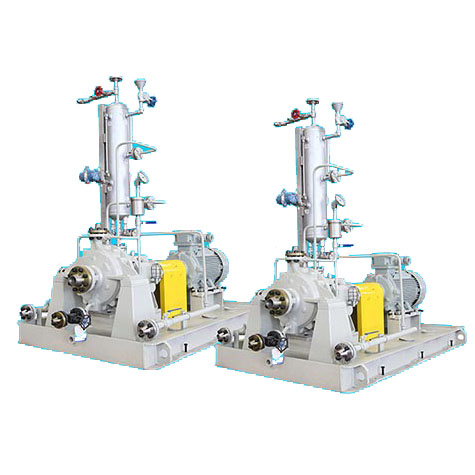

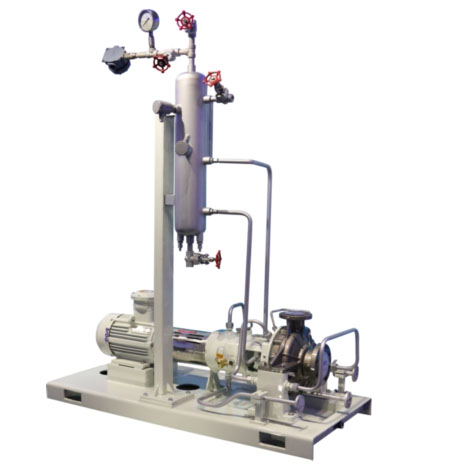

ZTS Chemica Pump

Vacuum Pump
    Performance Range:
  • Size: DN 25 to 400 mm
  • Capacity: Q: Up to 2600M3/H
  • Head: H: Up to 300Meter
  • Operating pressure: P: Up to 2.5Mpa
  • Operating temperature: T: -80 to 450
  • Speed: N: 2950/1475rpm
      • Medium:
  • inorganic and organic acids of all temperatures and concentrations
  • alkali liquor of all temperatures and concentrations
  • salt solution of all temperatures and concentrations
  • liquid petrochemical products, organic compound
  • corrosive raw materials and products
      • Application
  • Oil refinery, petrochemical industry, coal processing, lower temperature engineering
  • Chemical industry, paper and pulp industry, sugar industry
  • Sea water supply and desalination plant, Ship and offshore engineering
  • Pharmaceutical industries, environment protection engineering

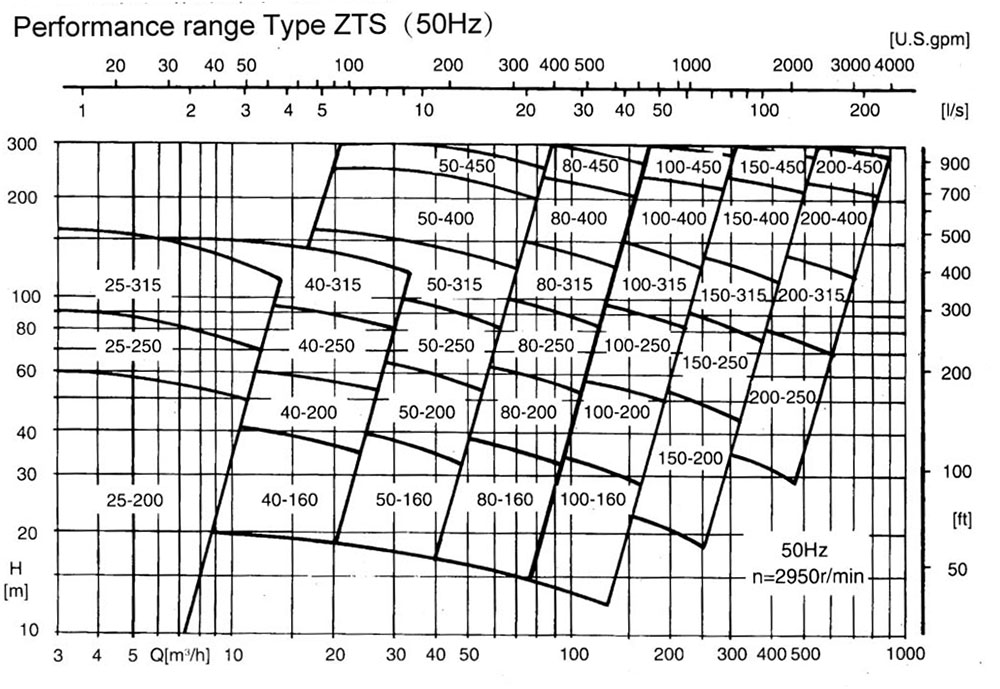

    • Model Impeller cut Speed n=2950r/min
    Capacity Head Bearing Gravity r=1.00  Gravity r=1.35  Gravity r=1.84
    Q  H  LK  Motor Power and model
    m3/h  m    kw  ModeL kw  Model kw  Model
    ZTS25-200  A  11.5 49 0 5.5 Y132S1-2  7.5 Y132S2-2  11 Y160M1-2
    B  10.5 42 4 Y112M-2  5.5 Y132S1-2  7.5 Y132S2-2
    C  9 36 3 Y100L-2  4 Y112M-2  5.5 Y132S1-2
    D  7.5 28 2.2 Y90L-2  3 Y100L-2  4 Y112M-2
    E  5.5 16 1.5 Y90S-2  1.5 Y90S-2  2.2 Y90L-2
    ZTS40-160  A  28 33 1 5.5 Y132S1-2  7.5 Y132S2-2  11 Y160M1-2
    B  25.6 29
    C  22 22 4 Y112M-2  5.5 Y132S1-2  5.5 Y132S1-2
    D  20 16 2.2 Y90L-2  3 Y100L-2  4 Y112M-2
    ZTS40-200  A  29 53 1 11 Y160M1-2  15 Y160M2-2  18.5 Y160L-2
    B  26 47 7.5 Y132S2-2  11 Y160M1-2  15 Y160M2-2
    C  22 39 5.5 Y132S1-2  7.5 Y132S2-2  11 Y160M1-2
    D  18 20 4 Y112M-2  5.5 Y132S1-2  7.5 Y132S2-2
    ZTS40-250  A  32 78 2 18.5 Y160L-2  22 Y180M-2  30 Y200L1-2
    B  30 72 15 Y160M2-2  18.5 Y160L-2
    C  24 60 11 Y160M1-2  15 Y160M2-2  18.5 Y160L-2
    D  21 47 7.5 Y132S2-2  11 Y160M1-2  15 Y160M2-2
    ZTS40-315  A  42 115 2 37 Y200L2-2  45 Y225M-2  75 Y280S-2
    B  40 107 30 Y200L1-2  55 Y250M-2
    C  34 81 22 Y180M-2  30 Y200L1-2  45 Y225M-2
    D  29 61 15 Y160M2-2  22 Y180M-2  30 Y200L1-2
    ZTS50-160  A  50 34 2 11 Y160M1-2  15 Y160M2-2  15 Y160M2-2
    B  45 29 7.5 Y132S2-2  11 Y160M1-2
    C  38 22 5.5 Y132S1-2  7.5 Y132S2-2  11 Y160M1-2
    D  31 17 3 Y100L-2  4 Y112M-2  5.5 Y132S1-2
    ZTS50-200  A  62 52 2 18.5 Y160L-2  22 Y180M-2  30 Y200L1-2
    B  56 46 15 Y160M2-2  18.5 Y160L-2  22 Y180M-2
    C  49 37 11 Y160M1-2  15 Y160M2-2  18.5 Y160L-2
    D  43 28 7.5 Y132S2-2  11 Y160M1-2  15 Y160M2-2
    ZTS50-250  A  70 82 2 30 Y200L1-2  37 Y200L2-2  55 Y250M-2
    B  66 75 45 Y225M-2
    C  60 60 22 Y180M-2  30 Y200L1-2  37 Y200L2-2
    D  50 45 15 Y160M2-2  18.5 Y160L-2  22 Y180M-2
    ZTS50-315  A  87 115 3 55 Y250M-2  75 Y280S-2  110 Y315S-2
    B  80 100 45 Y225M-2  90 Y280M-2
    C  70 78 30 Y200L1-2  45 Y225M-2  55 Y250M-2
    D  57 57 22 Y180M-2  30 Y200L1-2  37 Y200L2-2
    ZTS50-400  A  82 194 3 110 Y315S-2  160 Y315M2-2
    B  78 175 90 Y280M-2  132 Y315M1-2  160 Y315M2-2
    C  70 140 75 Y280S-2  90 Y280M-2  132 Y315M1-2
    D  60 102 45 Y225M-2  75 Y280S-2  90 Y280M-2
    ZTS80-160  A  94 32 2 15 Y160M2-2  18.5 Y160L-2  30 Y200L1-2
    B  85 28 11 Y160M1-2  15 Y160M2-2  18.5 Y160L-2
    C  76 23 11 Y160M1-2  15 Y160M2-2
    D  66 17 5.5 Y132S1-2  7.5 Y132S2-2  11 Y160M1-2
    ZTS80--200  A  103 54 1 30 Y200L1-2  37 Y200L2-2
    B  95 48 22 Y180M-2  30 Y200L1-2  37 Y200L2-2
    C  84 38 15 Y160M2-2  22 Y180M-2  30 Y200L1-2
    D  70 30 11 Y160M1-2  15 Y160M2-2  22 Y180M-2
    ZTS80-250  A  127 82 2 45 Y225M-2  75 Y280S-2  90 Y280M-2
    B  120 76 55 Y250M-2  75 Y280S-2
    C  105 59 30 Y200L1-2  45 Y225M-2  55 Y250M-2
    D  87 45 22 Y180M-2  30 Y200L1-2  37 Y200L2-2
    ZTS80-315  A  141 127 2 90 Y280M-2  110 Y315S-2  160 Y315M2-2
    B  135 121 75 Y280S-2  90 Y280M-2  132 Y315M2-2
    C  115 97 55 Y250M-2  75 Y280S-2  90 Y280M-2
    D  90 74 37 Y200L2-2  45 Y225M-2  75 Y280S-2
    ZTS80-400  A  171 187 3 160 Y315M2-2  200   280
    B  159 170 132   200   250
    C  135 130 90 Y280M-2  132 Y315M1-2  200
    D  116 95 75 Y280S-2  90 Y280M-2  132 Y315M1-2
    ZTS100-160  A  162 29 2 22 Y180M-2  30 Y200L1-2  37 Y200L2-2
    B  150 24 15 Y160M2-2  22 Y180M-2  30 Y200L1-2
    C  130 17 11 Y160M1-2  15 Y160M1-2  18.5 Y160L-2
    D  110 12 7.5 Y132S2-2  11 Y160M1-2  15 Y160M2-2
    ZTS100-200  A  193 50 2 45 Y225M-2  55 Y250M-2  75 Y280S-2
    B  180 44 37 Y200L2-2  45 Y225M-2
    C  155 35 30 Y200L1-2  37 Y200L2-2  45 Y225M-2
    D  135 26 18.5 Y160L-2  30 Y200L1-2  37 Y200L2-2
    ZTS100-250  A  230 79 2 75 Y280S-2  110 Y280M-2  132
    B  218 73 75 90   132
    C  190 58 45 Y225M-2  75 Y280S-2  90 Y280M-2
    D  170 44 37 Y200L2-2  45 Y225M-2  75 Y280S-2
    ZTS100-315  A  250 126 3 132 Y315M1-2  200   250
    B  240 120 160 Y315M2-2
    C  203 97 90 Y280M-2  132 Y315M1-2  160 Y315M2-2
    D  170 71 75 Y280S-2  75 Y280S-2  110 Y315S-2
    ZTS100-400  A  300 194 4 250   315   450
    B  290 180 250   280   400
    C  260 145 200   250   315
    D  224 105 132   160 Y315M2-2  250
    ZTS100-500  A  180 75 4 75   90   110
    B  170 72 55   75   110
    C  142 57 45   55   75
    D  120 42 30   37   55
    ZTS150-200  A  320 44 2 55 Y250M-2  75 Y280S-2  90 Y280M-2
    B  300 39 45 Y225M-2  75
    C  265 30 37 Y200L2-2  45 Y225M-2  75 Y280S-2
    D  220 23 22 Y180M-2  30 Y200L1-2  45 Y225M-2
    ZTS150-250  A  390 74 3 110 Y315S-2  160 Y315M2-2
    B  355 62 90 Y280M-2  110 Y315S-2  160 Y315M2-2
    C  325 46 75 Y280S-2  90 Y280M-2  110 Y315S-2
    D
    ZTS150-315  A  442 125 3 200   280   400
    B  430 120 200   250   355
    C  372 94 160 Y315M2-2  200   250
    D  310 68 90 Y280M-2  132 Y315M1-2  160 Y315M2-2
    ZTS150-400  A  520 205 4 400   560   800
    B  498 190 400   500   710
    C  453 151 315   400   560
    D  400 113 200   280   400
    ZTS150-500  A  300 80 2 110   132   200
    B  280 77 90   132   160
    C  240 60 75   90   132
    D  208 45 55   75   90
    ZTS150-560  A  335 104 3 160   200   280
    B  315 97 132   200   250
    C  280 80 110   132   200
    D  212 60 75   90   132
    ZTS150-630  A  360 115 4 200   28   355
    B  338 105 200   250   355
    C  274 82 132   160   250
    D  220 60 90   110   160
    ZTS200-250  A  610 72 3 160 Y315M2-2
    B  580 65   160 Y315M2-2
    C  520 47   110 Y315S-2  132 Y315M1-2
    D  470 32   75 Y280S-2  90 Y280M-2  110 Y315S-2
    ZTS200-315  A  710 122 4 315   400   560
    B  680 114 280   400   500
    C  600 87 200   250   355
    D  480 65 132 Y315M1-2  160   250
    ZTS200-400  A  850 203 5 630   900   1250
    B  830 150 500   630   900
    C  750 145 450   630   800
    D  670 106 315   400   630
    ZTS200-500  A  480 83   160   200   315
    B  450 80   160   200   280
    C  400 62   110   132   200
    D  340 46   75   90   132
    ZTS200-560  A  540 105   250   315   400
    B  510 98   200   280   400
    C  460 81   160   200   315
    D  350 62   110   132   200
    ZTS200-630  A  580 132   315   450   560
    B  550 125   315   400   560
    C  468 100   200   280   400
    D  372 75   132   200   250
    ZTS250-315  A  540 26   55   75   90
    B  520 25   55   75   90
    C  480 18   37   45   75
    D  420 12   22   30   45
    ZTS250-400  A  660 48   132   160   200
    B  630 45   110   132   200
    C  550 35   75   110   132
    D  500 24   55   75   90

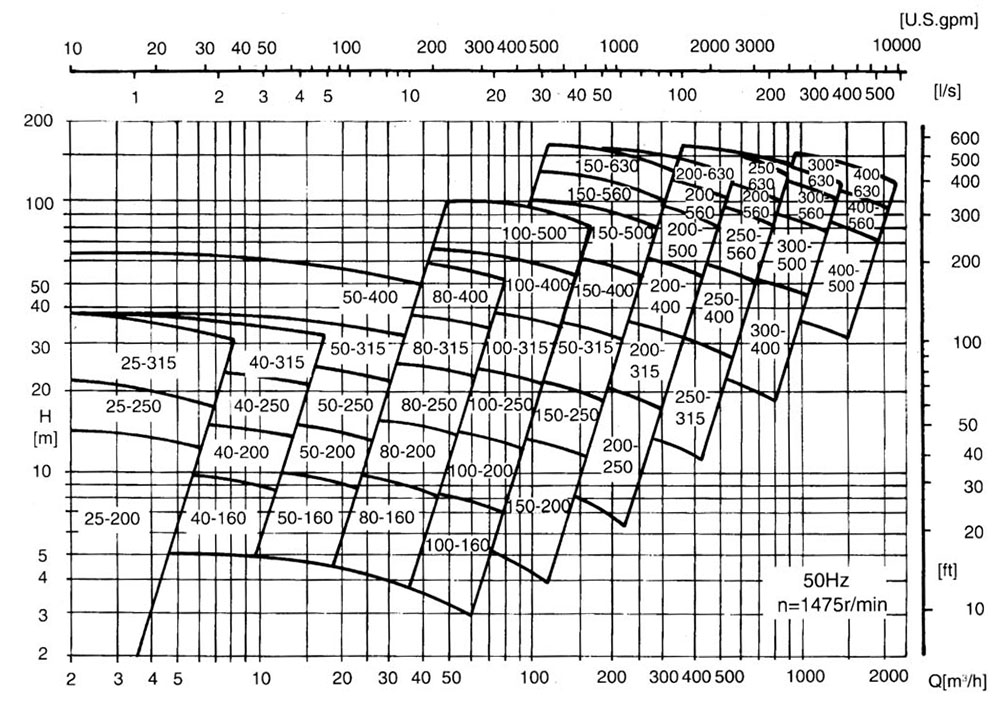

    Model Impeller cut Speed n=1450 r/min
    Capacity Head Bearing Gravity r=1.00  Gravity r=1.35  Gravity r=1.84
    Q  H  LK  Motor Power and model
    m3/h  m    kw  Mode kw  Model kw  Model
    ZTS25-200  A  5.8 12 0 1.1 Y90S-4  1.1 Y90S-4  1.5 Y90L-4
    B  5.4 11 1.1 Y90S-4
    C  4.6 8.5
    D  4 6.5
    E  3 4
    ZTS40-160  A  14 8 1 1.1 Y90S-4  1.1 Y90S-4  1.5 Y90L-4
    B  13 7
    C  11 5.5 1.1 Y90S-4
    D  9.5 4.5
    ZTS40-200  A  14.5 13 1 1.5 Y90L-4  2.2 Y100L1-4  3 Y100L2-4
    B  13 11.5 1.1 Y90S-4  1.5 Y90L-4  2.2 Y100L1-4
    C  11.5 9 1.1 Y90S-4  1.5 Y90L-4
    D  9.5 7 1.1 Y90S-4  1.1 Y90S-4
    ZTS40-250  A  16 19.5 1 3 Y100L2-4  4 Y112M-4  5.5 Y132S-4
    B  15 18   2.2 Y100L1-4  3 Y100L2-4  4 Y112M-4
    C  12.5 14   1.5 Y90L-4  2.2 Y100L1-4  3 Y100L2-4
    D  10.5 11   1.1 Y90S-4  1.5 Y90L-4  2.2 Y100L1-4
    ZTS40-315  A  21 29 2 5.5 Y132S-4  7.5 Y132M-4  11 Y160M-4
    B  20 26.5
    C  17.5 20 4 Y112M-4  5.5 Y132S-4  7.5 Y132M-4
    D  15 15 3 Y100L2-4  3 Y100L2-4  5.5 Y132S-4
    ZTS50-160  A  25 8.4 1 1.5 Y90L-4  2.2 Y100L1-4  2.2 Y100L1-4
    B  22.5 7 1.5 Y90L-4
    C  19 5.5 1.1 Y90S-4  1.1 Y90S-4  1.5 Y90L-4
    D  16.5 4 1.1 Y90S-4
    ZTS50-200  A  31 13 1 3 Y100L2-4  3 Y100L2-4  4 Y112M-4
    B  28.5 11.5 2.2 Y100L1-4
    C  25 9 1.5 Y90L-4  2.2 Y100L1-4  3 Y100L2-4
    D  22 7 1.1 Y90S-4  1.5 Y90L-4  2.2 Y100L1-4
    ZTS50-250  A  35 20 2 4 Y112M-4  5.5 Y132S-4  7.5 Y132M-4
    B  33 18.5
    C  30 15 3 Y100L2-4  4 Y112M-4  5.5 Y132S-4
    D  26 11 2.2 Y100L1-4  3 Y100L2-4  3 Y100L2-4
    ZTS50-315  A  44 28 2 11 Y160M-4  11 Y160M-4  15 Y160L-4
    B  40 24 7.5 Y132M-4
    C  35 19 5.5 Y132S-4  7.5 Y132M-4  11 Y160M-4
    D  30 14 3 Y100L2-4  4 Y112M-4  5.5 Y132S-4
    ZTS50-400  A  41 49 2 15 Y160M-4  22 Y180L-4  30 Y200L-4
    B  39 43 18.5 Y180M-4  22 Y180L-4
    C  35 34 11 Y132M-4  15 Y160L-4  18.5 Y180M-4
    D  30 25 7.5 Y100L1-4  11 Y160M-4  15 Y160L-4
    ZTS80-160  A  47 8 2 2.2 Y100L1-4  3 Y100L2-4  4 Y112M-4
    B  42 7 2.2 Y100L1-4  3 Y100L2-4
    C  38 5.5 1.5 Y90L-4  2.2 Y100L1-4
    D  34 4 1.1 Y90S-4  1.1 Y90S-4  1.5 Y90L-4
    ZTS80--200  A  51 13.5 1 4 Y112M-4  5.5 Y132S-4  7.5 Y132M-4
    B  47 12 3 Y100L2-4  4 Y112M-4  5.5 Y132S-4
    C  41 9.5 2.2 Y100L1-4  3 Y100L2-4  4 Y112M-4
    D  36 7.5 1.5 Y90L-4  2.2 Y100L1-4  3 Y100L2-4
    ZTS80-250  A  64 20 2 7.5 Y132M-4  11 Y160M-4  15 Y160L-4
    B  60 19 7.5 Y132M-4  11 Y160M-4
    C  52 14.5 4 Y112M-4  5.5 Y132S-4  7.5 Y132M-4
    D  46 11 3 Y100L2-4  4 Y112M-4  5.5 Y132S-4
    ZTS80-315  A  70 33 2 15 Y160L-4  18.5 Y180M-4  22 Y180L-4
    B  66 30 11 Y160M-4  15 Y160L-4
    C  56 24 11 Y160M-4  15 Y160L-4
    D  45 18 5.5 Y132S-4  7.5 Y132M-4  11 Y160M-4
    ZTS80-400  A  85 46 2 22 Y180L-4  30 Y200L-4  45 Y225M-4
    B  80 42 18.5 Y180M-4  37 Y225S-4
    C  65 33 15 Y160L-4  18.5 Y180M-4  30 Y200L-4
    D  53 25 11 Y160M-4  15 Y160L-4  18.5 Y180M-4
    ZTS100-160  A  81 7.2 2 3 Y100L2-4  4 Y112M-4  5.5 Y132S-4
    B  73 6 2.2 Y100L1-4  3 Y100L2-4  4 Y112M-4
    C  63 4.3 1.5 Y90L-4  2.2 Y100L1-4  3 Y100L2-4
    D  55 3 1.1 Y90S-4  1.5 Y90L-4  2.2 Y100L1-4
    ZTS100-200  A  95 12.5 2 5.5 Y132S-4  7.5 Y132M-4  11 Y160M-4
    B  90 10.5
    C  80 8.5 4 Y112M-4  5.5 Y132S-4  7.5 Y132M-4
    D  70 6 3 Y100L2-4  3 Y100L2-4  4 Y112M-4
    ZTS100-250  A  115 20 2 11 Y160M-4  15 Y160L-4  18.5 Y180M-4
    B  110 18 11 Y160M-4  15 Y160L-4
    C  100 14 7.5 Y132M-4  11 Y160M-4
    D  90 10 5.5 Y132S-4  7.5 Y132M-4  7.5 Y132M-4
    ZTS100-315  A  125 31 2 18.5 Y180M-4  30 Y200L-4  37 Y225S-4
    B  119 29 22 Y180L-4  30 Y200L-4
    C  104 24 15 Y160L-4  18.5 Y180M-4  22 Y180L-4
    D  86 17.5 11 Y160M-4  11 Y160M-4  15 Y160L-4
    ZTS100-400  A  150 48 3 37 Y225S-4  45 Y225M-4  75 Y280S-4
    B  145 44 30 Y200L-4  55 Y250M-4
    C  130 36 22 Y180L-4  30 Y200L-4  45 Y225M-4
    D  115 26 15 Y160L-4  22 Y180L-4  30 Y200L-4
    ZTS100-500  A  180 75 3 75 Y280S-4  90 Y280M-4  110 Y315S-4
    B  167 68   55 Y250M-4  75 Y280S-4
    C  142 53   37 Y225S-4  55 Y225M-4  75 Y280S-4
    D  120 42   30 Y200L-4  37 Y225S-4  55 Y250M-4
    ZTS150-200  A  160 11 2 7.5 Y132M-4  11 Y160M-4  15 Y160L-4
    B  152 9.5
    C  140 7 5.5 Y132S-4  7.5 Y132M-4  11 Y160M-4
    D  123 5 3 Y100L2-4  4 Y112M-4  5.5 Y132S-4
    ZTS150-250  A  195 18.5 2 15 Y160L-4  22 Y180L-4  30 Y200L-4
    B  180 16 18.5 Y180M-4  22 Y180L-4
    C  160 11.5 11 Y160M-4  11 Y160M-4  15 Y160L-4
    D
    ZTS150-315  A  220 32.5 2 30 Y200L-4  45 Y225M-4  55 Y250M-4
    B  210 30 37 Y225S-4
    C  180 24 22 Y180L-4  30 Y200L-4  37 Y225S-4
    D  150 17 15 Y160L-4  18.5 Y180M-4  22 Y180L-4
    ZTS150-400  A  260 51 3 55 Y250M-4  75 Y280S-4  110 Y315S-4
    B  250 48 90 Y280M-4
    C  225 38 37 Y225S-4  55 Y250M-4  75 Y280S-4
    D  200 28 30 Y200L-4  37 Y225S-4  55 Y250M-4
    ZTS150-500  A  300 77 3 110 Y315S-4  132 Y315M1-4
    B  283 72 90 Y280M-4  132 Y315M1-4  160 Y315M2-4
    C  233 59 75 Y280S-4  90 Y280M-4  110 Y315S-4
    D  208 45 45 Y225M-4  75 Y280S-4  75 Y280S-4
    ZTS150-560  A  335 104 4 160 Y315M2-4
    B  315 97 132 Y315M1-4
    C  260 80 90 Y280M-4  132 Y315M1-4  160 Y315M2-4
    D  212 60 75 Y280S-4  90 Y280M-4  110 Y315S-4
    ZTS150-630  A  360 115 4
    B  338 106
    C  274 82 132 Y315M1-4  160 Y315M2-4
    D  220 60 75 Y280S-4  110 Y315S-4  160 Y315M2-4
    ZTS200-250  A  305 17.5 3 22 Y180L-4  30 Y200L-4  45 Y225M-4
    B  290 16 18.5 Y180M-4  30 Y200L-4  37 Y225S-4
    C  260 12 15 Y160L-4  19 Y180M-4  30 Y200L-4
    D  240 8 11 Y160M-4  15 Y160L-4  15 Y160M-4
    ZTS200-315  A  350 30 3 45 Y225M-4  55 Y250M-4  75 Y280S-4
    B  340 29 37 Y225S-4  55 Y250M-4  75 Y280S-4
    C  300 22 30 Y200L-4  37 Y225S-4  55 Y250M-4
    D  250 15 18.5 Y180M-4  22 Y180L-4  30 Y200L-4
    ZTS200-400  A  426 50 3 90 Y280M-4  110 Y315S-4  160 Y315M2-4
    B  410 47 75 Y280S-4  110 Y315S-4  132 Y315M1-4
    C  370 36.5 55 Y250M-4  75 Y280S-4  110 Y315S-4
    D  332 27 45 Y225M-4  55 Y250M-4  75 Y280S-4
    ZTS200-500  A  495 84 4
    B  470 79 160 Y315M2-4
    C  400 63 110 Y315S-4  160 Y315M2-4
    D  330 48 75 Y280S-4  90 Y280M-4  132 Y315M1-4
    ZTS200-560  A  540 105 5
    B  510 98
    C    81   160 Y315M2-4
    D  350 62   110 Y315S-4  132 Y315M1-4
    ZTS200-630  A  580 132 5
    B  550 125
    C  468 100
    D  372 75 132 Y315M1-4
    ZTS250-315  A  545 27 3 55 Y250M-4  75 Y280S-4  110 Y315S-4
    B  528 25 55 Y250M-4  75 Y280S-4  90 Y280M-4
    C  480 19 37 Y225S-4  55 Y250M-4  75 Y280S-4
    D  434 13 30 Y200L-4  37 Y225S-4  45 Y225M-4
    ZTS250-400  A  660 49 5 132 Y315M1-4  160 Y315M2-4
    B  630 46 110 Y315S-4
    C  565 36 75 Y280S-4  110 Y315S-4  160 Y315M2-4
    D  500 24 55 Y250M-4  75 Y280S-4  90 Y280M-4
