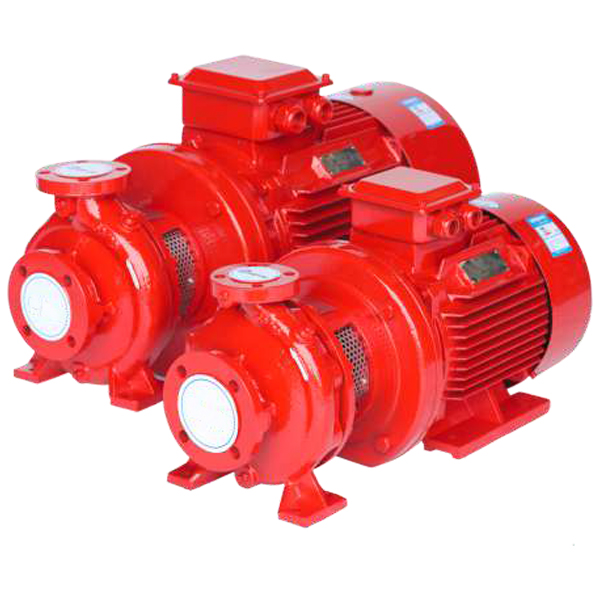

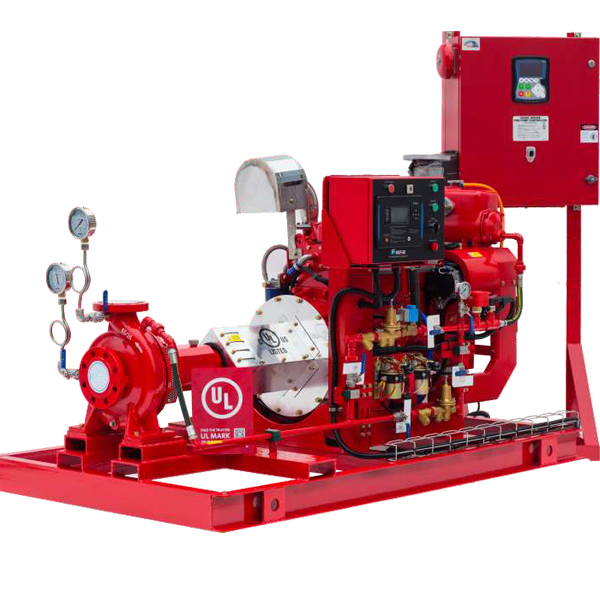

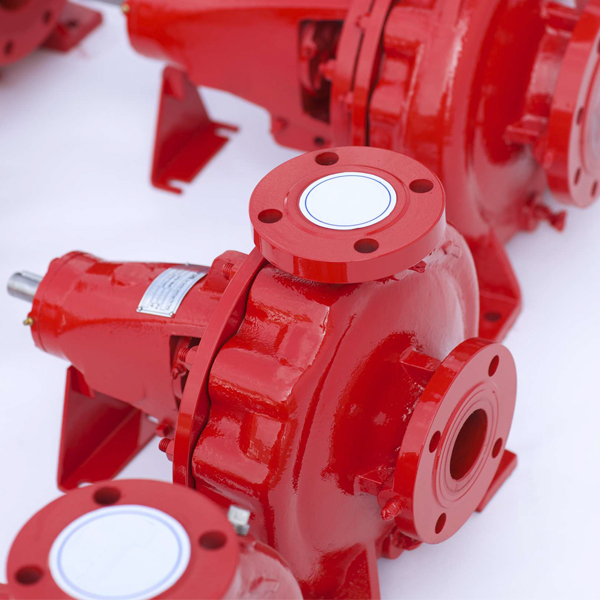

EHF End Suction UL listed Fire Pump

Hanthing Fluid Group

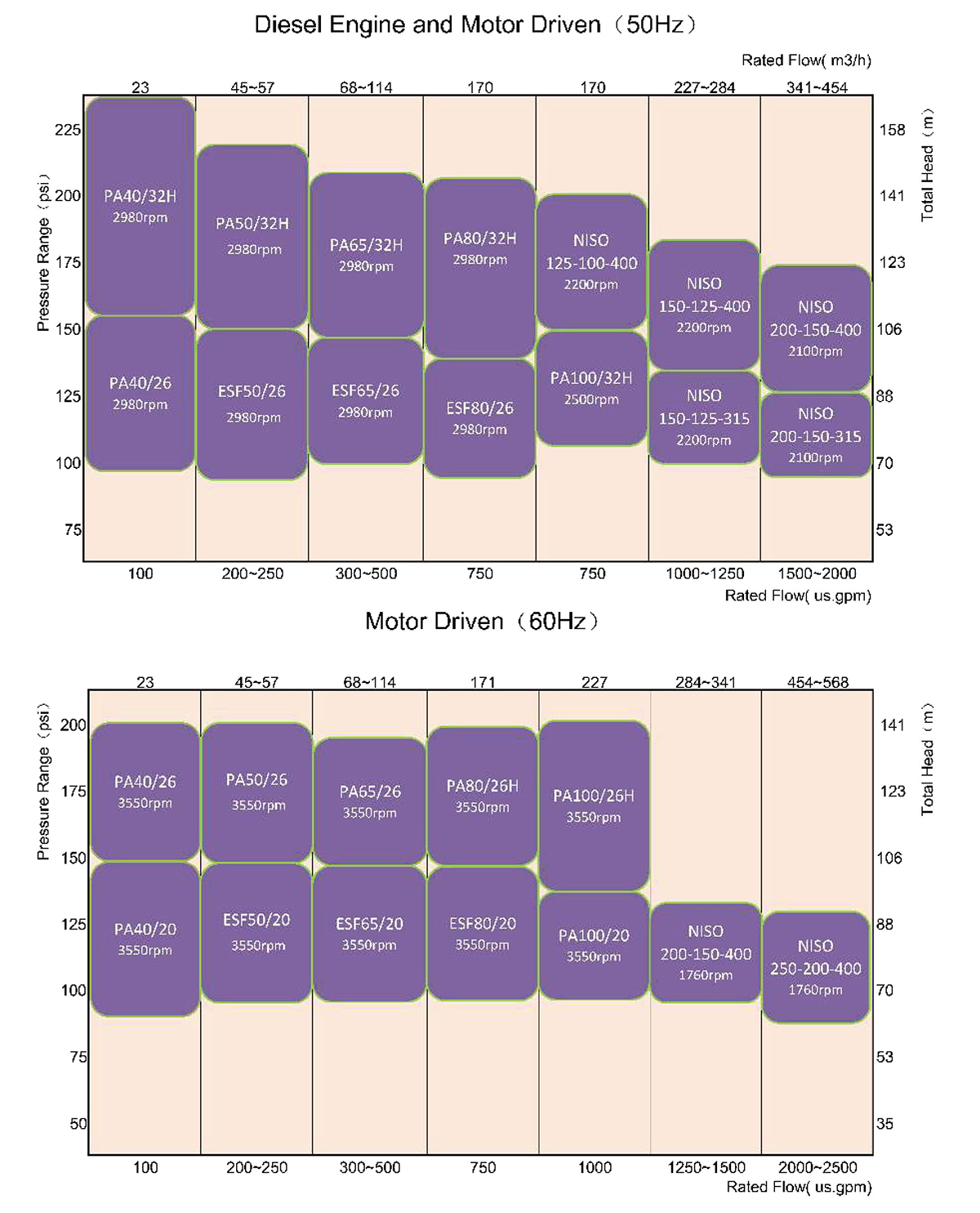

      Performance range:
  • End suction pumps are available for ranging from 100 USgpm to 750 USgpm and are suitable for electric or diesel drivers.
      • Application
  • Split case pumps are specifically designed and tested for fire service application around the world including:
  • Office buildings
  • Hospitals
  • Airports
  • Manufacturing facilities
  • Warehouses
  • Power stations
  • Oil and gas industry
  • Schools/colleges
  • Hotels
      • Materials of Construction
  • To Meet the rugged demands of fire protection in industrial and offshore environments, Hamxon split case pumps are available in:
  • Ductile Cast Iron Casing With 304SS Impeller
  • 304 or 316 Stainless Steel Wet Parts
  • Duplex 2205 Stainless Steel Wet Parts

Model Dsg Rated Capacity GPM Size In. Rated Net Pressure Range
psi		 Approx Speed RPM Max Working Pressure psi
EHF2515250 50 2.5×1.5 94-136 2900 200
EHF2515250 100 2.5×1.5 89-131 2900 200
EHF2515250 150 2.5×1.5 78-121 2900 200
EHF32250 150 3×2 94-136 2900 225
EHF32250 200 3×2 91-132 2900 225
EHF32250 250 3×2 85-128 2900 225
EHF425250 250 4×2.5 85-139 2900 225
EHF425250 300 4×2.5 82-137 2900 225
EHF425250 400 4×2.5 76-131 2900 225
EHF53250 400 5×3 85-136 2900 225
EHF53315 400 5×3 131-214 2900 290
EHF53250 450 5×3 83-135 2900 225
EHF53315 450 5×3 130-213 2900 290
EHF54315 450 5×4 135-214 2900 290
EHF53250 500 5×3 82-132 2900 225
EHF53315 500 5×3 126-212 2900 290
EHF54315 500 5×4 134-212 2900 290
EHF54315 750 5×4 128-208 2900 290
