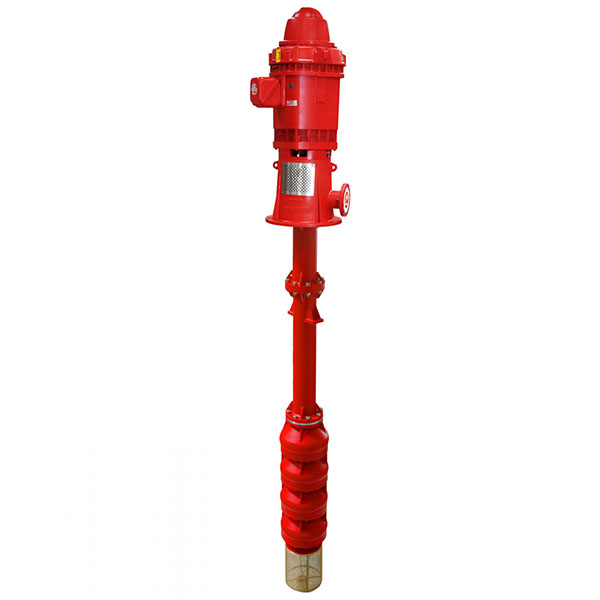

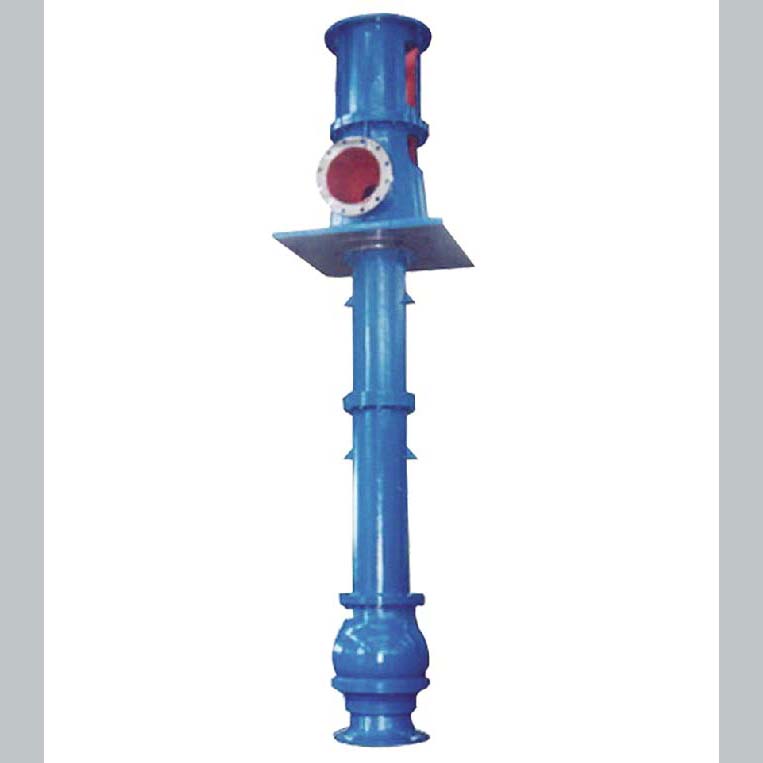

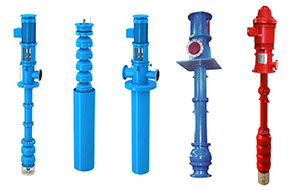

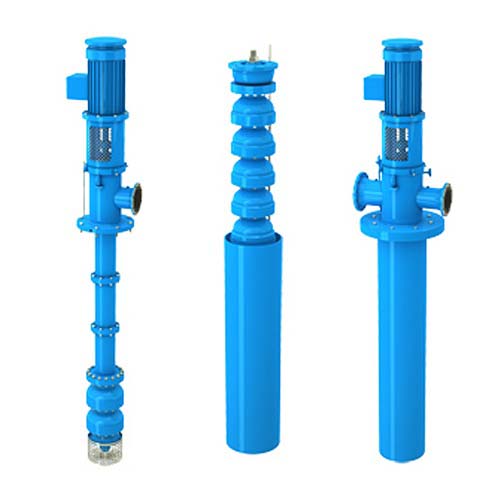

LP-T Vertical Turbine Pump

Hanthing Fluid Group
      Performance Range:
  • Flow: 8 m3/h ~ 60,000 m3/h
  • Head: 3m ~ 150m
  • Power: 1.5 kW ~3,600 kW
  • The temperature of medium shall not be higher than 60℃. requirements, spe- cify in the order list.
  • The medium shall be neutral and PH value between 6.5~8.5. If the medium is not consistent to the requirements, spe- cify in the order list.
  • For LP type pump, the content of suspended substan- ces in the medium shall be less than 150 mg/L; for LPT type pump, the max. Diameter of solid particles in the medium shall be less than 2 mm and the content less than 2 g/L.
      • Application:
  • LP Type Long-axis Vertical Discharge Pump is mainly used for pumping sewage or waste water which are non corrosive, at the temperature lower than 60℃ and of which suspended substances are free of fibers or abrasive particles, content is less than 150mg/L
  • On the basis of LP Type Long-axis Vertical Discharge Pump 。 LPT type is additionally fitted with muff armor tubing with lubricant inside, serving for pumping of sewage or was- te water, which are at the temperature lower than 60℃ and contain certain solid particles, such as scrap iron, fine sand, coal powder, etc.
  • LP(T) Type Long-axis Vertical Discharge Pump is of wide applicability in the fields of public work, steel and iron met- allurgy, chemistry, paper-making, tapping water service, power station and irrigation and water conservancy, etc.
Items Pump type
Outlet diameter
Capacity
 Head Speed
Efficiency
 Motor power
mm m3/h M r/min %  kw
1 50LP(T)-10 50 15 10 2840 50 1.5
2 50LP(T)2-20 20 2870 50 3
3 50LP(T)3-30 30 2890 50 4
4 50LP(T)4-40 40 2890 50 5.5
5 50LP(T)5-50 50 2890 50 7.5
6 50LP(T)6-60 60 2900 50 11
7 50LP(T)7-70 70 2900 50 11
8 50LP(T)8-80 80 2930 50 11
9 50LP(T)9-90 90 2930 50 15
10 50LP(T)10-100 100 2930 50 15
11 65LP(T)-10 65 30 10 2840 55 2.2
12 65LP(T)2-20 20 2890 55 4
13 65LP(T)3-30 30 2890 55 7.5
14 65LP(T)4-40 40 2890 55 11
15 65LP(T)5-50 50 2890 55 11
16 65LP(T)6-60 60 2900 55 15
17 65LP(T)7-70 70 2900 55 15
18 65LP(T)8-80 80 2930 55 18.5
19 65LP(T)9-90 90 2930 55 18.5
20 65LP(T)10-100 100 2930 55 22
21 80LP(T)-15 80 50 15 2900 60 5.5
22 80LP(T)2-30 30 2900 60 11
23 80LP(T)3-45 45 2900 60 15
24 80LP(T)4-60 60 2930 60 22
25 80LP(T)5-75 75 2930 60 30
26 80LP(T)6-90 90 2950 60 30
27 80LP(T)7-105 105 2950 60 37
28 100LP(T)-15 100 80 15 2900 65 7.5
29 100LP(T)-30 30 2930 65 15
30 100LP(T)2-60 60 2930 65 30
31 100LP(T)3-90 90 2950 65 45
32 100LP(T)4-120 120 2950 65 55
33 150LP(T)-20 150 150 20 1460 73 15
34 150LP(T)2-30 30 1470 72 22
35 150LP(T)2-40 40 1470 73 30
36 150LP(T)3-60 60 1480 72 45
37 150LP(T)4-80 80 1480 72 55
38 150LP(T)5-100 100 1490 72 75
39 150LP(T)6-120 120 1490 72 90
40 200LP(T)-15 200 300 15 1470 75 22
41 200LP(T)-20 20 1470 75 30
42 200LP(T)2-30 30 1480 75 45
43 200LP(T)2-40 40 1480 75 55
44 200LP(T)3-65 65 1490 74 90
45 200LP(T)4-90 90 1490 73 110
46 250LP(T)-20 250 450 20 1480 76 45
47 250LP(T)2-30 450 30 1480 74 75
48 250LP(T)2-40 450 40 1480 76 90
49 250LP(T)2-50 450 50 1490 76 110
50 250LP(T)3-60 450 60 1490 75 132
51 250LP(T)3-75 450 75 1490 75 160
52 250LP(T)4-95 450 95 1490 74 200
53 300LP(T)-6 300 700 6 970 72 22
54 300LP(T)-8 700 8 980 72 30
55 300LP(T)-10 700 10 980 74 37
56 300LP(T)-15 650 15 1480 75 45
57 300LP(T)-20 650 20 1480 77 55
58 300LP(T)2-30 650 30 1490 76 90
59 300LP(T)2-40 650 40 1490 76 110
60 300LP(T)3-60 650 60 1490 75 185
61 300LP(T)4-80 650 80 1490 75 220
62 350LP(T)-4 350 1000 4 1470 74 22
63 350LP(T)-6 1000 6 1470 75 30
64 350LP(T)-8 1000 8 1470 75 37
65 350LP(T)-10 1000 10 1470 76 45
66 350LP(T)-15 900 15 1480 77 75
67 350LP(T)-20 900 20 1490 78 90
68 350LP(T)2-30 900 30 1490 77 132
69 350LP(T)2-40 900 40 1490 78 160
70 350LP(T)3-60 900 60 1490 77 250
71 350LP(T)4-80 900 80 1490 77 315
72 400LP(T)-4 400 1500 4 1470 75 30
73 400LP(T)-6 1500 6 1470 77 45
74 400LP(T)-8 1500 8 1470 80 55
75 400LP(T)-10 1500 10 1470 80 75
76 400LP(T)-13 1500 13 1470 78 90
77 400LP(T)-16 1500 16 1480 78 110
78 400LP(T)-20 1250 20 1490 80 110
79 400LP(T)-25 1250 25 1490 80 132
80 400LP(T)-30 1250 30 1490 80 160
81 400LP(T)-35 1500 35 980 80 220
82 400LP(T)2-40 1250 40 1490 80 200
83 400LP(T)2-50 1250 50 1490 80 280
84 400LP(T)2-60 1250 60 1490 80 315
85 500LP(T)-4 500 2200 4 980 82 37
86 500LP(T)-6 2200 6 980 81 55
87 500LP(T)-8 2300 8 980 81 75
88 500LP(T)-10 2200 10 980 82 90
89 500LP(T)-12 2200 12 980 84 110
90 500LP(T)-15 2200 15 980 85 132
91 500LP(T)-20 500 2300 20 980 83 200
92 500LP(T)-25 2200 25 980 84 220
93 500LP(T)-30 2200 30 980 83 280
94 500LP(T)-35 2200 35 980 83 315
95 500LP(T)-40 2200 40 980 83 355
96 600LP(T)-4 600 3000 4 730 84 45
97 600LP(T)-6 3000 6 730 83 75
98 600LP(T)-8 3000 8 730 85 110
99 600LP(T)-10 3000 10 730 83 132
100 600LP(T)-12 3400 12 980 85 160
101 600LP(T)-15 3000 15 980 85 185
102 600LP(T)-20 3000 20 980 85 250
103 600LP(T)-25 3000 25 980 85 315
104 600LP(T)-30 4000 30 1480 84 500
105 600LP(T)-35 4000 35 1480 84 560
106 600LP(T)-40 3200 40 1480 83 560
107 600LPTC-15 3200 15 980 83 200
108 600LPTC-15-X 3200 15 980 83 200
109 600LPTC-20 3000 20 980 83 250
110 600LPTC-20-X 3000 20 980 83 250
111 700LP(T)-4 700 4500 4 730 83.5 75
112 700LP(T)-6 4500 6 730 84.5 110
113 700LP(T)-8 4500 8 730 82.5 160
114 700LP(T)-10 4500 10 730 83.5 185
115 700LP(T)-12 4500 12 730 83.5 220
116 700LP(T)-15 4500 15 980 85.5 280
117 700LP(T)-20 4500 20 980 86.5 355
118 700LP(T)-25 4500 25 980 85 450
119 700LP(T)-30 4500 30 980 85 560
120 700LPTC-15 4500 15 980 84 280
121 700LPTC-15-X 4500 15 980 84 280
122 700LPTC-20 4500 20 980 85.5 355
123 700LPTC-20-X 4500 20 980 85.5 355
124 800LP(T)-4 800 6400 4 585 85.1 110
125 800LP(T)-6 6000 6 585 84.8 160
126 800LP(T)-8 6500 8 585 84.5 220
127 800LP(T)-10 6400 10 590 83.5 250
128 800LP(T)-12 6200 12 590 84.3 315
129 800LP(T)-15 7000 15 590 84.5 450
130 800LP(T)-20 6200 20 730 86.5 500
131 800LP(T)-25 6200 25 730 85 600
132 800LP(T)-7-X 6000 7 590 85 185
133 800LP(T)-13.4-X 6700 13.4 590 84.8 355
134 800LP(T)-17-X 800 6000 17 590 84.5 400
135 800LPTC-15 7000 15 590 84 450
136 800LPTC-15-X 7000 15 590 84 450
137 800LPTC-20 6200 20 730 85.5 500
138 800LPTC-20-X 6200 20 730 85.5 500
139 900LP(T)-4 900 8500 4 485 85.1 160
140 900LP(T)-6 8500 6 485 85.3 200
141 900LP(T)-8 8000 8 490 84.5 280
142 900LP(T)-10 8000 10 590 84.9 315
143 900LP(T)-14 8000 14 590 85.3 450
144 900LP(T)-16 8000 16 590 85.2 500
145 900LP(T)-20 8000 20 590 86.4 630
146 900LP(T)-25 8000 25 590 85 800
147 900LP(T)-7-X 8000 7 490 85.1 250
148 900LP(T)-12.6-X 9000 12.6 590 87 450
149 900LP(T)-17-X 8000 17 590 85.5 560
150 900LPTC-15 8000 15 590 84.5 500
151 900LPTC-15-X 8000 15 590 84.5 500
152 900LPTC-20 8000 20 590 85.5 630
153 900LPTC-20-X 8000 20 590 85.5 630
154 1000LP(T)-4 1000 9500 4 485 87 185
155 1000LP(T)-7 10500 7 485 87.1 315
156 1000LP(T)-9 10000 9 490 84.5 355
157 1000LP(T)-10 10000 10 490 85.2 400
158 1000LP(T)-13 10000 13 490 85.3 500
159 1000LP(T)-16 10000 16 490 85.6 630
160 1000LP(T)-18 10000 18 490 85.8 710
161 1000LP(T)-20 10000 20 490 86.4 800
162 1000LP(T)-7-X 10500 7 485 87.1 315
163 1000LP(T)-13-X 10000 13 490 85.3 500
164 1000LP(T)-17-X 10000 17 490 85.5 710
165 1000LPTC-15 9000 15 490 84.5 560
166 1000LPTC-15-X 9000 15 490 84.5 560
167 1000LPTC-20 9000 20 590 86 710
168 1000LPTC-20-X 9000 20 590 86 710
169 1200LP(T)-4 1200 13500 4 490 84.2 250
170 1200LP(T)-6 15000 6 490 87.4 355
171 1200LP(T)-9 14500 9 490 84.5 560
172 1200LP(T)-12 14500 12 490 85.2 710
173 1200LP(T)-14 14000 14 490 85.3 800
174 1200LP(T)-16 13000 16 490 86.6 800
175 1200LP(T)-18 15000 18 495 85.8 1000
176 1200LP(T)-20 16000 20 495 86.4 1250
177 1200LP(T)-24 1200 14000 24 495 87 1250
178 1200LP(T)-8-X 14400 8 490 85.4 450
179 1200LP(T)-10-X 14000 10 490 85.3 560
180 1200LP(T)-17-X 14000 17 490 86.5 900
181 1200LPTC-15 10000 15 490 84.5 630
182 1200LPTC-15-X 10000 15 490 84.5 630
183 1200LPTC-19 6732 19 590 88 500
184 1200LPTC-19-X 6732 19 590 88 500
185 1400LPTC-9 1400 10656 10.6 370 83 500
12816 8.5 87
15228 5.8 82
186 1400LPTCB-10( -40  ) 1400 7596 10.6 370 85.6 315
8856 8.6 88.7
9612 6.8 85.6
187 1400LPTCB-10( -20  ) 1400 8172 11.4 370 85.6 350
9792 9.2 88.8
10800 7.2 85.6
188 1400LPTCB-10( 00 ) 1400 8820 12.2 370 85.6 400
10620 10 89.1
11880 7.7 85.6
189 1400LPTCB-10( +20  ) 1400 9432 12.8 370 85.6 450
11412 10.7 89.6
12744 8.3 85.6
190 1400LPTCB-10( +4 0) 1400 10260 13.4 370 85.6 500
12240 11.3 89.2
13500 9.3 85.6
191 1400LPTCQ-10 1400 8856 8.5 370 88.7 500
9792 9.2 88.8
10620 10 89.1
11412 10.7 89.6
12240 11.3 89.2
192 1400LP(T)-14 1400 15300 18.7 370 84.5 1000
18000 14.2 89
21096 8.9 79
193 1400LP(T)-60 1400 12600 66 495 82 3600
16200 60 86
19800 49.5 82
194 1400LP(T)-60A 1400 11700 57.5 495 80 3150
15300 51.7 85
18000 44.5 82
195 1400LP(T)-60B 1400 12600 47.5 495 81 2500
14400 44.5 83
16200 40 81
196 1400LP(T)-10 1400 18000 12.7 370 83 900
23400 9.7 88.4
27720 3.5 79
197 1500LPTC-26-X 1500 13680 29.2 495 82 1600
16128 26.3 88.5
19080 20 86
198 1500LPTC-26A-X 1500 13428 25 495 85 1250
16200 21 88
18612 15.5 81.5
199 1500LPTC-26B-X 1500 12960 22.4 495 82 1250
15480 19.8 87
17280 15.8 83
201 1600LPTC-6-X 1600 18000 9.4 495 86 630
20700 6.8 87.5
22500 5 83
202 1600LPTCQ-8 1600 13320 6 333 86 600
14400 7 87
15300 8.1 88
16200 8.85 88
17640 8.9 87
203 1600LPTCQ-10-X 1600 15552 8.38 370 86.5 900
18252 9.55 88.4
23328 9.35 87
204 1600LPTC-11( -40  ) 1600 15480 11.9 370 82.5 800
17640 9.5 85.5
19400 7.1 83.5
205 1600LPTC-11( -20  ) 1600 16560 12.9 370 83 800
19800 9.9 87.3
21600 7.7 83
206 1600LPTC-11(00) 1600 18000 13.8 370 81.7 1000
21600 10.9 88.7
24480 7.5 83
207 1600LPTC-11(+20) 1600 19440 14.6 370 83 1000
22896 12 88.7
26280 8.1 83
208 1600LPTC-11(+40) 1600 21960 14.1 370 83.4 1250
24480 12.3 87.7
27360 9.35 83
209 1600LPTC-14 1600 11200 15.7 370 86.5 600
12024 14.6 88.8
12600 13 85.2
210 1600LP(T)-7 1600 20304 8.79 295 87.8 630
22680 7.18 88.8
25560 4.15 82.3
211 1600LP(T)-12 1600 18252 16 333 87 1000
22680 11.6 88.6
23400 10.3 87
212 1600LP(T)-13.5 1600 18540 17.2 333 85.5 1250
22680 13.5 88
24696 10.8 87
213 1600LP(T)-14.6 1600 18000 19.4 375 85.5 1250
22680 14.65 88.8
24120 11.84 83
214 1600LP(T)-20 1600 19080 22 375 84 1600
22680 19.57 89
26280 15.2 87
215 1600LP(T)B-16( -60  ) 1600 16920 14.1 330 81.8 1000
18360 12.8 83
20880 8.9 80.3
216 1600LP(T)B-16( -40  ) 1600 18360 16 330 83.4 1250
20880 13.8 85.3
23400 10.3 83.4
217 1600LP(T)B-16( -20  ) 1600 20160 17.3 330 82.4 1600
23400 14.5 85.3
24840 12.9 84.7
218 1600LP(T)B-16( 00  ) 1600 22320 17.9 330 83.5 1600
24480 16.1 85.7
27360 13.5 85.3
219 1600LP(T)B-16( +20  ) 1600 25200 19.4 330 85 2000  
$fl 1000
27000 18 86
28800 16.4 85
18000 11 246 84
19800 10.2 86
21600 9 85
220 1600LP(T)B-16( +40  ) 1600 27360 19.1 330 86.1 2000
29880 17.2 86.9
31680 15.4 86.1
221 1600LP(T)-19 1600 26100 21 330 82 2000  
$fl 1000
30600 18.75 86
33300 15.4 83
19800 11.6 246 82
22500 10.5 86
24300 9.1 83
222 1600LP(T)B-15.5( -40  ) 1600 21600 18.3 295 82 1600
28800 13.8 88
33300 8.8 80
223 1600LP(T)B-15.5( -20  ) 1600 36576 9.2 295 81.7 2000
31176 14.6 88
25236 18.2 81.7
224 1600LP(T)B-15.5( 00  ) 1600 37476 10.6 295 83 2000
33948 15.8 87
29628 18.6 85
225 1600LP(T)B-15.5(+20  ) 1600 41796 11 295 78.8 2500
36000 17.6 87
31356 20.2 85
226 1600LP(T)B-15.5(+40  ) 1600 42696 13.2 295 83 2500
38340 18.4 86.8
34848 20.2 85
227 1600LPTC-40 1600 12600 46.4 585 84.1 2500
15300 41.9 86.9
16200 40 86.8
228 1800LPTCQ-16 1800 18000 13.6 370 86 1600
19800 14.8 87
21600 16 88
23400 17 88
25200 18.3 88
229 1800LPTC-17 1800 18000 19.2 370 85 1250
20340 17.3 88
23760 12.7 81
230 1800LPTC-21 1800 17460 23 370 80 1600
21672 21 89
28728 13 80
231 1800LPTC-24-X 1800 19944 27.8 425 84.2 2000
23760 24 87.8
27072 19.5 84.3
232 1800LPTC-26-X 1800 21600 28.6 495 86.3 2500
23760 26.1 87.5
25920 22.2 84.3
233 1800LPTC-28.5-X 1800 18000 31.3 370 84.2 2500
21600 28.5 87
26100 23.2 81
234 1800LP(T)-34 1800 23400 37.4 370 85.1 3600
28800 33.8 88
34200 27.2 81.9
235 1800LP(T)-34A 1800 21024 32.6 370 85 3200
27252 29 88
31788 24.5 82
