ZTM API 610 BB4

Vacuum Pump

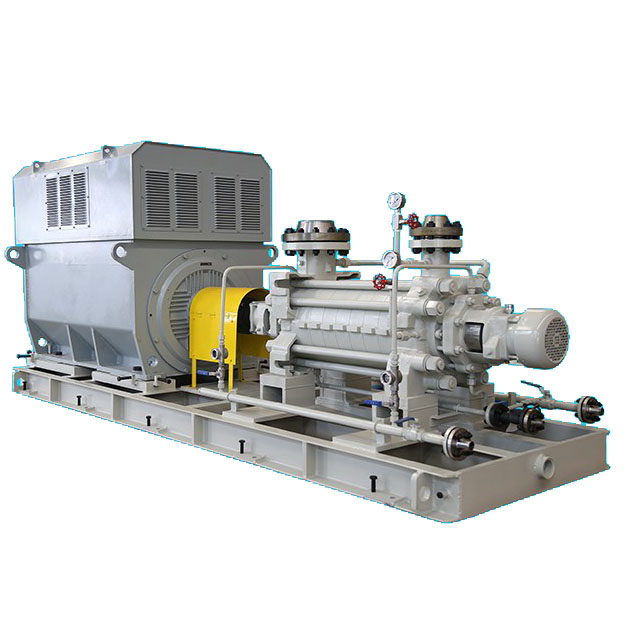

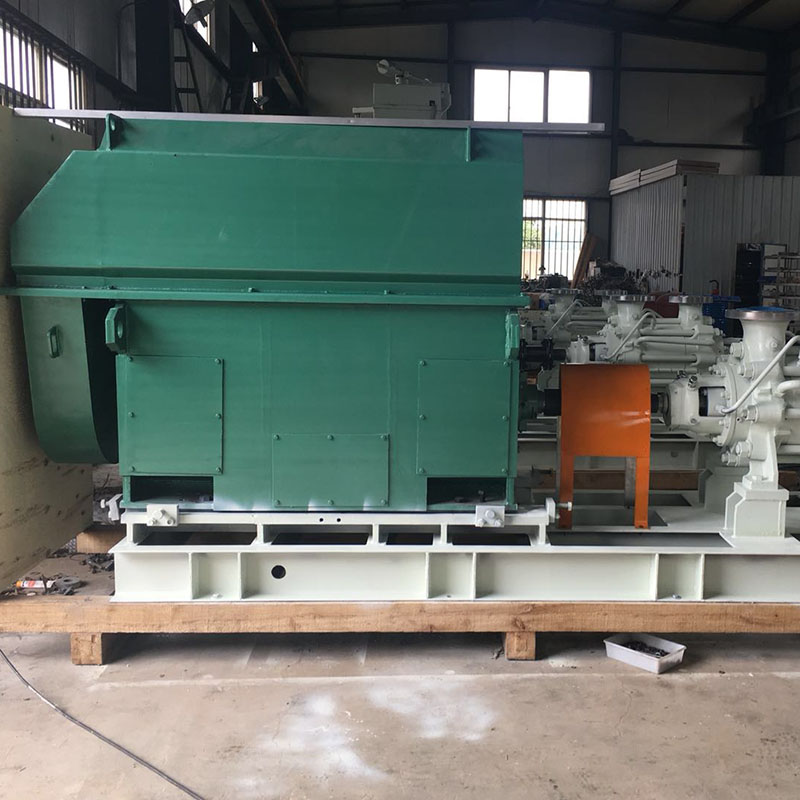

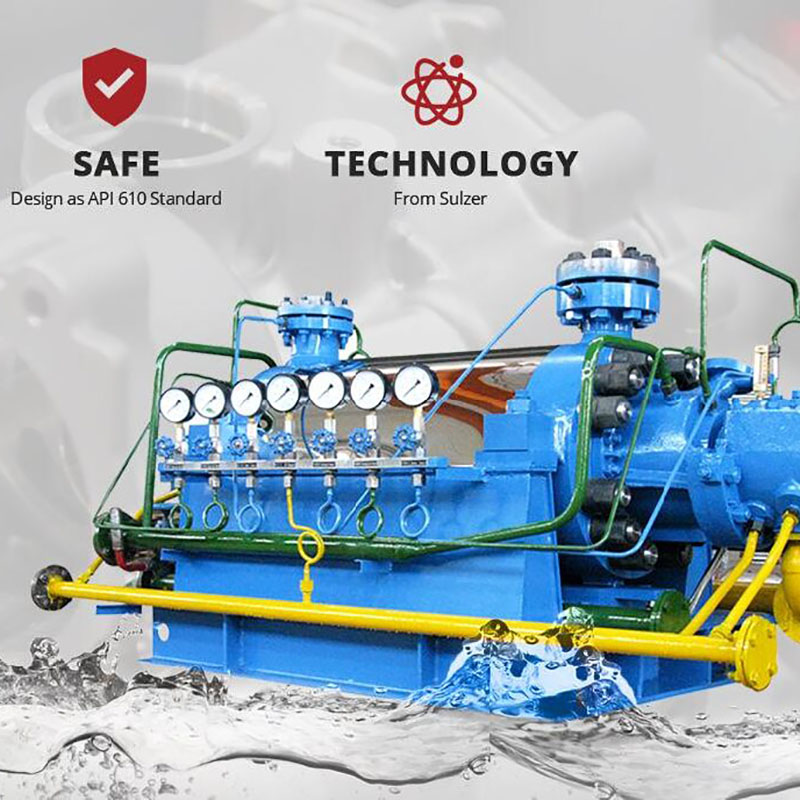

    Overview:
  • We has been engineered to be the most reliable and efficient pumping solution for the most demanding high-pressure and high-temperature applications across industries. The ZTM pump features a robust, yet compact, design, together with high efficiency hydraulics. It's design provides superior performance and expectional reliability combined with ease of maintenance and minimal operating costs. The ZTM line is available in non-API builds for the requirements of power plants and general industry specifications, and as API 610 11th edition (BB4 type) compliant for oil and gas applications. It is designed to meet group II, category 2 G and 3 (for use in zone 1 and 2) of the ATEX 94/9/C directive.
      • FEATURES AND BENEFITS:
      API 610 compliant design (BB4 type) and heavy-duty industrial configurations available
  • Thrust balancing by balance disk or balance drum available
  • A and B series stage hydraulics available to match different head/flow requirements with maximum efficiency
  • Low NPSH (type IS) first stage impeller designs
  • Alternate series hydraulic (type IM) optimized for interstage take-off
  • Cold start possible for most applications (no warmup needed)
  • Multiple bearing configuration options
  • Optimized inter stage hydraulics (type IM) for inter stage takeoff
  • Standard materials of construction per API 610 (other materials on request)
  • Centerline mounted casing provides optimum performance in high temperature services
  • “Blind” stages for future upgrades available
  • Single and double mechanical seals available

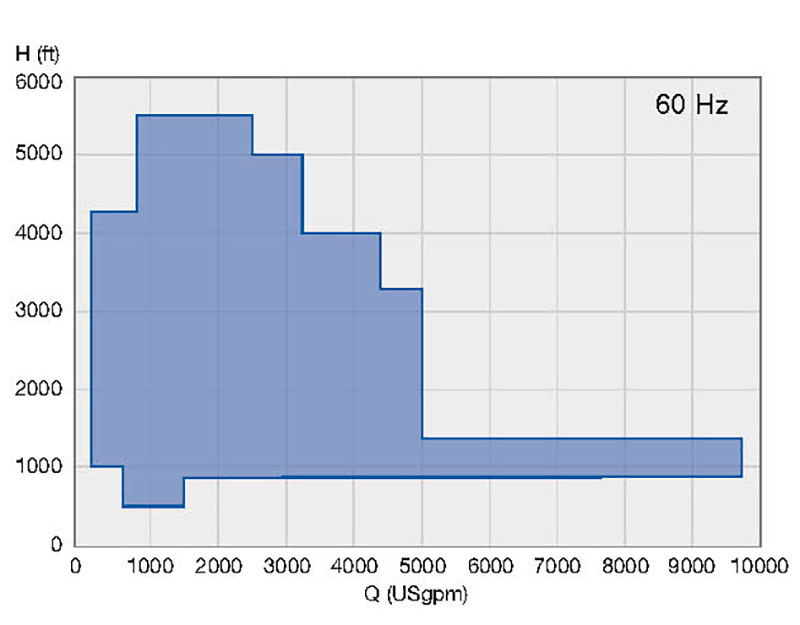

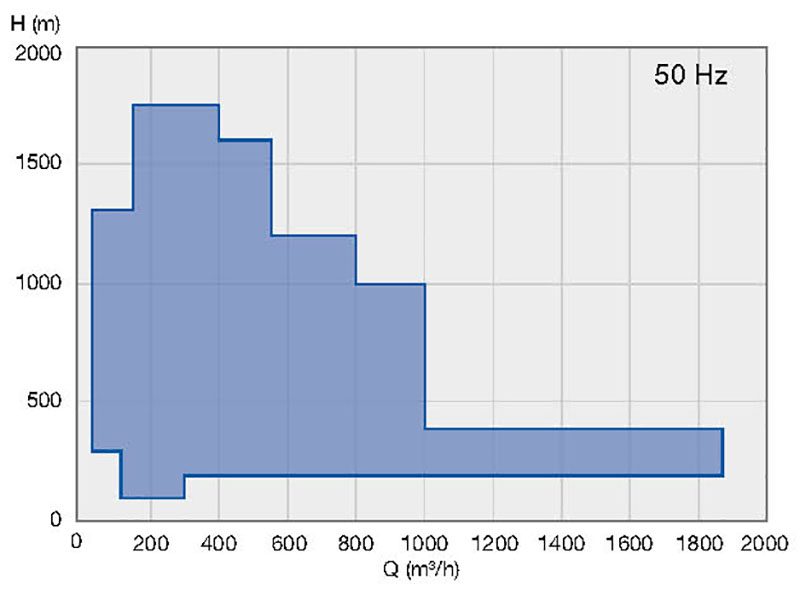

    • Items Model Stage Capacity(M3/H) Head distance(M) Motor(KW) Speed(rpm)
    1 ZTM6-25 2 6.3 50 3 2950
    2 3 75 5.5
    3 4 100 7.5
    4 5 125 7.5
    5 6 150 11
    6 7 175 11
    7 8 200 15
    8 9 225 15
    9 10 250 18.5
    10 11 275 18.5
    11 12 300 18.5
    12 ZTM12-25 2 12.5 50 5.5
    13 3 75 7.5
    14 4 100 11
    15 5 125 11
    16 6 150 15
    17 7 175 15
    18 8 200 18.5
    19 9 225 18.5
    20 10 250 22
    21 11 275 22
    22 12 300 30
    23 ZTM12-50 2 100 11
    24 3 150 18.5
    25 4 200 22
    26 5 250 30
    27 6 300 30
    28 7 350 37
    29 8 400 45
    30 9 450 45
    31 10 500 55
    32 11 550 55
    33 12 600 75
    34 ZTM25-30 2 25 60 11
    35 3 90 15
    36 4 120 18.5
    37 5 150 22
    38 6 180 30
    39 7 210 30
    40 8 240 37
    41 9 270 37
    42 10 300 45
    43 ZTM25-50 2 25 100 18.5 2950
    44 3 150 22
    45 4 200 30
    46 5 250 37
    47 6 300 45
    48 7 350 55
    49 8 400 75
    50 9 450 75
    51 10 500 75
    52 11 550 90
    53 12 600 110
    54 ZTM46-30 2 46 60 15
    55 3 90 22
    56 4 120 30
    57 5 150 37
    58 6 180 37
    59 7 210 45
    60 8 240 55
    61 9 270 55
    62 10 300 75
    63 ZTM46-50 2 46 100 30
    64 3 150 37
    65 4 200 45
    66 5 250 55
    67 6 300 75
    68 7 350 90
    69 8 400 90
    70 9 450 110
    71 10 500 132
    72 11 550 132
    73 12 600 160
    74 ZTM85-45 2 85 90 37
    75 3 135 55
    76 4 180 75
    77 4 180 75
    78 5 225 90
    79 5 225 90
    80 6 270 110
    81 7 315 132
    82 8 360 132
    83 9 405 160
    84 ZTM85-67 2 85 134 75 2950
    85 3 201 90
    86 4 280 110
    87 5 335 132
    88 6 402 160
    89 7 469 185
    90 8 536 220
    91 9 603 250
    92 ZTM120-50 2 120 100 55
    93 3 150 90
    94 4 200 110
    95 5 250 132
    96 6 300 160
    97 7 350 200
    98 8 400 200
    99 9 450 220
    100 ZTM155-30 2 155 60 45 1480
    101 2 60 45
    102 3 90 75
    103 3 90 75
    104 4 120 90
    105 4 120 90
    106 5 150 110
    107 5 150 110
    108 6 180 132
    109 6 180 132
    110 7 210 160
    111 7 210 160
    112 8 240 200
    113 9 270 200
    114 10 300 220
    115 ZTM155-67 2 134 90 2950
    116 3 201 132
    117 4 268 185
    118 5 335 220
    119 6 402 280
    120 7 469 315
    121 8 536 355
    122 9 603 450
    123 ZTM280-43 2 280 86 110 1480
    124 3 129 160
    125 4 172 200
    126 5 215 250
    127 6 258 315
    128 7 301 355
    129 8 344 450
    130 9 387 480
    131 ZTM280-65 3 280 195 280 1480
    132 4 260 355
    133 5 325 450
    134 6 390 500
    135 7 455 630
    136 8 520 710
    137 9 585 800
    138 10 650 900
    139 ZTM360-40 2 360 80 132
    140 3 120 185
    141 4 160 250
    142 5 200 315
    143 6 240 400
    144 7 280 450
    145 8 320 500
    146 9 360 560
    147 10 400 630
    148 ZTM450-60 2 450 120 250
    149 3 180 355
    150 4 240 500
    151 5 300 630
    152 6 360 710
    153 7 420 800
    154 8 480 900
    155 9 540 1000
    156 10 600 1120
    157 ZTM550-50 2 550 100 250
    158 3 150 355
    159 4 200 450
    160 5 250 630
    161 6 300 710
    162 7 350 800
    163 8 400 900
    164 9 450 1000
