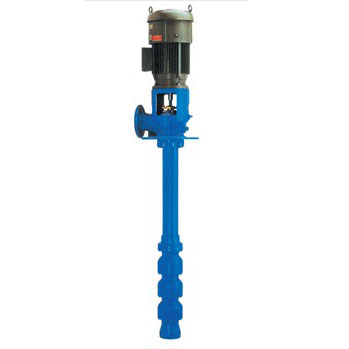

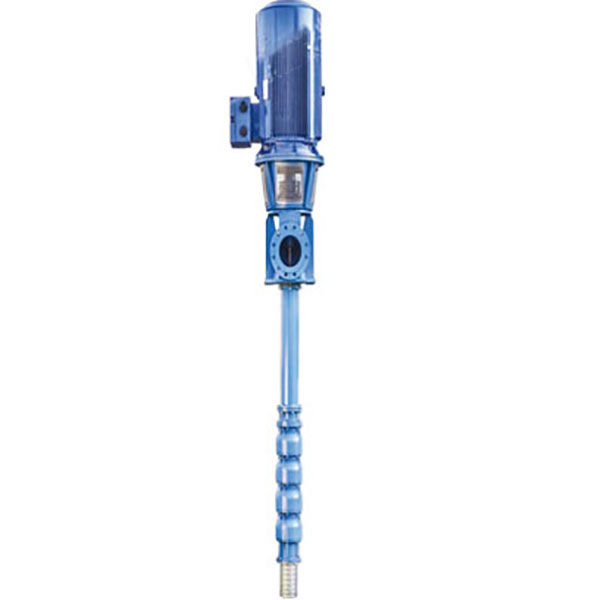

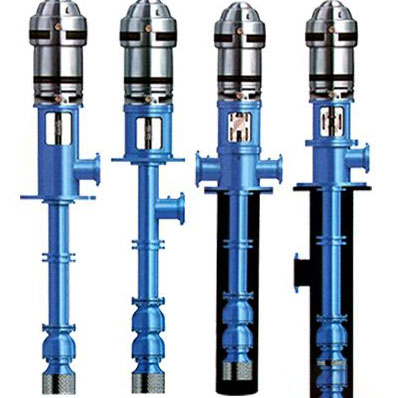

PVT Long shaft Deepwell Pump

Vacuum Pump
    Introduction:
  • Adjust the nut: Regulate a bunch of quantity of axial of impeller.
  • The seat of pump: Bear the heavy load
  • Moisten silks to stop up in advance: Before starting
  • Enter water flange: It is in charge of linking the whorl tube or the flange.
  • It is in charge of having it short: Can fasten and enter into water flange directly.
  • Upper shell bearing: Copper bearing.
  • Produce water shell whorl and flange link two kinds of patterns. The material is: HT 200.
  • The axle of the inspeller: 2Cr13 stainless steel or 45# high quality carbon steel(plate the chromium on the surface).
  • The cooperation shell: Flow smooth one
  • The impeller: With in design at the cooperations of shells
  • The cooperation shell bearing: Copper bearing or the wear-resisting rubber bearing. The work is reliable
  • Awl set: Fix the impeller on the axle of the impeller reliably. The material is: The carbon steel of 35#.
  • Sand controling: Protect the lower shell bearing
  • Lower shell bearing: Copper bearing
  • Lower shell: Will strain the liquid in the water pipe to guide into the impeller evenly with the minimum loss. The material is: HT200.
    • Model Stage Capacity(m3/h) Head(m) Power String quantity Speed Eff. Max diameter
    Rated Range Rated Range kW mm r/min % mm
    100PVT10-4× 8 10 6.5-12 32 25-35 5.5 8 2940 62 92
    10 40 32-44 5.5
    12 48 38-53 5.5
    14 52 44-62 5.5
    16 64 51-70 5.5
    18 72 57-79 5.5
    20 80 64-88 5.5
    22 88 70-97 5.5
    24 96 76-106 5.5
    26 104 83-115 5.5
    150PVT10-9× 8 10 8-16 72 54-75 5.5 12 2940 62 138
    9 81 61-84 5.5
    10 90 67-93 5.5
    11 99 61-102 7.5
    12 108 81-112 7.5
    13 117 87-121 7.5
    14 126 94-130 7.5
    15 135 101-140 11
    16 144 108-149 11
    17 153 114-158 11
    18 162 121-167 11
    19 171 128-176 11
    150PVT20-11× 4 20 15-24 44 39-48 5.5 12 2940 67 150
    5 55 49-60 5.5
    6 66 59-72 7.5
    7 77 69-84 7.5
    8 88 78-96 11
    10 110 98-120 11
    12 121 118-144 15
    14 154 134-168 15
    150PVT30-12.5× 5 30 21-36 62.5 51-69 11 8 2940 70 150
    6 75 61-83 11
    7 87.5 71-96 15
    8 100 82-110 15
    9 112.5 92-124 15
    10 125 102-138 18.5
    11 137.5 112-152 18.5
    12 150 123-165 22
    13 162.5 133-180 22
    150PVT40-13.5× 4 40 30-46 54 50-62 11 8 2940 72 150
    5 67.5 62-77 15
    6 81 75-93 15
    7 94.5 87-108 18.5
    8 108 100-124 18.5
    9 121.5 112-139 22
    10 135 125-155 30
    11 148.5 137-170 30
    12 162 150-186 30
    150PVT50-13× 4 50 30-55 52 46-66 11 8 2940 74 150
    5 65 57-82 15
    6 78 69-99 18.5
    7 91 80-115 22
    8 104 92-132 22
    9 117 103-148 30
    225PVT60-20× 2 60 40-76 40 30-44 11 9 2940 75 181
    3 60 45-66 18.5
    4 80 60-88 22
    5 100 75-110 30
    6 120 90-132 37
    7 140 105-154 37
    225PVT80-22.5× 2 80 60-100 45 38-49 15 9 2940 75 181
    3 67.5 57-73.5 22
    4 90 76-98 30
    5 112.5 95-122 37
    225PVT90-20× 2 90 67-119 40 28-45 15 10 2940 75 190
    3 60 43-68 22
    4 80 57-91 30
    5 100 72-114 37
      1 125 89-142 18 15-22 11 10 2940 76 190
    225PVT125-18× 2 36 30-43 18.5
      3 54 45-65 30
      4 72 60-86 37
    250PVT130-8.5× 5 130 89-150 42.5 35-49 22 10 1460 78 242
    6 51 42-59 30
    7 59.5 49-69 37
    8 68 56-79 37
    9 76.5 63-89 45
    10 85 70-99 45
    11 93.5 77-109 55
    12 102 84-119 55
    300PVT160-11.5× 3 160 125-200 34.5 28.5-39 22 14 1460 80 295
    4 46 38-52 30
    5 57.5 47.5-65 37
    6 69 57-78 45
    7 80.5 66.5-91 55
    8 92 76-104 75
    9 103.5 85.5-117 75
    10 115 95-130 75
    11 126.5 104.5-143 90
    12 138 114-156 90
    300PVT185-12× 2 185 130-235 24 18.9-27 18.5 14 1460 80 295
    3 36 28.4-40 30
    4 48 37.8-54 37
    5 60 47.2-67 45
    6 72 56.7-81 55
    7 84 66-94 75
    8 96 75.6-108 75
    9 108 85-121 90
    10 120 94.5-135 90
    300PVT220-13.5× 2 220 154-264 27 22-29 22 12 1460 80 295
    3 40.5 34-44 37
    4 54 45-59 45
    5 67.5 57-74 55
    6 81 68-89 75
    7 94.5 79-104 90
    8 108 91-119 90
    350PVT300-15× 2 300 230-370 30 23-35 37 12 1460 80 346
    3 45 34.5-52.5 55
    4 60 46-70 75
    5 75 57.5-87.5 90
    6 90 69-105 110
    7 105 80.5-122.5 132
    350PVT370-16× 1 370 270-460 16 11.5-19 30 12 1460 80 346
    2 32 23-38 55
    3 48 34.5-57 75
    4 64 46-76 90
    5 80 57.5-95 110
    6 96 69-114 132
    350PVT400-18× 1 400 280-480 18 14-20.8 37 12 1460 80 346
    2 36 29-41 55
    3 54 43-62 90
    4 72 58-83 110
    5 90 73-104 132
    400PVT450-30× 1 450 290-540 30 25-35 55 22 1475 80 430
    2 60 50-70 110
    3 90 75-105 150
    4 120 100-140 200
    5 150 125-175 250
    400PVT550-27× 1 550 400-850 27 17.5-29 55 20 1475 81 430
    2 54 35-58 110
    3 81 52.5-87 180
    4 108 70-116 225
    5 135 87.5-145 280
    450PVT650-32× 1 650 520-850 32 22-35 90 20 1475 80 520
    2 64 44-70 180
    3 96 66-105 250
    4 128 88-140 350
    5 160 110-175 400
    450PVT900-30× 1 900 600-1100 30 24-34 110 20 1475 82 520
    2 60 48-68 225
    3 90 72-102 315
    4 120 96-136 400
    5 150 120-170 520
    500PVT1000-29× 1 1000 790-1300 29 21-33 110 20 1475 83 600
    2 58 42-66 225
    3 87 63-99 350
    4 116 84-132 450
    500PVT1250-30× 1 1250 800-1750 30 18.5-36 150 17 1475 84 600
    2 60 37-72 280
    3 90 55.5-108 400
    4 120 74-144 560
    500PVT2000-31× 1 2000 1500-2400 31 25-36 250 22 1475 80 670
