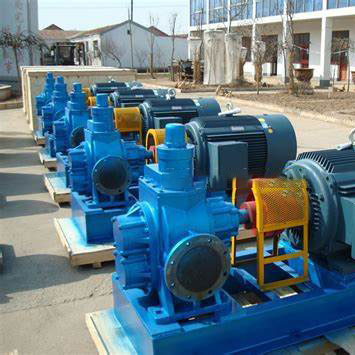

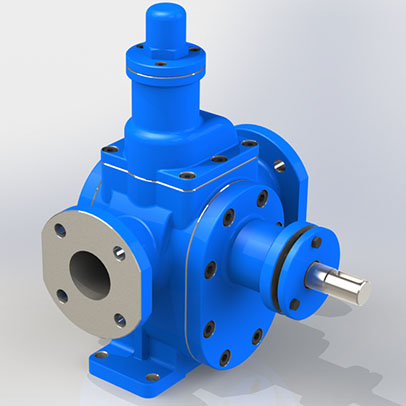

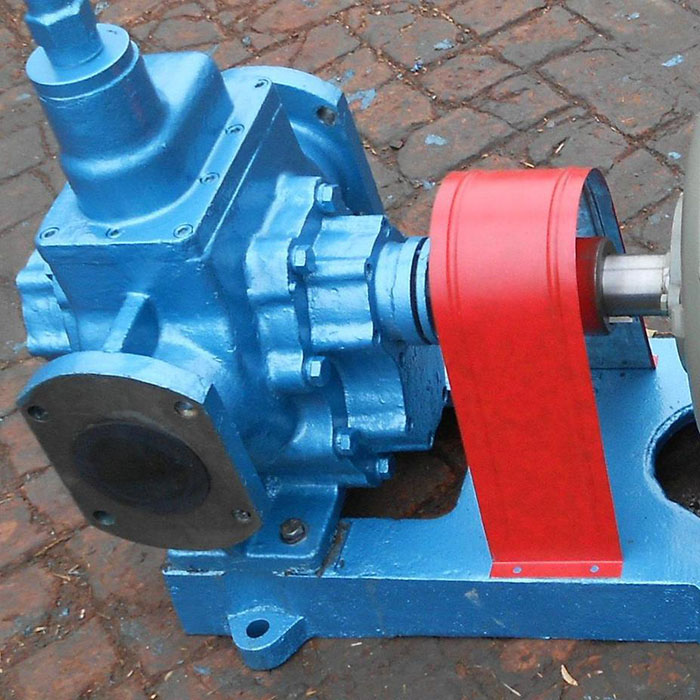

KCG high temperature Gear Pump

Vacuum Pump
    Overview:
  • This KCG series high temperature oil transfer pump is mainly used to transfer High temperature oil, Capacity from 1 to 300 m3/h with the transport medium temperature below 350c.
      • Performance Range:
  • Working Principle: Double Gears
  • Main applications:        Oil
  • Power Specs: 380/415V 3phase; 50hz/60hz
  • Max.permissible fluid temperature: 350°C(705°F)
  • Type of connection: Flange, Thread, Quick Coupled.
  • Installation position: Horizontal
  • Casing/Inner parts material: Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
  • Free passage: 00 mm
  • Maximum viscosity: 1.5X103C.S.T
  • Maximum drive rating:  30KW(40HP)
  • Maximum caliber:   100mm(4inch)
  • Maximum discharge-side pressure: 1MPa(10bar)
  • Flow rate range:   16-633L/min
    • Type Caliber Capacity Discharge pressure Vacuum Degree Temperature Motor Power
    mm L/min M3/h Mpa M oC Kw
    KCG-1/0.6 25 16.5 1 0.6 5 250 1.5
    KCG-1.5/0.6 25 25 1.5 0.6 5 250 1.5
    KCG-2/0.6 25 33.3 2 0.6 5 250 2.2
    KCG-3/0.6 25 55 3 0.6 5 250 2.2
    KCG-5/0.6 40 83 5 0.6 5 250 3
    KCG-6/0.6 40 100 6 0.6 5 250 3
    KCG-7.5/0.6 50 125 7.5 0.6 5 250 4
    KCG-10/0.6 50 165 10 0.6 5 250 5.5
    KCG-12/0.6 55 200 12 0.6 5 250 5.5
    KCG-15/0.6 55 250 15 0.6 5 250 5.5
    KCG-18/0.6 55 300 18 0.6 5 250 5.5
    KCG-38/0.6 100 633 38 0.6 5 250 15
    KCG-38/1.0 100 633 38 1 3 250 22
    KCG-58/0.6 100 633 58 0.6 5 250 18.5
    KCG-58/1.0 100 633 58 1 3 250 30
