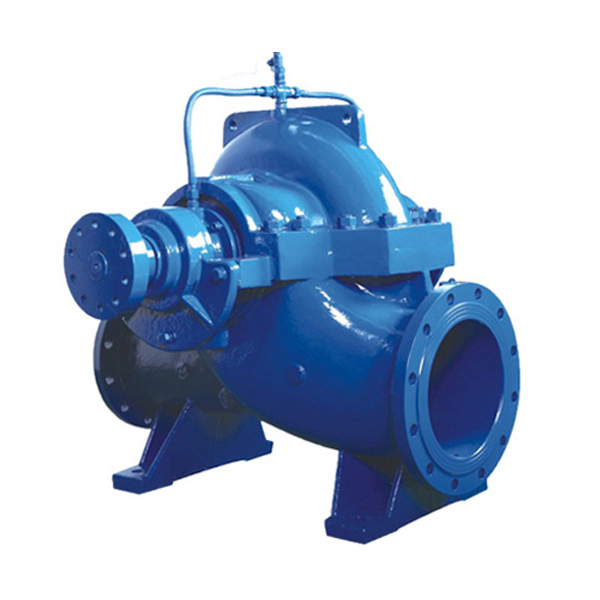

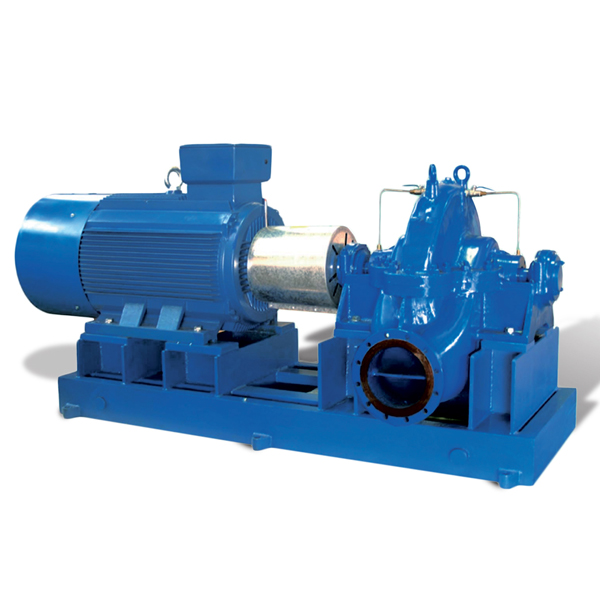

MS Split Case Pump

Hanthing Fluid Group

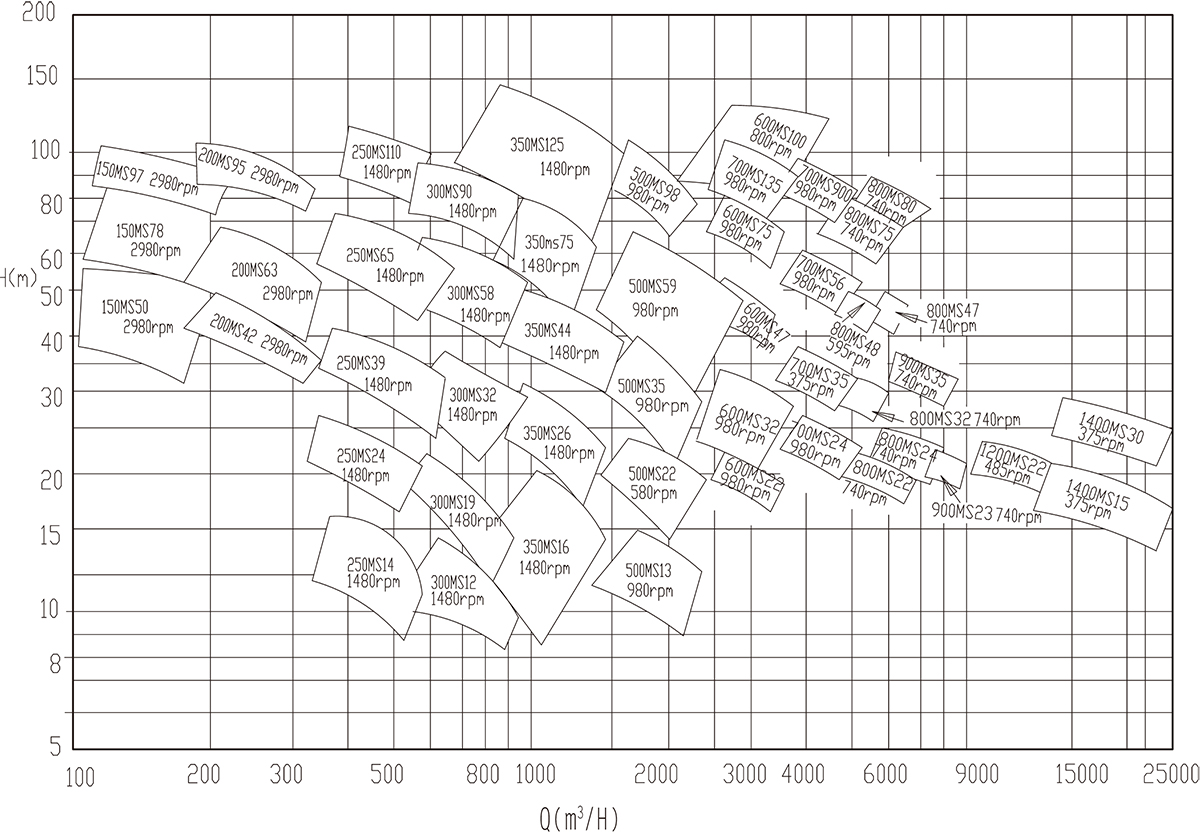

      Performance range:
  • Flow: 50 - 20,000 m3/h
  • Delivery Head: 7-220m
  • Outlet Dia.: DN80-DN1600
  • Working Pressure (Max): 5Mpa
  • Solid Particle (Max): 80mg/L
  • Liquid Temperature: 0 - 105 C
      • Application:

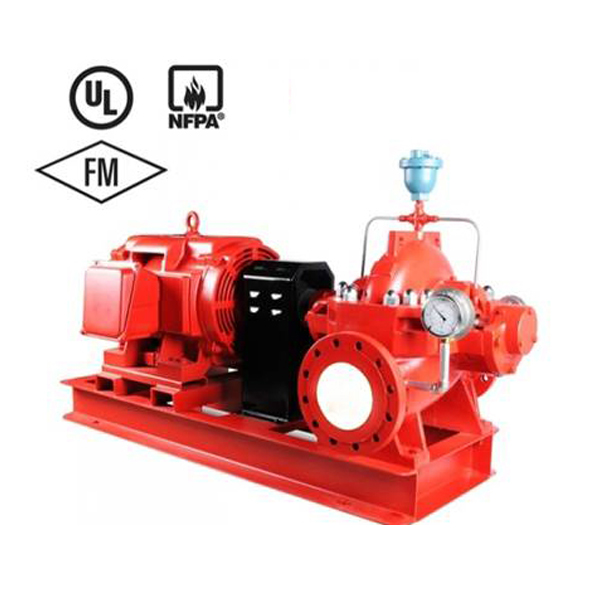

  • General industrial water supply and discharge, Irrigation & Drainage,flood disposal, Oil, gas & petrochemical liquid processing, Hot water transferring, raw water intaking, Sea water desalination & transferring, Power station water circulation, Factory & warehouse & residential fire fighting, Mining water supply & drainage, Water treatment.

Model Capacity(M3/H) Head(M) Power(KW) Speed(r.p.m)
150MS-50 (6SH-9)  160 50 37 2900
150MS-50A (6SH-9A)  144 40 30 2900
150MS-50B (6SH-9B)  133 36 22 2900
150MS-78 (6SH-6)  160 78 55 2900
150MS-78A (6SH-6A)  144 62 45 2900
200MS-42 (8SH-13)  280 42 45 2900
200MS-42A (8SH-13A)  270 36 37 2900
200MS-63 (8SH-9)  280 63 75 2900
200MS-63A (8SH-9A)  270 46 55 2900
200MS-63B (8SH-9B)  239 44 45 2900
200MS-95 (8SH-6)  280 95 132 2900
200MS-95A (8SH-6A)  270 85 110 2900
200MS-95B (8SH-6B)  260 75 90 2900
250MS-14 (10SH-19)  485 14 30 1450
250MS-14A (10SH-19A)  432 11 18.5 1450
250MS-24 (10SH-13)  485 24 45 1450
250MS-24A (10SH-13A)  414 20 37 1450
250MS-39 (10SH-9)  485 39 75 1450
250MS-39A (10SH-9A)  468 30 55 1450
250MS-65 (10SH-6)  485 65 132 1450
250MS-65A (10SH-6A)  420 48 90 1450
300MS-12 (12SH-28)  790 12 37 1450
300MS-12A (12SH-28A)  720 10 30 1450
300MS-19 (12SH-19)  790 19 55 1450
300MS-19A (12SH-19A)  720 16 45 1450
300MS-32 (12SH-13)  790 32 90 1450
300MS-32A (12SH-13A)  720 26 75 1450
300MS-58 (12SH-9)  790 58 200 1450
300MS-58A (12SH-9A)  720 49 160 1450
300MS-58B (12SH-9B)  684 43 132 1450
300MS-90 (12SH-6)  790 90 315 1450
300MS-90A (12SH-6A)  756 78 280 1450
300MS-90B (12SH-6B)  720 67 220 1450
350MS-16 (14SH-28)  1260 16 75 1450
350MS-16A (14SH-28A)  1044 13 55 1450
350MS-26 (14SH-19)  1260 26 132 1450
350MS-26A (14SH-19A)  1116 21 90 1450
350MS-44 (14SH-13)  1260 44 220 1450
350MS-44A (14SH-13A)  1116 36 160 1450
350MS-75 (14SH-9)  1260 75 355 1450
350MS-75A (14SH-9A)  1170 65 280 1450
350MS-75B (14SH-9B)  1080 55 220 1450
350MS-125 (14SH-6)  1260 125 710 1450
350MS-125A (14SH-6A)  1181 112 560 1450
350MS-125B (14SH-6B)  1080 96 500 1450
400MS-40  1080 40 185 970
400MS-40A  1007 33 160 970
400MS-40B  870 26 110 970
400MS-90  1620 90 560 1450
400MS-90A  1460 73 450 1450
400MS-90B  1300 58 315 1450
500MS-13  2020 13 110 970
500MS-22  2020 22 185 970
500MS-22A  1746 17 132 970
500MS-35  2020 35 280 970
500MS-35A  1746 27 220 970
500MS-59  2020 59 450 970
500MS-59A  1872 49 400 970
500MS-59B  1746 35 315 970
500MS-98  2020 98 800 970
500MS-98A  1872 83 630 970
500MS-98B  1746 74 560 970
600MS-22  3170 22 250 970
600MS-22A  2860 18 185 970
600MS-32  3170 32 355 970
600MS-32A  2850 26 280 970
600MS-32B  2628 22 250 970
600MS-47  3170 47 560 970
600MS-47A  2920 40 450 970
600MS-75  3170 75 900 970
600MS-75A  2950 65 710 970
600MS-75B  2710 55 560 970
600MS-100  3170 100 1250 970
600MS-100A  3000 90 1120 970
600MS-100B  2830 80 900 970
800MS-22  5500 22 450 730
800MS-22  4400 14 250 585
800MS-22A  4830 17 315 730
800MS-22A  3870 11 185 585
800-32  5500 32 630 730
800-32  4400 20 315 585
800-32A  4950 26 450 730
800-32A  3960 17 250 585
800MS-47  5500 47 1000 730
800MS-47  4400 60 450 585
800MS-47A  5070 40 710 730
800MS-47A  4060 25 355 585
800MS-76  5500 76 1600 730
800MS-76  4400 49 800 585
800MS-76A  5080 65 1250 730
800MS-76A  4070 42 630 585
800MS-76B  4680 55 1000 730
800MS-76B  3750 35 500 585
