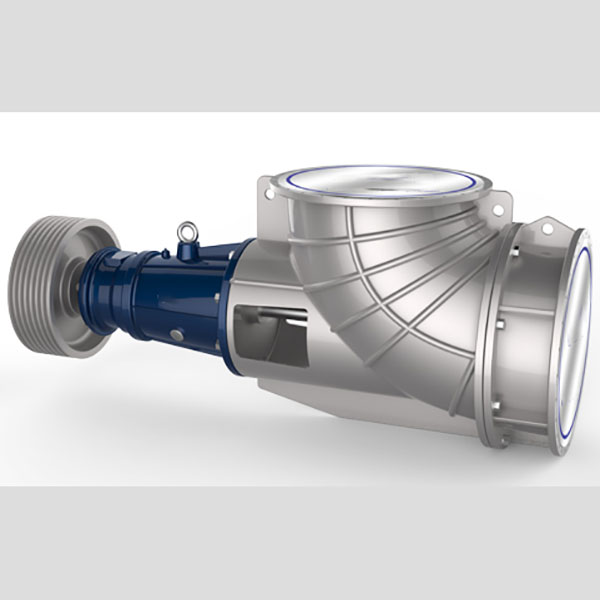

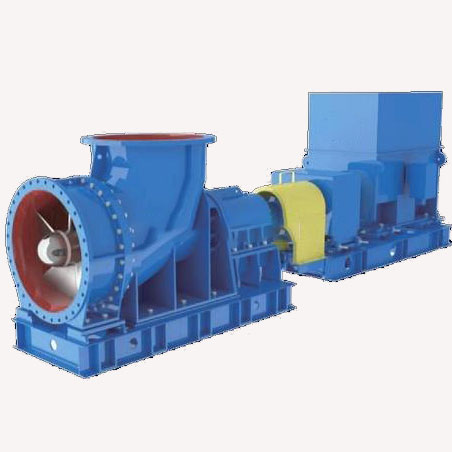

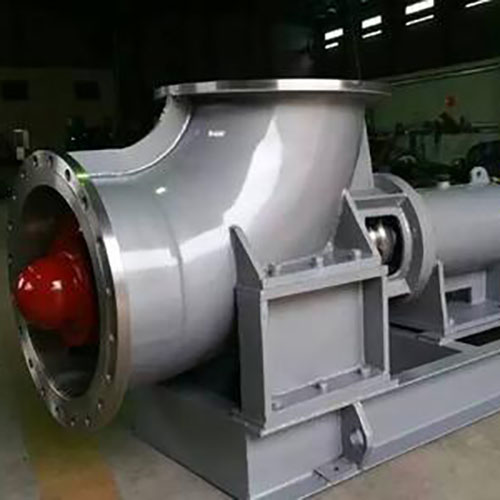

HZ Chemical Axial Flow Pump

Vacuum Pump
    Performance Range:
  • Current capacity: 500 ~ 19000m3/h;
  • Lifts: 2 ~ 10m;
  • Rotational speed: 2900r/min;
  • Power: 0.37 ~ 160kw;
  • Caliber: 300 ~ 1500mm;
  • Is suitable the temperature: -20 ~ 250 °C
  • Materials: For wetted parts in contact with medium, the common materials are as follows: 304, 316, OCr25Ni6, 316L, SAF2205, 310S, 904L, TA2, Ni6, Monel.
      • Application:
  • HZ chemical axial-flow pump is a single-stage, single-suction cantilever type and is mainly used in chemical process with large flow rate and low delivery head, especially suitable for forced circulation process of material conveyance, vaporizing concentration, crystallization in alkali, salt, fermentation, metallurgical, phosphorous fertilizer industries.

    • Model

    Capacity

    M3/h

    Head

    M

    Speed

    R/min

    Motor

    KW

    HZ100

    82-105

    3

    1450

    1.1-2.2

    HZ150

    170-145

    3

    1450

    1.5-3

    HZ200

    280-358

    4-5

    1450

    4-7.5

    HZ250

    680-840

    3-6

    1450

    5.5-11

    HZ300-A

    500-700

    2.75-3.5

    1450

    30

    HZ300-B

    460-900

    3

    1450

    22

    HZ350-A

    760-1500

    4.8-5.5

    1450

    45

    HZ350-B

    800-900

    5

    1450

    30

    HZ400-A

    1500-2000

    4

    720

    55

    HZ400-B

    800-1800

    2-8

    600-1000

    55

    HZ500-A

    2300

    4.4

    740

    75

    HZ500-B

    1300

    4

    740

    55

    HZ500-C

    1400

    5.5

    840

    75

    HZ500-D

    1750

    5.5

    980

    75

    HZ500-F

    2500-2800

    4

    720

    75

    HZ500-G

    1200-2500

    2-6

    570-675

    75

    HZ600-A

    3000-3500

    4

    630

    110

    HZ600-B

    2650

    4

    740

    75

    HZ600-C

    3000

    4

    740

    90

    HZ600-D

    2000-3500

    2-6

    300-600

    90

    HZ700-A

    4000-6000

    4

    740

    132

    HZ700-B

    4000-6500

    3-5

    750

    132

    HZ700-C

    4000-6000

    2-6

    200-500

    132

    HZ800-A

    5000-8500

    1.1

    740

    160

    HZ800-B

    5000-8500

    2-5

    200-500

    160

    HZ800-C

    6000-9000

    3-5

    750

    160

    HZ900-A

    8500-10000

    3.5

    630

    180
