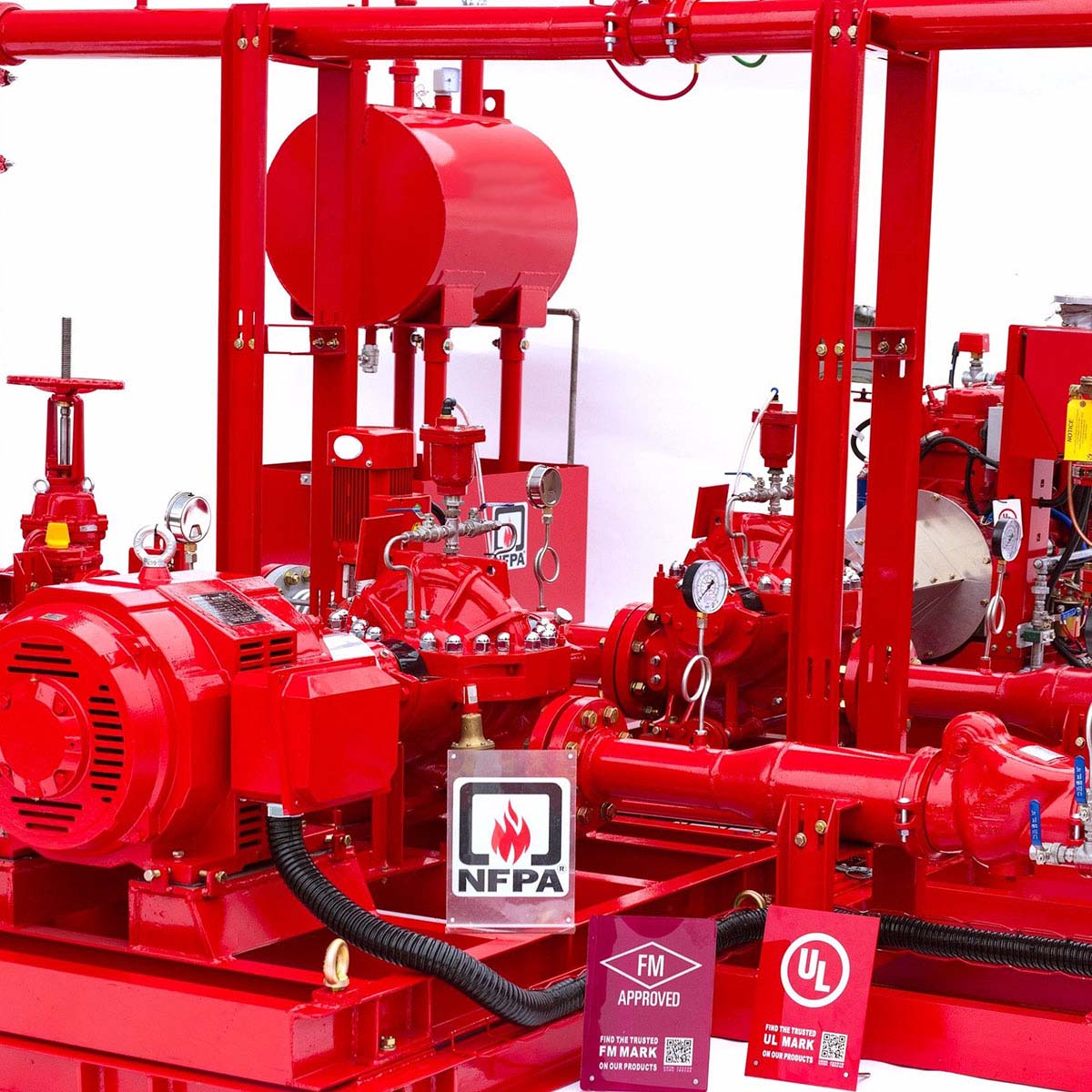

EHF End Suction UL listed Fire Pump

Hanthing Fluid Group

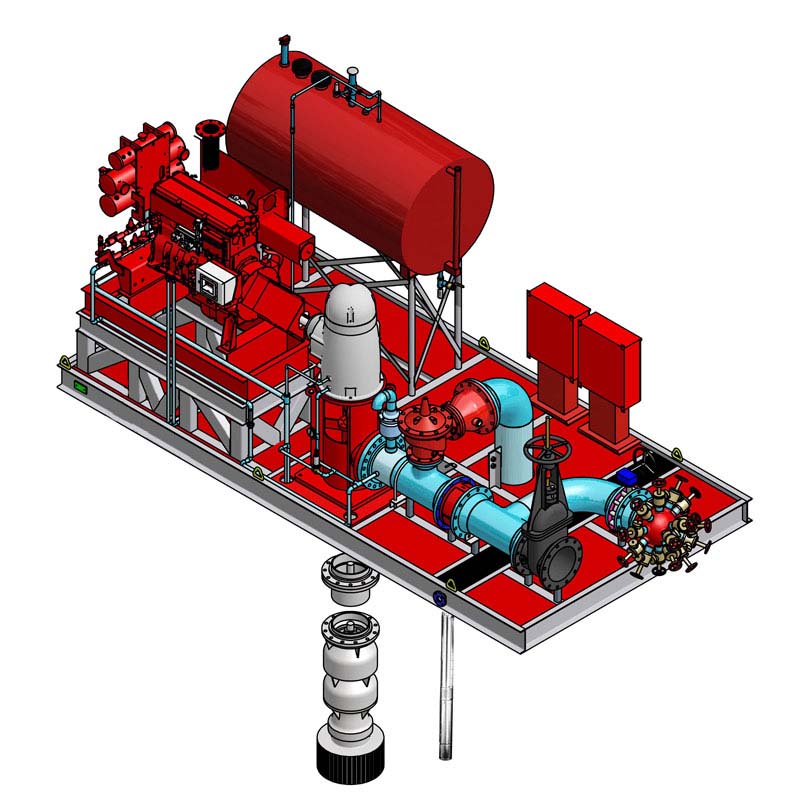

      EDJ fire package performance range:
  • End suction pumps are available for ranging from 100 USgpm to 750 USgpm
  • Split case fire pumps are available for ranging from 500 USgpm to 4000 USgpm
      • Vertical Turbine fire pumps
  • FM: Q: 250-5000GPM H:80-300PSI
  • UL: Q: 250-5000GPM H:80-300PSI
  • CCCF: Q:15-300L/S H:0.60-2.0Mpa
  • NFPA20: Q: 250-5000GPM H:80-300PSIo 4000 USgpm
      • Application
  • Diesel engine drive split case and end suction pumps are specifically designed and tested for fire service application around the world including:
  • Office buildings
  • Hospitals
  • Airports
  • Manufacturing facilities
  • Warehouses
  • Power stations
  • Oil and gas industry
  • Schools/colleges
  • Hotels

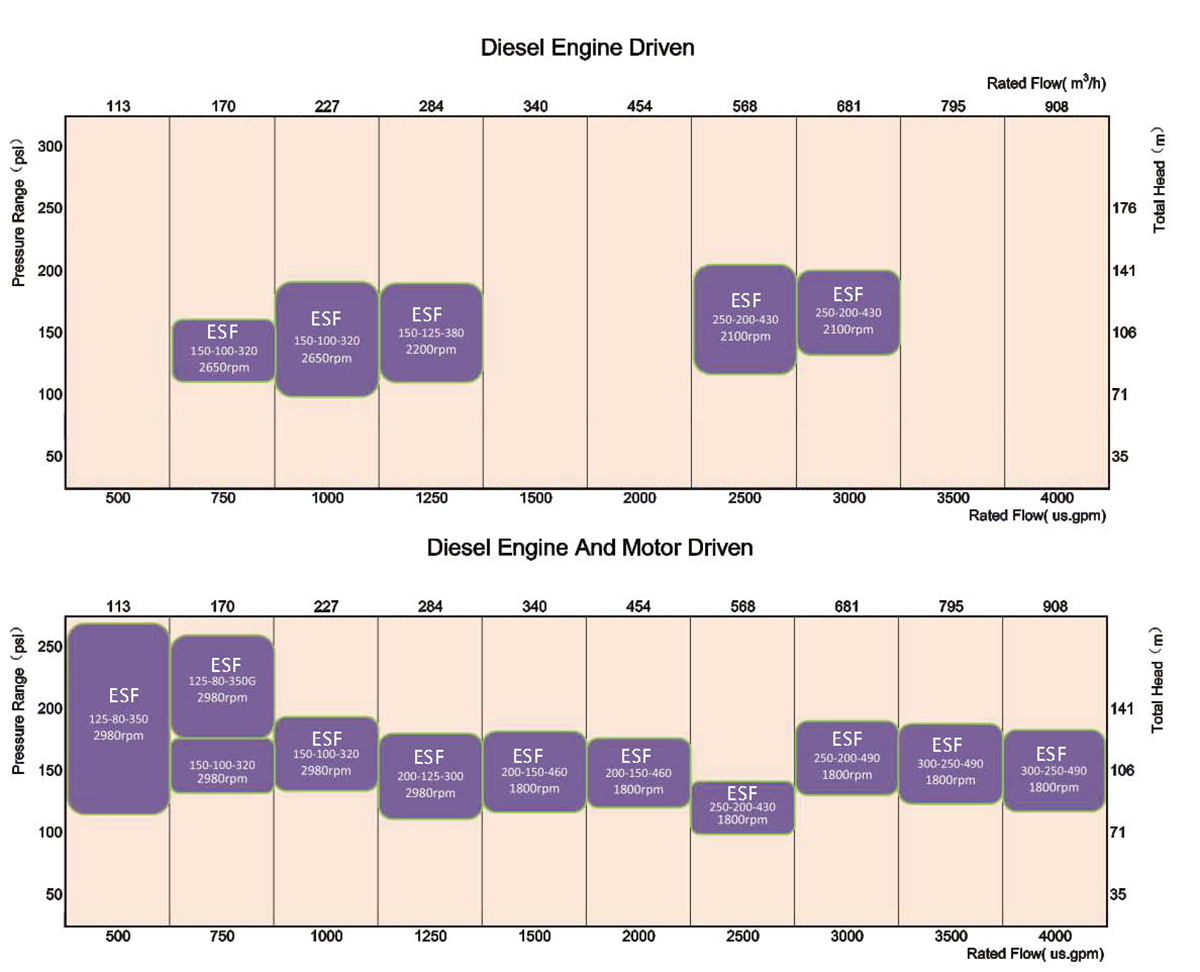

Model Dsg Rated Capacity (gpm) Size (in.) Rated Net Pressure Range (psi) Approx Speed (rpm) Max Working Pressure (psi)
ESF100-250 450 6x4 80-141 2900 232
ESF100-310 450 6x4 131-204 2900 290
ESF100-375 450 6x4 221-304 2900 400
ESF100-250 500 6x4 80-140 2900 232
ESF100-310 500 6x4 130-204 2900 290
ESF100-375 500 6x4 219-300 2900 400
ESF100-250 750 6x4 73-139 2900 232
ESF100-310 750 6x4 125-198 2900 290
ESF100-375 750 6x4 199-280 2900 400
ESF125-290 1000 8x5 101-177 2900 232
ESF125-365 1000 8x5 178-288 2900 348
ESF125-290 1250 8x5 97-175 2900 232
ESF125-365 1250 8x5 165-278 2900 348
ESF150-290 1500 8x6 98-155 2900 232
ESF150-360 1500 8x6 150-242 2900 320
ESF150-290 2000 8x6 94-149 2900 232
ESF150-360 2000 8x6 138-234 2900 320

Model Dsg Rated Capacity GPM Size In. Rated Net Pressure Range
psi		 Approx Speed RPM Max Working Pressure psi
EHF2515250 50 2.5×1.5 94-136 2900 200
EHF2515250 100 2.5×1.5 89-131 2900 200
EHF2515250 150 2.5×1.5 78-121 2900 200
EHF32250 150 3×2 94-136 2900 225
EHF32250 200 3×2 91-132 2900 225
EHF32250 250 3×2 85-128 2900 225
EHF425250 250 4×2.5 85-139 2900 225
EHF425250 300 4×2.5 82-137 2900 225
EHF425250 400 4×2.5 76-131 2900 225
EHF53250 400 5×3 85-136 2900 225
EHF53315 400 5×3 131-214 2900 290
EHF53250 450 5×3 83-135 2900 225
EHF53315 450 5×3 130-213 2900 290
EHF54315 450 5×4 135-214 2900 290
EHF53250 500 5×3 82-132 2900 225
EHF53315 500 5×3 126-212 2900 290
EHF54315 500 5×4 134-212 2900 290
EHF54315 750 5×4 128-208 2900 290

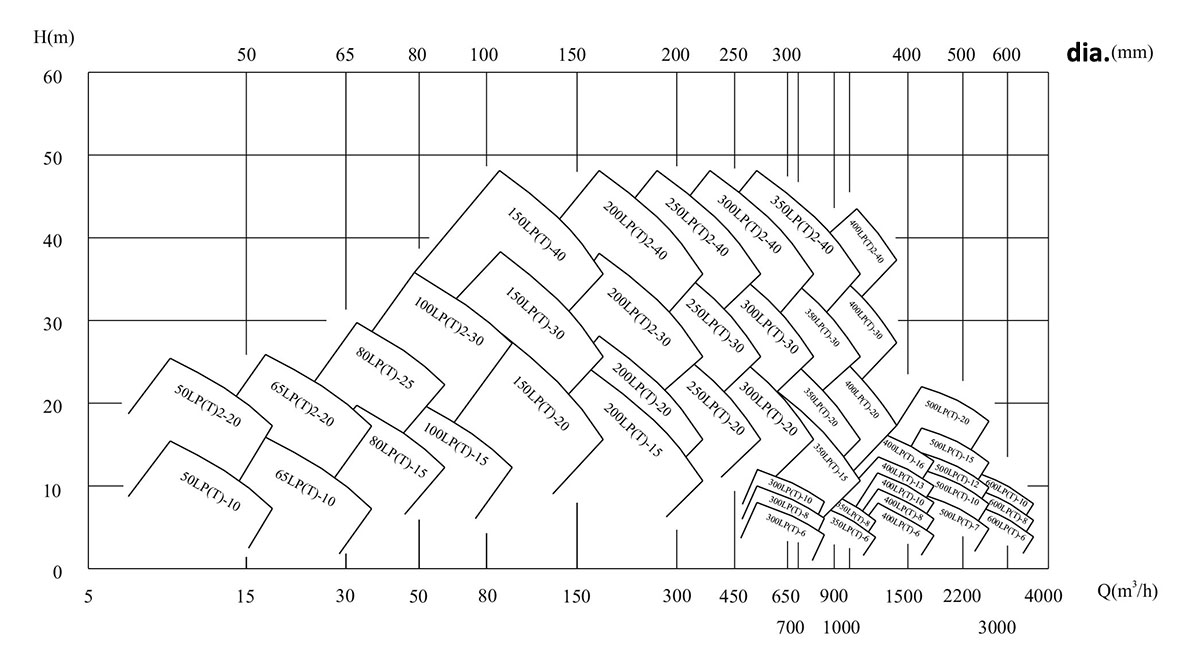

Rated Capacity Model Rated Net Pressure Range Approx Speed Stages
gpm Dsg psi rpm
1250 250LP(T)400-28 41-51 1480 1
82-102 2
124-153 3
165-305 4-6
1500 40-49 1
77-97 2
115-292 3-6
1250 60-74 1760 1
120-147 2
180-221 3
240-294 4
1500 58-71 1
115-143 2
173-214 3
230-285 4
2000 63 1
125 2
188 3
251 4
2000 250LP(T)550-26 40-44 1480 1
77-88 2
116-132 3
155-176 4
194-264 5-6
2000 57-66 1760 1
113-133 2
170-199 3
227-266 4
2500 61 1760 1
123 2
184 3
245 4
2500 300LP(T)860-43 50-82 1480 1
100-245 2-3
3000 53-78 1
105-235 2-3
2500 350LP(T)860-43 74-118 1760 1
149-236 2
3000 69-115 1
139-230 2
3500 73-111 1
146-222 2
4000 104 1
207 2
3500 350LP(T)1250-36 47-62 1480 1
93-124 2
140-249 3-4
4000 45-61 1
90-121 2
135-243 3-4
3500 56-74 1600 1
112-148 2
168-295 3-4
4000 54-72 1
107-144 2
161-288 3-4
4000 400LP(T)1250-36 61-82 1700 1
122-163 2
183-245 3
4500 58-79 1
116-159 2
174-238 3
5000 229 3
4000 66-88 1760 1
133-177 2
199-265 3
4500 63-86 1
126-172 2
189-259 3
5000 249 3
4000 74-98 1840 1
148-195 2
222-293 3
4500 70-95 1
141-190 2
211-285 3
100 100LP(T)40-6 40-44 2900 1
61-265 2-6
150 40-44 1
60-263 2-6
200 40-43 1
56-257 2-6
250 40-42 1
52-250 2-6
300 150LP(T)200-17 40-235 1480 2-8
400 40-227 2-8
450 40-225 2-8
500 40-221 2-8
500 40-241 1760 2-6
750 74 2
111 3
148 4
185 5
222 6
750 200LP(T)250-22 40-313 1480 2-8
1000 40-288 2-8
750 40-58 1760 1
75-288 2-5
1000 40-54 1
69-272 2-5
4500 350LP(T)1400-45 59-87 1480 1
118-261 2-5
5000 70-85 1
141-170 2
211-255 3
4500 60-107 1630 1
119-322 2-5
5000 72-105 1
143-316 2-5
4500 72-126 1760 1
143-377 2-3
5000 68-125 1
137-374 2-3
5500 83-122 1
166-367 2-3
6000 120 1
240 2
361 3
