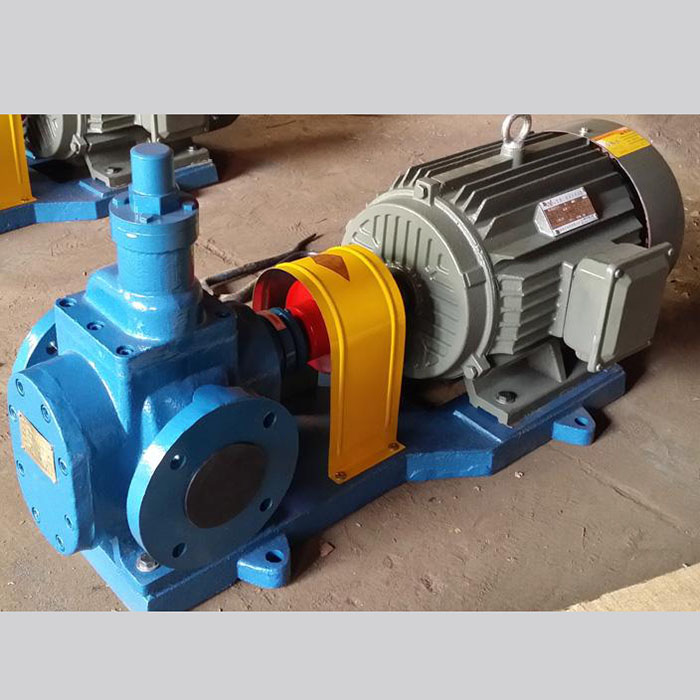

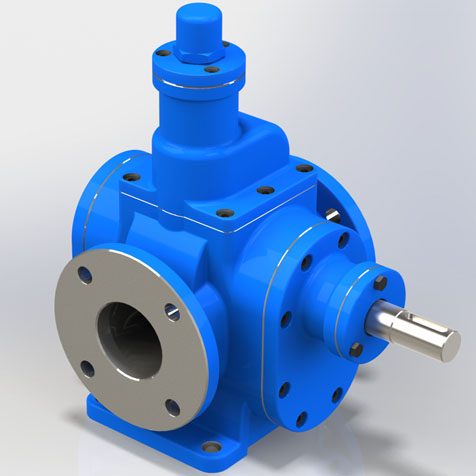

YCB Gear Pump

Vacuum Pump
    Overview:
  • YCB series gear pump is applicable to transport not containing solid particles and fibers, non-corrosive, temperature is not higher than 80 ºC, the viscosity for 5 X 10-6 ~ 1.5 X 10-3 m2 / s (5-1500 CST) lubricating oil or other similar properties of lubricating oil liquid.
      • Application:
  •  In the oil system can be used for transmission, booster pump;
  •  In the fuel oil system can be used as a transport, pressure, jet fuel pump
  •  In the hydraulic drive system can be used to provide hydraulic power of hydraulic pump;
  •  In all industrial fields, all can be used as lubricating oil pump
    • Model Capacity Speed Pressure NPSHR Efficiency Motor
    (m³/h) (r/min) (MPa) (m) (%) Hz Power(kw) Model
    YCB0.6-0.6 0.6 910 0.6 5.5 60 50 0.75 Y90S-6
    1 1390 50 0.75 Y80L2-4
    0.7 1130 60 0.75 Y90S-6
    1.2 1710 60 0.75 Y80L2-4
    YCB0.6-1.6 0.6 910 1.6 7 70 50 1.1 Y90L-6
    1 1400 50 1.5 Y90L-4
    0.7 1130 60 1.1 Y90L-6
    1.2 1710 60 1.1 Y90S-4
    YCB1.6-0.6 1.6 910 0.6 5.5 63 50 0.75 Y90S-6
    2.5 1400 50 1.1 Y90S-4
    1.9 1130 60 1.1 Y90L-6
    3 1710 60 1.5 Y90L-4
    YCB1.6-1.6 1.6 940 1.6 7 71 50 2.2 Y112M-6
    2.5 1440 50 4 Y112M-4
    1.9 1150 60 2.2 Y112M-6
    3 1750 60 4 Y112M-4
    YCB3.3-0.6 3.3 940 0.6 5 60 50 1.5 YI00L-6
    5 1420 50 2.2 YI00L1-4
    4 1150 60 1.5 YI00L-6
    6 1730 60 2.2 YI00L1-4
    YCB3.3-1.6 3.3 960 1.6 7 72 50 5.5 Y132M2-6
    5 1440 50 7.5 Y132M-4
    4 1170 60 4 Y132M1-6
    6 1750 60 7.5 Y132M-4
    YCB4-0.6 4 940 0.6 5 60 50 1.5 YI00L-6
    6 1420 50 1.2 YI00L1-4
    4.8 1150 60 2.2 Y112M-6
    7.2 1730 60 3 Y100L2-4
    YCB4-1.6 4 960 1.6 7 72   50 5.5 Y132M2-6
    6 1440 50 7.5 Y132M-4
    4.8 1170 60 5.5 Y132M-6
    7.2 1750 60 7.5 Y132M-4
    YCB8-0.6 8 960 0.6 5 61 50 3 Y132S-6
    12 1440 50 5.5 Y132S-4
    9.6 1170 60 4 Y132M1-6
    14.4 1750 60 5.5 Y132S-4
    YCB8-1.6 8 970 1.6 7 75 50 11 Y160L-6
    12 1460 50 15 Y160L-4
    9.6 1170 60 11 Y160L-6
    14.4 1760 60 15 Y160L-4
    YCB10-0.6 10 960 0.6 5 62 50 4 Y132M1-6
    15 1440 50 5.5 Y132S-4
    12 1170 60 5.5 Y132M2-6
    18 1750 60 7.5 Y132M-4
    YCB10-1.6 10 970 1.6 7 76 50 11 Y160L-6
    15 1470 50 15 Y160L-4
    12 1170 60 11 Y160L-6
    18 1770 60 18.5 Y180M-4
    YCB20-0.6 20 970 0.6 5 68 50 7.5 Y160M-6
    24 1170 60 7.5 Y160M-6
    YCB25-0.6 25 970 0.6 5.5 69 50 11 Y160L-6
    30 1170 60 11 Y160L-6
    YCB30-0.6 30 970 0.6 5.5 65 50 11 Y160L-6
    36 1170 60 11 Y160L-6
    YCB40-0.6 40 970 0.6 5.5 66 50 15 Y180L-6
    48 1180 60 15 Y180L-6
    YCB50-0.6 50 980 0.6 5.5 66 50 22 Y200L2-6
    60 1180 60 22 Y200L2-6
    YCB60-0.6 60 980 0.6 5.5 65 50 22 Y200L2-6
    73 1180 60 30 Y225M-6
    YCB80-0.6 80 980 0.6 5.5 65 50 30 Y225M-6
    97 1180 60 30 Y225M-6
