HW(HBC) Volute Mixted Flow Pump

Hanthing Fluid Group

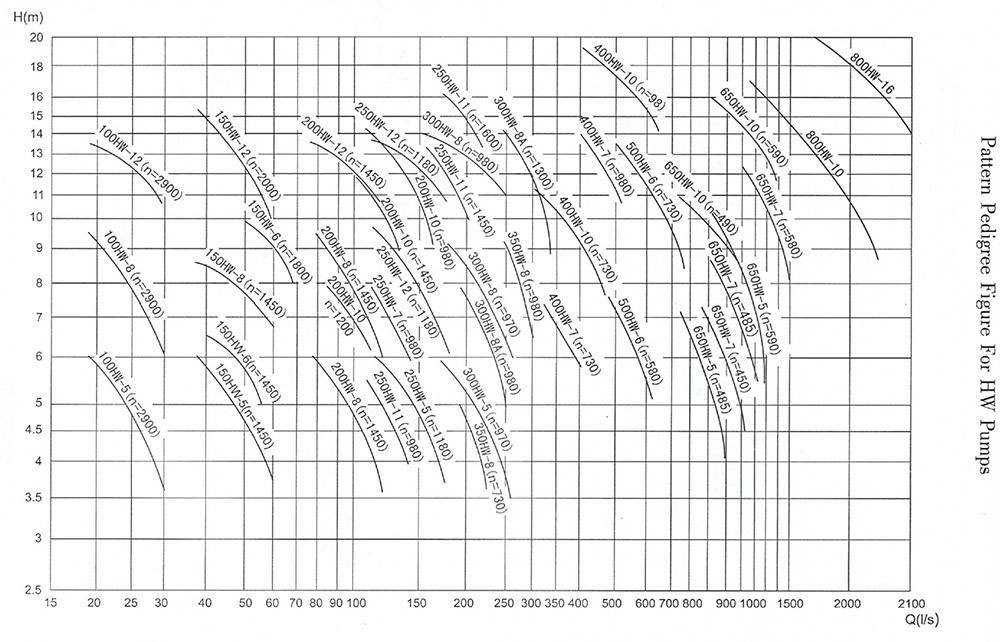

      Performance Range:
  • Capacity:130m³/h~1200m³/h
  • Head:3.5m~15m
      • Application:
  • It is suitable for conveying clean water or other liquids with physical and chemical properties similar to water.
  • The temperature of the liquid to be transported should not exceed 50 °C.
  • Widely used in a variety of occasions such as irrigation and drainage, industrial and urban water supply and drainage.
      • Advantages:
  • The whole series of products are designed for front and rear, and there is no need to dismantle the pipeline during maintenance. This is a major improvement on the structure of the mixed-flow pump produced by our company, which greatly facilitates the user's maintenance and repair. The water inlet of the pump is horizontal water inlet, and the water outlet has vertical water discharge (upper water and horizontal water (lower water)). The pump is usually installed in horizontal suction type or inclined type. For down-center installation, users can choose according to design requirements and local water level changes and usage habits.

Model  Capacity Head Speed Efficiency Power NPSH
m3/h m rpm % kw M
150HW-5 137 6.1 1450 75 3.3 2.7
180 5 82 2.99
216 3.7 74 2.94
150HW-8 137 8.7 1450 75 4.78 2.7
180 8 82 4.78
216 6.8 74 4.78
150HW-12 137 15.3 2900 75 7.6 6
180 12.5 82 7.47
216 9.7 74 7.71
200HW-5 360 5 1450 81.5 6.01 4
360 5 81.5 6.01
360 5 81.5 6.01
200HW-8 270 9.6 1450 76 9.29 4
360 8 83.5 9.39
432 6 75 9.41
200HW-12 270 13.5 1450 83.5 14.68 4
360 12.5 83.5 14.68
432 10.8 83.5 14.68
250HW-5 540 5 1180 82 8.97 4
540 5 82 8.97
540 5 82 8.97
250HW-8 335 6.5 970 77 7.67 2.7
444 5.4 84 7.78
553 4.1 76 7.74
250HW-8 407 9.6 1180 77 13.81 4
540 8 84 14.01
648 6 76 13.93
250HW-8 500 14.5 1450 77 25.6 6.4
664 12.1 84 26
796 9.1 76 25.9
250HW-12 407 13.5 1180 84 21.8 4
540 12.5 84 21.8
648 10.8 84 21.8
300HW-5 792 5 970 83 12.99 4
792 5 83 12.99
792 5 83 12.99
300HW-8 594 9.6 970 78 19.9 4
792 8 85 20.3
950 6 77 20.1
300HW-8A 507 4.4 730 82 7.56 3
581 3.9 84 7.48
678 2.8 78 6.75
300HW-8A 680 8 980 82 18.44 4
780 7 84 18.08
910 5 78 16.22
300HW-8A 902 14.1 1300 82 43.16 5
1035 12.3 84 42.17
1207 8.8 78 37.79
300HW-12 594 13.5 970 85 31.72 4
792 12.5 85 31.72
950 10.8 85 31.72
150HW-6 140 6.6 1450 75 3.36 3
180 6 82 3.59
200 5 78 3.52
150HW-6 174 10.1 1800 75 6.46 4
223 9.2 82 7.07
248 7.7 78 6.72
200HW-10 300 8 1200 77 8.45 4
360 7 83 8.22
450 5 70 8.12
200HW-10 360 12 1450 77 15.27 5
450 10 83 14.68
540 7 77 14.32
200HW-10 400 14.5 1600 77 20.49 5.5
500 12.5 83 19.91
600 9.5 77 20.2
250HW-7 400 8 980 81 10.75 4
450 7 84 10.22
500 6 79 11.87
250HW-11 400 5.5 980 83 7.22 4
450 4.8 84 7
500 4 80 6.81
250HW-11 550 13.2 1450 83 23.85 6
650 11.6 84 24.37
720 9.8 80 24.02
250HW-11 640 15.5 1600 83 32.59 6.5
720 14.3 84 33.38
800 11.8 80 32.11
350HW-8 670 5.2 730 85 11.16 4
745 4.4 85 10.44
819 3.7 81 10.15
350HW-8 900 9.4 980 85 27.1 5
1000 8 85 25.5
1100 6.7 81 24.66
400HW-7 1080 7.8 730 84 27.31 4
1260 6.8 86 27.13
1368 6.2 84 27.5
400HW-7 1450 14 980 84 66.32 5
1692 13 86 65.9
1836 11 84 66.67
400HW-8 1116 8.4 730 86 29.67 4
1116 8.4 86 29.67
1116 8.4 86 29.67
400HW-10 1098 11.5 730 83 41.5 4
1400 10 86 44.3
1720 7.5 83 42.4
400HW-10 1474 20.7 980 83 100.1 5
1880 18 86 107.1
2309 13.6 83 102.4
500HW-11 1690 7.6 580 83 41.9 5.5
1980 6.2 87 38.4
2180 5.3 80 39.1
500HW-11 2172 12 730 83 83.4 6
2492 9.8 87 76.4
2744 8.4 80 78.1
650HW-5 2650 7 485 86 60 5.5
3312 5 85 54.1
3600 4 79 49.6
650HW-5 3224 10.5 590 86 108.1 6
4032 7.5 85 97.5
4379 6 79 89.3
650HW-7 3060 7.4 450 85 72.5 5.3
3400 6.5 88 68.4
3960 5 85 63.4
650HW-7 3295 8.6 485 85 90.8 5.5
3663 7.6 88 86.1
4244 5.9 85 80.6
650HW-7 4014 12 590 85 163.3 6
4457 11 88 154.2
5193 8.5 85 142.9
650HW-10 3200 15.8 590 81 170 6
4000 14 88 173.3
5000 10.4 85 166.6
650HW-10 2658 10.9 490 81 97.4 5.5
3322 9.7 88 99.7
4153 7.2 85 95.8
800HW-10 4784 14.8 490 85 227 5.5
5980 12.2 88 225
7176 8.6 80 210
