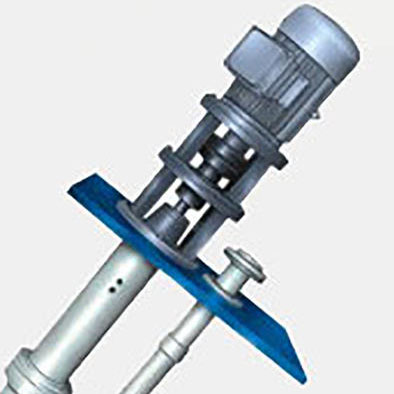

FY Semi-submersible Chemical Pump

Hanthing Fluid Group
      Performance range;
  • Capacity:1.6~400m3/h
  • Head: 4~80m
  • Size: 25~150mm
  • Speed: 1450~2900r/min
      • Work condition:
  • Medium temperature: 0~105°C.
  • Temperature at -20~0°C,105~180°C, heating jacket and cooling jacket, using low temperature and high temperature wear-resisting guiding bearing, and these conditions need to be informed clearly.
  • Working pressure: 1.6Mpa.
  • Parameter range: Flow capacity:1.6~16000m³/h; Head:5~80m.
  • Material:Vary per different transferring medium.
  • Cast iron (H); Cast steel ; 1Cr18Ni9Ti (B); 1Cr18ni12Mo2Ti(M),304,304L,316L904,Lewmet Alloy;NO. 20 Alloy.
      • Features:

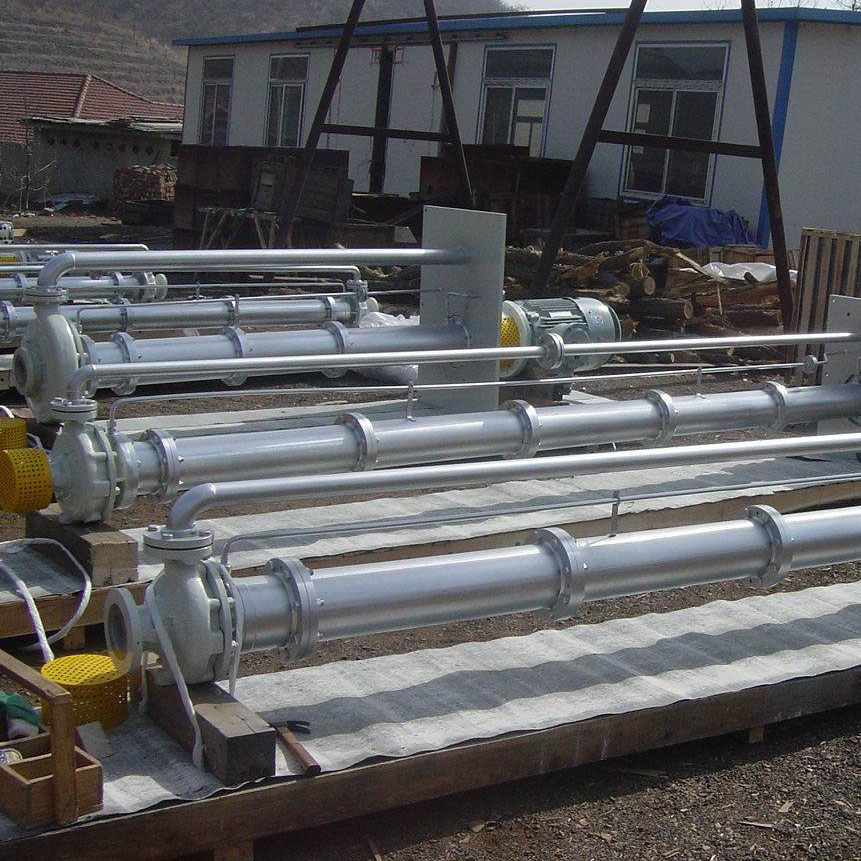

  • The pump is vertical submerged pump, nice appearance, directly installed on the storage of transferred medium.
  • quite simple and convenient; no additional space is needed to save the Infrastructure investment.
  • Quitting the traditional mechanical seal and so wear causing maintenance is reduced, the cost of operation lowered and working efficiency higher.
  • Unique centrifugal impeller: transfer the clean liquids without solid particles; low vibration and noise.
  • Open type impeller: delivery of unclean liquids with solid particles and short fibers.
  • Easy installation, stable operation, good performance and convenient maintenance.
Model Inlet/Outlet Dia. Capacity Head Speed Shaft power Motor power Submerged depth
MM m3/h  l/s M rpm KW KW mm
25FY-16 25 3.6 1 16 2900 0.713 1.5 500-5000
25FY-16A 25 3.27 0.91 13 2900 0.713 1.5
25FY-25 25 3.6 1 25 2900 1.16 2.2
25FY-25A 25 3.27 0.91 20 2900 1.16 2.2
25FY-41 25 3.6 1 41 2900 2.51 4
25FY-41A 25 3.27 0.91 33 2900 2.51 3
40FY-16 32 7.2 2 16 2900 0.78 2.2
40FY-16A 32 6.55 1.82 13 2900 0.78 1.5
40FY-26 32 7.2 2 26 2900 1.45 3
40FY-26A 32 6.55 1.82 21 2900 1.45 3
40FY-40 32 7.2 2 40 2900 2.53 5.5
40FY-40A 32 6.55 1.82 32 2900 2.53 5.5
50FY-16 40 14.4 4 16 2900 1.18 3
50FY-16A 40 13.1 3.64 13 2900 1.18 3
50FY-25 40 14.4 4 25 2900 1.96 4
50FY-25A 40 13.1 3.64 20 2900 1.96 3
50FY-40 40 14.4 4 40 2900 3.73 7.5
50FY-40A 40 13.1 3.61 33 2900 3.73 5.5
65FY-16 50 28.8 8 16 2900 2.16 4
65FY-16A 50 26.2 7.28 13 2900 2.16 3
65FY-25 50 28.8 8 25 2900 3.56 5.5
65FY-25A 50 26.2 7.28 21 2900 3.56 5.5
65FY-40 50 28.8 8 40 2900 6.04 11
65FY-40A 50 26.2 7.28 33 2900 6.04 11
80FY-15 65 54 15 15 2900 3.34 7.5
80FY-15A 65 49.1 13.65 12 2900 3.34 7.5
80FY-24 65 54 15 24 2900 5.43 11
80FY-24A 65 49.1 13.65 20 2900 5.43 11
80FY-38 65 54 15 38 2900 9.64 18.5
80FY-38A 65 49.1 13.65 31 2900 9.64 15
100FY-23 80 100.8 28 23 2900 9.25 18.5
100FY-23A 8 91.8 25.5 18 2900 9.25 15
100FY-37 80 100.8 28 37 2900 14.73 22
100FY-37A 80 91.8 25.5 31 2900 14.73 22
