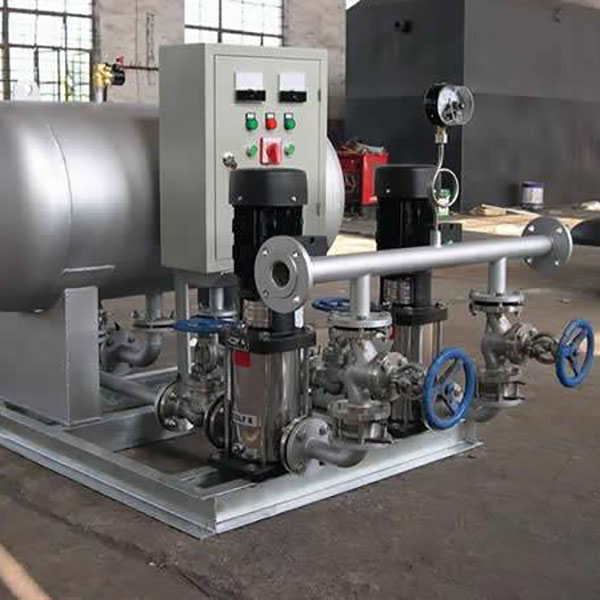

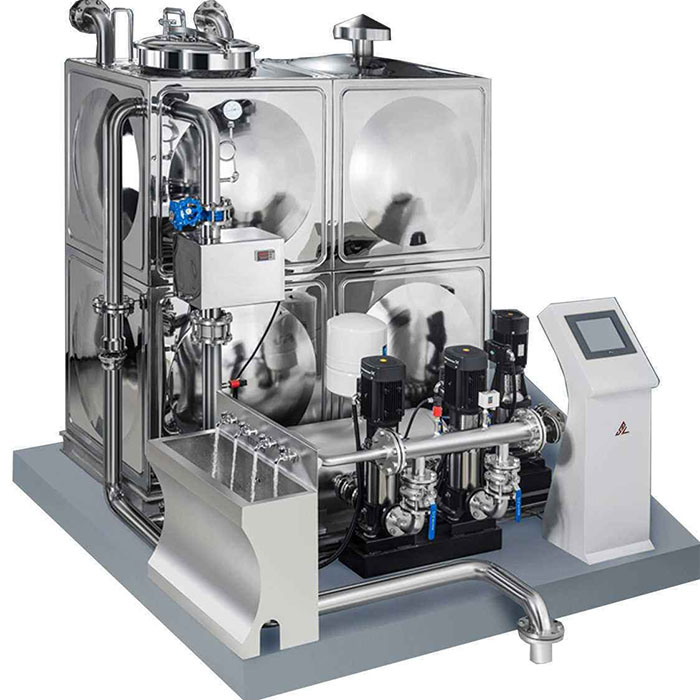

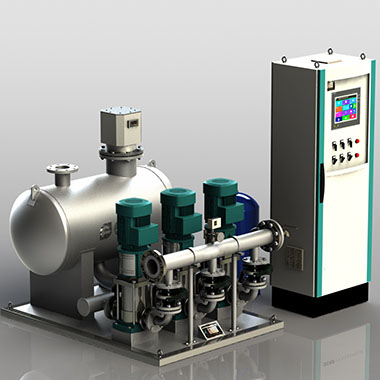

WG No Negative Pressure Booster

Vacuum Pump
    Overview:
  • WG series of water supply equipment is divided into WG tank non-negative pressure supercharger steady flow water supply equipment and WG box negative pressure pipe network water supply equipment, compensated by the tank or steady flow compensation for differential compensation in the municipal water supply pressure Based on the stacked water supply, that is, the rational use of resources and eliminate the negative pressure on the municipal water supply network is the most advanced environmental protection and energy saving water supply equipment
      • Application:
  • Civil and industrial buildings and living hot and cold water supply, neutral water, fire water, air conditioning circulating water system of the original water tank water treatment industry, water tanks, clean water tanks and other environmental protection industries water treatment tank food and beverage, medical and health, chemical industry , The boiler industry replenishment and other occasions.
      • Work Condition:
  • Convey liquid: cold, warm, clean, non-flammable, non-explosive liquid, not consisted of solid grain or fiber.
  • Medium temperature: Normal temperature type -15---+70; Hot water type + 70---+ 120;
  • Ambient environment: No drop, vapor, no floating dust or metal grain. No sunshine, hot temperature, heavy dust. No corrosive, non-flammable gas or liquid.
  • The equipment should be placed in no vibration place and in the place where it is easy to check.
  • Ambient temperature: Max +45 , ventilated
    • Model Capcity Head Pump model sets Power pressure tank
    m³/h (m) (kw) (Φ×L)
          WG8(15~178)/(0.37~4.0)/2 8          15~178       CDL4-(2~22) 2       0.37~4.0 600×1.3
          WG16(18~186)/(0.75~7.5)/2 16          18~186       CDL8-(2~20) 2       0.75~7.5 600×1.3
          WG24(20~183)/(1.5~11)/2    24          20~183       CDL12-(2~18) 2       1.5~11 800×1.5
          WG32(22~189)/(2.2~15)/2  32          22~189       CDL16-(2~16) 2       2.2~15 800×1.5
          WG40(23~202)/(2.2~18.5)/2 40          23~202       CDL20-(2~17) 2       2.2~18.5 800×1.5
          WG64(27~196)/(4.0~30)/2 64          27~196          CDL32-(20~140) 2       4.0~30 800×1.5
          WG84(41~259)/(7.5~45)/2 84          41~259        CDL42-(20·130) 2       7.5~45 1000×1.8
          WG130(26~161)/(7.5~45)/2 130          26~161       CDL65-(20~81) 2       7.5~45 1200×2.0
          WG170(20~134)/(7.5~45)/2 170          20~134       CDL85-(10~60) 2       7.5~45 1200×2.0
          WG12(15~178)/(0.37~4.0)/3 12          15~178       CDL4-(2~22) 3       0.37~4.0 600×1.3
          WG24(18~186)/(0.75~7.5)/3 24          18~186       CDL8-(2~20) 3       0.75~7.5 800×1.5
          WG36(20~183)/(1.5~11)/3 36          20~183       CDL12-(2~22) 3       1.5~11 800×1.5
          WG48(22~189)/(2.2~15)/3 48          22~189       CDL16-(2~18) 3       2.2~15 800×1.5
          WG60(23~202)/(2.2~18.5)/3 60          23~202       CDL20-(2~17) 3       2.2~18.5 1000×1.8
          WG96/(27~196)/(4.0~30)/3 96          27~196       CDL32-(20~140) 3       4.0~30 1000×1.8
          WG126/(41~259)/(7.5~45)/3) 126          41~259       CDL42-(20~130) 3       7.5~45 1200×2.0
          WG195/(26~161)/(7.5~45)/3 195          26~161       CDL65-(20~80) 3       7.5~45 1200×2.0
          WG255/(20~134)/(7.5~45)/3 255          20~134       CDL85-(10~60) 3       7.5~45 1400×2.5
    WG16/(20~134)/(7.5~45)/4 16 15~178 CDL4-(2~22) 4 0.37~4.0 800×1.5
    WG28/(20~134)/(7.5~45)/4 28 18~186 CDL8-(2~20) 4 0.75~7.5 800×1.5
    WG40/(20~134)/(7.5~45)/4 40 20~183 CDL12-(2~22) 4 1.5~11 800×1.5
    WG52/(20~134)/(7.5~45)/4 52 22~189 CDL16-(2~18) 4 2.2~15 1000×1.8
    WG64/(20~134)/(7.5~45)/4 64 23~202 CDL20-(2~17) 4 2.2~18.5 1000×1.8
    WG100/(20~134)/(7.5~45)/4 100 27~196 CDL32-(20~140) 4 4.0~30 1200×2.0
    WG130/(20~134)/(7.5~45)/4 130 41~259 CDL42-(20~130) 4 7.5~45 1200×2.0
    WG199/(20~134)/(7.5~45)/4 199 26~161 CDL65-(20~80) 4 7.5~45 1400×2.5
    WG259/(20~134)/(7.5~45)/4 259 20~134 CDL85-(10~60) 4 7.5~45 1400×2.5
    WG20/(20~134)/(7.5~45)/5 20 15~178 CDL4-(2~22) 5 0.37~4.0 800×1.5
    WG32/(20~134)/(7.5~45)/5 32 18~186 CDL8-(2~20) 5 0.75~7.5 1000×1.8
    WG44/(20~134)/(7.5~45)/5 44 20~183 CDL12-(2~22) 5 1.5~11 1000×1.8
    WG56/(20~134)/(7.5~45)/5 56 22~189 CDL16-(2~18) 5 2.2~15 1200×2.0
    WG68/(20~134)/(7.5~45)/5 68 23~202 CDL20-(2~17) 5 2.2~18.5 1200×2.0
    WG104/(20~134)/(7.5~45)/5 104 27~196 CDL32-(20~140) 5 4.0~30 1400×2.5
    WG134/(20~134)/(7.5~45)/5 134 41~259 CDL42-(20~130) 5 7.5~45 1400×2.5
    WG203/(20~134)/(7.5~45)/5 203 26~161 CDL65-(20~80) 5 7.5~45 1600×2.5
    WG263/(20~134)/(7.5~45)/5 263 20~134 CDL85-(10~60) 5 7.5~45 1600×2.5
