KCB/2CY Gear Pump

Vacuum Pump
    Overview:

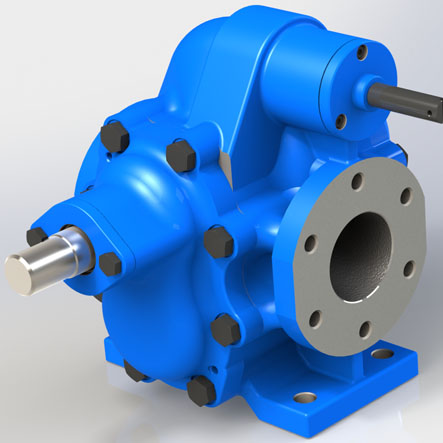

  • KCB Electric Oil Transfer Gear Pump is designed for pumping light fuel oils such as diesel, kerosene, and biodiesel. It is also possible to pump vegetable oil, motor oil, and even glycerol.

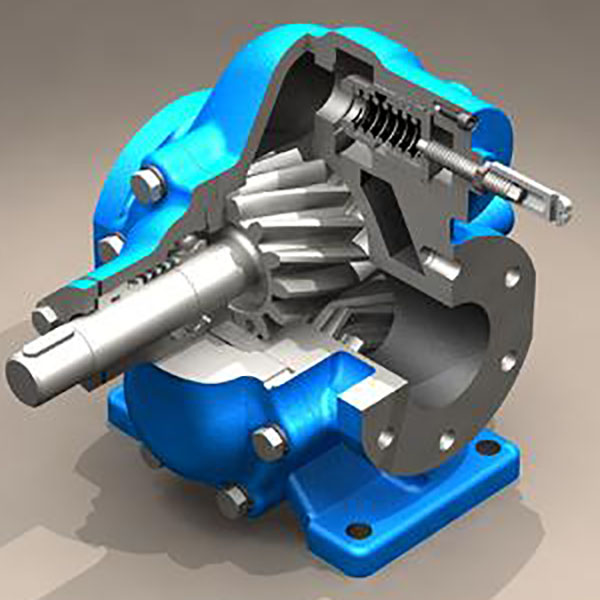

  • It is helical gear pump, and built-in by-pass valve. For pumping clean viscous liquids, not containing abrasive or solid particles.
  • They can run dry for only intermediate amounts of time, allowing for the use of a suction hose for collecting fluids from a tank. They should not be run dry for an extended period of time as oil is required to lubricate the pump head.
      • Application:
  •  In the oil system can be used for transmission, booster pump;
  •  In the fuel oil system can be used as a transport, pressure, jet fuel pump
  •  In the hydraulic drive system can be used to provide hydraulic power of hydraulic pump;
  •  In all industrial fields, all can be used as lubricating oil pump
    • Model Capacity Speed Pressure NPSHR Eff. Η Power Motor
    m3/h L/min r/min Mpa m % KW Model
    KCB-18.3 1.1 18.3 1400 1.45 5 44 1.5 Y90L-4
    2CY-1.1/1.45
    KCB-33.3 2 33.3 1420 1.45 5 44 2.2 Y100L1-4
    2CY-2/1.45
    kcb-55 3.3 55 1400 0.33 7 41 1.5 Y90L-4
    2CY-3.3/0.33
    KCB-83.3 5 83.3 1420 0.33 7 43 2.2 Y100L1-4
    2CY-5/0.33
    KCB-135 8 135 940 0.33 5 46 2.2 Y112M-6
    2CY-8/0.33
    KCB-200 12 200 1440 0.33 5 46 4 Y112M-4
    2CY-12/0.33
    KCB-300 18 300 960 0.36 5 42 5.5 Y132M2-6
    2CY-18/0.36
    KCB-483.3 29 483.3 1440 0.36 5.5 42 11 Y160M-4
    2CY-29/0.36
    KCB-633 38 633 970 0.28 6 43 11 Y160L-6
    2CY-38/0.28
    KCB-960 58 960 1470 0.28 6.5 43 18.5 Y180M-4
    2CY-58/0.28
    KCB-1200 72 1200 740  0.6  7  43 37 Y280S-8
    KCB-1600 95 1600 980 45 Y280S-6
    KCB-1800 112 1800 740  0.6  7.5  43 55 Y315S-8
    KCB-2500 150 2500 985 75 Y315S-6
    KCB-2850 170 2850 740  0.6  8  44 90 Y315L1-8
    KCB-3800 230 3800 989 110 Y315L1-6
    KCB-4100 245 4100 743  0.6  8  44 132 Y355M1-8
    KCB-5400 325 5400 989 160 Y355M1-6
    KCB-5600 330 5600 744  0.6  8  44 160 Y355M2-8
    KCB-7600 460 7600 989 200 Y355M3-6
    KCB-7000 420 7000 744  0.6  8  44 185 Y355L1-8
    KCB-9600 570 9600 989 250 Y355L2-6
