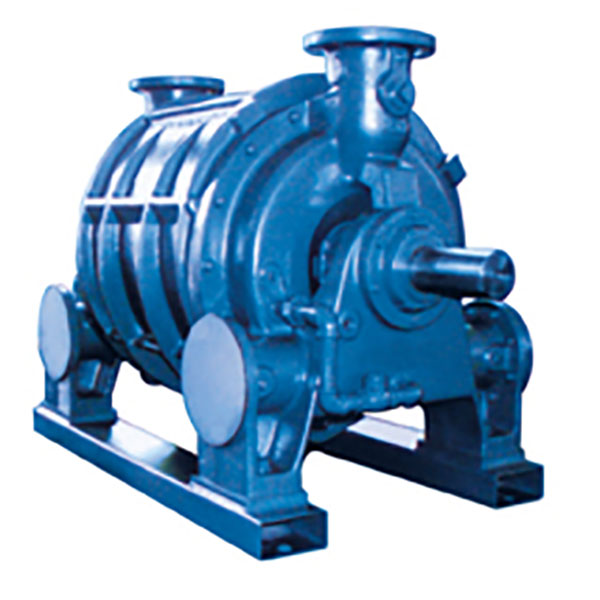

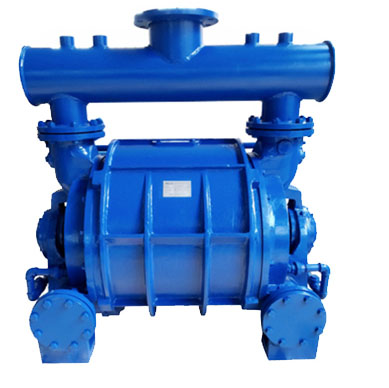

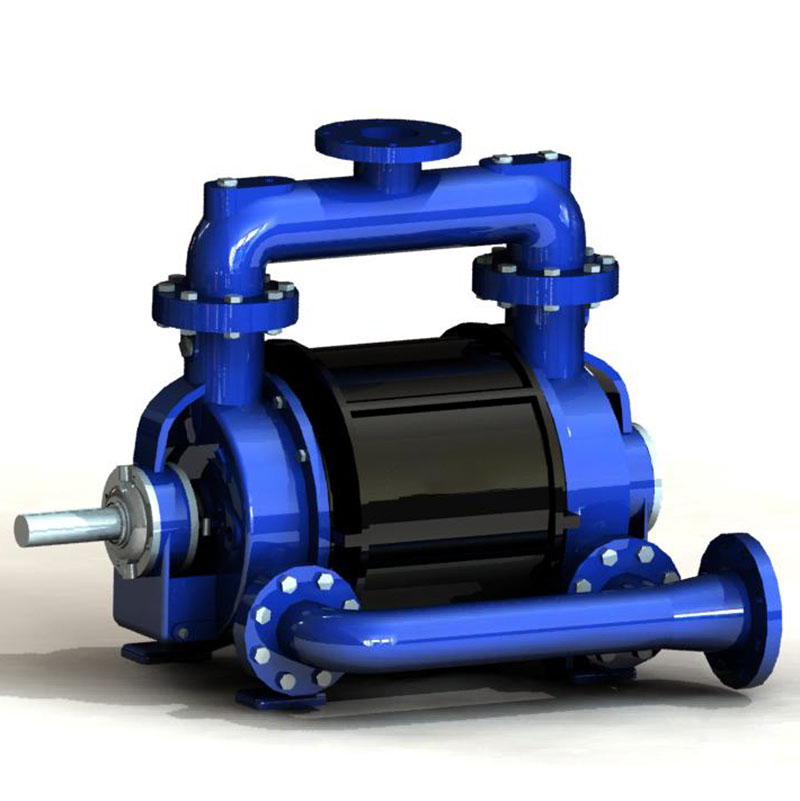

CL Vacuum Pump

Vacuum Pump
    Advantages:
  • They are able to work in the situation that suction port had excessive liquid& contains solid particles.
  • When gas is corrosive, the material of CL pump is optional, including several kinds of stainless steel, different corrosion resistant occasions.
  • When gas is vapor in vacuum state, CL pump as can be used as condenser. The condenser in the heat exchanger is the working liquid of pump, some of which can be injected into pump before the pump suction port, to condense the saturated vapor. It will improve pump’s performance and efficiency.
      • Application:
  • Followed are some simple flow diagrams of CL pumps in different systems; They are typical and similar with other application; Solutions for special cases can be provided. We will provide you the special design as your requirements. Filtration&Solvent recovery&Condenser pumping&Water diversion&Vacuum for power plant condenser&Wet flue gas desulfurization equipment of coal-fired power plant&Compression of special inflammable and explosive gases such as acetylene&Compression of ozone&Gas recovery&Reduced pressure distillation&Vacuum dehydration &Vacuum filtration&Vacuum extrusion/ vacuum forming&Vacuum impregnation&Vacuum extraction
    • Model Ultimate Vacuum Capacity Power Speed Remarks
    mbar （m³/min） （kw） （r/min）
    CL—701 800～400 18～17 30 980 Direct drive
    CL—702 450～240 19～18 37 980 Direct drive
    CL—703 270～80 17～13 37 980 Direct drive
    CL—1001 800～400 27～25 45 740 Direct drive
    CL—1002 450～240 26～24 45 740 Direct drive
    CL—1003 270～80 24～16 45 740 Direct drive
    CL—2001 800～400 58～56 90 590 Direct drive
    CL—2002 450～240 56～52 90 590 Direct drive
    CL—2003 270～80 55～45 90 590 Direct drive
    CL—3001 800～400 85～80 132 500 Belt drive
    CL—3002 450～240 82～78 132 500 Belt drive
    CL—3003 270～80 80～68 132 500 Belt drive
