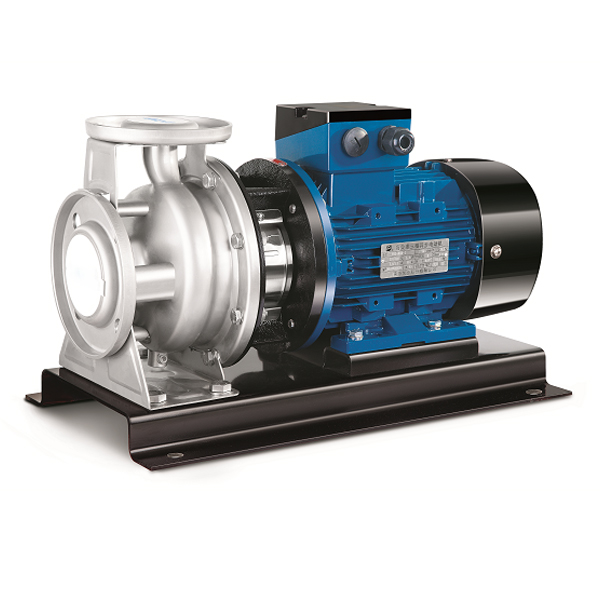

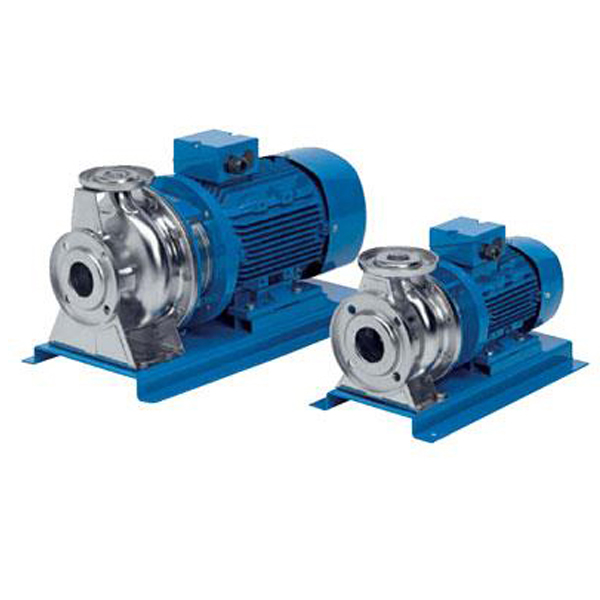

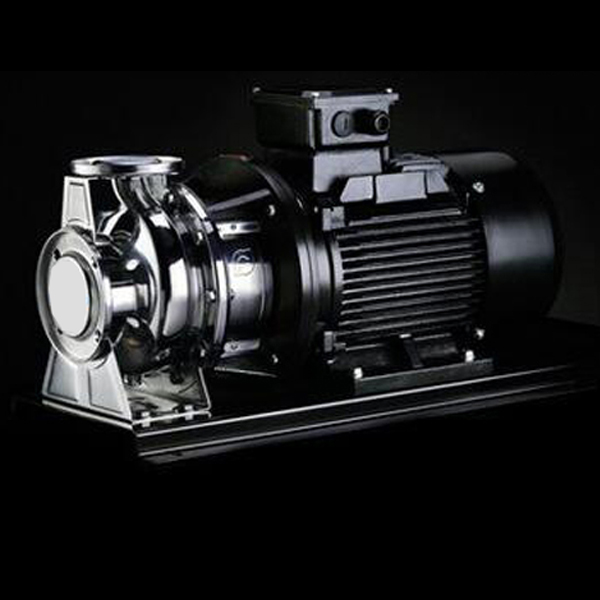

ES End Suction Pump

Hanthing Fluid Group
      Performance range;
  • Flow: 6 - 200 m3/h
  • Delivery Head: 5-70m
  • Outlet Dia.: DN32-DN80mm
  • Working Pressure (Max): 7Mpa
  • Liquid Temperature: 0 - 150 C
      • Application:
  • Industrial water supply and discharge, Irrigation & Drainage,flood disposal, Oil, gas & petrol liquid processing, Hot water & raw water transferring, Chemical & Sea water transferring, Power station water circulation, Factory & residential fire fighting, Mining water supply & drainage, Civil water supply & treatment.



Items Group Model Flow Head Eta Power Speed Impeller Dia Motor Rated Current Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Power (A) (kg)
1 ES50-32-160 ES50-32-160/1.1 6.3 18 46 0.67 2900 133 1.1KW 2.5A 31
2 ES50-32-160/1.5 12.5 20 58 1.17 2900 144 1.5KW 3.3A 37
3 ES50-32-160/2.2 12.5 25 55 1.55 2900 157.5 2.2KW 4.7A 39
4 ES50-32-200 ES50-32-200/3.0 12.5 32 53 2.06 2900 166 3KW 6.2A 53
5 ES50-32-200/4.0 12.5 42 50 2.86 2900 192 4KW 8.0A 58
6 ES50-32-200/5.5 12.5 54 45 4.09 2900 214 5.5KW 10.9A 77
7 ES65-40-125 ES65-40-125/1.5 25 13 69 1.28 2900 114 1.5KW 3.3A 33
8 ES65-40-125/2.2   18 68 1.8 2900 127 2.2KW 4.7A 35
9 ES65-40-125/3.0 25 24 66 2.48 2900 140 3KW 6.2A 47
10 ES65-40-160 ES65-40-160/4.0 25 28 65 2.93 2900 157 4KW 8.0A 52
11 ES65-40-200 ES65-40-200/5.5 25 36 62 3.96 2900 170 5.5KW 10.9A 78
12 ES65-40-200/7.5 25 46 58 5.4 2900 190.5 7.5KW 14.5A 82
13 ES65-40-200/11.0 25 62 53 7.97 2950 221 11KW 21A 161
14 ES65-50-125 ES65-50-125/3.0 50 13 72 2.46 2900 126.5 3KW 6.2A 49
15 ES65-50-125/4.0 50 18 72 3.41 2900 138.5 4KW 8.0A 54
16 ES65-50-160 ES65-50-160/5.5 50 25 72 4.73 2900 152 5.5KW 10.9A 78
17 ES65-50-200 ES65-50-200/7.5 50 32 71 6.14 2900 169 7.5KW 14.5A 82
18 ES65-50-200/9.2 50 40 70 7.79 2900 181 9.2KW 17.8A 85
19 ES65-50-200/11.0 50 48 69 9.48 2950 194 11KW 21A 161
20 ES65-50-200/15.0 50 58 66 11.97 2950 209 15KW 28.4A 171
21 ES65-50-200/18.5 50 68 63 14.71 2950 222 18.5KW 34.7A 188
22 ES80-65-125 ES80-65-125/5.5 100 13 75 4.72 2900 127 5.5KW 10.9A 79
23 ES80-65-125/7.5 100 18 77 6.37 2900 137 7.5KW 14.5A 83
24 ES80-65-125/9.2 100 23 80 7.83 2900 144.5 9.2KW 17.8A 87
25 ES80-65-160 ES80-65-160/11.0 100 27 80 9.2 2950 153 11KW 21A 163
26 ES80-65-160/15.0 100 36 80 12.26 2950 167.5 15KW 28.4A 173
27 ES80-65-200 ES80-65-200/18.5 100 45 78 15.72 2950 187 18.5KW 34.7A 190
28 ES80-65-200/22.0 100 53 77 18.76 2950 200 22KW 41.1A 220
29 ES80-65-200/30.0 100 66 75 23.98 2950 221 30KW 55.7A 292
30 ES100-80-160 ES100-80-160/11.0 160 15 72 9.08 2950 144 11KW 21A 163
31 ES100-80-160/15.0 160 22 76 12.62 2950 159 15KW 28.4A 173
32 ES100-80-160/18.5 160 28 76 16.06 2950 167 18.5KW 34.7A 185
33 ES100-80-200 ES100-80-200/30.0 160 45 78 25.15 2950 197 30KW 55.7A 295
34 ES100-80-200/37.0 160 54 77 30.58 2950 213 37LW 68.3 315
Group Model Flow Head Eta Power Speed Impeller Dia MotorPower Rated Current Weight
m³/h m % kw rpm mm A kg
ES50-32-160 ES50-32-160/6 1.1 6.3 18 43 0.72 3450 111.5 1.1KW 2.5A 31
ES50-32-160/6 1.5 12.5 20 59 1.15 3450 124 1.5KW 3.3A 37
ES50-32-160/6 2.2 12.5 25 54 1.58 3450 137.5 2.2KW 4.7A 39
ES50-32-160/6 3.0 12.5 32 52 2.1 3450 150 3KW 6.2A 47
ES50-32-200 ES50-32-200/6 4.0 12.5 42 47 3.04 3450 160.5 4KW 8.0A 58
ES50-32-200/6 5.5 12.5 54 46 4 3450 179 5.5KW 10.9A 77
ES65-40-125 ES65-40-125/6 1.5 25 13 68 1.3 3450 102 1.5KW 3.3A 33
ES65-40-125/6 2.2 25 18 68 1.8 3450 111.5 2.2KW 4.7A 35
ES65-40-125/6 3.0 25 24 64 2.55 3450 122 3KW 6.2A 47
ES65-40-125/6 4.0 25 28 64 2.98 3450 130 4KW 8.0A 52
ES65-40-160 ES65-40-160/6 5.5 25 36 65 3.77 3450 145 5.5KW 10.9A 78
ES65-40-160/6 7.5 25 46 61 5.14 3450 162.5 7.5KW 14.5A 82
ES65-40-200 ES65-40-200/6 11.0 25 62 59 7.16 3500 182.5 11KW 21A 161
ES65-50-125 ES65-50-125/6 3.0 50 13 66 2.68 3450 109 3KW 6.2A 49
ES65-50-125/6 4.0 50 18 70 3.5 3450 120.5 4KW 8.0A 54
ES65-50-160 ES65-50-160/6 7.5 50 32 73 5.97 3450 143.5 7.5KW 14.5A 82
ES65-50-160/6 9.2 50 40 70 7.79 3450 152 9.2KW 17.8A 85
ES65-50-200 ES65-50-200/6 11.0 50 48 69 9.48 3500 169 11KW 21A 161
ES65-50-200/6 15.0 50 58 69 11.45 3500 181 15KW 28.4A 171
ES65-50-200/6 18.5 50 68 68 13.62 3500 194 18.5KW 34.7A 188
ES80-65-125 ES80-65-125/6 5.5 100 12.5 69 4.94 3450 112 5.5KW 10.9A 79
ES80-65-125/6 7.5 100 18 74 6.63 3450 120 7.5KW 14.5A 83
ES80-65-125/6 9.2 100 23 78 8.04 3450 127 9.2KW 17.8A 87
ES80-65-160 ES80-65-160/6 11.0 100 27 78 9.43 3500 132 11KW 21A 163
ES80-65-160/6 15.0 100 36 78 12.58 3500 145.5 15KW 28.4A 173
ES80-65-200 ES80-65-200/6 18.5 100 45 78 15.72 3500 161.5 18.5KW 34.7A 190
ES80-65-200/6 22.0 100 53 77 18.76 3500 172.5 22KW 41.1A 220
ES80-65-200/6 30.0 100 68 77 24.06 3500 190 30KW 55.7A 292
ES100-80-160 ES100-80-160/6 15.0 160 20 70 12.46 3500 136.5 15KW 28.4A 173
ES100-80-160/6 18.5 160 26 74 15.32 3500 144 18.5KW 34.7A 185
ES100-80-200 ES100-80-200/6 22.0 160 33 78 18.45 3500 153.5 22KW 41.1A 223
ES100-80-200/6 30.0 160 45 79 24.84 3500 169.5 30KW 55.7A 295
ES100-80-200/6 37.0 160 54 79 29.8 3500 181 37LW 68.3 315
