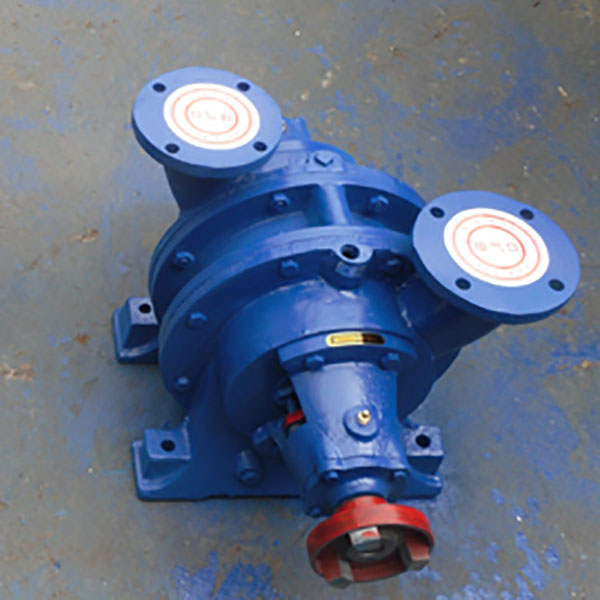

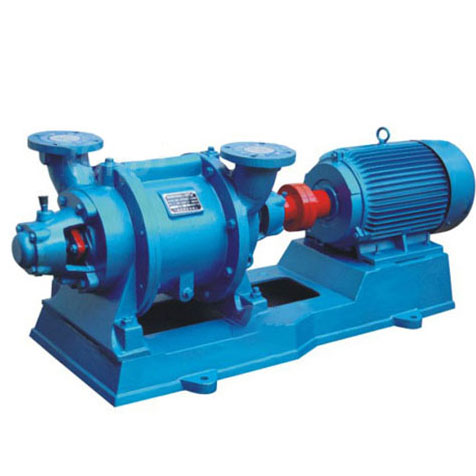

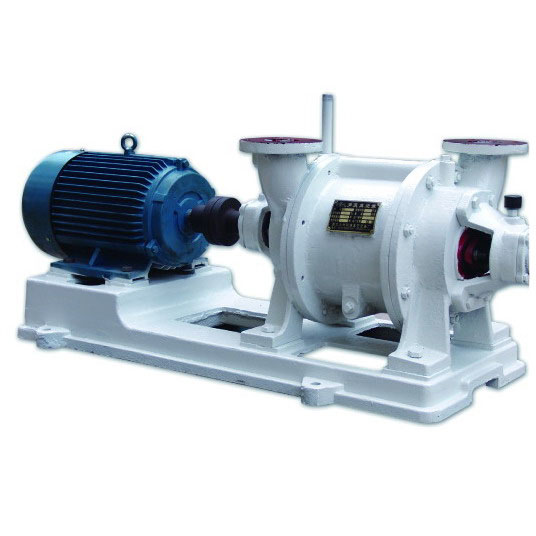

SZ Vacuum Pump

Vacuum Pump
    Overview:
  • SZ series liquid ring vacuum pump and compressor are remodeled on the basis of the product produced by FSU imported in 60s or 70s. Since the product have lower efficiency and lower vacuum degree, this series have been faded gradually at present. Our company have years of professional production experience of liquid ring vacuum pumps, so we still retain the production scheme of this series. But now we only produce the pump for maintenance and change the old pump. We do not recommend this series as new items to introduce to users..
    • Model Maxmium suction  Capacity Power Speed Water consumption Limiting vacuum Maxmium Pressure Total Weight Bareshaft Weight
      M3/min Vacuum pump Compressor rpm L/min kg/cm3 KG
    SZ-1 1.5 - 4 5.5 1440 10 160hpa 1 250 140
    SZ-2 3.4 1.5 7.5 11 1450 30 130hpa 1.4 300 150
    SZ-3 11.5 7.5 22 37 970 70 80hpa 2.1 900 465
    SZ-4 27 16 75 90 745 100 700hpa 2.1 2000 975
