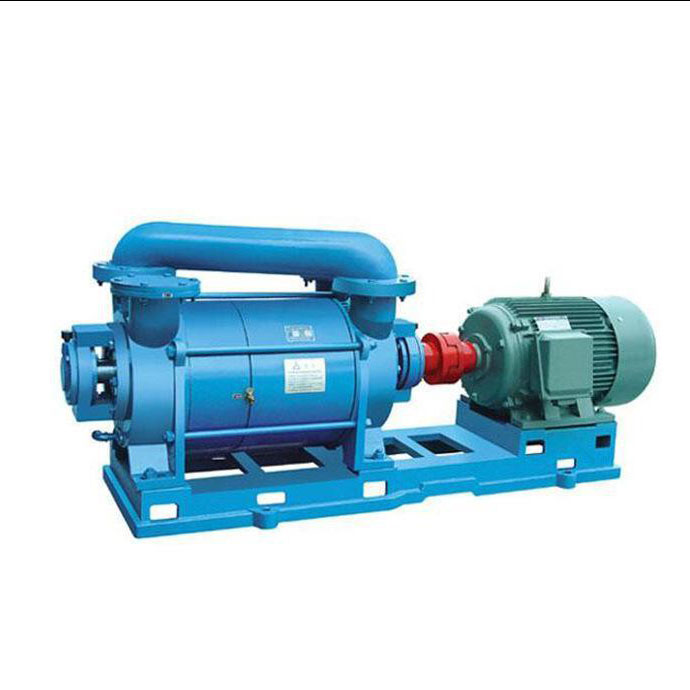

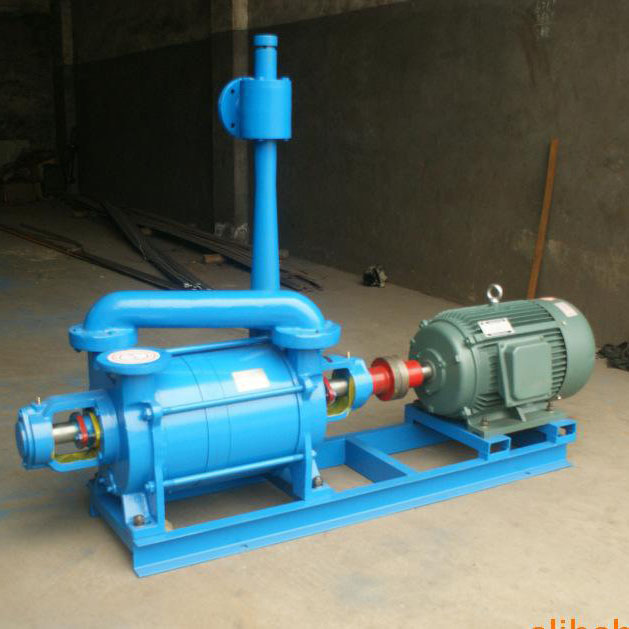

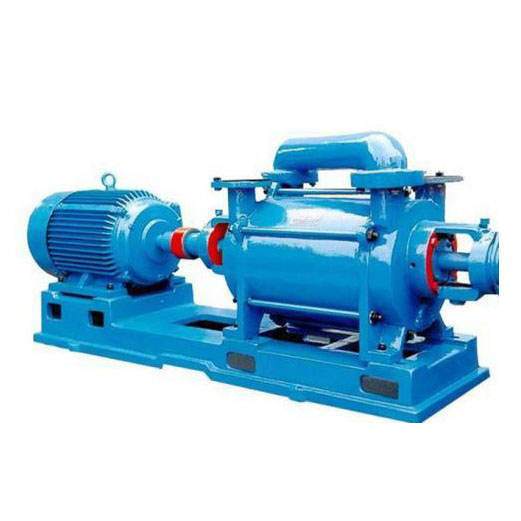

2SK/SK Vacuum Pump

Vacuum Pump
    Overview:
  • Models SK 2SK are single stage liquid ring vacuum pumps. Model 2SK is double stages liquid ring vacuum pump. The liquid-ring vacuum pump compresses gas by rotating a vaned impeller within a cylindrical casing. Liquid (usually water) is fed into the pump, and by centrifugal acceleration, forms a moving cylindrical ring against the inside of the casing. This liquid ring creates a series of seals in the space between the impeller vanes, which form compression chambers. The eccentricity between the impeller's axis of rotation and the casing geometric axis results in a cyclic variation of the volume enclosed by the vanes and the ring. Gas, often air, is drawn into the pump through an inlet port in the end of the casing. The gas is trapped in the compression chambers formed by the impeller vanes and the liquid ring. The reduction in volume caused by the impeller rotation compresses the gas, which reports to the discharge port in the end of the casing. Compressed gas on discharge of pump contains certain amount of working liquid which is usually removed in vapor-liquid separator.
      • Application:
  • Single stage or two stage liquid ring vacuum pumps are the ideal for specific, humid, dirty or high capacity applications in heavy industries,a selection of which can be found below. The SK and 2SK series are the workhorses: proven, strong and reliable machines that deliver utility or process vacuum. SK and 2SK series pumps are therefore suitable for use in the following industry: · General manufacturing · Metalwork industry · Food processing · Petroleum industry · Paint industry· Mining · Chemical industry· Oil and gas · Paper and allied products · Plastics · Brick extrusion· Textile industry · Automotive industry· Power and utilities · Cement and allied products
    • Model Suction capacity Limited vacuum Motor power rpm Diameter (mm)
    Max. Suction pressure -0.04Mpa mmhg Mpa Vacuum pump Compressor inlet outlet
    SK-0.4 0.4 0.36 -650 -0.087 1.5 - 2900 G1 G1
    SK-0.8 0.8 0.72 -650 -0.087 2.2 - 2900 G1 G1
    SK-1.5 1.5 1.35 -680 -0.089 4 5.5 1440 65 65
    SK-3 3 2.8 -700 -0.093 5.5 7.5 1440 65 65
    SK-6 6 5.4 -700 -0.093 11 15 1440 65 65
    SK-9 9 8.1 -700 -0.093 15 22 1440 65 65
    SK-12 12 10.8 -700 -0.093 18.5 30 970 80 80
    SK-15 15 13.5 -700 -0.093 22 37 970 80 80
    SK-20 20 18 -700 -0.093 37 55 730 150 150
    SK-30 30 27 -700 -0.093 45-55 75 730 150 150
    SK-42 42 37.8 -700 -0.093 75 - 730 150 150
    Model Suction capacity Limited vacuum Motor power rpm Diameter (mm) Liquid flow rate
    Max. Suction pressure -0.078Mpa mmhg Mpa Inlet and outlet L/MIN
    2SK-1.5 1.5 0.9 -730 -0.097 4 1440 40 10-15
    2SK-3 3 2 -735 -0.098 7.5/11 1440 40 15-20
    2SK-6 6 4 -735 -0.098 15 1460 70 35-35
    2SK-12 12 8 -735 -0.098 22/30 970 100 40-50
    2SK-20 20 14 -735 -0.098 45 740 125 60-80
    2SK-30 30 20 -735 -0.098 55/75 740 125 70-90
