WS Plup Pump

slurry pump
    Overview:

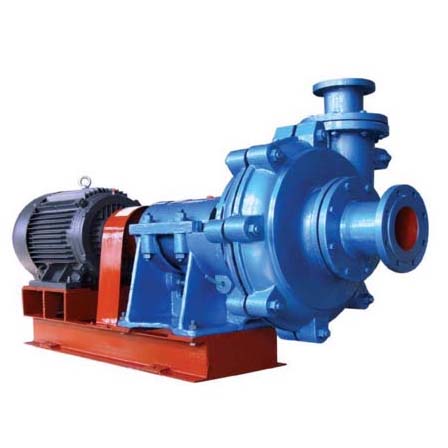

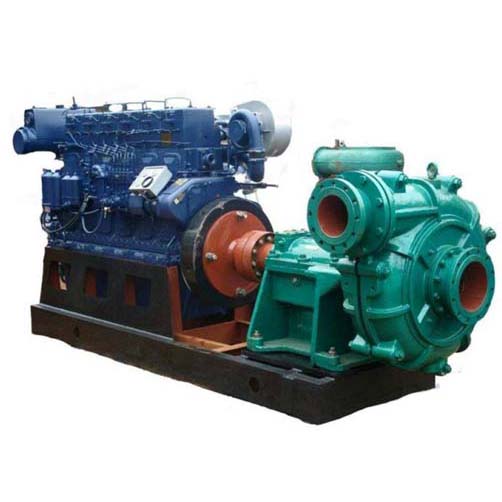

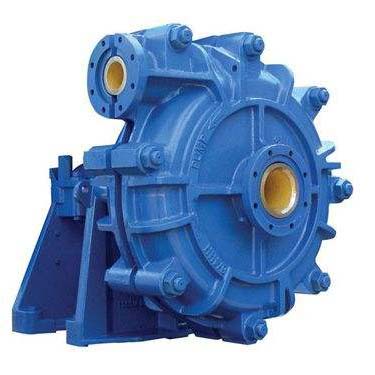

  • Type A H(R)/HH/M(R) slurry pumps are cantilevered,horizontal and centrifugal slurry pumps, Mud pumps, impurity pumps, dredge pumps and desilting pumps all belong to category of slurry pumps.
  • Type A H(R)/HH are heavy duty slurry pumps used to transport the strong abrasive high density or low density high head slurry. Under the allowable pressure, they can be installed in multistage series.
  • Type M(R) slurry pumps are middle duty slurry pumps used to transport the fine particle size and middle density slurry.
      • Application:
  • Type A H(R)/HH/M(R) slurry pumps are widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for transportation of abrasive solid slurry.
      • Material:
  • Mining & Mineral Processing (Gold/Copper/Iron Ore/Lead&Zinc/Tin/Wolfram etc.)
  • Environmental Water & Sewage Treatment
  • Power & Oil
  • (Bottom ash,lime slurry for FGD)
  • Chemical Industry (Phosphate/Potash/Chemical Fertilizer etc.)
  • Food And Other Industry (Sugar/Paper&Pulp/Tobacco)
  • Dredging (Sand&Gravel)

    • Model Power Clan water specificaton Solid dia. Weight
    Capacity lift head  Speed Effiency NPSHr
    (KW) M3/H M r/min % m MM kg
    300ZJ(ZGM)-I-A100 450 464-1826 15.3-65.2 300-590 80.7 3 88 5265
    300ZJ(ZGM)-I-A95 400 441-1735 13.8-58.8 300-590 77.7 3 88 5220
    300ZJ(ZGM)-I-A90 560 505-1844 21.2-79.9 400-730 81.4 3.9 85 5005
    300ZJ(ZGM)-I-A85 450 477-1742 18.9-71.3 400-730 78.4 3.8 85 4965
    300ZJ(ZGM)-I-A70 630 635-2333 16.0-76.8 490-980 80.4 3.9 92 3560
    300ZJ(ZGM)-I-A65 500 589-2166 13.8-66.2 490-980 77.4 3.7 92 3531
    300ZJ(ZGM)-I-A56 250 395-1568 9.7-46.0 400-980 80.9 3.5 96 3030,
    250ZJ(ZGM)-I-A103 560 402-1573 29.7-110.5 400-730 74.5 2.8 69 5085
    250ZJ(ZGM)-I-A96 560 403-1466 25.4-93.7 400-730 77.8 3.5 69 5035
    250ZJ(ZGM)-I-A96 450 378-1374 22.3-82.4 400-730 73.8 3.4 69 4980
    250ZJ(ZGM)-I-A85 800 376-1504 30.1-128.7 490-980 75.6 3.5 76 4530
    250ZJ(ZGM)-I-A83 800 367-1469 28.7-122.7 490-980 74.6 3.5 76 4514
    250ZJ(ZGM)-I-A80 710 354-1416 26.7-114.0 490-980 72.6 3.4 76 4490
    250ZJ(ZGM)-I-A78 630 345-1380 25.4-108.4 490-980 70.6 3.2 76 4474
    250ZJ(ZGM)-I-A75 560 300-1480 20.8-97.5 490-980 76 3 72 3480
    250ZJ(ZGM)-I-A73 500 292-1441 19.7-92.4 490-980 75 3 72 3466
    250ZJ(ZGM)-I-A70 450 280-1381 18.1-84.9 490-980 73 2.9 72 3446
    250ZJ(ZGM)-I-A68 450 272-1342 17.1-80.1 490-980 72 2.7 72 3432
    250ZJ(ZGM)-I-A65 315 299-1249 15.4-71.0 490-980 76.9 3 72 3020
    250ZJ(ZGM)-I-A63 315 290-1211 14.4-66.7 490-980 75.9 3 72 3008
    250ZJ(ZGM)-I-A60 280 276-1153 13.1-60.5 490-980 73.9 2.8 72 2991
    200ZJ(ZGM)-I-A85 560 221-907 32.0-133.7 490-980 70.5 2.8 54 4110
    200ZJ(ZGM)-I-A75 355 225-900 22.8-102.9 490-980 72.8 3 56 3070
    200ZJ(ZGM)-I-A73 355 219-876 21.6-97.5 490-980 71.8 3 56 3056
    200ZJ(ZGM)-I-A70 315 205-976 19.4-86.4 490-980 75.6 2.8 56 24, 65
    200ZJ(ZGM)-I-A68 315 199-948 18.3-81.5 490-980 74.6 2.8 56 2453
    200ZJ(ZGM)-I-A65 250 235-950 16.4-72.0 490-980 79.6 2.5 62 2323
    200ZJ(ZGM)-I-A63 250 228-921 15.4-67.6 490-980 78.6 2.5 62 2311
    200ZJ(ZGM)-I-A60 185 218-870 13.9-62.0 490-980 82.7 2.5 62 2223
    200ZJ(ZGM)-I-A58 185 211-841 13.0-57.9 490-980 81.7 2.5 62 2214
    150ZJ(ZGM)-I-A70 185 93-401 22.0-91.2 490-980 62.3 2 37 2245
    150ZJ(ZGM)-I-A65 200 150-600 17.4-75.7 490-980 69.2 2.5 48 2223
    150ZJ(ZGM)-I-A63 185 146-582 16.3-71.1 490-980 69.2 2.5 48 2211
    150ZJ(ZGM)-I-A60 160 135-550 14.7-63.5 490-980 74.6 2.5 48 2203
    150ZJ(ZGM)-I-A58 132 131-532 13.7-59.3 490-980 73.6 2.5 48 2033
    150ZJ(ZGM)-I-A55 110 124-504 12.3-53.4 490-980 71.6 2.3 48 2019
    150ZJ(ZGM)-I-C58 160 134-596 12.8-61.0 490-980 69.1 2 75 2063
    150ZJ(ZGM)-I-A57 110 95-427 13.2-56.3 490-980 66.6 1.8 32 2023
    150ZJ(ZGM)-I-A50 75 115-460 9.5-43.1 490-980 76.8 2.5 48 1735
    150ZJ(ZGM)-I-A48 75 111-442 8.7-39.7 490-980 75.8 2.5 48 1728
    150ZJ(ZGM)-I-C42 132 142-550 12.1-62.8 700-1480 76.4 2.2 69 1605
    100ZJ(ZGM)-I-A50 160 85-360 20.5-100.2 700-1480 68.5 2.5 34 1475
    100ZJ(ZGM)-I-A46 132 79-331 17.3-84.8 700-1480 66.5 2.3 34 1461
    100ZJ(ZGM)-I-A42 90 66-275 14.7-70.8 700-1480 70.4 2.5 35 1075
    100ZJ(ZGM)-I-A39 75 61-255 12.6-61.0 700-1480 68.4 2.4 35 1064
    100ZJ(ZGM)-I-B42 75 45-205 12.6-70.7 700-1480 63.2 1.8 18 1085
    100ZJ(ZGM)-I-A36 55 61-245 9.7-49.5 700-1480 71.6 2 32 1010
    100ZJ(ZGM)-I-A33 45 56-225 8.2-41.6 700-1480 69.6 1.8 32 1003
    80ZJ(ZGM)-I-A52 160 51-242 22.1-109.8 700-1480 56.3 2.1 21 1465
    80ZJ(ZGM)-I-A42 75 61-204 14.4-70.4 700-1480 66.7 2.5 24 1053
    80ZJ(ZGM)-I-A36 45 46-190 9.6-51.4 700-1480 67.7 2.4 24 980
    80ZJ(ZGM)-I-A33 37 43-174 8.0-43.2 700-1480 65.7 2.3 24 973
    65ZJ(ZGM)-I-A30 15 23-79 7.4-34.8 700-1480 63.5 2 19 504
    65ZJ(ZGM)-I-A27 11 20-71 6.0-28.2 700-1480 61.5 1.8 19 500
    50ZJ(ZGM)-I-A50 90 27-111 22.3-110.7 700-1480 45.1 3 13 1378
    50ZJ(ZGM)-I-A46 55 23-94 17.9-85.8 700-1480 44.7 1.4 13 1082
    50ZJ(ZGM)-I-A33 18.5 12-54 7.7-42.5 700-1480 41.4 2.9 13 537
    40ZJ(ZGM)-I-A17 4 4-23 9.0-44.6 1400-2900 52.4 2.5 11 121
