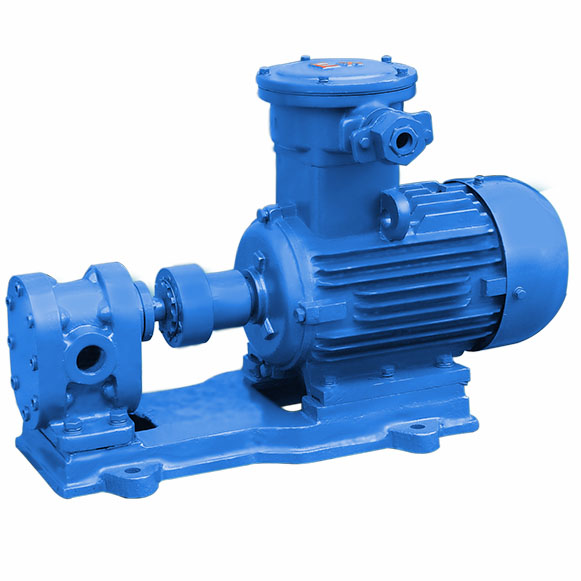

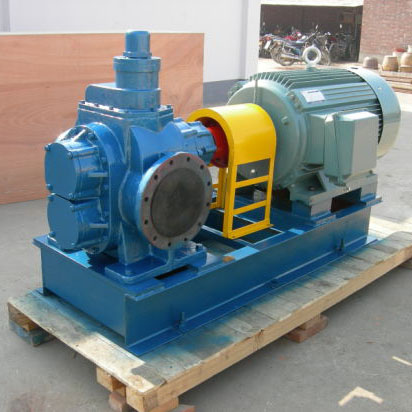

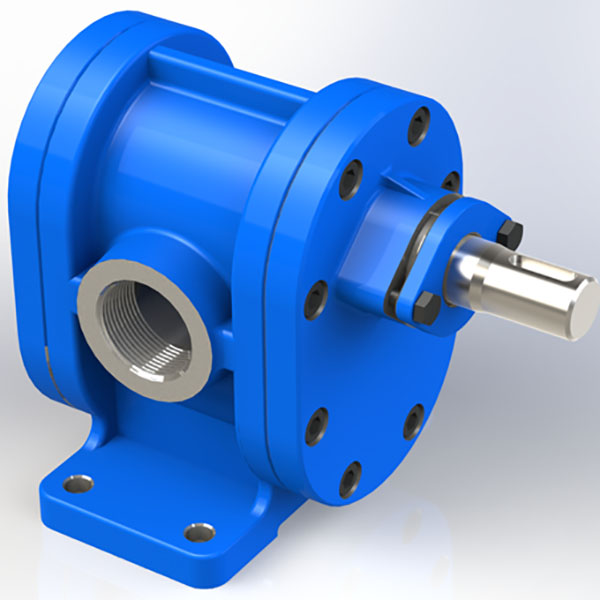

2CY Gear Pump

Vacuum Pump
    Overview:
  • 2CY Electric Oil Transfer Gear Pump is designed for pumping light fuel oils such as diesel, kerosene, and biodiesel. It is also possible to pump vegetable oil, motor oil, and even glycerol.
  • It is helical gear pump, and built-in by-pass valve. For pumping clean viscous liquids, not containing abrasive or solid particles.
  • They can run dry for only intermediate amounts of time, allowing for the use of a suction hose for collecting fluids from a tank. They should not be run dry for an extended period of time as oil is required to lubricate the pump head.
      • Application:
  •  In the oil system can be used for transmission, booster pump;
  •  In the fuel oil system can be used as a transport, pressure, jet fuel pump
  •  In the hydraulic drive system can be used to provide hydraulic power of hydraulic pump;
  •  In all industrial fields, all can be used as lubricating oil pump
    • Model Flange Speed Capacity Power Pressure Npshr
    (r/min) (L/min) (kw) (Mpa) (m)
    2CY1.1/14.5-2 3/4 ″ 1450 18.3 1.5 1.45 5
    2CY2/14.5-2 3/4 ″ 1450 33.3 2.2 1.45 5
    2CY3.3/3.3-2 1 ″ 1450 55 1.5 0.33 5
    2CY3.3/5-2 1 ″ 1450 55 2.2 0.33 5
    2CY5/3.3-2 1 1 / 2″ 1450 83.3 2.2 0.33 5
    2CY5/5-2 1 1 / 2″ 1450 83.3 3 0.5 5
    2CY8/3.3-2 2 ″ 1450 200 4 0.33 5
    2CY12/1.3-2 2 ″ 1450 200 4 0.13 5
    2CY12/3.3-2 2 ″ 1450 200 5.5 0.33 5
    2CY12/6-2 2 ″ 1450 200 5.5 0.6 5
    2CY12/10-2 2 1/2″ 1450 200 7.5 1 5
    2CY18/3.6-2 3 ″ 1000 300 5.5 0.36 5
    2CY18/3.6-2 3 ″ 1450 300 7.5 0.36 5
    2CY29/3.6-2 3 ″ 1450 483.3 7.5 0.36 5
    2CY29/10-2 3 ″ 1450 483.3 11 1 5
    2CY38/2.8-2 4 ″ 1000 633 11 0.28 5
    2CY38/8-2 4 ″ 1450 633 22 0.8 5
    2CY-60/3-2 4 ″ 1450 960 18.5 0.3 5
    2CY-60/6-2 4 ″ 1450 960 30 0.3 5
