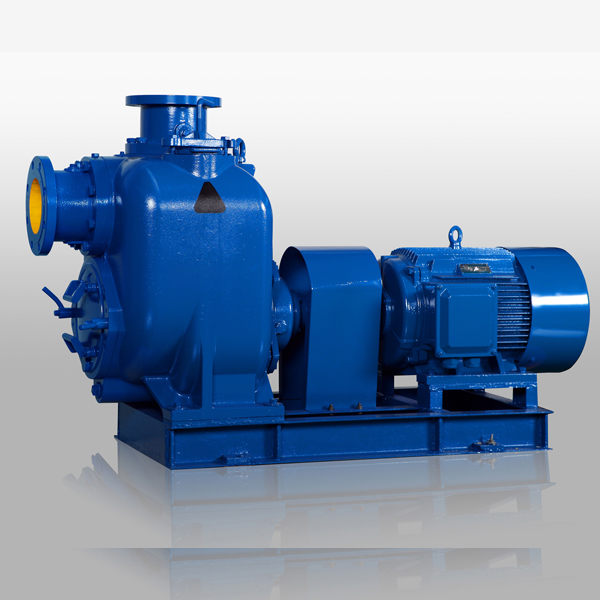

WZ no clogging sewage pump

Hanthing Fluid Group
      Performance range:
  • Self-priming head: 6.5m Capacity: up to 140 m3/h Head: up to 40m
  • Ambient temoerature ≤50℃, medium temperature ≤80℃
  • Medium PH: 6-9 for cast iron pump and 2-13 for stainless steel material
  • Medium unit density not exceeding 1,250kg/m³
  • Self-priming height not exceeding the set value, and suction pipe length≤10M
      • Advantages
  • The WZ self-priming dredge pump (3rd generation) is characterized by its compact structure, good capacity in starting and self-priming, no need for bottom valve and water diversion, and flow channel available for passing of 12mm solid substances. Working with and automatic liquid level control box, it can achieve automatic starting or stop required b the water level, with unattended reliable operation and fully automatic control function. therefore, it's an ideal machine applicable for water drainage in power stations, cities, rual areas and so on.

Model Power Rotate speed Capacity Head
KW r/min M3/H M
40WZ-20  1.5 2900 10 20
50WZ-15  1.5 2900 18 15
50WZ-20  2.2 2900 20 20
50WZ-25  3 2900 20 25
50WZ-35  4 2900 15 35
65WZ-15  2.2 2900 30 15
65WZ-45  7.5 2900 28 45
80WZ-14  3 2900 45 14
80WZ-20  5.5 2900 50 20
80WZ-30  7.5 2900 50 30
80WZ-40  11 2900 48 40
100WZ-20  7.5 2900 90 20
100WZ-25  11 2900 90 25
100WZ-40  15 2900 90 40
150WZ-20  15 2900 180 20
150WZ-25  18.5 2900 200 25
150WZ-30  18.5 2900 150 30
150WZ-40  22 2900 140 40
