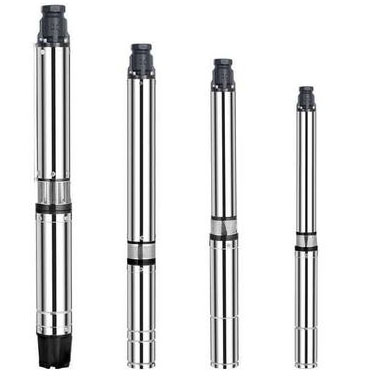

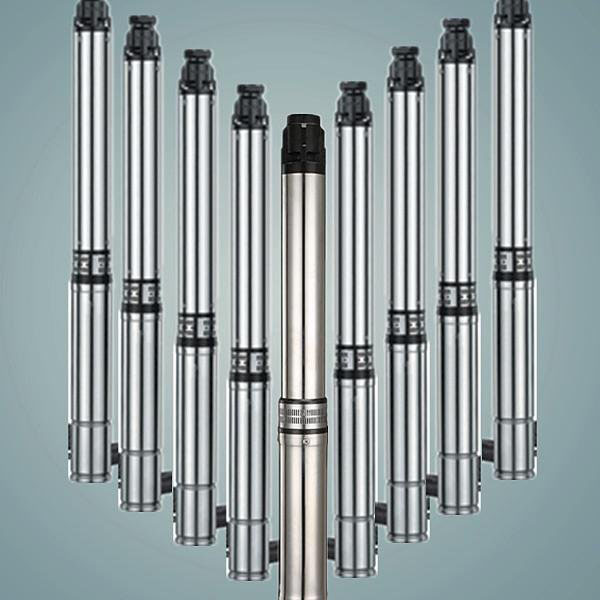

SJ Deepwell Borehole Pump

Vacuum Pump
    Application:
  • Groundwater pumping
  • Water supply systems
  • Ground source heat pump systems
  • Groundwater lowering
  • Irrigation in horticulture & agriculture
  • Other industrial boosting systems

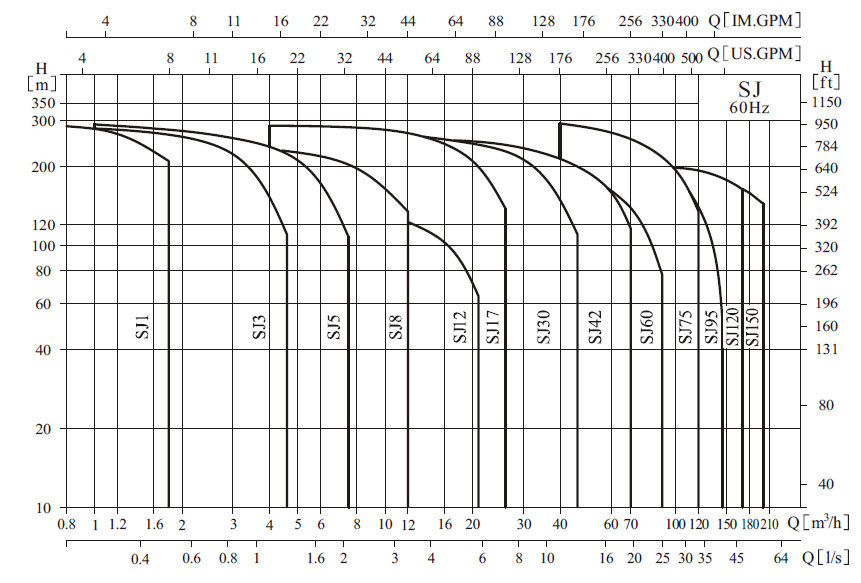

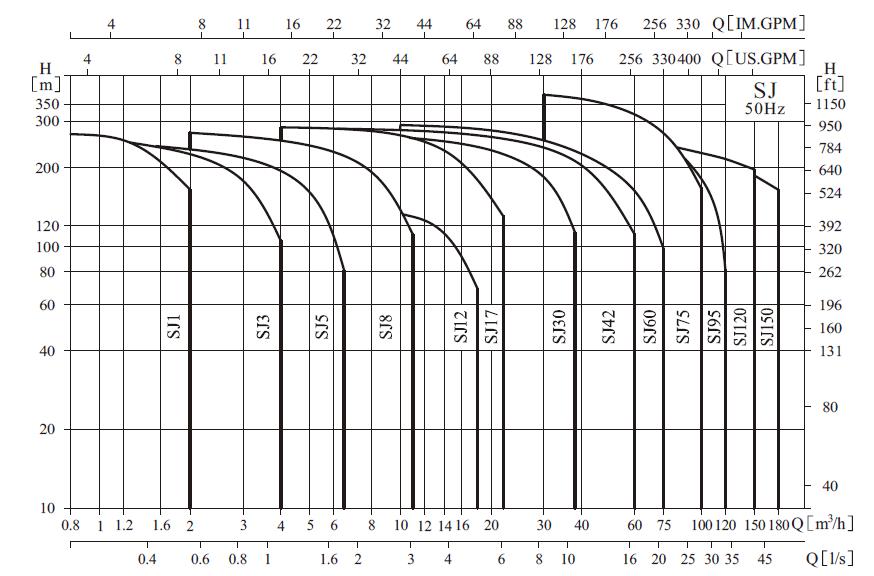

      • Performance Range:
  • Flow rate：0.2-240
  • Head：4.5-380M
  • Temp：+25℃
  • Voltage：220V/380V/440V
  • Material：Stainless steel

    • Items Group Model Flow Head Eta Power Speed Impeller Dia Stage Maximum Maximum Motor Weight
    (m³/h) (m) (%) (kw) (rpm) (mm) Number Immersion Depth Operation Pressure Power (kg)
    1 SJ1 SJ1-2 1 10 38 0.07 2850 73 2 70m 38bar 0.37 11
    2 SJ1-3 1 15 38 0.11 2850 73 3 70m 38bar 0.37 11
    3 SJ1-4 1 20 38 0.14 2850 73 4 70m 38bar 0.37 12
    4 SJ1-5 1 25 38 0.18 2850 73 5 70m 38bar 0.37 12
    5 SJ1-6 1 30 38 0.22 2850 73 6 70m 38bar 0.37 12
    6 SJ1-7 1 35 38 0.25 2850 73 7 70m 38bar 0.37 13
    7 SJ1-8 1 41 38 0.29 2850 73 8 70m 38bar 0.37 13
    8 SJ1-9 1 46 38 0.33 2850 73 9 70m 38bar 0.37 13
    9 SJ1-10 1 51 38 0.37 2850 73 10 70m 38bar 0.55 14
    10 SJ1-11 1 56 38 0.4 2850 73 11 70m 38bar 0.55 14
    11 SJ1-12 1 62 38 0.44 2850 73 12 70m 38bar 0.55 15
    12 SJ1-13 1 67 38 0.48 2850 73 13 70m 38bar 0.55 15
    13 SJ1-14 1 72 38 0.52 2850 73 14 70m 38bar 0.75 16
    14 SJ1-15 1 77 38 0.55 2850 73 15 70m 38bar 0.75 16
    15 SJ1-16 1 82 38 0.59 2850 73 16 70m 38bar 0.75 17
    16 SJ1-17 1 87 38 0.62 2850 73 17 70m 38bar 0.75 17
    17 SJ1-18 1 92 38 0.66 2850 73 18 70m 38bar 1.1 18
    18 SJ1-19 1 97 38 0.7 2850 73 19 70m 38bar 1.1 18
    19 SJ1-20 1 103 38 0.74 2850 73 20 70m 38bar 1.1 19
    20 SJ1-21 1 108 38 0.77 2850 73 21 70m 38bar 1.1 19
    21 SJ1-22 1 113 38 0.81 2850 73 22 70m 38bar 1.1 19
    22 SJ1-23 1 119 38 0.85 2850 73 23 70m 38bar 1.1 20
    23 SJ1-24 1 124 38 0.89 2850 73 24 70m 38bar 1.1 20
    24 SJ1-25 1 129 38 0.93 2850 73 25 70m 38bar 1.1 20
    25 SJ1-26 1 134 38 0.96 2850 73 26 70m 38bar 1.5 22
    26 SJ1-27 1 140 38 1 2850 73 27 70m 38bar 1.5 22
    27 SJ1-28 1 145 38 1.04 2850 73 28 70m 38bar 1.5 23
    28 SJ1-29 1 150 38 1.08 2850 73 29 70m 38bar 1.5 23
    29 SJ1-30 1 155 38 1.11 2850 73 30 70m 38bar 1.5 23
    30 SJ1-31 1 160 38 1.15 2850 73 31 70m 38bar 1.5 24
    31 SJ1-32 1 165 38 1.18 2850 73 32 70m 38bar 1.5 24
    32 SJ1-33 1 170 38 1.22 2850 73 33 70m 38bar 1.5 24
    33 SJ1-34 1 176 38 1.26 2850 73 34 70m 38bar 1.5 24
    34 SJ1-35 1 181 38 1.3 2850 73 35 70m 38bar 1.5 25
    35 SJ1-36 1 186 38 1.33 2850 73 36 70m 38bar 1.5 25
    36 SJ1-37 1 191 38 1.37 2850 73 37 70m 38bar 2.2 29
    37 SJ1-38 1 197 38 1.41 2850 73 38 70m 38bar 2.2 29
    38 SJ1-39 1 202 38 1.45 2850 73 39 70m 38bar 2.2 29
    39 SJ1-40 1 207 38 1.48 2850 73 40 70m 38bar 2.2 30
    40 SJ1-41 1 212 38 1.52 2850 73 41 70m 38bar 2.2 30
    41 SJ1-42 1 217 38 1.56 2850 73 42 70m 38bar 2.2 30
    42 SJ1-43 1 222 38 1.59 2850 73 43 70m 38bar 2.2 30
    43 SJ1-44 1 228 38 1.64 2850 73 44 70m 38bar 2.2 31
    44 SJ1-45 1 233 38 1.67 2850 73 45 70m 38bar 2.2 31
    45 SJ1-46 1 238 38 1.71 2850 73 46 70m 38bar 2.2 31
    46 SJ1-47 1 244 38 1.75 2850 73 47 70m 38bar 2.2 31
    47 SJ1-48 1 249 38 1.79 2850 73 48 70m 38bar 2.2 32
    48 SJ1-49 1 255 38 1.83 2850 73 49 70m 38bar 2.2 32
    49 SJ1-50 1 260 38 1.86 2850 73 50 70m 38bar 2.2 32
    50 SJ3 SJ3-2 3 8 51 0.13 2850 73 2 70m 38bar 0.37 11
    51 SJ3-3 3 12 51 0.19 2850 73 3 70m 38bar 0.37 11
    52 SJ3-4 3 16 51 0.26 2850 73 4 70m 38bar 0.37 12
    53 SJ3-5 3 20 51 0.32 2850 73 5 70m 38bar 0.37 12
    54 SJ3-6 3 24 51 0.38 2850 73 6 70m 38bar 0.37 12
    55 SJ3-7 3 28 51 0.45 2850 73 7 70m 38bar 0.55 13
    56 SJ3-8 3 32 51 0.51 2850 73 8 70m 38bar 0.55 13
    57 SJ3-9 3 36 51 0.58 2850 73 9 70m 38bar 0.55 13
    58 SJ3-10 3 40 51 0.64 2850 73 10 70m 38bar 0.75 16
    59 SJ3-11 3 45 51 0.72 2850 73 11 70m 38bar 0.75 16
    60 SJ3-12 3 49 51 0.79 2850 73 12 70m 38bar 0.75 16
    61 SJ3-13 3 52 51 0.83 2850 73 13 70m 38bar 1.1 18
    62 SJ3-14 3 57 51 0.91 2850 73 14 70m 38bar 1.1 18
    63 SJ3-15 3 61 51 0.98 2850 73 15 70m 38bar 1.1 18
    64 SJ3-16 3 65 51 1.04 2850 73 16 70m 38bar 1.1 19
    65 SJ3-17 3 69 51 1.11 2850 73 17 70m 38bar 1.1 19
    66 SJ3-18 3 74 51 1.19 2850 73 18 70m 38bar 1.1 19
    67 SJ3-19 3 78 51 1.25 2850 73 19 70m 38bar 1.5 21
    68 SJ3-20 3 83 51 1.33 2850 73 20 70m 38bar 1.5 22
    69 SJ3-21 3 86 51 1.38 2850 73 21 70m 38bar 1.5 22
    70 SJ3-22 3 91 51 1.46 2850 73 22 70m 38bar 1.5 22
    71 SJ3-23 3 95 51 1.52 2850 73 23 70m 38bar 2.2 26
    72 SJ3-24 3 99 51 1.59 2850 73 24 70m 38bar 2.2 26
    73 SJ3-25 3 103 51 1.65 2850 73 25 70m 38bar 2.2 27
    74 SJ3-26 3 107 51 1.72 2850 73 26 70m 38bar 2.2 27
    75 SJ3-27 3 111 51 1.78 2850 73 27 70m 38bar 2.2 27
    76 SJ3-28 3 115 51 1.84 2850 73 28 70m 38bar 2.2 27
    77 SJ3-29 3 119 51 1.91 2850 73 29 70m 38bar 2.2 28
    78 SJ3-30 3 123 51 1.97 2850 73 30 70m 38bar 2.2 28
    79 SJ3-31 3 127 51 2.04 2850 73 31 70m 38bar 2.2 28
    80 SJ3-32 3 131 51 2.1 2850 73 32 70m 38bar 2.2 28
    81 SJ3-33 3 135 51 2.16 2850 73 33 70m 38bar 3 30
    82 SJ3-34 3 139 51 2.23 2850 73 34 70m 38bar 3 30
    83 SJ3-35 3 144 51 2.31 2850 73 35 70m 38bar 3 31
    84 SJ3-36 3 148 51 2.37 2850 73 36 70m 38bar 3 31
    85 SJ3-37 3 153 51 2.45 2850 73 37 70m 38bar 3 31
    86 SJ3-38 3 157 51 2.52 2850 73 38 70m 38bar 3 31
    87 SJ3-39 3 161 51 2.58 2850 73 39 70m 38bar 3 31
    88 SJ3-40 3 165 51 2.64 2850 73 40 70m 38bar 3 32
    89 SJ3-41 3 168 51 2.69 2850 73 41 70m 38bar 3 32
    90 SJ3-42 3 172 51 2.76 2850 73 42 70m 38bar 3 32
    91 SJ3-43 3 178 51 2.85 2850 73 43 70m 38bar 3 32
    92 SJ5 SJ5-2 5 7 53 0.18 2850 73 2 70m 38bar 0.37 12
    93 SJ5-3 5 11 53 0.28 2850 73 3 70m 38bar 0.37 12
    94 SJ5-4 5 15 53 0.39 2850 73 4 70m 38bar 0.37 12
    95 SJ5-5 5 19 53 0.49 2850 73 5 70m 38bar 0.55 13
    96 SJ5-6 5 22 53 0.57 2850 73 6 70m 38bar 0.55 13
    97 SJ5-7 5 26 53 0.67 2850 73 7 70m 38bar 0.75 15
    98 SJ5-8 5 30 53 0.77 2850 73 8 70m 38bar 0.75 15
    99 SJ5-9 5 33 53 0.85 2850 73 9 70m 38bar 1.1 17
    100 SJ5-10 5 37 53 0.95 2850 73 10 70m 38bar 1.1 17
    101 SJ5-11 5 41 53 1.05 2850 73 11 70m 38bar 1.1 17
    102 SJ5-12 5 45 53 1.16 2850 73 12 70m 38bar 1.1 17
    103 SJ5-13 5 49 53 1.26 2850 73 13 70m 38bar 1.5 20
    104 SJ5-14 5 52 53 1.34 2850 73 14 70m 38bar 1.5 20
    105 SJ5-15 5 56 53 1.44 2850 73 15 70m 38bar 1.5 21
    106 SJ5-16 5 60 53 1.54 2850 73 16 70m 38bar 1.5 21
    107 SJ5-17 5 64 53 1.65 2850 73 17 70m 38bar 1.5 21
    108 SJ5-18 5 68 53 1.75 2850 73 18 70m 38bar 2.2 26
    109 SJ5-19 5 71 53 1.83 2850 73 19 70m 38bar 2.2 26
    110 SJ5-20 5 75 53 1.93 2850 73 20 70m 38bar 2.2 26
    111 SJ5-21 5 79 53 2.03 2850 73 21 70m 38bar 2.2 26
    112 SJ5-22 5 83 53 2.13 2850 73 22 70m 38bar 2.2 27
    113 SJ5-23 5 87 53 2.24 2850 73 23 70m 38bar 2.2 27
    114 SJ5-24 5 90 53 2.31 2850 73 24 70m 38bar 2.2 27
    115 SJ5-25 5 94 53 2.42 2850 73 25 70m 38bar 2.2 27
    116 SJ5-26 5 98 53 2.52 2850 73 26 70m 38bar 3 29
    117 SJ5-27 5 101 53 2.6 2850 73 27 70m 38bar 3 29
    118 SJ5-28 5 105 53 2.7 2850 73 28 70m 38bar 3 29
    119 SJ5-29 5 108 53 2.78 2850 73 29 70m 38bar 3 29
    120 SJ5-30 5 112 53 2.88 2850 73 30 70m 38bar 3 30
    121 SJ5-31 5 116 53 2.98 2850 73 31 70m 38bar 3 30
    122 SJ5-32 5 119 53 3.06 2850 73 32 70m 38bar 3 30
    123 SJ5-33 5 123 53 3.16 2850 73 33 70m 38bar 3 30
    124 SJ5-34 5 127 53 3.26 2850 73 34 70m 38bar 4 32
    125 SJ5-35 5 131 53 3.37 2850 73 35 70m 38bar 4 32
    126 SJ5-36 5 134 53 3.44 2850 73 36 70m 38bar 4 33
    127 SJ5-37 5 138 53 3.55 2850 73 37 70m 38bar 4 33
    128 SJ5-38 5 142 53 3.65 2850 73 38 70m 38bar 4 33
    129 SJ5-39 5 146 53 3.75 2850 73 39 70m 38bar 4 34
    130 SJ5-40 5 150 53 3.86 2850 73 40 70m 38bar 4 34
    131 SJ5-41 5 153 53 3.93 2850 73 41 70m 38bar 4 35
    132 SJ5-42 5 157 53 4.04 2850 73 42 70m 38bar 4 35
    133 SJ5-43 5 161 53 4.14 2850 73 43 70m 38bar 4 35
    134 SJ8 SJ8-2 8 8 56 0.31 2850 75 2 70m 38bar 0.37 14
    135 SJ8-3 8 12 56 0.47 2850 75 3 70m 38bar 0.55 15
    136 SJ8-4 8 16 56 0.62 2850 75 4 70m 38bar 0.75 16
    137 SJ8-5 8 19 56 0.74 2850 75 5 70m 38bar 0.75 16
    138 SJ8-6 8 23 56 0.9 2850 75 6 70m 38bar 1.1 19
    139 SJ8-7 8 27 56 1.05 2850 75 7 70m 38bar 1.1 19
    140 SJ8-8 8 31 56 1.21 2850 75 8 70m 38bar 1.5 22
    141 SJ8-9 8 35 56 1.36 2850 75 9 70m 38bar 1.5 22
    142 SJ8-10 8 39 56 1.52 2850 75 10 70m 38bar 1.5 22
    143 SJ8-11 8 43 56 1.67 2850 75 11 70m 38bar 2.2 27
    144 SJ8-12 8 47 56 1.83 2850 75 12 70m 38bar 2.2 27
    145 SJ8-13 8 51 56 1.99 2850 75 13 70m 38bar 2.2 28
    146 SJ8-14 8 55 56 2.14 2850 75 14 70m 38bar 2.2 29
    147 SJ8-15 8 59 56 2.3 2850 75 15 70m 38bar 2.2 29
    148 SJ8-16 8 63 56 2.45 2850 75 16 70m 38bar 3 31
    149 SJ8-17 8 67 56 2.61 2850 75 17 70m 38bar 3 32
    150 SJ8-18 8 71 56 2.76 2850 75 18 70m 38bar 3 32
    151 SJ8-19 8 75 56 2.92 2850 75 19 70m 38bar 4 34
    152 SJ8-20 8 79 56 3.08 2850 75 20 70m 38bar 4 35
    153 SJ8-21 8 83 56 3.23 2850 75 21 70m 38bar 4 35
    154 SJ8-22 8 87 56 3.39 2850 75 22 70m 38bar 4 36
    155 SJ8-23 8 91 56 3.54 2850 75 23 70m 38bar 4 36
    156 SJ8-24 8 95 56 3.7 2850 75 24 70m 38bar 4 37
    157 SJ8-25 8 99 56 3.85 2850 75 25 70m 38bar 4 37
    158 SJ8-26 8 103 56 4.01 2850 75 26 70m 38bar 5.5 42
    159 SJ8-27 8 107 56 4.17 2850 75 27 70m 38bar 5.5 42
    160 SJ8-28 8 111 56 4.32 2850 75 28 70m 38bar 5.5 43
    161 SJ8-29 8 115 56 4.48 2850 75 29 70m 38bar 5.5 43
    162 SJ8-30 8 119 56 4.63 2850 75 30 70m 38bar 5.5 43
    163 SJ8-31 8 123 56 4.79 2850 75 31 70m 38bar 5.5 44
    164 SJ8-32 8 127 56 4.94 2850 75 32 70m 38bar 5.5 44
    165 SJ8-33 8 131 56 5.1 2850 75 33 70m 38bar 5.5 45
    166 SJ8-34 8 135 56 5.26 2850 75 34 70m 38bar 5.5 45
    167 SJ8-35 8 139 56 5.41 2850 75 35 70m 38bar 5.5 46
    168 SJ8-36 8 143 56 5.57 2850 75 36 70m 38bar 5.5 46
    169 SJ8-37 8 147 56 5.72 2850 75 37 70m 38bar 5.5 46
    170 SJ8-38 8 151 56 5.88 2850 75 38 70m 38bar 7.5 53
    171 SJ8-39 8 155 56 6.03 2850 75 39 70m 38bar 7.5 53
    172 SJ8-40 8 159 56 6.19 2850 75 40 70m 38bar 7.5 53
    173 SJ8-41 8 162 56 6.31 2850 75 41 70m 38bar 7.5 54
    174 SJ8-42 8 166 56 6.46 2850 75 42 70m 38bar 7.5 54
    175 SJ8-43 8 170 56 6.62 2850 75 43 70m 38bar 7.5 55
    176 SJ8-44 8 174 56 6.77 2850 75 44 70m 38bar 7.5 55
    177 SJ8-45 8 178 56 6.93 2850 75 45 70m 38bar 7.5 56
    178 SJ8-46 8 182 56 7.08 2850 75 46 70m 38bar 7.5 56
    179 SJ8-47 8 186 56 7.24 2850 75 47 70m 38bar 7.5 57
    180 SJ8-48 8 190 56 7.4 2850 75 48 70m 38bar 7.5 57
    181 SJ8-49 8 194 56 7.55 2850 75 49 70m 38bar 7.5 58
    182 SJ8-50 8 198 56 7.71 2850 75 50 70m 38bar 7.5 58
    183 SJ12 SJ12-2 12 10 59 0.55 2850 80 2 70m 38bar 0.75 17
    184 SJ12-3 12 15 59 0.83 2850 80 3 70m 38bar 1.1 19
    185 SJ12-4 12 20 59 1.11 2850 80 4 70m 38bar 1.5 21
    186 SJ12-5 12 25 59 1.39 2850 80 5 70m 38bar 1.5 21
    187 SJ12-6 12 30 59 1.66 2850 80 6 70m 38bar 2.2 26
    188 SJ12-7 12 35 59 1.94 2850 80 7 70m 38bar 2.2 26
    189 SJ12-8 12 40 59 2.22 2850 80 8 70m 38bar 3 29
    190 SJ12-9 12 45 59 2.49 2850 80 9 70m 38bar 3 30
    191 SJ12-10 12 50 59 2.77 2850 80 10 70m 38bar 3 30
    192 SJ12-11 12 55 59 3.05 2850 80 11 70m 38bar 4 33
    193 SJ12-12 12 60 59 3.33 2850 80 12 70m 38bar 4 34
    194 SJ12-13 12 66 59 3.66 2850 80 13 70m 38bar 4 34
    195 SJ12-14 12 71 59 3.94 2850 80 14 70m 38bar 5.5 38
    196 SJ12-15 12 76 59 4.21 2850 80 15 70m 38bar 5.5 38
    197 SJ12-16 12 81 59 4.49 2850 80 16 70m 38bar 5.5 39
    198 SJ12-17 12 86 59 4.77 2850 80 17 70m 38bar 5.5 40
    199 SJ12-18 12 91 59 5.04 2850 80 18 70m 38bar 5.5 40
    200 SJ12-19 12 96 59 5.32 2850 80 19 70m 38bar 7.5 46
    201 SJ12-20 12 101 59 5.6 2850 80 20 70m 38bar 7.5 47
    202 SJ12-21 12 106 59 5.87 2850 80 21 70m 38bar 7.5 47
    203 SJ12-22 12 111 59 6.15 2850 80 22 70m 38bar 7.5 49
    204 SJ12-23 12 116 59 6.43 2850 80 23 70m 38bar 7.5 49
    205 SJ12-24 12 121 59 6.71 2850 80 24 70m 38bar 7.5 50
    206 SJ12-25 12 126 59 6.98 2850 80 25 70m 38bar 7.5 50
    207 SJ17 SJ17-1 17 6.5 66 0.46 2850 89.7 1 70m 38bar 0.55 17
    208 SJ17-2 17 13.5 66 0.95 2850 89.7 2 70m 38bar 1.1 21
    209 SJ17-3 17 20.5 66 1.44 2850 89.7 3 70m 38bar 2.2 28
    210 SJ17-4 17 28 66 1.97 2850 89.7 4 70m 38bar 2.2 29
    211 SJ17-5 17 35 66 2.46 2850 89.7 5 70m 38bar 3 32
    212 SJ17-6 17 42 66 2.95 2850 89.7 6 70m 38bar 4 35
    213 SJ17-7 17 49 66 3.44 2850 89.7 7 70m 38bar 4 36
    214 SJ17-8 17 57 66 4 2850 89.7 8 70m 38bar 5.5 41
    215 SJ17-9 17 64 66 4.49 2850 89.7 9 70m 38bar 5.5 42
    216 SJ17-10 17 72 66 5.05 2850 89.7 10 70m 38bar 5.5 43
    217 SJ17-11 17 79 66 5.54 2850 89.7 11 70m 38bar 7.5 49
    218 SJ17-12 17 87 66 6.11 2850 89.7 12 70m 38bar 7.5 50
    219 SJ17-13 17 95 66 6.67 2850 89.7 13 70m 38bar 7.5 51
    220 SJ17-14 17 102 66 7.16 2850 89.7 14 70m 38bar 9.2 75
    221 SJ17-15 17 109 66 7.65 2850 89.7 15 70m 38bar 9.2 76
    222 SJ17-16 17 116 66 8.14 2850 89.7 16 70m 38bar 9.2 77
    223 SJ17-17 17 123 66 8.63 2850 89.7 17 70m 38bar 9.2 78
    224 SJ17-18 17 130 66 9.12 2850 89.7 18 70m 38bar 11 85
    225 SJ17-19 17 138 66 9.69 2850 89.7 19 70m 38bar 11 86
    226 SJ17-20 17 145 66 10.18 2850 89.7 20 70m 38bar 11 87
    227 SJ17-21 17 152 66 10.67 2850 89.7 21 70m 38bar 13 95
    228 SJ17-22 17 160 66 11.23 2850 89.7 22 70m 38bar 13 96
    229 SJ17-23 17 167 66 11.72 2850 89.7 23 70m 38bar 13 98
    230 SJ17-24 17 174 66 12.21 2850 89.7 24 70m 38bar 13 99
    231 SJ17-25 17 181 66 12.7 2850 89.7 25 70m 38bar 15 106
    232 SJ17-26 17 189 66 13.27 2850 89.7 26 70m 38bar 15 107
    233 SJ30 SJ30-1 30 7.5 68 0.9 2850 93.5 1 70m 38bar 1.1 20
    234 SJ30-2 30 15 68 1.8 2850 93.5 2 70m 38bar 2.2 28
    235 SJ30-3 30 22 68 2.64 2850 93.5 3 70m 38bar 3 31
    236 SJ30-4 30 29 68 3.49 2850 93.5 4 70m 38bar 4 35
    237 SJ30-5 30 37 68 4.45 2850 93.5 5 70m 38bar 5.5 40
    238 SJ30-6 30 44 68 5.29 2850 93.5 6 70m 38bar 5.5 42
    239 SJ30-7 30 52 68 6.25 2850 93.5 7 70m 38bar 7.5 49
    240 SJ30-8 30 59 68 7.09 2850 93.5 8 70m 38bar 7.5 51
    241 SJ30-9 30 66 68 7.93 2850 93.5 9 70m 38bar 9.2 75
    242 SJ30-10 30 74 68 8.9 2850 93.5 10 70m 38bar 9.2 77
    243 SJ30-11 30 81 68 9.74 2850 93.5 11 70m 38bar 9.2 79
    244 SJ30-12 30 88 68 10.58 2850 93.5 12 70m 38bar 11 85
    245 SJ30-13 30 96 68 11.54 2850 93.5 13 70m 38bar 11 87
    246 SJ30-14 30 103 68 12.38 2850 93.5 14 70m 38bar 13 96
    247 SJ30-15 30 110 68 13.22 2850 93.5 15 70m 38bar 13 98
    248 SJ30-16 30 118 68 14.19 2850 93.5 16 70m 38bar 15 106
    249 SJ30-17 30 125 68 15 2850 93.5 17 70m 38bar 15 108
    250 SJ30-18 30 132 68 15.87 2850 93.5 18 70m 38bar 18.5 117
    251 SJ30-19 30 140 68 16.83 2850 93.5 19 70m 38bar 18.5 119
    252 SJ30-20 30 147 68 17.67 2850 93.5 20 70m 38bar 18.5 120
    253 SJ30-21 30 155 68 18.63 2850 93.5 21 70m 38bar 18.5 122
    254 SJ30-22 30 162 68 19.48 2850 93.5 22 70m 38bar 22 138
    255 SJ30-23 30 169 68 20.32 2850 93.5 23 70m 38bar 22 140
    256 SJ30-24 30 177 68 21.28 2850 93.5 24 70m 38bar 22 142
    257 SJ30-25 30 184 68 22.12 2850 93.5 25 70m 38bar 22 144
    258 SJ42 SJ42-1 42 8.5 71 1.37 2850 105 1 70m 38bar 2.2 29
    259 SJ42-2 42 17 71 2.74 2850 105 2 70m 38bar 3 33
    260 SJ42-3 42 26.5 71 4.27 2850 105 3 70m 38bar 5.5 40
    261 SJ42-4 42 36 71 5.8 2850 105 4 70m 38bar 7.5 47
    262 SJ42-5 42 45 71 7.25 2850 105 5 70m 38bar 7.5 49
    263 SJ42-6 42 54 71 8.7 2850 105 6 70m 38bar 9.2 73
    264 SJ42-7 42 63 71 10.16 2850 105 7 70m 38bar 11 80
    265 SJ42-8 42 72 71 11.61 2850 105 8 70m 38bar 13 89
    266 SJ42-9 42 80 71 13 2850 105 9 70m 38bar 15 97
    267 SJ42-10 42 89 71 14.35 2850 105 10 70m 38bar 15 100
    268 SJ42-11 42 98 71 15.8 2850 105 11 70m 38bar 18.5 109
    269 SJ42-12 42 107 71 17.25 2850 105 12 70m 38bar 18.5 111
    270 SJ42-13 42 116 71 18.7 2850 105 13 70m 38bar 22 127
    271 SJ42-14 42 125 71 20.15 2850 105 14 70m 38bar 22 129
    272 SJ42-15 42 134 71 21.6 2850 105 15 70m 38bar 22 131
    273 SJ42-16 42 143 71 23 2850 105 16 70m 38bar 25 145
    274 SJ42-17 42 152 71 24.5 2850 105 17 70m 38bar 25 147
    275 SJ42-18 42 161 71 26 2850 105 18 70m 38bar 30 162
    276 SJ42-19 42 170 71 27.4 2850 105 19 70m 38bar 30 164
    277 SJ42-20 42 179 71 28.85 2850 105 20 70m 38bar 30 167
    278 SJ42-21 42 188 71 30.31 2850 105 21 70m 38bar 37 192
    279 SJ42-22 42 197 71 31.76 2850 105 22 70m 38bar 37 194
    280 SJ60 SJ60-1 60 6 72 1.36 2850 105 1 70m 38bar 2.2 30
    281 SJ60-2-2 60 10.5 72 2.38 2850 105 2 70m 38bar 3 33
    282 SJ60-2 60 12.5 72 2.84 2850 105 2 70m 38bar 4 35
    283 SJ60-3 60 20 72 4.54 2850 105 3 70m 38bar 5.5 41
    284 SJ60-4 60 29 72 6.59 2850 105 4 70m 38bar 7.5 48
    285 SJ60-5 60 37 72 8.4 2850 105 5 70m 38bar 9.2 72
    286 SJ60-6 60 45 72 10.22 2850 105 6 70m 38bar 11 78
    287 SJ60-7 60 53 72 12 2850 105 7 70m 38bar 13 87
    288 SJ60-8-2 60 56 72 12.72 2850 105 8 70m 38bar 13 88
    289 SJ60-8 60 61 72 13.85 2850 105 8 70m 38bar 15 96
    290 SJ60-9-2 60 64 72 14.53 2850 105 9 70m 38bar 15 97
    291 SJ60-9 60 69 72 15.67 2850 105 9 70m 38bar 18.5 105
    292 SJ60-10 60 77 72 17.49 2850 105 10 70m 38bar 18.5 107
    293 SJ60-11 60 85 72 19.3 2850 105 11 70m 38bar 22 123
    294 SJ60-12 60 93 72 21.12 2850 105 12 70m 38bar 22 125
    295 SJ60-13 60 100 72 22.71 2850 105 13 70m 38bar 25 139
    296 SJ60-14 60 106 72 24 2850 105 14 70m 38bar 25 141
    297 SJ60-15 60 114 72 25.89 2850 105 15 70m 38bar 30 143
    298 SJ60-16 60 122 72 27.7 2850 105 16 70m 38bar 30 158
    299 SJ60-17 60 130 72 29.52 2850 105 17 70m 38bar 30 160
    300 SJ60-18 60 140 72 31.79 2850 105 18 70m 38bar 37 186
    301 SJ60-19 60 148 72 33.61 2850 105 19 70m 38bar 37 188
    302 SJ60-20 60 155 72 35.2 2850 105 20 70m 38bar 37 190
    303 SJ60-21 60 163 72 37 2850 105 21 70m 38bar 37 191
    304 SJ75 SJ75-1 75 12 73 3.36 2900 130.4 1 70m 38bar 4 56
    305 SJ75-2 75 25 73 7 2900 130.4 2 70m 38bar 7.5 78
    306 SJ75-3 75 38 73 10.64 2900 130.4 3 70m 38bar 11 92
    307 SJ75-4 75 52 73 14.56 2900 130.4 4 70m 38bar 15 110
    308 SJ75-5 75 65 73 18.2 2900 130.4 5 70m 38bar 18.5 122
    309 SJ75-6 75 79 73 22.12 2900 130.4 6 70m 38bar 22 141
    310 SJ75-7 75 93 73 26 2900 130.4 7 70m 38bar 30 171
    311 SJ75-8 75 107 73 30 2900 130.4 8 70m 38bar 30 176
    312 SJ75-9 75 121 73 33.88 2900 130.4 9 70m 38bar 37 204
    313 SJ75-10 75 135 73 37.8 2900 130.4 10 70m 38bar 37 209
    314 SJ75-11 75 148 73 41.43 2900 130.4 11 70m 38bar 45 256
    315 SJ75-12 75 162 73 45.35 2900 130.4 12 70m 38bar 45 261
    316 SJ75-13 75 175 73 49 2900 130.4 13 70m 38bar 55 279
    317 SJ75-14 75 188 73 52.63 2900 130.4 14 70m 38bar 55 285
    318 SJ75-15 75 201 73 56.27 2900 130.4 15 70m 38bar 55 290
    319 SJ75-16 75 215 73 60.19 2900 130.4 16 70m 38bar 63 309
    320 SJ75-17 75 229 73 64.11 2900 130.4 17 70m 38bar 63 315
    321 SJ75-18 75 243 73 68 2900 130.4 18 70m 38bar 75 341
    322 SJ75-19 75 257 73 72 2900 130.4 19 70m 38bar 75 346
    323 SJ75-20 75 271 73 75.87 2900 130.4 20 70m 38bar 75 351
    324 SJ95 SJ95-1 95 9.5 72 3.42 2900 131.4 1 70m 38bar 4 57
    325 SJ95-2 95 20 72 7.19 2900 131.4 2 70m 38bar 9.2 83
    326 SJ95-3 95 30 72 10.79 2900 131.4 3 70m 38bar 13 100
    327 SJ95-4 95 41 72 14.74 2900 131.4 4 70m 38bar 18.5 119
    328 SJ95-5 95 51.5 72 18.52 2900 131.4 5 70m 38bar 22 138
    329 SJ95-6 95 62 72 22.29 2900 131.4 6 70m 38bar 25 155
    330 SJ95-7 95 73 72 26.25 2900 131.4 7 70m 38bar 30 174
    331 SJ95-8 95 84 72 30.2 2900 131.4 8 70m 38bar 37 202
    332 SJ95-9 95 95 72 34.16 2900 131.4 9 70m 38bar 37 208
    333 SJ95-10 95 106 72 38.11 2900 131.4 10 70m 38bar 45 254
    334 SJ95-11 95 117 72 42 2900 131.4 11 70m 38bar 45 260
    335 SJ95-12 95 129 72 46.38 2900 131.4 12 70m 38bar 55 279
    336 SJ95-13 95 141 72 50.7 2900 131.4 13 70m 38bar 55 284
    337 SJ95-14 95 153 72 55 2900 131.4 14 70m 38bar 55 290
    338 SJ95-15 95 166 72 59.69 2900 131.4 15 70m 38bar 63 310
    339 SJ95-16 95 178 72 64 2900 131.4 16 70m 38bar 63 316
    340 SJ95-17 95 190 72 68.31 2900 131.4 17 70m 38bar 75 342
    341 SJ95-18 95 202 72 72.63 2900 131.4 18 70m 38bar 75 348
    342 SJ120 SJ120-1 120 19 73 8.51 2900 143.7 1 70m 38bar 11 121
    343 SJ120-2-2 120 27.5 73 12.32 2900 132 2 70m 38bar 15 135
    344 SJ120-2-1 120 33.5 73 15 2900 143.7 2 70m 38bar 18.5 140
    345 SJ120-2 120 39 73 17.47 2900 143.7 2 70m 38bar 22 155
    346 SJ120-3-2 120 46.5 73 20.83 2900 143.7 3 70m 38bar 25 173
    347 SJ120-3-1 120 53.5 73 24 2900 143.7 3 70m 38bar 30 187
    348 SJ120-3 120 59 73 26.43 2900 143.7 3 70m 38bar 30 187
    349 SJ120-4-2 120 66.5 73 29.79 2900 143.7 4 70m 38bar 37 210
    350 SJ120-4-1 120 73.5 73 33 2900 143.7 4 70m 38bar 37 210
    351 SJ120-4 120 78.5 73 35.16 2900 143.7 4 70m 38bar 37 210
    352 SJ120-5-2 120 86.5 73 38.75 2900 143.7 5 70m 38bar 45 233
    353 SJ120-5-1 120 94 73 42.11 2900 143.7 5 70m 38bar 45 233
    354 SJ120-5 120 98.5 73 44.12 2900 143.7 5 70m 38bar 55 233
    355 SJ120-6-2 120 104.5 73 46.81 2900 143.7 6 70m 38bar 55 261
    356 SJ120-6-1 120 113 73 50.62 2900 143.7 6 70m 38bar 55 261
    357 SJ120-6 120 118 73 52.86 2900 143.7 6 70m 38bar 63 288
    358 SJ120-7-2 120 123 73 55.1 2900 143.7 7 70m 38bar 63 296
    359 SJ120-7-1 120 130 73 58.23 2900 143.7 7 70m 38bar 63 296
    360 SJ120-7 120 138 73 61.82 2900 143.7 7 70m 38bar 75 306
    361 SJ120-8-2 120 143 73 64 2900 143.7 8 70m 38bar 75 314
    362 SJ120-8-1 120 150 73 67.19 2900 143.7 8 70m 38bar 75 314
    363 SJ120-8 120 157.5 73 70.55 2900 143.7 8 70m 38bar 75 314
    364 SJ120-9-2 120 162.5 73 72.79 2900 143.7 9 70m 38bar 90 342
    365 SJ120-9-1 120 169.5 73 76 2900 143.7 9 70m 38bar 90 342
    366 SJ120-9 120 177.5 73 79.51 2900 143.7 9 70m 38bar 90 342
    367 SJ120-10-2 120 182.5 73 81.75 2900 143.7 10 70m 38bar 90 350
    368 SJ120-10-1 120 189.5 73 84.89 2900 143.7 10 70m 38bar 90 350
    369 SJ120-10 120 197 73 88.25 2900 143.7 10 70m 38bar 110 376
    370 SJ120-11-2 120 202 73 90.48 2900 143.7 11 70m 38bar 110 384
    371 SJ120-11-1 120 209 73 93.62 2900 143.7 11 70m 38bar 110 384
    372 SJ120-11 120 216.5 73 97 2900 143.7 11 70m 38bar 110 384
    373 SJ150 SJ150-1-1 150 14.5 74 8.01 2900 154 1 70m 38bar 9.2 117
    374 SJ150-1 150 20 74 11 2900 154 1 70m 38bar 13 124
    375 SJ150-2-2 150 28.5 74 15.74 2900 154 2 70m 38bar 18.5 141
    376 SJ150-2-1 150 36 74 19.89 2900 154 2 70m 38bar 22 156
    377 SJ150-2 150 41 74 22.65 2900 154 2 70m 38bar 25 166
    378 SJ150-3-2 150 49.5 74 27.34 2900 154 3 70m 38bar 30 188
    379 SJ150-3-1 150 56.5 74 31.21 2900 154 3 70m 38bar 37 202
    380 SJ150-3 150 63.5 74 35 2900 154 3 70m 38bar 37 202
    381 SJ150-4-2 150 73 74 40.32 2900 154 4 70m 38bar 45 225
    382 SJ150-4-1 150 79.5 74 44 2900 154 4 70m 38bar 45 225
    383 SJ150-4 150 86.5 74 47.78 2900 154 4 70m 38bar 55 245
    384 SJ150-5-2 150 94 74 52 2900 154 5 70m 38bar 55 253
    385 SJ150-5-1 150 101 74 55.79 2900 154 5 70m 38bar 55 253
    386 SJ150-5 150 108.5 74 60 2900 154 5 70m 38bar 63 280
    387 SJ150-6-2 150 115.5 74 63.8 2900 154 6 70m 38bar 63 288
    388 SJ150-6-1 150 122.5 74 67.66 2900 154 6 70m 38bar 75 298
    389 SJ150-6 150 130 74 71.81 2900 154 6 70m 38bar 75 298
    390 SJ150-7-2 150 138 74 76.23 2900 154 7 70m 38bar 75 306
    391 SJ150-7-1 150 145 74 80 2900 154 7 70m 38bar 90 326
    392 SJ150-7 150 152.5 74 84.24 2900 154 7 70m 38bar 90 326
    393 SJ150-8-2 150 160.5 74 88.65 2900 154 8 70m 38bar 90 334
    394 SJ150-8-1 150 168.5 74 93 2900 154 8 70m 38bar 110 360
    395 SJ150-8 150 175 74 96.66 2900 154 8 70m 38bar 110 360
    396 SJ150-9-2 150 182.5 74 100.81 2900 154 9 70m 38bar 110 369
    397 SJ150-9-1 150 189.5 74 104.67 2900 154 9 70m 38bar 110 369
    398 SJ150-9 150 197 74 108.82 2900 154 9 70m 38bar 110 369
    399 SJ200 SJ200-1 200 33 79 22.77 2900 188.5 1 70m 38bar 30 182
    400 SJ200-2-2B 200 39.5 79 27.25 2900 188.5 2 70m 38bar 37 212
    401 SJ200-2-2A 200 47.5 79 32.77 2900 188.5 2 70m 38bar 45 227
    402 SJ200-2-A 200 57 79 39.32 2900 188.5 2 70m 38bar 55 247
    403 SJ200-2 200 66.5 79 45.88 2900 188.5 2 70m 38bar 55 247
    404 SJ200-3-2B 200 72.5 79 50 2900 188.5 3 70m 38bar 75 306
    405 SJ200-3-A-B 200 76.5 79 52.78 2900 188.5 3 70m 38bar 75 306
    406 SJ200-3-2A 200 81 79 55.88 2900 188.5 3 70m 38bar 75 306
    407 SJ200-3-B 200 86 79 59.33 2900 188.5 3 70m 38bar 75 306
    408 SJ200-3-A 200 90 79 62 2900 188.5 3 70m 38bar 75 306
    409 SJ200-3 200 99.5 79 68.64 2900 188.5 3 70m 38bar 90 326
    410 SJ200-4-2B 200 106.5 79 73.47 2900 188.5 4 70m 38bar 90 346
    411 SJ200-4-2A 200 114 79 78.65 2900 188.5 4 70m 38bar 110 369
    412 SJ200-4-A 200 124 79 85.54 2900 188.5 4 70m 38bar 110 369
    413 SJ200-4 200 133.5 79 92 2900 188.5 4 70m 38bar 110 369
