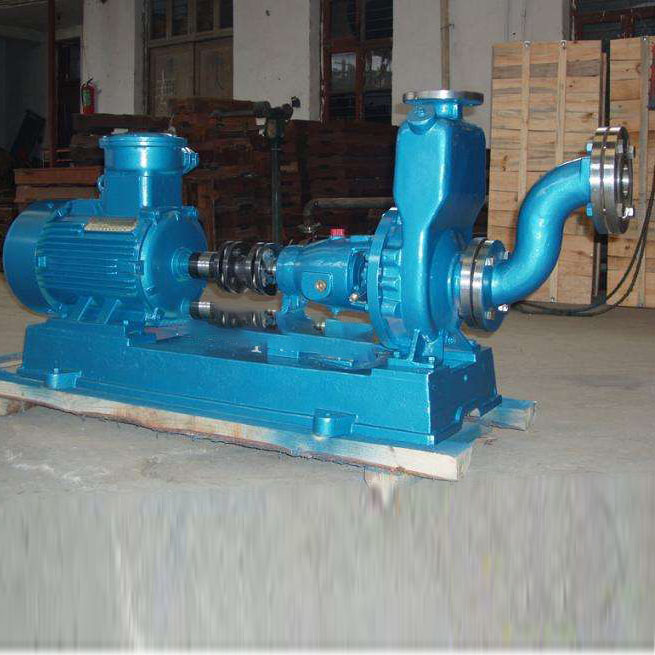

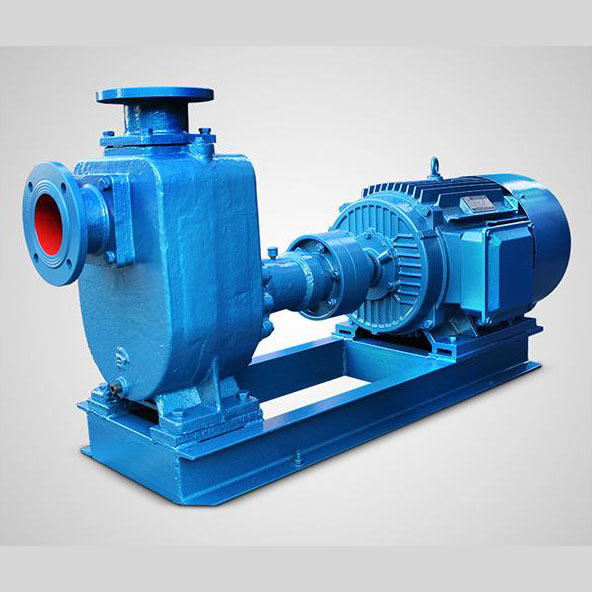

CYZ Self-Prime Chemical Pump

Vacuum Pump
    Performance Range:
  • Diameter: 25-300mm
  • Material: Cast iron pump casing,bronze impeller
  • Capacity: 3~400m3/h
  • Viscosity: <75cSt
  • Temperature: -20~80°c
  • Shaft Seal: Mechanical seals on shaft end.
  •  Working Principle: Centrifugal, self-priming
      • Application:
  • Petrol, kerosene, diesel oil,ect
  • Temperature of medium is -20~80°c
  • Load and unload oil pump in boat
  • Convey oil in the land depot and oil truck
  • Carry the sea water and fresh water
  • Carry swimming pool water
    • Model  Capacity  Head (m)  Suc.Head (m)  Suc.Time  Speed Motor  Nozzle Dia. (mm)  Weight
    m3/h  L/s  M min/5m  r/min  KW Suc.  Dis.  KG
    25CYZ-A-20  3.2 0.9 20 6.5 1.9 2900 0.75 25 25 72
    25CYZ-A-32  3.2 0.9 32 6.5 1.8 2900 1.1 25 25 80
    32CYZ-A-32  3.2 0.9 32 6.5 1.8 2900 1.1 32 32 85
    40CYZ-A-20  6.3 1.8 20 6.5 1.9 2900 1. 1  40 32 85
    40CYZ-A-32  6.3 1.8 32 6.5 1.9 2900 2.2 40 40 108
    40CYZ-A-40  10 2.8 40 6.5 1.5 2900 4 40 40 138
    40CYZ-A-50  6.3 1.8 50 6.5 1.9 2900 4 40 40 138
    50CYZ-A-12  15 4.2 12 6.5 2.4 2900 1.5 50 50 90
    50CYZ-A-20  18 5 20 6.5 1.9 2900 2.2 50 50 98
    50CYZ-A-30  20 5.6 30 6.5 1.5 2900 4 50 50 140
    50CYZ-A-35  14 3.9 35 6.5 1.5 2900 4 50 50 145
    50CYZ-A-40  10 2.8 40 6.5 1.5 2900 4 50 50 145
    50CYZ-A-50  12.5 3.5 50 6.5 1.4 2900 5.5 50 50 160
    50CYZ-A-60  15 4.2 60 6.5 1.3 2900 7.5 50 50 190
    50CYZ-A-75  20 5.6 75 6.5 1.3 2900 11 50 50 240
    65CYZ-A-15  30 8.3 15 6.5 2 2900 3 65 65 100
    65CYZ-A-32  25 6.9 32 6 1.5 2900 5.5 65 65 165
    65CYZ-A-50  25 6.9 50 6 1.5 2900 7.5 65 65 185
    65CYZ-A-60  25 6.9 60 6 1.5 2900 11 65 65 350
    80CYZ-A-13  35 9.7 13 6 3.4 2900 3 80 80 107
    80CYZ-A-17  43 12 17 6 1.8 2900 4 80 80 156
    80CYZ-A-22  40 11.1 22 6 1.9 2900 5.5 80 80 169
    80CYZ-A-25  50 13.9 25 6 1.5 2900 7.5 80 80 177
    80CYZ-A-32  50 13.9 32 6 1.5 2900 7.5 80 80 180
    80CYZ-A-55  60 16.7 55 6 1.5 2900 18.5 80 80 310
    80CYZ-A-70  60 16.7 70 6 1.2 2900 22 80 80 333
    100CYZ-A-20  100 27.8 20 6 1.8 2900 11 100 100 258
    100CYZ-A-32  100 27.8 32 6 1.8 2900 15 100 100 285
    100CYZ-A-10  100 27.8 40 6 1.8 2900 22 100 100 455
    100CYZ-A-40A  100 27.8 40 6 1.5 1450 22 100 100 520
    100CYZ-A-65  100 27.8 65 6 1.8 2900 30 100 100 620
    100CYZ-A-80  70 19.4 80 6 1.8 2900 30 100 100 639
    150CYZ-A-55  170 47.2 55 5 1.8 2900 45 150 150 830
    150CYZ-A-65  170 47.2 65 5 1.3 2900 55 150 150 957
    150CYZ-A-65A  170 47.2 65 5 1.2 1450 55 150 150 1138
    150CYZ-A-80  160 44.4 80 5 1.2 2900 55 150 150 986
    200CYZ-A-32  400 111. 1  32 5 2 1450 55 200 200 1205
    200CYZ-A-50  400 111.1 50 5 2 1450 90 200 200 1338
    200CYZ-A-63  280 77.8 63 5 1.5 1450 90 200 200 1338
    200CYZ-A-65  350 97.2 65 5 1.5 1450 110 200 200 1553
    250CYZ-A-32  550 152.8 32 5 2 1450 75 250 250 1307
    250CYZ-A-50  400 111.1 50 5 2 1450 90 250 250 1486
    250CYZ-A-55  450 125 55 5 2 1450 110 250 250 1681
    250CYZ-A-75  400 111. 1  75 5 1.5 1450 132 250 250 1829
    300CYZ-A-32  600 166.7 32 5 2 1450 90 300 300 1608
    300CYZ-A-50  500 138.9 50 5 2 1450 110 300 300 1728
    300CYZ-A-55  550 152.8 55 5 2 1450 132 300 300 1995
