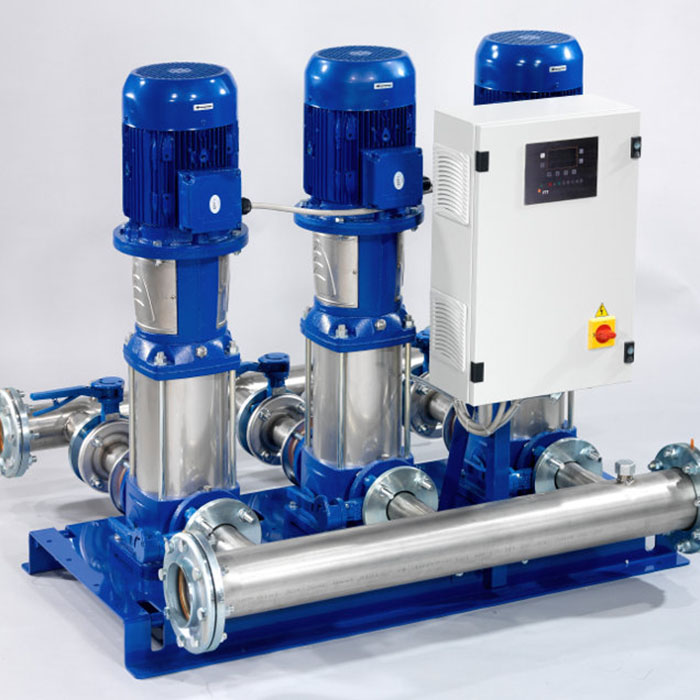

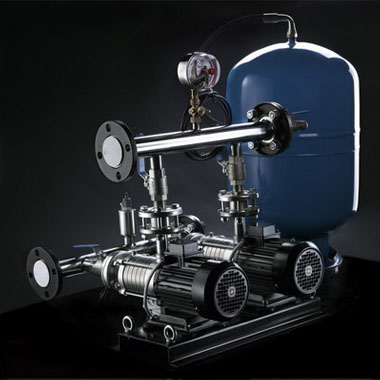

DQ Smart Constant Pressure Booster

Vacuum Pump
    Overview:

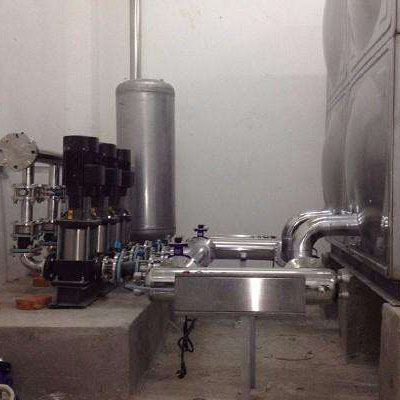

  • WG series of water supply equipment is divided into WG tank non-negative pressure supercharger steady flow water supply equipment and WG box negative pressure pipe network water supply equipment, compensated by the tank or steady flow compensation for differential compensation in the municipal water supply pressure Based on the stacked water supply, that is, the rational use of resources and eliminate the negative pressure on the municipal water supply network is the most advanced environmental protection and energy saving water supply equipment
      • Application:
  • Civil and industrial buildings and living hot and cold water supply, neutral water, fire water, air conditioning circulating water system of the original water tank water treatment industry, water tanks, clean water tanks and other environmental protection industries water treatment tank food and beverage, medical and health, chemical industry , The boiler industry replenishment and other occasions.
      • Work Condition:
  • Convey liquid: cold, warm, clean, non-flammable, non-explosive liquid, not consisted of solid grain or fiber.
  • Medium temperature: Normal temperature type -15---+70; Hot water type + 70---+ 120;
  • Ambient environment: No drop, vapor, no floating dust or metal grain. No sunshine, hot temperature, heavy dust. No corrosive, non-flammable gas or liquid.
  • The equipment should be placed in no vibration place and in the place where it is easy to check.
  • Ambient temperature: Max +45 , ventilated
    • NO Group Model Flow Head Eta Power Speed Impeller Dia Stage Inlet Outlet Motor Mechanical Weight
    (m³/h) (m) (%) (kw) (rpm) (mm) Number size Bore Power Seal (kg)
    1 CHL2 CHL2-20 2 15 41 0.2 2900 90 2 G1 G1 0.37 CHL-16/BSF4 10
    2 CHL2-30 2 22 41 0.29 2900 90 3 G1 G1 0.37 CHL-16/BSF4 10
    3 CHL2-40 2 29 41 0.39 2900 90 4 G1 G1 0.55 CHL-16/BSF4 11
    4 CHL2-50 2 36 41 0.48 2900 90 5 G1 G1 0.55 CHL-16/BSF4 12
    5 CHL2-60 2 44 41 0.58 2900 90 6 G1 G1 0.75 CHL-16/BSF4 14
    6 CHL4 CHL4-20 4 15 49 0.33 2900 90 2 G1 1/4 G1 0.37 CHL-16/BSF4 10
    7 CHL4-30 4 23.5 49 0.52 2900 90 3 G1 1/4 G1 0.55 CHL-16/BSF4 11
    8 CHL4-40 4 31 49 0.69 2900 90 4 G1 1/4 G1 0.75 CHL-16/BSF4 14
    9 CHL8 CHL8-10 8 9 57 0.34 2900 96.5 1 G2 G2 0.75 CHL-20/BSF4 18
    10 CHL8-20 8 18 57 0.69 2900 96.5 2 G2 G2 0.75 CHL-20/BSF4 19
    11 CHL8-30 8 27 57 1.03 2900 96.5 3 G2 G2 1.1 CHL-20/BSF4 22
    12 CHL8-40 8 35 57 1.34 2900 96.5 4 G2 G2 1.5 CHL-20/BSF4 27
    13 CHL8-50 8 45 57 1.72 2900 96.5 5 G2 G2 2.2 CHL-20/BSF4 32
    14 CHL12 CHL12-10 12 9.5 60 0.52 2900 105 1 G2 G2 0.75 CHL-20/BSF4 18
    15 CHL12-20 12 19.5 60 1.06 2900 105 2 G2 G2 1.2 CHL-20/BSF4 22
    16 CHL12-30 12 29.5 60 1.61 2900 105 3 G2 G2 1.8 CHL-20/BSF4 28
    17 CHL12-40 12 39.5 60 2.15 2900 105 4 G2 G2 2.4 CHL-20/BSF4 33
    18 CHL12-50 12 50 60 2.73 2900 105 5 G2 G2 3 CHL-20/BSF4 37
    19 CHL15 CHL15-10 15 9 66 0.557 2900 104.8 1 G2 G2 1.1 CHL-20/BSF6 20
    20 CHL15-20 15 21 66 1.301 2900 104.8 2 G2 G2 2.2 CHL-20/BSF6 26
    21 CHL15-30 15 33 66 2.04 2900 104.8 3 G2 G2 3 CHL-20/BSF6 34
    22 CHL20 CHL20-10 20 10 64 0.85 2900 106 1 G2 G2 1.1 CHL-20/BSF4 20
    23 CHL20-20 20 22 64 1.87 2900 106 2 G2 G2 2.2 CHL-20/BSF4 26
    24 CHL20-30 20 34 64 2.9 2900 106 3 G2 G2 4 CHL-20/BSF4 40
