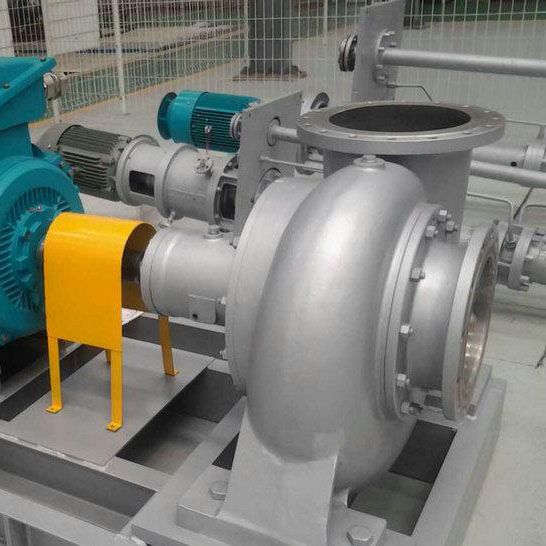

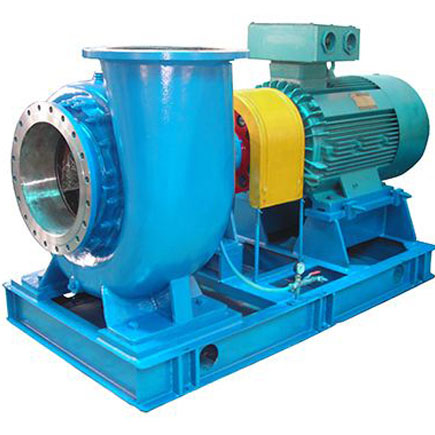

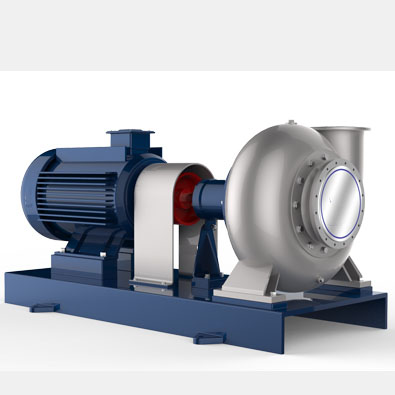

SPP Chemical Mixedl Flow Pump

Vacuum Pump
    Performance Range:
  • Flow rate: Q= 200~8300(m³/h)
  • Total head: H= 5~19 (m)
  • Pump speed: n=490~1450rpm
  • Fluid s.g: γ ≤1.5
  • Fluid temperature:: T=0~105ºC
  • Pump diameter:: T=0~105ºC
      • Application:
  • Transport all kinds of solid particle contained neutral or strong corrosive medium. Mainly used in chemical process enforced circulation, seawater desalination, city coal gas engineering and water treatment system etc.
    • Model Impeller cut Impeller Dia. Capacity Head (NPSH)r  Motor model and power (KW)
    Densit (kg/m3)
    Speed n(r/min) (mm) (m3/h)  (m) (m) 1000 Model 1350 Model 1840 Model
    SPP17 1/2-20 A 236 360 8.5 3.2 15 160L 18.5 180M 32 180L
    n=1450 B 222 340 7.5 3 11 160M 15 160 18.5 180M
      C 210 320 6.3 3 11 160M 11 L160M 15 160L
      D 198.5 300 5 4.5 7.5 132M 11 160M 11 160M
    SPP20-25 A 270 530 11.2 4 22 180L 30 200L
    n=1450 B 254 500 10 3.9 22 180L 30 200L
      C 240 460 8.5 3.8 18.5 180M 22 180L 30 200L
      D 226.5 430 15 5.5 15 160L 18.5 180M 22 180L
    SPP20-25 A 270 350 5 4 7.5 160M 11 160L 15 180L
    n=970 B 254 330 4.5 3.8 7.5 160M  11 160L 11 160L
      C 240 300 3.9 3.6 5.5 132M 7.5 160M 11 160L
    SPP221/2-25 A 304 700 15.8 5 45 225M 55 250M 75 280S
    n=1450 B 285 650 14 5 37 225S 55 250M 75 280S
      C 270 625 11.5 5 30 200L 45 225M 55 250M
      D 255 575 9.5 5 22 180L 30 200L 45 225M
    SPP25-25 A 338 900 24 6 90 280M 110 315S
    n=1450 B 317 850 21 5.9 75 280S 90 280M
      C 300 780 18 6 55 250M 75 280S 110 315S
      D 283.5 725 14 6.1 45 225M 75 280S 75 280S
    SPP25-30 A 317 1100 19.5 6.4 90 280M 110 315S
    n=1450 B 300 1040 17 6 75 280S 90 280M
      C 283.5 950 14.8 5.8 55 250M 75 280S 110 315S
      D   880 12 9 45 225M 75 250M 75 280S
    SPP25-30 A 338 750 8.5 4.7 30 225M 37 250M 45 280S
    n=970 B 317 700 7.6 4 22 200L2 30 225M 37 250M
      C 300 650 6.5 3.8 18.5 200L1 22 200L2 30 225M
      D 283.5 600 5.3 7.2 15 180L 18.5 200L1 30 225M
    SPP30-35 A 405 1300 12.2 4.4 75 315S 75 315S 110 315M2
    n=970 B 380 1200 11 4 55 280M 75 315S 90 315M1
      C 360 1150 9 4 45 280S 55 280M 75 315S
      D 340 1050 7.2 6 30 225M 45 280S 55 280M
    SPP35-35 A 472 1600 21 5.2 132 315M3 160 355S2
    n=970 B 444 1500 317 5.3 90 315M1 132  315M3
      C 420 1450 13.5 5.5 75 315S 110 315M2  132 315M3
      D 396.5 1300 11 7.8 55 280M 75 315S 110 315M2
    SPP35-40 A 472 2000 17 6 132 315M3 160 355S2
    n=970 B 444 1900 15 5.5 110 315M2 160 355S2
      C 420 1800 12.2 5.2 90 315M1  110 315M2 160 355S2
      D 396.5 1700 10 8 75 315S 90 315M1 110 315M2
    SPP35-40 A 472 1500 9.6 4 55 315S 75 315M1 110 315M3
    n=730 B 444 1450 8.1 3.9 45 280M 75 315M1 90 315M2
      C 420 1350 7 3.6 37 280S 55 315S 75 315M1
      D 396.5 1250 5.7 5.8 30 250M 37 280S 55 315S
    SPP40-40 A 540 2400 28 7 250 355L
    n=970 B 507 2300 22 7 185 355S3 250 355L
      C 480 2100 18 7 132 315M3 185 355S3 250 355L3
      D 453 2000 14.5 9.8 110 315M2 160 355S2 185 355S3
    SPP40-45 A 540 3200 20.6 8 250 355L     250
    n=970 B 507 3000 18.5 7.5 200 355S1
      C 480 2800 16  7.1 160 355S2 220 335M3
      D 453 2500 13.5 7 132 315M3 185 355S 355L
    SPP40-45 A 540 2400 11.6 6 110 315M3 132 355S2 185 355M
    n=730 B 507 2200 10.9 5.4 90   132 355S2 160 355S4
      C 480 2000 9.5 5 75 315M3 110 315M3 132 355S2
      D 453 1800 8 8 55   75 315M1 110
                  3115M1       315M3
                  315S
    SPP45-50 A 608  3300  15 .8 5.2 185 355M
    n=730 B 571 3100 13.8 5 160 355S4
      C 540 2900 12 5 132   160 355S4
      D 510 2600 10.2 7.3 110 355S3 132 355S2 185 355M

                  315M2
    SPP45-50 A 608 2600 10 3.4 90 355S2 132 355M
    n=580 B 570 2500 8.6 3.1 75 315M3 110 355S4 160 355L
      C 540 2300 7.8 3 75 315M3 90 355S2 132 355M
      D 510 2200 6 5.8 55 315M3 75 315M3 90 355S2
    SPP50-50 A 675 3700 24 5
    n=730 B 634 3400 20 5
      C 600 3200 16 5 185 344M
      D 567 3000 12.8 7 132 355S2 185 355M
    SPP50-55 A 675 4500 20 5.5
    n=730 B 634  4300 17.5 5.1
      C 600 4000 15 5
      D 567 3800 12.3 7.6 185 355M
    SPP50-55 A 675 3600 12.6 3.8 160 355L
    n=580 B 634 3400 11  3.4 132 355M
      C 600 3200 9.4 3.1 110 355S4 160 355L
      D 567 3000 8 5.8 90 355S2 132 355M 160 355L
    SPP55-60 A 742 4800 15 5.2
    n=580 B 696 4400 13.5 5
      C 660 4100 11.5 4 132 355M
      D 623 3900 9.5 7 2 132 355M
    SPP55～60 A 742 3900 10.5 3.5
      B 696 3700 9.1 3.2
    n=480 C 660 3400 8 2.9
      D 623 3200 6.5 2.7
    SPP60-60 A 810 5200 21.5 5.6
    n=580 B 760 5000 17 5.6
      C 720 4500 14 5.6
      D 680 4300 11 7.8
    SPP60-65 A 810 6200 17 6.2
    n=580 B 760 5800 15 6
      C 720 5400 13 5.8
      D 680 5100 10.5 8
    SPP60-65 A 810 5200 11.5 4.3
    n=480 B 760 4900 10 3.8
      C 720 4700 8.5 3.7
      D 680 4400 7 7
