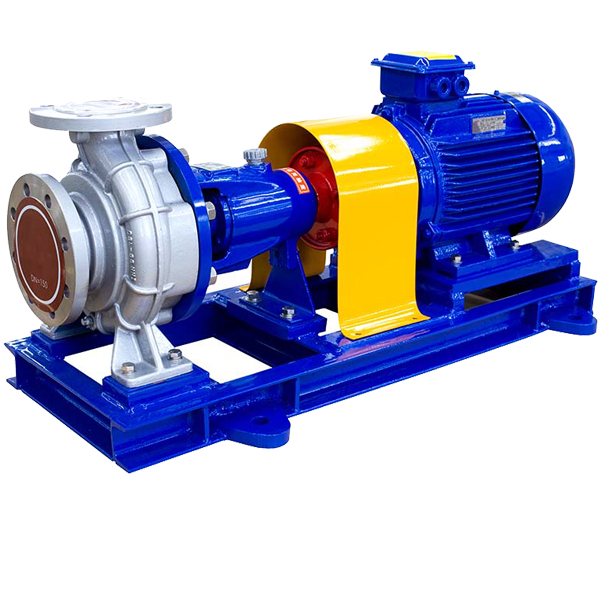

IH/IHF/IHH Chemical Pump

Hanthing Fluid Group
      Performance range;
  • Capacity：6.3～400m /h
  • pressure ：1.6MPa。
  • Head：～5 125m
  • Speed：2900r/min and1450r/min
  • Power of fitted motor ：0.55～90kW
  • Inlet diameter ：～50 200mm
  • IH model chemical pump is -20 ℃～105 ℃
  • IHF model chemical pump is 85 ℃～200℃
      • Application:
  • IHF pump is a single-stage single-suction fluoric plastic alloy chemical centrifugal pump, designe d per the national standard and designed and made per the processing workmanship for the non-metal pump. This pump features anti-corrosion, wearability, high temperature resista nce, non- aging, high mechanical strength, non-toxin decomposition

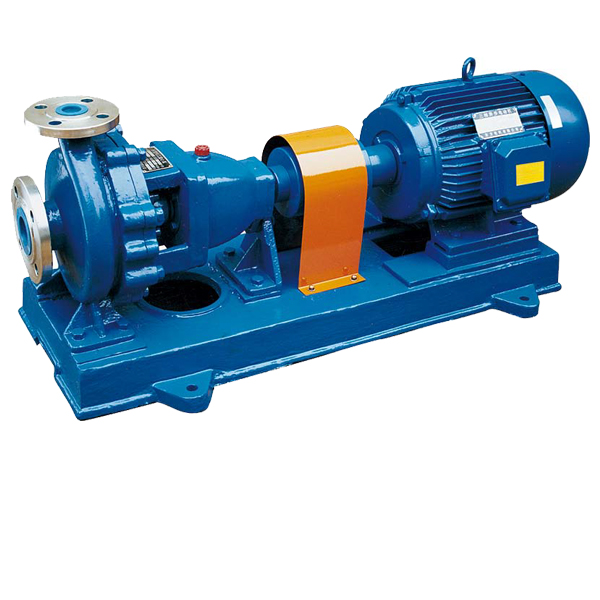

  • IH model chemical pump is single-stage end-suction (axial suction) cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles

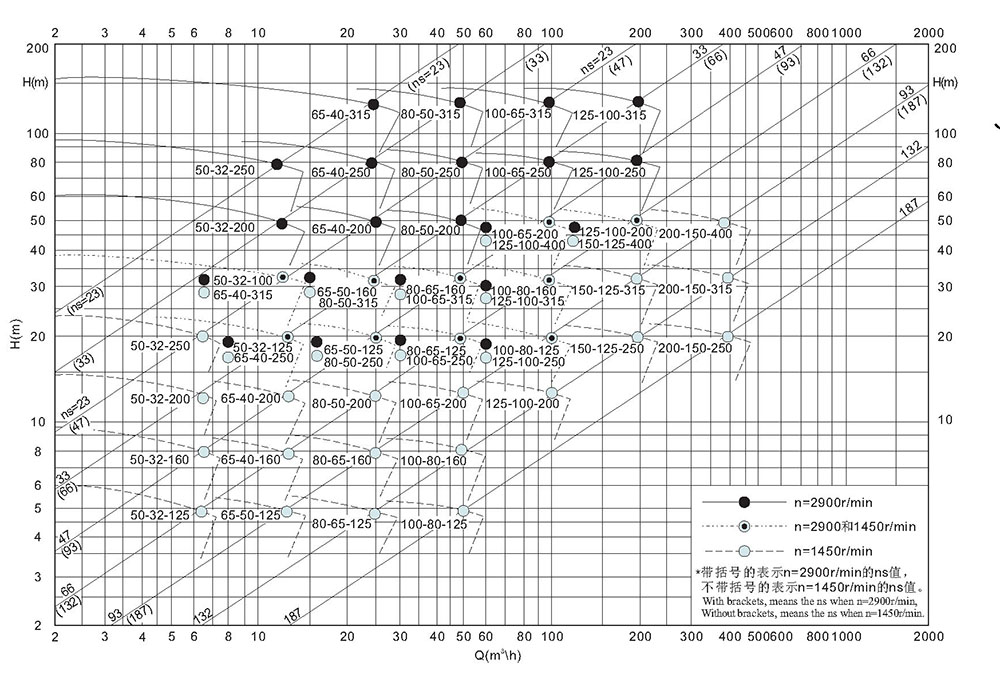

        Model             Capacity Head Power Effeciency
Dia. (inlet-outlet-impeller)
mm (m3/h) (m) (kW) (%)
50-32-125 12.5 20 2.2 60
50-32-125 6.3 5 0.55 54
50-32-160 12.5 32 3 54
50-32-160 6.3 8 0.55 48
50-32-200 12.5 50 5.5 48
50-32-200 6.3 12.5 0.75 42
50-32-250 12.5 80 11 38
50-32-250 6.3 20 1.5 32
65-50-125 25 20 3 69
65-50-125 12.5 50 0.55 64
65-50-160 25 32 0.5 65
65-50-160 12.5 5 0.75 60
65-40-200 25 50 7.5 60
65-40-200 12.5 12.5 1.1 55
65-40-250 25 80 15 50
65-40-250 12.5 20 2.2 46
80-65-125 50 20 5.5 75
80-65-125 25 5 0.75 71
80-65-160 50 32 7.5 73
80-65-160 25 8 1.5 69
8050-200 50 50 15 69
80-50-200 25 12.5 2.2 65
80-50-250 50 80 22 63
80-50-250 25 20 3 60
80-50-315 50 125 37 54
80-50-315 25 32 5.5 52
100-80-125 100 20 11 78
100-80-125 50 5 1.5 75
100-80-160 100 32 15 78
100-80-160 50 8 2.2 75
100-65-200 100 50 22 76
100-65-200 50 12.5 4 73
100-65-250 100 80 37 72
100-65-250 50 20 5.5 69
100-65-315 100 125 75 66
100-65-315 50 32 11 63
125-100-200 200 50 45 81
125-100-200 100 12.5 7.5 76
125-100-250 200 80 75 78
125-100-250 100 20 11 76
125-100-315 100 32 15 73
125-100-400 100 50 30 65
150-125-250 200 20 18.5 81
150-125-315 200 32 30 79
200-150-250 400 20 37 79
200-150-315 400 32 45 79
200-150-400 400 50 75 77

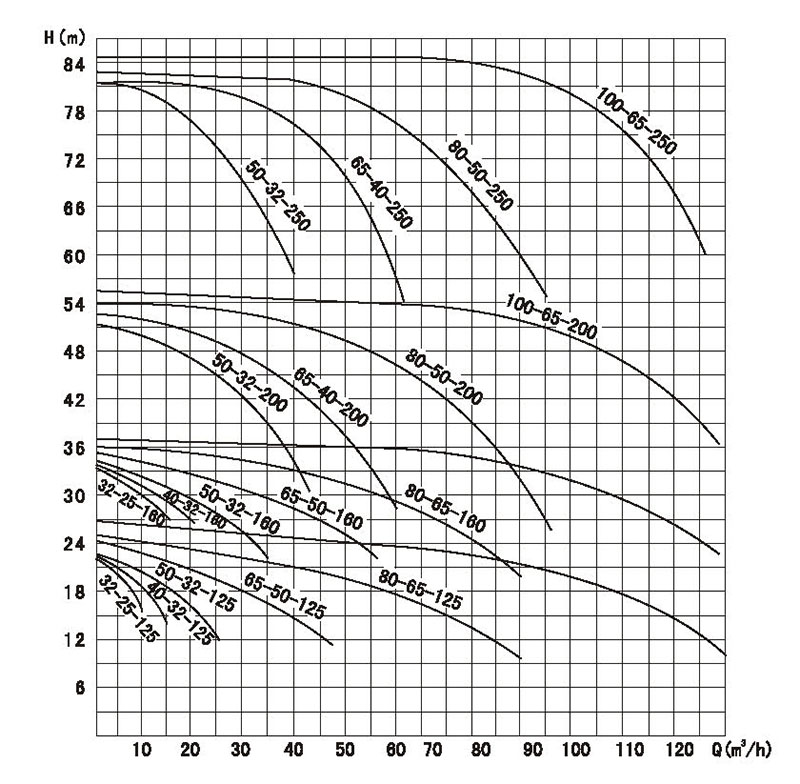

Model Speed (r/min) Capacity Head Eff.  Power (kw) NPSH(r)
 Impeller diameter  Weight
(m3/h) (L/s) (m) (%) Shaft Motor power (m) (mm) (kg)
IHF50-32-200A 2900 8.2
11.7
15.2		 2.28
3.25
4.22		 45
44
42		 31
40
39		 3.24
3.50
4.45		 5.5 3.0 178 130
IHF50-32-250 2900 8.8
12.5
16.3		 2.44
3.47
4.53		 82
80
76		 27
35
34		 7.30
7.80
10		 11 3.0 250 220
1450 4.4
6.25
8.15		 1.2
1.74
2.26		 20.5
20
19		 20
27
30		 1.22
1.26
1.40		 2.2 3.0 250 100
IHF50-32-250A 2900 8.2
11.7
15.2		 2.28
3.25
4.22		 71
70
68		 25
34
33		 4.53
6.56
8.52		 7.5 3.0 235 170
IHF65-50-125 2900 17.5
25
32		 4.86
6.94
9.0		 21.5
20
17.5		 56
64
63		 1.83
2.13
2.42		 3 3.5 128 100
1450 8.75
12.5
16		 2.43
3.47
4.44		 5.37
5
4.37		 45
57
58		 0.28
0.30
0.33		 0.75 3.5 128 80
IHF65-50-1125A 2900 15.6
22.3
29		 4.33
6.19
8.1		 17
16
14		 53
62
61		 1.36
1.57
1.79		 2.2 3.5 115 90
IHF65-50-160 2900 17.5
25
32		 4.86
6.94
9.0		 33
32
27.5		 50
59
57		 3.15
3.69
4.20		 5.5 3.5 160 145
1450 8.75
12.5
16		 2.43
3.47
4.44		 8.25
8
6.87		 40
53
51		 0.49
0.51
0.59		 1.1 3.5 160 90
IHF65-50-160A 2900 16.4
23.3
30.4		 4.56
6.5
8.44		 29
28
24		 48
58
56		 2.70
3.10
3.54		 4 3.5 150 130
IHF65-40-200 2900 17.5
25
32		 4.86
6.94
9.0		 52
50
45.5		 45
54
54		 5.50
6.30
7.35		 11 3.5 195 225
1450 8.75
12.5
16		 2.43
3.47
4.44		 13
12.5
11.4		 36
46
47		 0.86
0.93
1.05		 1.5 3.5 195 100
IHF65-40-200A 2900 16.4
23.3
30.4		 4.56
6.5
8.44		 46
44
40		 43
53
52		 4.30
5.00
5.20		 7.5 3.5 183 170
IHF65-40-250 2900 17.5
25
32		 4.86
6.94
9.0		 82
80
76		 39
50
52		 10.10
10.90
12.74		 18.5 3.5 250 240
1450 8.75
12.5
16		 2.43
3.47
4.44		 20.5
20
19		 32
42
44		 1.52
1.62
1.88		 3 3.5 250 130
IHF65-40-250A 2900 16.4
23.3
30.4		 4.56
6.5
8.44		 71
70
68		 36
48
50		 8.80
9.30
11.25		 15 3.5 235 230
IHF80-65-125 2900 35
50
65		 9.72
13.9
18.1		 21.5
20
17		 64
69
67		 3.20
3.95
4.50		 5.5 4.0 134 150
1450 17.5
25
32.5		 4.86
6.9
9.0		 5.37
5
4.25		 54
64
62		 0.47
0.53
0.61		 1.1 4.0 134 90
IHF80-65-125A 2900 31
45
58		 8.6
12.5
16.1		 17
16
14		 62
68
67		 2.30
2.88
3.30		 4 4.0 120 130
IHF80-65-160 2900 35
50
65		 9.72
13.9
18.1		 33
32
27.5		 60
68
67		 5.24
6.41
7.27		 11 4.0 165 220
IHF80-65-160 1450 17.5
25
32.5		 4.86
6.9
9.0		 8.25
8
6.88		 50
62
61		 0.78
0.88
1.00		 1.5 4.0 165 100
IHF80-65-160A 2900 31
45
58		 8.6
12.5
16.1		 29
28
24		 58
67
66		 4.10
5.12
5.34		 7.5 4.0 165 190
IHF80-50-200 2900 35
50
65		 9.72
13.9
18.1		 52
50
45.5		 52
64
65		 9.53
10.64
12.39		 15 4.0 197 230
1450 17.5
25
32.5		 4.86
6.9
9.0		 13
12.5
11.38		 51
59
58		 1.21
1.44
1.74		 3 4.0 197 130
IHF80-50-200A 2900 31
45
58		 8.6
12.5
16.1		 46
44
40		 50
63
62		 7.35
8.56
10		 11 4.0 185 220
IHF80-50-250 2900 35
50
65		 9.72
13.9
18.1		 82
80
72		 40
50
51		 19.40
21.80
25		 30 4.0 248 400
1450 17.5
25
32.5		 4.86
6.9
9.0		 20.5
20
18		 40
50
51		 2.40
2.70
3.12		 4 4.0 248 145
IHF80-50-250A 2900 31
45
58		 8.6
12.5
16.1		 71.5
70
63		 39
50
51		 15.40
17.60
19.90		 22 4.0 232 310
IHF100-80-125 2900 70
100
130		 19.4
27.8
36.1		 23
20
14		 70
75
65		 6.26
7.26
7.63		 11 5.0 136 220
1450 35
50
65		 9.7
13.9
18.0		 5.75
5
3.5		 65
70
64		 0.85
0.97
0.98		 1.5 4.5 136 100
IHF100-80-125A 2900 62.6
89
116		 17.4
24.7
32.2		 18
16
11		 68
73
65		 4.50
5.30
5.74		 7.5 5.0 122 200
IHF100-80-160 2900 70
100
130		 19.4
27.8
36.1		 34
32
24		 68
74
65		 9.53
11.78
13.03		 15 5.0 170 230
1450 35
50
65		 9.7
13.9
18.0		 8.5
8
6.5		 60
68
67		 1.35
1.60
1.69		 2.2 4.5 170 110
IHF100-80-160A 2900 65.4
93.5
121		 18.2
26
33.6		 32
28
21		 66
73
65		 8.60
9.30
10.6		 11 5.0 159 220
IHF100-65-200 2900 70
100
130		 19.4
27.8
36.1		 52
50
42		 64
72
71		 15.50
18.91
20.94		 360 5.0 210 400
1450 35
50
65		 9.7
13.9
18.0		 13
12.5
10.5		 60
68
63		 2.06
2.50
2.95		 4 4.5 210 140
IHF100-65-200A 2900 65.4
93.5
121		 18.2
26
33.6		 46
44
37		 63
71
70		 13
15.02
17.40		 22 5.0 197 310
IHF100-65-250 2900 70
100
130		 19.4
27.8
36.1		 87
80
68		 62
69
68		 26.60
31.60
35		 45 4.0 255 450
1450 30
50
60		 8.33
13.9
16.7		 21.2
20
18.5		 58
63
62		 3.00
4.30
4.72		 5.5 4.5 255 170
IHF100-65-250A 2900 65.4
93.5
121		 16.2
26
33.6		 76.5
70
59		 60
68
67		 20.25
26.2
28		 37 4.5 238 410

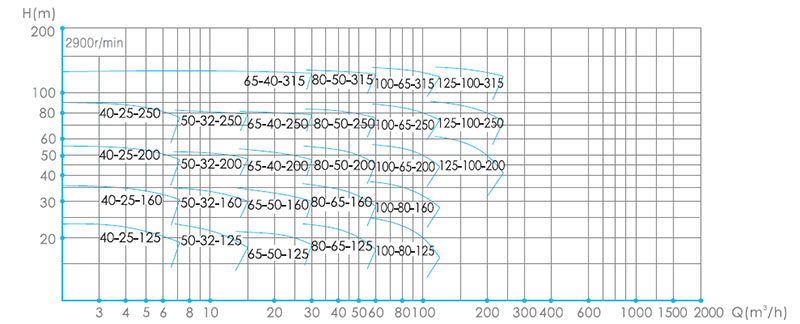

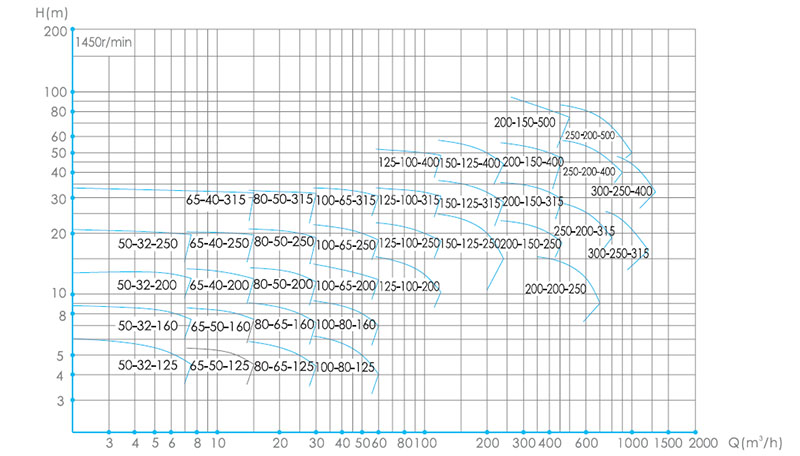

Model Capacity(M3/H) Head distance(M) Motor(KW) Speed(rpm) Inlet(mm) Outlet(mm) impeller(mm)
IHH50-32-125  12.5 20 2.2 2950 50 32 125
IHH50-32-125  6.3 5 0.55 1450 50 32 125
IHH50-32-125A  11.2 16 1.1 2950 50 32 125
IHH50-32-160  12.5 32 3 2950 50 32 160
IHH50-32-160  6.3 8 0.55 1450 50 32 160
IHH50-32-160A  11.7 28 2.2 2950 50 32 160
IHH50-32-200  12.5 50 5.5 2950 50 32 200
IHH50-32-200  6.3 12.5 0.75 1450 50 32 200
IHH50-32-200A  11.7 44 4 2950 50 32 200
IHH50-32-250  12.5 80 11 2950 50 32 250
IHH50-32-250  6.3 20 1.5 1450 50 32 250
IHH50-32-250A  11.7 70 7.5 2950 50 32 250
IHH65-50-125  25 20 3 2950 65 50 125
IHH65-50-125  12.5 5 0.55 1450 65 50 125
IHH65-50-125A  22.4 16 2.2 2950 65 50 125
IHH65-50-160  25 32 5.5 2950 65 50 160
IHH65-50-160  12.5 8 0.75 1450 65 50 160
IHH65-50-160A  23.5 28 4 2950 65 50 160
IHH65-40- 200  25 50 7.5 2950 65 40 200
IHH65-40- 200  12.5 12.5 1.1 1450 65 40 200
IHH65-40- 200A  23.4 44 5.5 2950 65 40 200
IHH65-40- 250  25 80 15 2950 65 40 250
IHH65-40- 250  12.5 20 2.2 1450 65 40 250
IHH65-40- 250A  23.4 70 11 2950 65 40 250
IHH65-40- 315  25 125 30 2950 65 40 315
IHH65-40- 315  12.5 32 4 1450 65 40 315
IHH65-40- 315A  23.9 114 22 2950 65 40 315
IHH80-65- 125  50 20 5.5 2950 80 65 125
IHH80-65- 125  25 5 0.75 1450 80 65 125
IHH80-65- 125A  44.7 16 4 2950 80 65 125
IHH80-65- 160  50 32 7.5 2950 80 65 160
IHH80-65- 160  25 8 1.5 1450 80 65 160
IHH80-65- 160A  46.8 28 5.5 2950 80 65 160
IHH80-50- 200  50 50 15 2950 80 50 200
IHH80-50- 200  25 12.5 2.2 1450 80 50 200
IHH80-50- 200A  46.8 44 11 2950 80 50 200
IHH80-50-250  50 80 22 2950 80 50 250
IHH80-50-250  25 20 3 1450 80 50 250
IHH80-50-250A  46.8 70 18.5 2950 80 50 250
IHH80-50-315  50 125 37 2950 80 50 315
IHH80-50-315  25 32 5.5 1450 80 50 315
IHH80-50-315A  47.8 114 37 2950 80 50 315
IHH100-80-125  100 20 11 2950 100 80 125
IHH100-80-125  50 5 1.5 1450 100 80 125
IHH100-80-125A  89.4 16 7.5 2950 100 80 125
IHH100-80-160  100 32 15 2950 100 80 160
IHH100-80-160  50 8 2.2 1450 100 80 160
IHH100-80-160A  93.5 28 11 2950 100 80 160
IHH100-65-200  100 50 22 2950 100 65 200
IHH100-65-200  50 12.5 4 1450 100 65 200
IHH100-65-200A  93.8 44 18.5 2950 100 65 200
IHH100-65-250  100 80 37 2950 100 65 250
IHH100-65-250  50 20 5.5 1450 100 65 250
IHH100-65-250A  93.5 70 30 2950 100 65 250
IHH100-65-315  100 125 75 2950 100 65 315
IHH100-65-315  50 32 11 1450 100 65 315
IHH100-65-315A  95.5 114 55 2950 100 65 315
IHH125-100-200  200 50 45 2950 125 100 200
IHH125-100-200  100 12.5 7.5 1450 125 100 200
IHH125-100-200A  187 44 37 2950 125 100 200
IHH125-100-250  200 80 75 2950 125 100 250
IHH125-100-250  100 20 11 1450 125 100 250
IHH125-100-250A  187 70 55 2950 125 100 250
IHH125-100-315  200 125 110 2950 125 100 315
IHH125-100-315  100 32 15 1450 125 100 315
IHH125-100-315A  191 114 75 2950 125 100 315
IHH125-100-400  100 50 30 1450 125 100 400
IHH125-100-400A  93.5 44 22 1450 125 100 400
IHH150-125-250  200 20 18.5 1450 150 125 250
IHH150-125-250A  187 17.5 15 1450 150 125 250
IHH150-125-315  200 32 30 1450 150 125 315
IHH150-125-315A  187 28 22 1450 150 125 315
IHH150-125-400  200 50 45 1450 150 125 400
IHH150-125-400A  187 44 37 1450 150 125 400
IHH200-150-250  400 20 37 1450 200 150 250
IHH200-150-250A  374 17.5 30 1450 200 150 250
IHH200-150-315  400 32 55 1450 200 150 315
IHH200-150-315A  374 28 45 1450 200 150 315
IHH200-150-400  400 50 90 1450 200 150 400
IHH200-150-400A  374 44 75 1450 200 150 400
