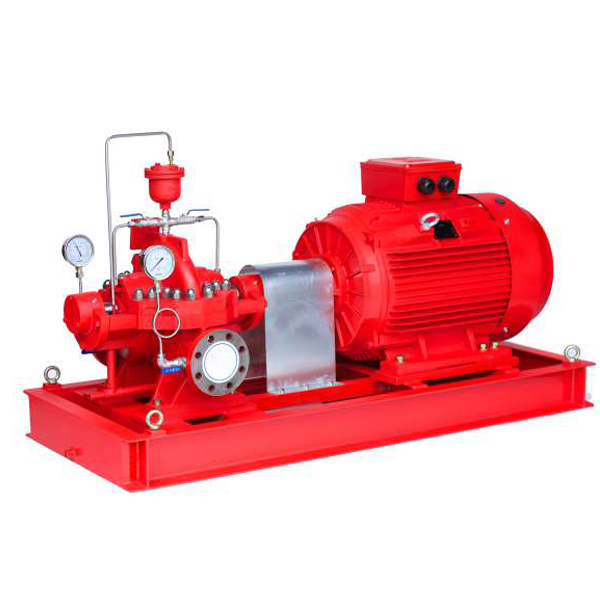

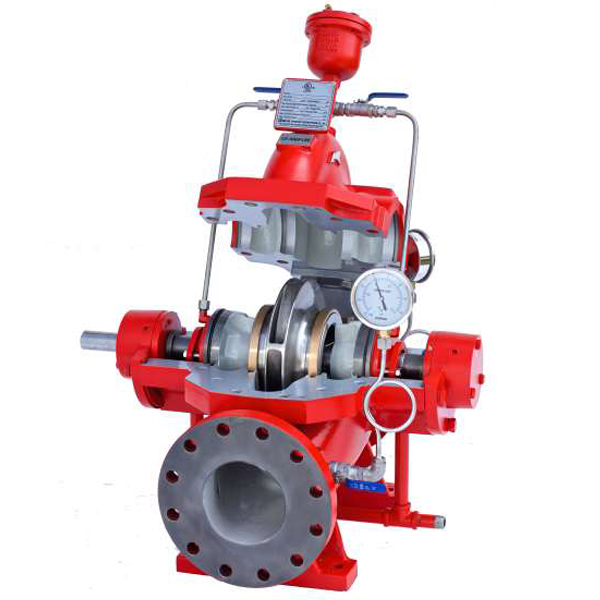

ESF Split Case UL listed Fire Pump

Hanthing Fluid Group
      Performance range:

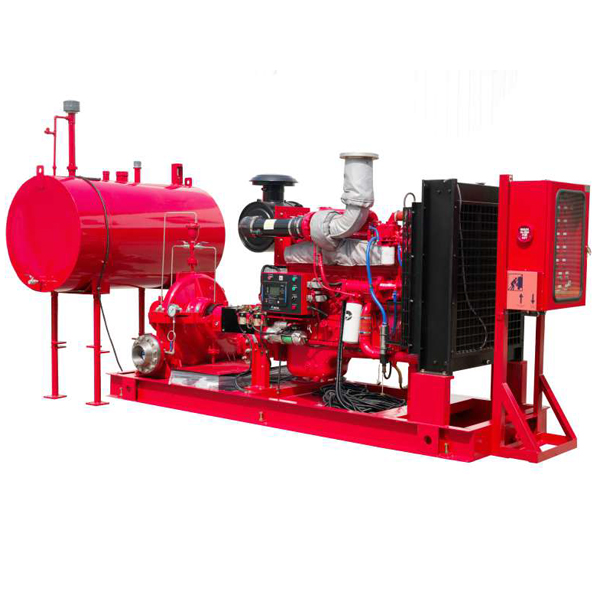

  • Split case fire pumps are available for ranging from 500 USgpm to 4000 USgpm and are suitable for electric or diesel drivers.
      • Application
  • Split case pumps are specifically designed and tested for fire service application around the world including:
  • Office buildings
  • Hospitals
  • Airports
  • Manufacturing facilities
  • Warehouses
  • Power stations
  • Oil and gas industry
  • Schools/colleges
  • Hotels
      • Materials of Construction
  • To Meet the rugged demands of fire protection in industrial and offshore environments, Hamxon split case pumps are available in:
  • Ductile Cast Iron Casing With 304SS Impeller
  • 304 or 316 Stainless Steel Wet Parts
  • Duplex 2205 Stainless Steel Wet Parts

Model Dsg Rated Capacity (gpm) Size (in.) Rated Net Pressure Range (psi) Approx Speed (rpm)
Max Working Pressure (psi)
ESF100-250 450 6x4 80-141 2900 232
ESF100-310 450 6x4 131-204 2900 290
ESF100-375 450 6x4 221-304 2900 400
ESF100-250 500 6x4 80-140 2900 232
ESF100-310 500 6x4 130-204 2900 290
ESF100-375 500 6x4 219-300 2900 400
ESF100-250 750 6x4 73-139 2900 232
ESF100-310 750 6x4 125-198 2900 290
ESF100-375 750 6x4 199-280 2900 400
ESF125-290 1000 8x5 101-177 2900 232
ESF125-365 1000 8x5 178-288 2900 348
ESF125-290 1250 8x5 97-175 2900 232
ESF125-365 1250 8x5 165-278 2900 348
ESF150-290 1500 8x6 98-155 2900 232
ESF150-360 1500 8x6 150-242 2900 320
ESF150-290 2000 8x6 94-149 2900 232
ESF150-360 2000 8x6 138-234 2900 320
