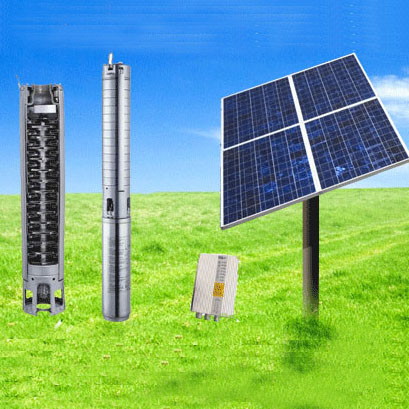

4SDSC Solar Power Pump

Vacuum Pump
    Overview:

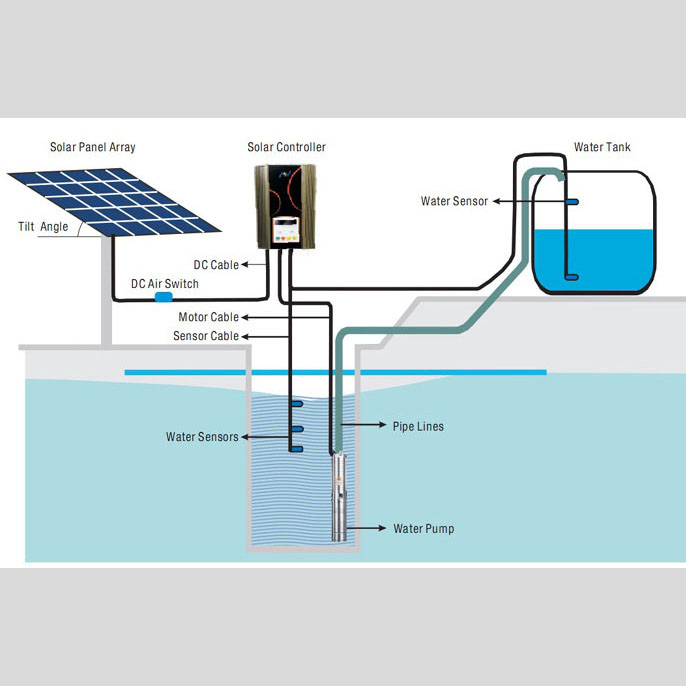

  • Solar panel system: Solar arrays are in series-parallel of solar modules; Transfer the solar energy power to electricity to supply power for pump system
  • Photovoltaic water pump controller system: It regulates all the pump system, turning instable DC voltage of solar panel system into stable DC voltage for pump, and regulates the output current in according with sunshine intensity to achieve maximum power point tracking(MPPT), maximizing the use of solar energy
  • Solar pump system: It consists of pump body, motor, water pipe, cable, protection devices, water level sensor
      • Application:
  • The solar pumps can automatically work in the day, while the sunshine is lower. So it is suitable for irrigation, garden, fountains, family, pastoral grasslands, mountain, especially working in the areas without electricity supply.
      • Products Feature:

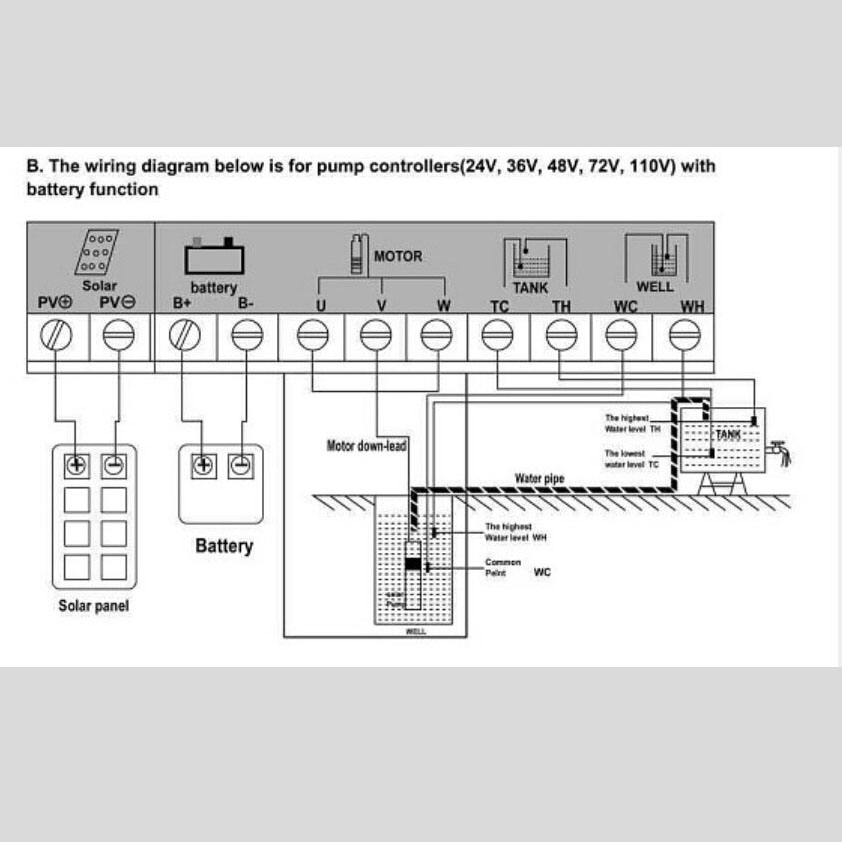

  • Water pump controller system has complete electrical protecting device, against under-voltage, over-voltage, over-flow, overload, waterless, etc; Also with an automatic switch and water level sensor that can on/off the pump when the well is dry and the water tank is fully
  • Pump head: 10-300m, Flow rate: 1
  • Working temperature: -20-50degree
      • Service life:
  • Solar panel: 20-25years;
  • Pump comtroller: 10years
  • Water pump: 30, 000hours
    • Model Impeller voltage  (V) Pump Power Max Flow (M3/H) Max Head (M) Outlet  (IN) Solar panel Outer Diameter (MM)
     (W)  (w)
    4SPSC5.0/28-D24/250 Centrifugal (SS) 24 250 5 28 1.25" 360 100*540
    4SPSC5.5/38-D24/400 Centrifugal (SS) 24 400 5.5 38 1.25" 540 100*650
    4SPSC5.5/58-D48/750 Centrifugal (SS) 48 750 5.5 58 1.25" 1080 100*680
    4SPSC6.0/72-D48/1000 Centrifugal (SS) 48 1000 6 72 1.25" 1440 100*740
    4SPSC6.5/98-D72/1300 Centrifugal (SS) 72 1300 6.5 98 1.25" 1680 100*880
    4SPSC10/30-D48/750 Centrifugal (SS) 48 750 10 30 1.5" 1080 100*540
    4SPSC10/44-D48/1000 Centrifugal (SS) 48 1000 10 44 1.5" 1440 100*650
    4SPSC10/57-D72/1300 Centrifugal (SS) 72 1300 10 57 1.5" 1680 100*680
    4SPSC15/21-D48/1000 Centrifugal (SS) 48 1000 15 21 2" 1440 100*540
    4SPSC15/28-D72/1300 Centrifugal (SS) 72 1300 15 28 2" 1680 100*620
    6SPSC28/26-D72/1300 Centrifugal (SS) 72 1300 28 26 3" 1680 125*710
    6SPSC46/7-D72/1300 Centrifugal (SS) 72 1300 46 7 4" 1680 125*690
    4SPSC5/95-D96/1100 Centrifugal (SS) 96 1100 5 95 1.25" 1440 100
    4SPSC5/145-D144/1500 Centrifugal (SS) 144 1500 5 145 1.25" 1800 100
    4SPSC5/185-D168/1800 Centrifugal (SS) 168 1800 5 185 1.25" 2240 100
    4SPSC5/230-D192/2200 Centrifugal (SS) 192 2200 5 230 1.25" 2880 100
    4SPSC5/310-D216/3000 Centrifugal (SS) 216 3000 5 310 1.25" 3600 100
    4SPSC9/65-D96/1100 Centrifugal (SS) 96 1100 9 65 1.5" 1440 100
    4SPSC9/100-D144/1500 Centrifugal (SS) 144 1500 9 100 1.5" 1800 100
    4SPSC9/125-D168/1800 Centrifugal (SS) 168 1800 9 125 1.5" 2240 100
    4SPSC9/158-D192/2200 Centrifugal (SS) 192 2200 9 158 1.5" 2880 100
    4SPSC9/271-D216/3000 Centrifugal (SS) 216 3000 9 271 1.5" 3600 100
    4SPSC13/37-D96/1100 Centrifugal (SS) 96 1100 13 37 2" 1440 100
    4SPSC13/56-D144/1500 Centrifugal (SS) 144 1500 13 56 2" 1800 100
    4SPSC13/92-D168/1800 Centrifugal (SS) 168 1800 13 92 2" 2380 100
    4SPSC13/106-D192/2200 Centrifugal (SS) 192 2200 13 106 2" 2880 100
    4SPSC13/148-D216/3000 Centrifugal (SS) 216 3000 13 148 2" 3600 100
    6SPSC35/31-D168/1800 Centrifugal (SS) 168 1800 35 31 3" 2380 100
    6SPSC35/45-D192/2200 Centrifugal (SS) 192 2200 35 45 3" 2880 100
    6SPSC35/63-D216/3000 Centrifugal (SS) 216 3000 35 63 3" 3600 100
    6SPSC49/15-D168/1800 Centrifugal (SS) 168 1800 49 15 4" 2380 100
    6SPSC49/31-D192/2500 Centrifugal (SS) 192 2500 49 31 4" 3200 100
    6SPSC49/42-D216/3000 Centrifugal (SS) 216 3000 49 42 4" 3600 100
