TSWA Multi-Stage Pump

Hanthing Fluid Group
      Performance Range:
  • Flow rate range:3.75-540m3/h(16.5-2376US.GPM)
  • Maximum head:1056m(3463.7ft)
  • Max. permissible fluid temperature:80°C(176°F) or 105°C(221°F) hot water type
  • Maximum drive rating:1120kW(1495HP)
  • Maximum caliber:250mm(10inch)
  • Maximum discharge-side pressure:10.5MPa(105bar)
      • Applicatiion:
  • Mainly used in drinking water supply for the high-level buiIdings, pressure-keeping for fire-fighting water supply, water supply for self spraying and pouring, etc, as well as water supply and drainage in industry and mining, long-distance water transport, all kinds of equipments match-up and water supply for production technology, etc.
      • Advantages:

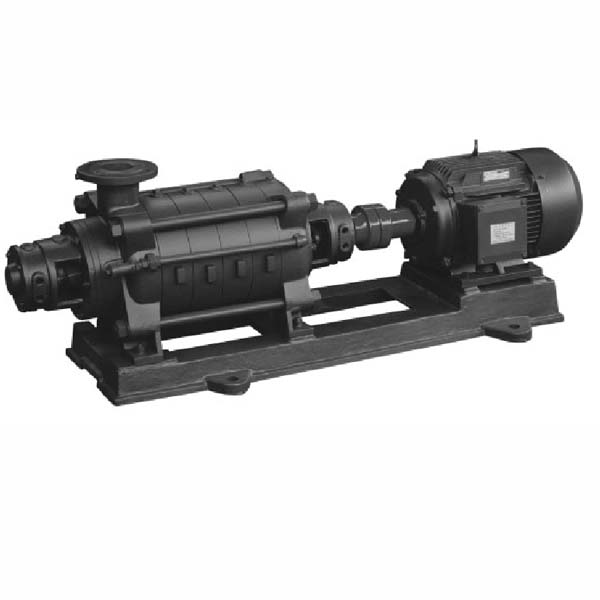

  • Horizontal Multistage Pump for Building Booster is compact structure, stable running, low noise, convenient operation
  • It is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically with the temperature range from 0°C~80°C(32°F~176°F)
  • The inlet is horizontal direction
  • It's applicable for water supply and drainage works in mines, plants and cities
  • Pump ends of it is supported, the casing portion is in a sectional form, it is connected to and actuated by a motor via a resilient clutch and the rotating direction of it, viewing from the actuating end, is clockwise
  • The shaft seal of TSWA type pump can be with soft packing or mechanical seal

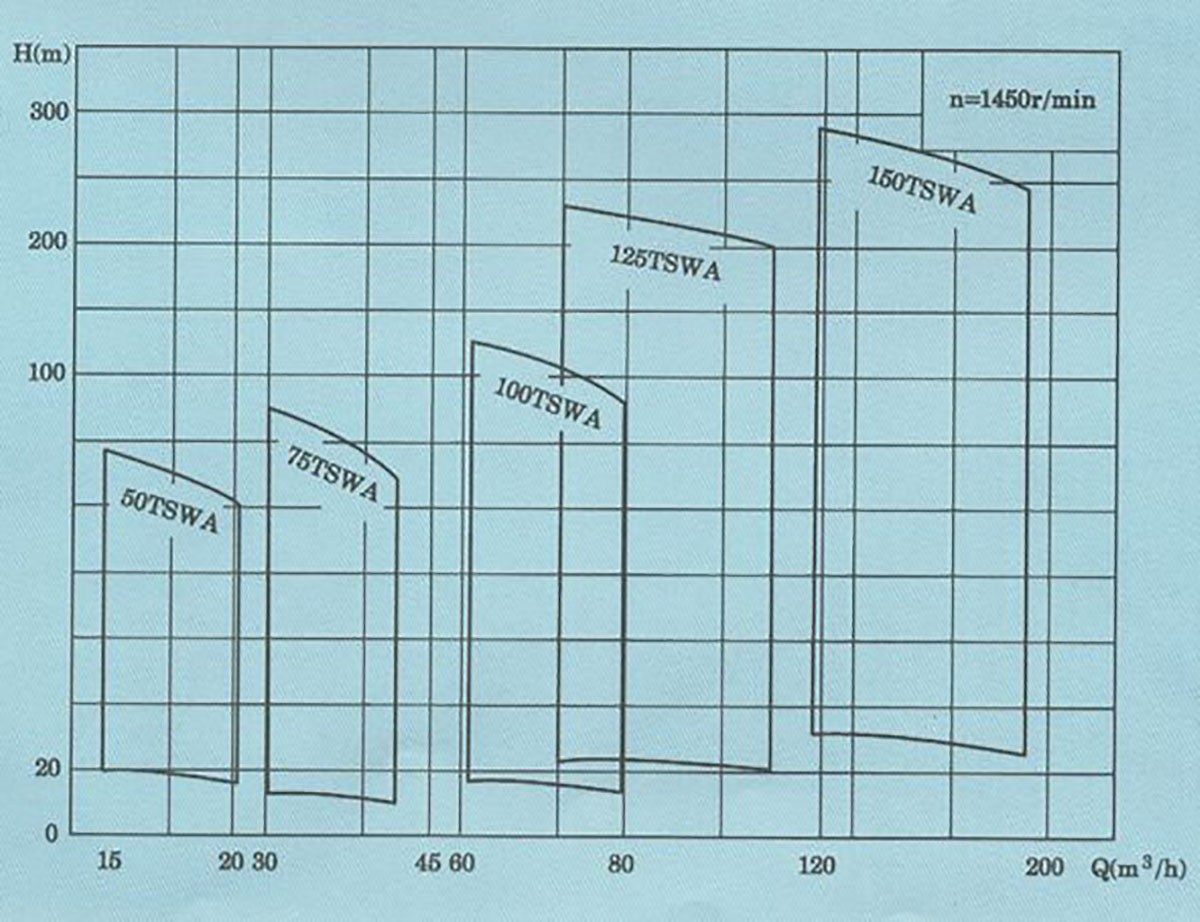

Type Stage Q(m3/h) Head(m)         Rotary Speed(r/min) PowerkW Efficiencyη(%) Weight(Kg)
50TSWA 2 15 20.0 1450 2.2 64 233
18 18.4 1450 66
22 16.8 1450 65
3 15 30.0 1450 3 64 272
18 27.6 1450 66
22 25.2 1450 65
4 15 40.0 1450 4 64 291
18 36.8 1450 66
22 33.6 1450 65
5 15 50.0 1450 5.5 64 330
18 46.0 1450 66
22 42.0 1450 65
6 15 60.0 1450 5.5 64 346
18 55.2 1450 66
22 50.4 1450 65
7 15 70.0 1450 7.5 64 363
18
22		 64.4
58.8		 1450
1450 66
65
8 15 80.0 1450 7.5 64 430
18 73.6 1450 66
22 67.2 1450 65
9 15 90.0 1450 7.5 64 446
18 82.8 1450 66
22 75.6 1450 65
10 15 100 1450 11 64 513
18 92.0 1450 66
22 84.0 1450 65
11 15 110.0 1450 11 64 529
18 101.2 1450 66
22 92.4 1450 65
12 15 120.0 1450 11 64 545
18 110.4 1450 66
22 100.8 1450 65
75TSWA 2 30 25.0 1450 5.5 68 277
36 23.0 1450 70
42 20.0 1450 68
3 30 37.5 1450 7.5 68 303
36 34.5 1450 70
42 30.0 1450 68
4 30 50.0 1450 11 68 353
36 46.0 1450 70
42 40.0 1450 68
5 30 62.5 1450 11 68 434
36 57.5 1450 70
42 50.0 1450 68
6 30 75.0 1450 15 68 477
36 69.0 1450 70
42 60.0 1450 68
7 30 87.5 1450 15 68 515
36 80.5 1450 70
42 70.0 1450 68
8 30 100.0 1450 18.5 68 541
36 92.0 1450 70
42 80.0 1450 68
9 30 112.5 1450 18.5 68 583
36 103.5 1450 70
42 90.0 1450 68
100TSWA 2 62 32.4 1450 11 71.5 410
69 31.2 1450 73
80 28.0 1450 71
3 62 48.6 1450 15 71.5 455
69 46.8 1450 73
80 42.0 1450 71
4 62 64.8 1450 22 71.5 547
69 62.4 1450 73
80 56.0 1450 71
5 62 81.0 1450 30 71.5 604
69 78.0 1450 73
80 70.0 1450 71
6 62 97.2 1450 30 71.5 683
69 93.6 1450 73
80 84.0 1450 71
7 62 113.4 1450 37 71.5 728
69 109.2 1450 73
80 98.0 1450 71
8 62 129.6 1450 45 71.5 850
69 124.8 1450 73
80 112.0 1450 71
9 62 145.8 1450 45 71.5 911
69 140.4 1450 73
80 126.0 1450 71
125TSWA 2 72
90
108		 46.0
43.2
40.0		 1450 22 70
74
75		 672
3 72
90
108		 46.0
43.2
40.0		 1450 30 70
74
75		 739
4 72
90
108		 46.0
43.2
40.0		 1450 45 70
74
75		 832
5 72
90
108		 46.0
43.2
40.0		 1450 55 70
74
75		 1016
6 72
90
108		 46.0
43.2
40.0		 1450 75 70
74
75		 1217
7 72
90
108		 46.0
43.2
40.0		 1450 75 70
74
75		 1409
8 72
90
108		 46.0
43.2
40.0		 1450 90 70
74
75		 1476
9 72
90
108		 46.0
43.2
40.0		 1450 90 70
74
75		 1559
150TSWA 2 119
155
191		 65
60
55		 1450 45 72
77
78		 685
3 119
155
191		 97
90
82		 1450 75 72
77
78		 755
4 119
155
191		 130
120
109		 1450 90 72
77
78		 755
5 119
155
191		 162
150
137		 1450 110 72
77
78		 845
6 119
155
191		 194
180
164		 1450 132 72
77
78		 /
7 119
155
191		 227
210
192		 1450 132 72
77
78		 /
8 119
155
191		 259
240
219		 1450 185 72
77
78		 /
9 119
155
191		 292
270
246		 1450 200 72
77
78		 /
