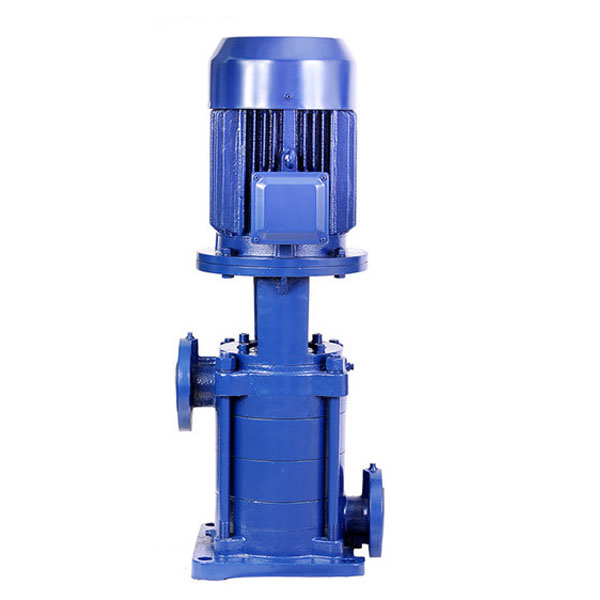

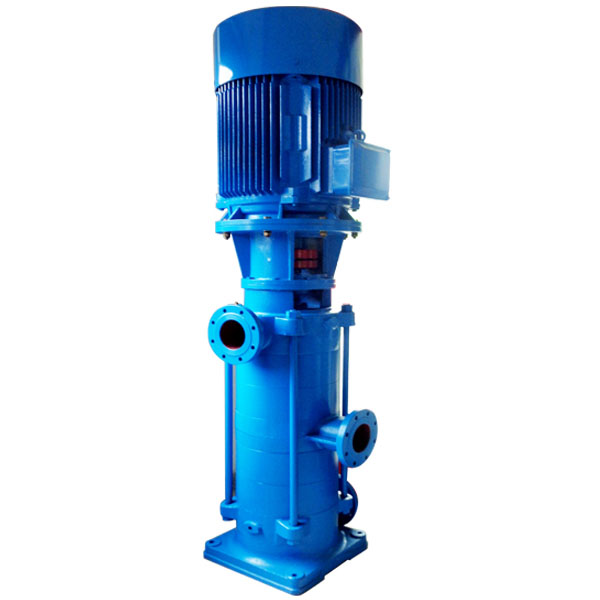

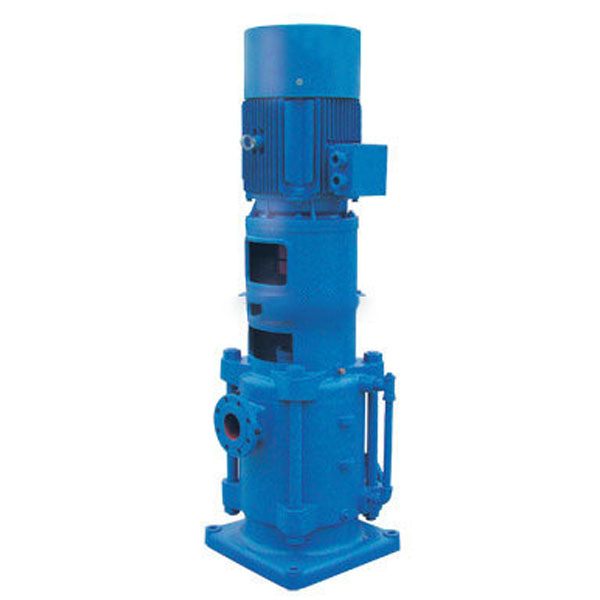

DL Vertical Multi-Stage Pump

Hanthing Fluid Group

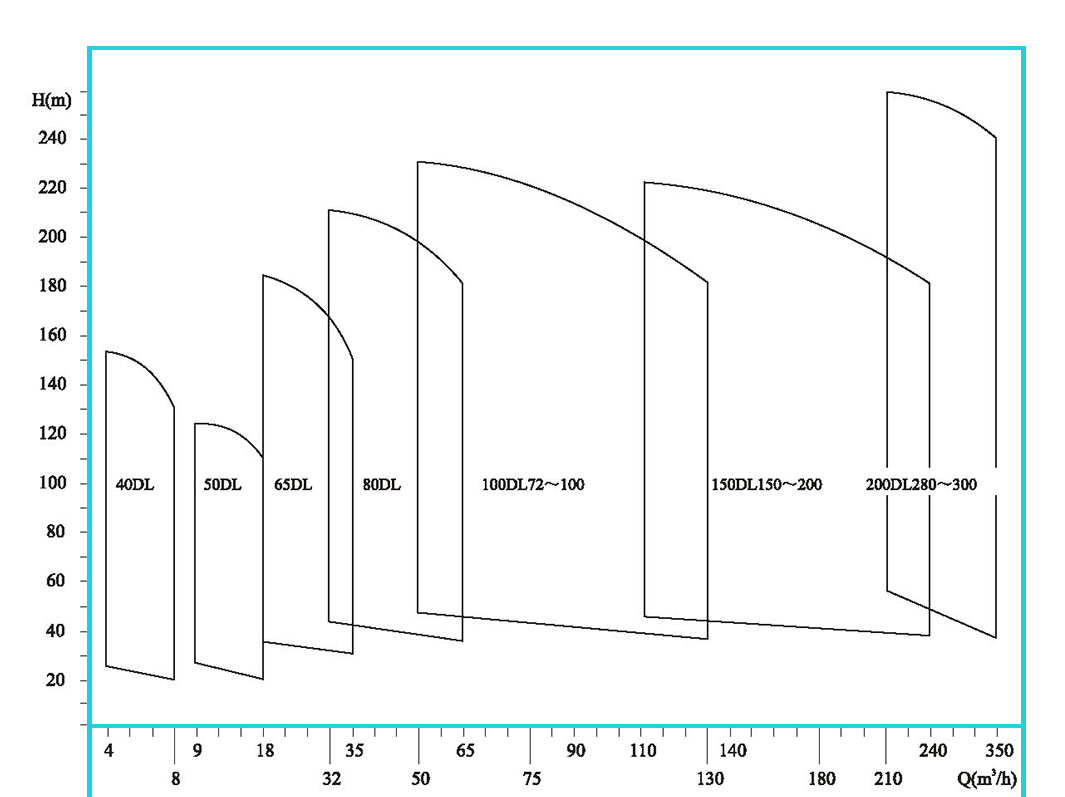

      Performance Range:
  • Flow Rate Q:2~380m³/h
  • Head H:5~135m
  • Speed N:1480r/min
  • Caliber: Φ40~Φ200
  • Temp Range T:-15~+95℃
  • Service Pressure P: Max 2.5Mpa
  • Material: cast iron, stainless steel
      • Application:
  • Mainly used for daily water supply in high building, water supply in fire-fighting, automatic spraying and automatic supply for water screen and so on. Additionally, they are applicable for water supply and discharge in factories and mines, long distance water transportation

  Type stage Diameter(mm)  flow(m3/h) Head(m) power(KW) Rotation speed (r/min) NPSH(m)
40DL(DLR)6-12 2 40 6 24 1.5 1480 3.2
3 36 2.2
4 48 3
5 60 4
6 72 4
7 84 5.5
8 96 5.5
9 108 7.5
10 120 7.5
11 132 7.5
12 144 11
50DL(DLR)12.5-12.5 2 50 12.5 25 3 1480 2.2
3 3.75 3
4 50 4
5 62.5 5.5
6 75 7.5
7 87.5 7.5
8 100 7.5
9 112.5 11
10 125 11
65DL(DLR)30-15 2 65 30 30 5.5 1480 2.82
3 45 7.5
4 60 11
5 75 15
6 90 15
7 105 18.5
8 120 22
9 135 22
10 150 30
80DL(DLR)50-20 2 80 50 40 11 1480 2.2
3 60 15
4 80 22
5 100 30
6 120 3
7 140 37
8 160 45
9 180 45
10 200 55
100DL(DLR)72-20 2 100 72 40 15 1480 2.8
3 60 18.5
4 80 30
5 100 37
6 120 37
7 140 45
8 160 55
9 180 55
10 200 75
100DL(DLR)100-20 2 100 100 40 18.5 1480 2.8
3 60 30
4 80 37
5 100 45
6 120 55
7 140 75
8 160 75
9 180 90
10 200 90
150DL(DLR)150-20 2 150 150 40 30 1480 2.8
3 60 37
4 80 45
5 100 55
6 120 75
7 140 90
8 160 90
9 180 110
10 200 132
150DL(DLR)165-20 2 150 160 50 37 1480 3.5
3 75 55
4 100 75
5 125 90
6 150 110
7 175 132
8 200 132
9 225 160
10 250 160
150DL(DLR)200-20 2 150 200 40 37 1480 3.5
3 60 55
4 80 73
5 100 90
6 120 110
7 140 110
8 160 132
200DL(DLR)300-20 2 200 300 40 55 1480 5
3 60 75
4 80 110
5 100 132
6 120 160
7 140 160
8 160 200
