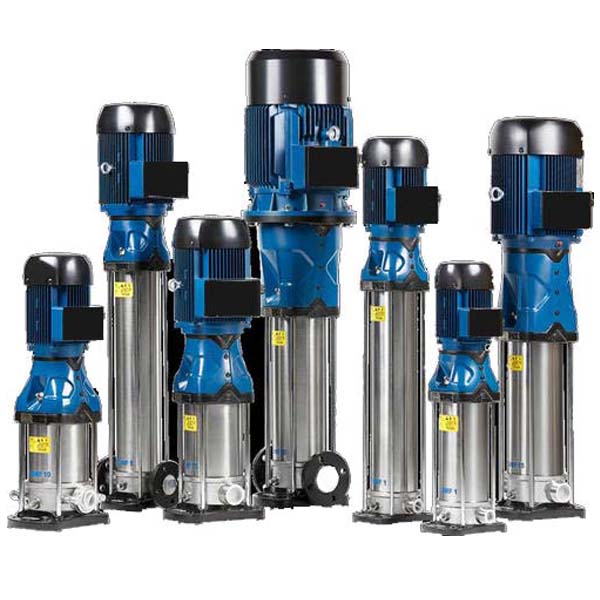

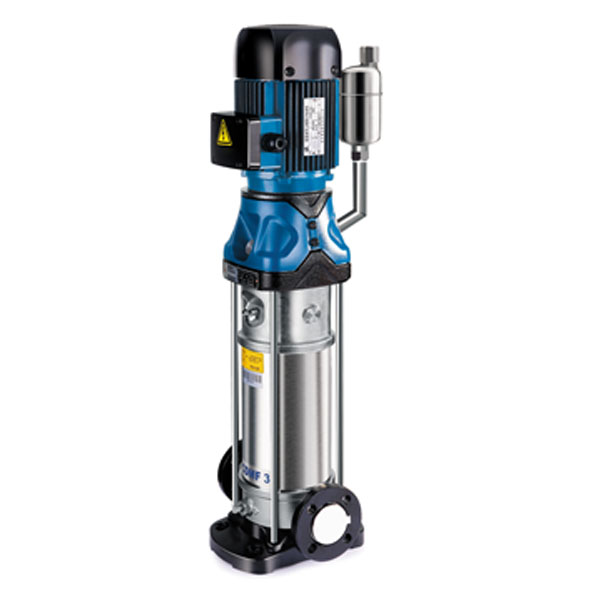

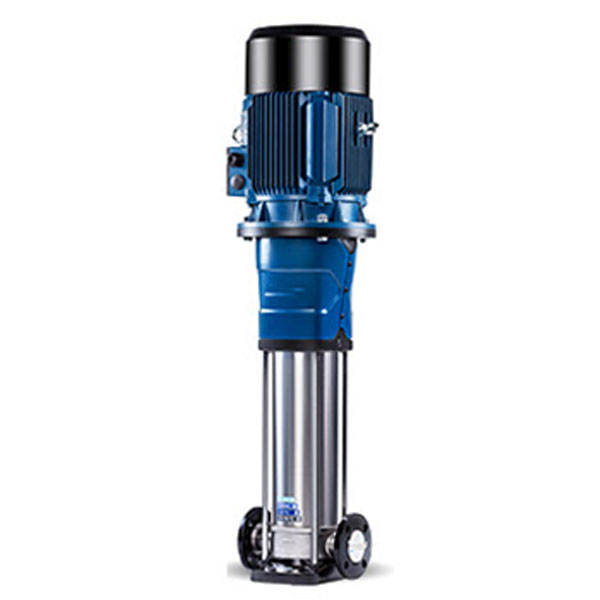

CDM/F Vertical Multi-stage Pump

Hanthing Fluid Group
      Performance range:

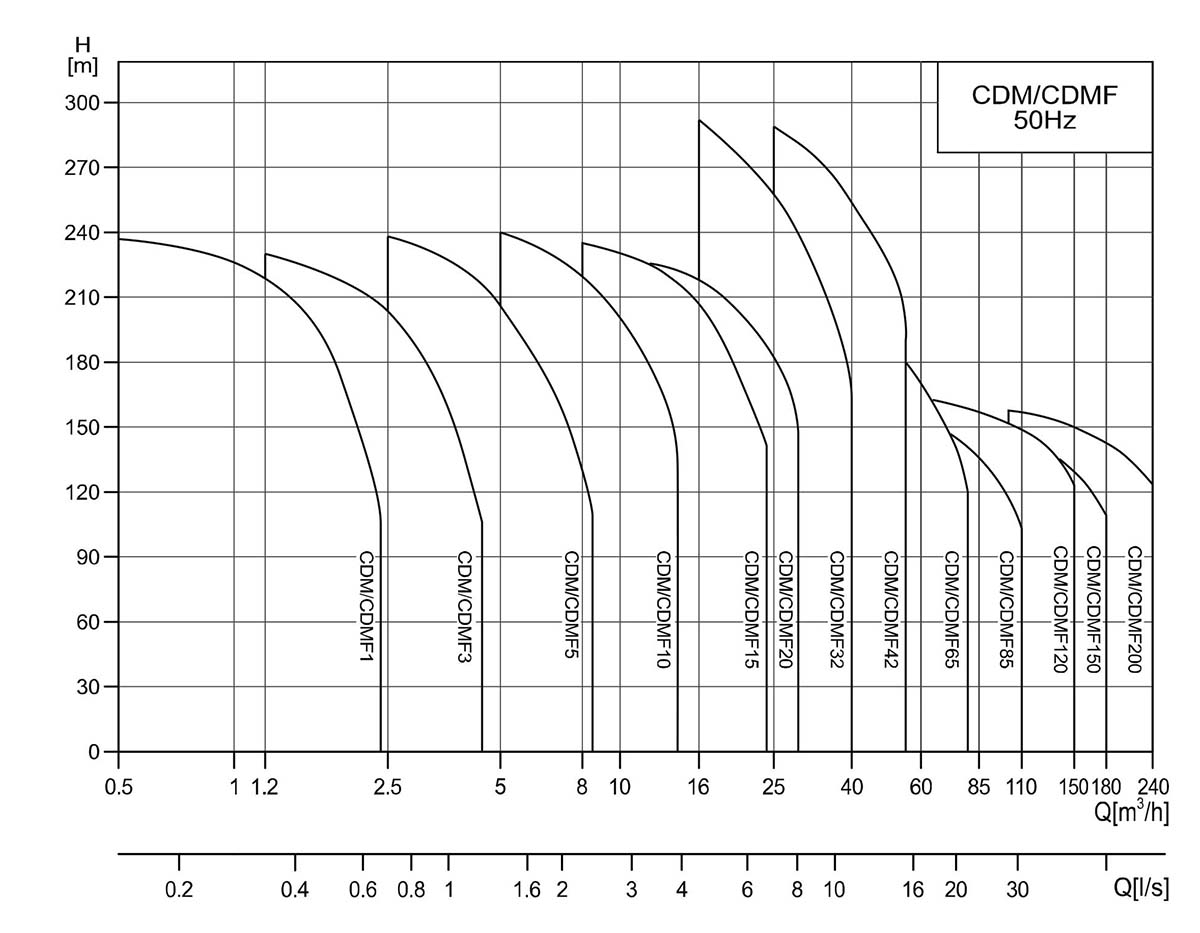

  • 50hz
  • Capacity: 2.5-240M3/H
  • Lift Head: 5-280M

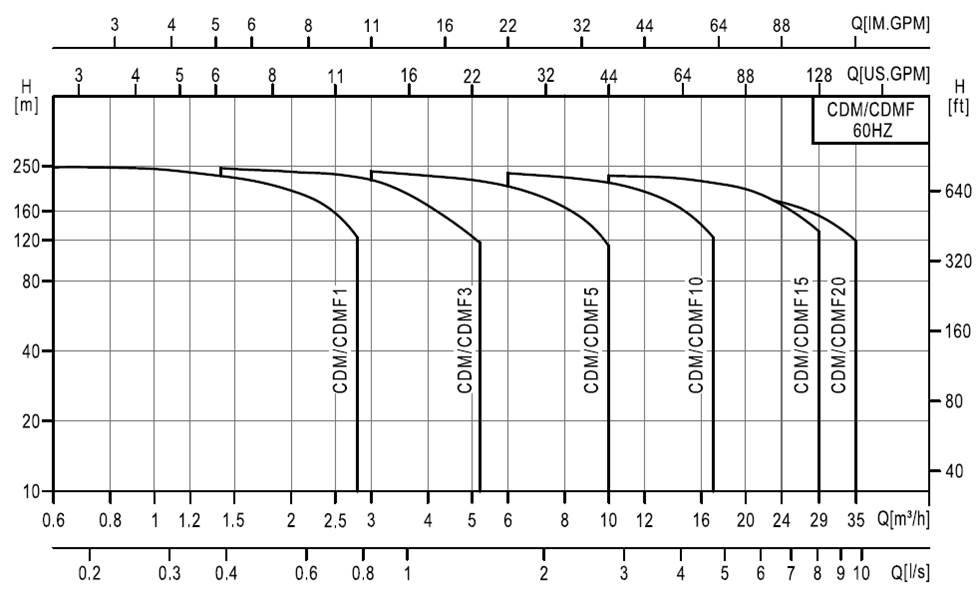

  • 60hz
  • Capacity: 2.5-35M3/H
  • Lift Head: 5-250M
      • Features
  • Motor efficiency class: IE3
  • Non-self-priming vertical multistage centrifugal pumps(Abbr. as
  • European standard
  • Efficiency achieved MEI≥0.7
  • Low noise and environment friendly
      • Application:
  • CDM/CDMF pumps are designed for a various of applications from the pumping of potable water to the pumping of industrial liquids. Applied for liquids of different temperature, different rated flow, different pressure range. CDM is suitable for non-corrosive liquid, CDMF is suitable for light corrosive liquid.
      • Medium:
  • Thin, clean, non-flammable, non-explosive, solid free, fiber free, physically and chemically water-like liquid.
  • Liquid temperature:
  • Normal temperature type: -15ºC to 70ºC
  • Hot water type: -15ºC to 120ºC
  • Ambient temperature: up to +40ºC
Items Group Model Flow Head Eta Power Speed Impeller Dia Stage Medium Temperature Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number Power Seal (kg)
1 CDM1 CDM1-2 1 10.5 42.1 0.07 2900 74.5 2 -15℃～+120℃ 0.37 CDLA-12/WBF14 23
2 CDM1-3 1 16 42.1 0.1 2900 74.5 3 -15℃～+120℃ 0.37 CDLA-12/WBF14 23
3 CDM1-4 1 21.5 42.1 0.14 2900 74.5 4 -15℃～+120℃ 0.37 CDLA-12/WBF14 24
4 CDM1-5 1 27 42.1 0.17 2900 74.5 5 -15℃～+120℃ 0.37 CDLA-12/WBF14 24
5 CDM1-6 1 32.5 42.1 0.21 2900 74.5 6 -15℃～+120℃ 0.37 CDLA-12/WBF14 25
6 CDM1-7 1 38.5 42.1 0.25 2900 74.5 7 -15℃～+120℃ 0.37 CDLA-12/WBF14 25
7 CDM1-8 1 43.5 42.1 0.28 2900 74.5 8 -15℃～+120℃ 0.55 CDLA-12/WBF14 27
8 CDM1-9 1 49 42.1 0.32 2900 74.5 9 -15℃～+120℃ 0.55 CDLA-12/WBF14 27
9 CDM1-10 1 54.5 42.1 0.35 2900 74.5 10 -15℃～+120℃ 0.55 CDLA-12/WBF14 28
10 CDM1-11 1 60 42.1 0.39 2900 74.5 11 -15℃～+120℃ 0.55 CDLA-12/WBF14 28
11 CDM1-12 1 66 42.1 0.43 2900 74.5 12 -15℃～+120℃ 0.75 CDLA-12/WBF14 31
12 CDM1-13 1 72 42.1 0.47 2900 74.5 13 -15℃～+120℃ 0.75 CDLA-12/WBF14 31
13 CDM1-14 1 78 42.1 0.5 2900 74.5 14 -15℃～+120℃ 0.75 CDLA-12/WBF14 28
14 CDM1-15 1 83 42.1 0.54 2900 74.5 15 -15℃～+120℃ 0.75 CDLA-12/WBF14 32
15 CDM1-16 1 89 42.1 0.58 2900 74.5 16 -15℃～+120℃ 1.1 CDLA-12/WBF14 31
16 CDM1-17 1 94 42.1 0.61 2900 74.5 17 -15℃～+120℃ 1.1 CDLA-12/WBF14 35
17 CDM1-18 1 100 42.1 0.65 2900 74.5 18 -15℃～+120℃ 1.1 CDLA-12/WBF14 32
18 CDM1-19 1 105 42.1 0.68 2900 74.5 19 -15℃～+120℃ 1.1 CDLA-12/WBF14 36
19 CDM1-20 1 111 42.1 0.72 2900 74.5 20 -15℃～+120℃ 1.1 CDLA-12/WBF14 33
20 CDM1-21 1 116 42.1 0.75 2900 74.5 21 -15℃～+120℃ 1.1 CDLA-12/WBF14 33
21 CDM1-22 1 122 42.1 0.79 2900 74.5 22 -15℃～+120℃ 1.1 CDLA-12/WBF14 37
22 CDM1-23 1 128 42.1 0.83 2900 74.5 23 -15℃～+120℃ 1.5 CDLA-12/WBF14 39
23 CDM1-24 1 134 42.1 0.87 2900 74.5 24 -15℃～+120℃ 1.5 CDLA-12/WBF14 39
24 CDM1-25 1 139 42.1 0.9 2900 74.5 25 -15℃～+120℃ 1.5 CDLA-12/WBF14 44
25 CDM1-26 1 145 42.1 0.94 2900 74.5 26 -15℃～+120℃ 1.5 CDLA-12/WBF14 40
26 CDM1-27 1 150 42.1 0.97 2900 74.5 27 -15℃～+120℃ 1.5 CDLA-12/WBF14 45
27 CDM1-28 1 156 42.1 1.01 2900 74.5 28 -15℃～+120℃ 1.5 CDLA-12/WBF14 41
28 CDM1-29 1 161 42.1 1.04 2900 74.5 29 -15℃～+120℃ 1.5 CDLA-12/WBF14 42
29 CDM1-30 1 167 42.1 1.08 2900 74.5 30 -15℃～+120℃ 1.5 CDLA-12/WBF14 46
30 CDM1-31 1 175 42.1 1.13 2900 74.5 31 -15℃～+120℃ 2.2 CDLA-12/WBF14 44
31 CDM1-32 1 180 42.1 1.17 2900 74.5 32 -15℃～+120℃ 2.2 CDLA-12/WBF14 49
32 CDM1-33 1 186 42.1 1.2 2900 74.5 33 -15℃～+120℃ 2.2 CDLA-12/WBF14 45
33 CDM1-34 1 192 42.1 1.24 2900 74.5 34 -15℃～+120℃ 2.2 CDLA-12/WBF14 50
34 CDM1-35 1 197 42.1 1.28 2900 74.5 35 -15℃～+120℃ 2.2 CDLA-12/WBF14 46
35 CDM1-36 1 203 42.1 1.31 2900 74.5 36 -15℃～+120℃ 2.2 CDLA-12/WBF14 51
36 CDM1-37 1 209 42.1 1.35 2900 74.5 37 -15℃～+120℃ 2.2 CDLA-12/WBF14 47
37 CDM1-38 1 215 42.1 1.39 2900 74.5 38 -15℃～+120℃ 2.2 CDLA-12/WBF14 51
38 CDM1-39 1 220 42.1 1.42 2900 74.5 38 -15℃～+120℃ 2.2 CDLA-12/WBF14 48
39 CDM1-40 1 226 42.1 1.46 2900 74.5 40 -15℃～+120℃ 2.2 CDLA-12/WBF14 52
40 CDM3 CDM3-2 3 11 58 0.16 2900 82 2 -15℃～+120℃ 0.37 CDLA-12/WBF14 24
41 CDM3-3 3 17 58 0.24 2900 82 3 -15℃～+120℃ 0.37 CDLA-12/WBF14 24
42 CDM3-4 3 23 58 0.32 2900 82 4 -15℃～+120℃ 0.37 CDLA-12/WBF14 25
43 CDM3-5 3 29 58 0.41 2900 82 5 -15℃～+120℃ 0.55 CDLA-12/WBF14 26
44 CDM3-6 3 35 58 0.49 2900 82 6 -15℃～+120℃ 0.55 CDLA-12/WBF14 27
45 CDM3-7 3 41 58 0.58 2900 82 7 -15℃～+120℃ 0.75 CDLA-12/WBF14 30
46 CDM3-8 3 47 58 0.66 2900 82 8 -15℃～+120℃ 0.75 CDLA-12/WBF14 30
47 CDM3-9 3 53 58 0.75 2900 82 9 -15℃～+120℃ 1.1 CDLA-12/WBF14 32
48 CDM3-10 3 59 58 0.83 2900 82 10 -15℃～+120℃ 1.1 CDLA-12/WBF14 33
49 CDM3-11 3 65 58 0.92 2900 82 11 -15℃～+120℃ 1.1 CDLA-12/WBF14 33
50 CDM3-12 3 71 58 1 2900 82 12 -15℃～+120℃ 1.1 CDLA-12/WBF14 34
51 CDM3-13 3 77 58 1.09 2900 82 13 -15℃～+120℃ 1.5 CDLA-12/WBF14 39
52 CDM3-14 3 83 58 1.17 2900 82 14 -15℃～+120℃ 1.5 CDLA-12/WBF14 40
53 CDM3-15 3 90 58 1.27 2900 82 15 -15℃～+120℃ 1.5 CDLA-12/WBF14 40
54 CDM3-16 3 96 58 1.35 2900 82 16 -15℃～+120℃ 1.5 CDLA-12/WBF14 41
55 CDM3-17 3 102 58 1.44 2900 82 17 -15℃～+120℃ 2.2 CDLA-12/WBF14 38
56 CDM3-18 3 108 58 1.52 2900 82 18 -15℃～+120℃ 2.2 CDLA-12/WBF14 39
57 CDM3-19 3 114 58 1.61 2900 82 19 -15℃～+120℃ 2.2 CDLA-12/WBF14 44
58 CDM3-20 3 120 58 1.69 2900 82 20 -15℃～+120℃ 2.2 CDLA-12/WBF14 40
59 CDM3-21 3 126 58 1.78 2900 82 21 -15℃～+120℃ 2.2 CDLA-12/WBF14 45
60 CDM3-22 3 132 58 1.86 2900 82 22 -15℃～+120℃ 2.2 CDLA-12/WBF14 41
61 CDM3-23 3 138 58 1.95 2900 82 23 -15℃～+120℃ 2.2 CDLA-12/WBF14 46
62 CDM3-24 3 144 58 2.03 2900 82 24 -15℃～+120℃ 2.2 CDLA-12/WBF14 52
63 CDM3-25 3 150 58 2.11 2900 82 25 -15℃～+120℃ 3 CDLA-12/WBF14 57
64 CDM3-26 3 156 58 2.2 2900 82 26 -15℃～+120℃ 3 CDLA-12/WBF14 53
65 CDM3-27 3 162 58 2.28 2900 82 27 -15℃～+120℃ 3 CDLA-12/WBF14 58
66 CDM3-28 3 168 58 2.37 2900 82 28 -15℃～+120℃ 3 CDLA-12/WBF14 54
67 CDM3-29 3 175 58 2.47 2900 82 29 -15℃～+120℃ 3 CDLA-12/WBF14 58
68 CDM3-30 3 181 58 2.42 2900 82 30 -15℃～+120℃ 3 CDLA-12/WBF14 55
69 CDM3-31 3 187 58 2.64 2900 82 31 -15℃～+120℃ 3 CDLA-12/WBF14 59
70 CDM5 CDM5-2 5 11.5 70 0.22 2900 82 2 -15℃～+120℃ 0.37 CDLA-12/WBF14 24
71 CDM5-3 5 17.5 70 0.34 2900 82 3 -15℃～+120℃ 0.55 CDLA-12/WBF14 26
72 CDM5-4 5 24 70 0.47 2900 82 4 -15℃～+120℃ 0.55 CDLA-12/WBF14 27
73 CDM5-5 5 30 70 0.58 2900 82 5 -15℃～+120℃ 0.75 CDLA-12/WBF14 30
74 CDM5-6 5 36.5 70 0.71 2900 82 6 -15℃～+120℃ 1.1 CDLA-12/WBF14 32
75 CDM5-7 5 42.5 70 0.83 2900 82 7 -15℃～+120℃ 1.1 CDLA-12/WBF14 32
76 CDM5-8 5 49 70 0.95 2900 82 8 -15℃～+120℃ 1.1 CDLA-12/WBF14 33
77 CDM5-9 5 55 70 1.07 2900 82 9 -15℃～+120℃ 1.5 CDLA-12/WBF14 38
78 CDM5-10 5 62 70 1.21 2900 82 10 -15℃～+120℃ 1.5 CDLA-12/WBF14 39
79 CDM5-11 5 68 70 1.32 2900 82 11 -15℃～+120℃ 1.5 CDLA-12/WBF14 39
80 CDM5-12 5 74 70 1.44 2900 82 12 -15℃～+120℃ 2.2 CDLA-12/WBF14 42
81 CDM5-13 5 80 70 1.56 2900 82 13 -15℃～+120℃ 2.2 CDLA-12/WBF14 42
82 CDM5-14 5 87 70 1.69 2900 82 14 -15℃～+120℃ 2.2 CDLA-12/WBF14 43
83 CDM5-15 5 93 70 1.81 2900 82 15 -15℃～+120℃ 2.2 CDLA-12/WBF14 43
84 CDM5-16 5 99 70 1.93 2900 82 16 -15℃～+120℃ 2.2 CDLA-12/WBF14 44
85 CDM5-17 5 105 70 2.04 2900 82 17 -15℃～+120℃ 3 CDLA-12/WBF14 50
86 CDM5-18 5 111 70 2.16 2900 82 18 -15℃～+120℃ 3 CDLA-12/WBF14 55
87 CDM5-19 5 118 70 2.3 2900 82 19 -15℃～+120℃ 3 CDLA-12/WBF14 51
88 CDM5-20 5 124 70 2.41 2900 82 20 -15℃～+120℃ 3 CDLA-12/WBF14 51
89 CDM5-21 5 130 70 2.53 2900 82 21 -15℃～+120℃ 3 CDLA-12/WBF14 57
90 CDM5-22 5 135 70 2.63 2900 82 22 -15℃～+120℃ 4 CDLA-12/WBF14 59
91 CDM5-23 5 142 70 2.76 2900 82 23 -15℃～+120℃ 4 CDLA-12/WBF14 65
92 CDM5-24 5 149 70 2.9 2900 82 24 -15℃～+120℃ 4 CDLA-12/WBF14 60
93 CDM5-25 5 155 70 3.02 2900 82 25 -15℃～+120℃ 4 CDLA-12/WBF14 66
94 CDM5-26 5 161 70 3.13 2900 82 26 -15℃～+120℃ 4 CDLA-12/WBF14 61
95 CDM5-27 5 167 70 3.25 2900 82 27 -15℃～+120℃ 4 CDLA-12/WBF14 62
96 CDM5-28 5 174 70 3.39 2900 82 28 -15℃～+120℃ 4 CDLA-12/WBF14 67
97 CDM5-29 5 180 70 3.5 2900 82 29 -15℃～+120℃ 5.5 CDLA-12/WBF14 82
98 CDM5-30 5 186 70 3.62 2900 82 30 -15℃～+120℃ 5.5 CDLA-12/WBF14 88
99 CDM5-31 5 193 70 3.76 2900 82 31 -15℃～+120℃ 5.5 CDLA-12/WBF14 83
100 CDM5-32 5 200 70 3.89 2900 82 32 -15℃～+120℃ 5.5 CDLA-12/WBF14 84
101 CDM5-33 5 206 70 4.01 2900 82 33 -15℃～+120℃ 5.5 CDLA-12/WBF14 89
102 CDM10 CDM10-1 10 8 72 0.3 2900 100 1 -15℃～+120℃ 0.75 CDLA-16/WBF14 29
103 CDM10-2 10 16.5 72 0.62 2900 100 2 -15℃～+120℃ 0.75 CDLA-16/WBF14 30
104 CDM10-3 10 25.5 72 0.97 2900 100 3 -15℃～+120℃ 1.1 CDLA-16/WBF14 33
105 CDM10-4 10 34 72 1.29 2900 100 4 -15℃～+120℃ 1.5 CDLA-16/WBF14 39
106 CDM10-5 10 43 72 1.63 2900 100 5 -15℃～+120℃ 2.2 CDLA-16/WBF14 43
107 CDM10-6 10 52 72 1.97 2900 100 6 -15℃～+120℃ 2.2 CDLA-16/WBF14 44
108 CDM10-7 10 62 72 2.35 2900 100 7 -15℃～+120℃ 3 CDLA-16/WBF14 55
109 CDM10-8 10 71 72 2.69 2900 100 8 -15℃～+120℃ 3 CDLA-16/WBF14 56
110 CDM10-9 10 80 72 3.03 2900 100 9 -15℃～+120℃ 4 CDLA-16/WBF14 63
111 CDM10-10 10 89 72 3.37 2900 100 10 -15℃～+120℃ 4 CDLA-16/WBF14 64
112 CDM10-11 10 98 72 3.71 2900 100 11 -15℃～+120℃ 4 CDLA-16/WBF14 65
113 CDM10-12 10 107 72 4.05 2900 100 12 -15℃～+120℃ 4.5 CDLA-16/WBF14 66
114 CDM10-13 10 116 72 4.39 2900 100 13 -15℃～+120℃ 5.5 CDLA-16/WBF14 86
115 CDM10-14 10 125 72 4.73 2900 100 14 -15℃～+120℃ 5.5 CDLA-16/WBF14 87
116 CDM10-15 10 134 72 5.07 2900 100 15 -15℃～+120℃ 5.5 CDLA-16/WBF14 88
117 CDM10-16 10 143 72 5.41 2900 100 16 -15℃～+120℃ 7.5 CDLA-16/WBF14 97
118 CDM10-17 10 153 72 5.79 2900 100 17 -15℃～+120℃ 7.5 CDLA-16/WBF14 98
119 CDM10-18 10 163 72 6.17 2900 100 18 -15℃～+120℃ 7.5 CDLA-16/WBF14 99
120 CDM10-19 10 172 72 6.51 2900 100 19 -15℃～+120℃ 7.5 CDLA-16/WBF14 100
121 CDM10-20 10 181 72 6.85 2900 100 20 -15℃～+120℃ 7.5 CDLA-16/WBF14 101
122 CDM10-21 10 191 72 7.23 2900 100 21 -15℃～+120℃ 7.5 CDLA-16/WBF14 102
123 CDM10-22 10 201 72 7.61 2900 100 22 -15℃～+120℃ 11 CDLA-16/WBF14 168
124 CDM15 CDM15-1 15 11 71 0.63 2900 105.2 1 -15℃～+120℃ 1.1 CDLA-16/WBF14 33
125 CDM15-2 15 22.5 71 1.3 2900 105.2 2 -15℃～+120℃ 2.2 CDLA-16/WBF14 41
126 CDM15-3 15 34.5 71 1.99 2900 105.2 3 -15℃～+120℃ 3 CDLA-16/WBF14 52
127 CDM15-4 15 46 71 2.65 2900 105.2 4 -15℃～+120℃ 4 CDLA-16/WBF14 59
128 CDM15-5 15 57.5 71 3.31 2900 105.2 5 -15℃～+120℃ 4 CDLA-16/WBF14 61
129 CDM15-6 15 69 71 3.97 2900 105.2 6 -15℃～+120℃ 5.5 CDLA-16/WBF14 83
130 CDM15-7 15 81 71 4.66 2900 105.2 7 -15℃～+120℃ 5.5 CDLA-16/WBF14 84
131 CDM15-8 15 93 71 5.35 2900 105.2 8 -15℃～+120℃ 7.5 CDLA-16/WBF14 91
132 CDM15-9 15 105 71 6.04 2900 105.2 9 -15℃～+120℃ 7.5 CDLA-16/WBF14 92
133 CDM15-10 15 117 71 6.74 2900 105.2 10 -15℃～+120℃ 11 CDLA-16/WBF14 150
134 CDM15-11 15 129 71 7.43 2900 105.2 11 -15℃～+120℃ 11 CDLA-16/WBF14 151
135 CDM15-12 15 141 71 8.12 2900 105.2 12 -15℃～+120℃ 11 CDLA-16/WBF14 153
136 CDM15-13 15 153 71 8.81 2900 105.2 13 -15℃～+120℃ 11 CDLA-16/WBF14 154
137 CDM15-14 15 165 71 9.5 2900 105.2 14 -15℃～+120℃ 11 CDLA-16/WBF14 156
138 CDM15-15 15 177 71 10.19 2900 105.2 15 -15℃～+120℃ 15 CDLA-16/WBF14 172
139 CDM15-16 15 189 71 10.88 2900 105.2 16 -15℃～+120℃ 15 CDLA-16/WBF14 173
140 CDM15-17 15 201 71 11.57 2900 105.2 17 -15℃～+120℃ 15 CDLA-16/WBF14 175
141 CDM15-18 15 213 71 12.26 2900 105.2 18 -15℃～+120℃ 15 CDLA-16/WBF14 184
142 CDM20 CDM20-1 20 10.5 72 0.79 2900 105.5 1 -15℃～+120℃ 1.1 CDLA-16/WBF14 33
143 CDM20-2 20 22 72 1.67 2900 105.5 2 -15℃～+120℃ 2.2 CDLA-16/WBF14 41
144 CDM20-3 20 34.5 72 2.61 2900 105.5 3 -15℃～+120℃ 4 CDLA-16/WBF14 59
145 CDM20-4 20 46 72 3.48 2900 105.5 4 -15℃～+120℃ 5.5 CDLA-16/WBF14 81
146 CDM20-5 20 58 72 4.39 2900 105.5 5 -15℃～+120℃ 5.5 CDLA-16/WBF14 83
147 CDM20-6 20 70 72 5.3 2900 105.5 6 -15℃～+120℃ 7.5 CDLA-16/WBF14 92
148 CDM20-7 20 82 72 6.21 2900 105.5 7 -15℃～+120℃ 7.5 CDLA-16/WBF14 93
149 CDM20-8 20 95 72 7.19 2900 105.5 8 -15℃～+120℃ 11 CDLA-16/WBF14 160
150 CDM20-9 20 107 72 8.1 2900 105.5 9 -15℃～+120℃ 11 CDLA-16/WBF14 161
151 CDM20-10 20 119 72 9.01 2900 105.5 10 -15℃～+120℃ 11 CDLA-16/WBF14 163
152 CDM20-11 20 131 72 9.92 2900 105.5 11 -15℃～+120℃ 15 CDLA-16/WBF14 180
153 CDM20-12 20 143 72 10.82 2900 105.5 12 -15℃～+120℃ 15 CDLA-16/WBF14 181
154 CDM20-13 20 155 72 11.73 2900 105.5 13 -15℃～+120℃ 15 CDLA-16/WBF14 182
155 CDM20-14 20 168 72 12.72 2900 105.5 14 -15℃～+120℃ 15 CDLA-16/WBF14 184
156 CDM20-15 20 180 72 13.62 2900 105.5 15 -15℃～+120℃ 18.5 CDLA-16/WBF14 202
157 CDM20-16 20 193 72 14.61 2900 105.5 16 -15℃～+120℃ 18.5 CDLA-16/WBF14 203
158 CDM20-17 20 205 72 15.52 2900 105.5 17 -15℃～+120℃ 18.5 CDLA-16/WBF14 205
159 CDM32 CDM32-10-1 32 9 68.2 1.15 2900 118.2 1 -15℃～+120℃ 1.5 CDLA-22/WBF16 64
160 CDM32-10 32 13 68.2 1.66 2900 118.2 1 -15℃～+120℃ 2.2 CDLA-22/WBF16 68
161 CDM32-20-2 32 20 68.2 2.56 2900 118.2 2 -15℃～+120℃ 3 CDLA-22/WBF16 77
162 CDM32-20 32 27 68.2 3.45 2900 118.2 2 -15℃～+120℃ 4 CDLA-22/WBF16 85
163 CDM32-30-2 32 33 68.2 4.22 2900 118.2 3 -15℃～+120℃ 5.5 CDLA-22/WBF16 100
164 CDM32-30 32 40 68.2 5.11 2900 118.2 3 -15℃～+120℃ 5.5 CDLA-22/WBF16 100
165 CDM32-40-2 32 46 68.2 5.88 2900 118.2 4 -15℃～+120℃ 7.5 CDLA-22/WBF16 109
166 CDM32-40 32 53 68.2 6.78 2900 118.2 4 -15℃～+120℃ 7.5 CDLA-22/WBF16 109
167 CDM32-50-2 32 60 68.2 7.67 2900 118.2 5 -15℃～+120℃ 11 CDLA-22/WBF16 181
168 CDM32-50 32 67 68.2 8.57 2900 118.2 5 -15℃～+120℃ 11 CDLA-22/WBF16 181
169 CDM32-60-2 32 74 68.2 9.46 2900 118.2 6 -15℃～+120℃ 11 CDLA-22/WBF16 185
170 CDM32-60 32 81 68.2 10.36 2900 118.2 6 -15℃～+120℃ 11 CDLA-22/WBF16 185
171 CDM32-70-2 32 88 68.2 11.25 2900 118.2 7 -15℃～+120℃ 15 CDLA-22/WBF16 199
172 CDM32-70 32 95 68.2 12.15 2900 118.2 7 -15℃～+120℃ 15 CDLA-22/WBF16 199
173 CDM32-80-2 32 102 68.2 13.04 2900 118.2 8 -15℃～+120℃ 15 CDLA-22/WBF16 203
174 CDM32-80 32 109 68.2 13.94 2900 118.2 8 -15℃～+120℃ 15 CDLA-22/WBF16 203
175 CDM32-90-2 32 117 68.2 14.96 2900 118.2 9 -15℃～+120℃ 18.5 CDLA-22/WBF16 222
176 CDM32-90 32 124 68.2 15.85 2900 118.2 9 -15℃～+120℃ 18.5 CDLA-22/WBF16 222
177 CDM32-100-2 32 131 68.2 16.75 2900 118.2 10 -15℃～+120℃ 18.5 CDLA-22/WBF16 227
178 CDM32-100 32 138 68.2 17.64 2900 118.2 10 -15℃～+120℃ 18.5 CDLA-22/WBF16 227
179 CDM32-110-2 32 146 68.2 18.67 2900 118.2 11 -15℃～+120℃ 22 CDLA-22/WBF16 272
180 CDM32-110 32 153 68.2 19.56 2900 118.2 11 -15℃～+120℃ 22 CDLA-22/WBF16 272
181 CDM32-120-2 32 160 68.2 20.46 2900 118.2 12 -15℃～+120℃ 22 CDLA-22/WBF16 276
182 CDM32-120 32 167 68.2 21.35 2900 118.2 12 -15℃～+120℃ 22 CDLA-22/WBF16 276
183 CDM32-130-2 32 174 68.2 22.25 2900 118.2 13 -15℃～+120℃ 30 CDLA-22/WBF16 337
184 CDM32-130 32 181 68.2 23.14 2900 118.2 13 -15℃～+120℃ 30 CDLA-22/WBF16 337
185 CDM32-140-2 32 189 68.2 24.17 2900 118.2 14 -15℃～+120℃ 30 CDLA-22/WBF16 341
186 CDM32-140 32 196 68.2 25.06 2900 118.2 14 -15℃～+120℃ 30 CDLA-22/WBF16 341
187 CDM32-150-2 32 203 68.2 25.96 2900 118.2 15 -15℃～+120℃ 30 CDLA-22/WBF16 345
188 CDM32-150 32 210 68.2 26.85 2900 118.2 15 -15℃～+120℃ 30 CDLA-22/WBF16 345
189 CDM32-160-2 32 218 68.2 27.87 2900 118.2 16 -15℃～+120℃ 30 CDLA-22/WBF16 350
190 CDM32-160 32 225 68.2 28.77 2900 118.2 16 -15℃～+120℃ 30 CDLA-22/WBF16 350
191 CDM42 CDM42-10-1 42 16 69.8 2.62 2900 136 1 -15℃～+120℃ 3 CDLA-22/WBF16 83
192 CDM42-10 42 20 69.8 3.28 2900 136 1 -15℃～+120℃ 4 CDLA-22/WBF16 90
193 CDM42-20-2 42 32 69.8 5.25 2900 136 2 -15℃～+120℃ 5.5 CDLA-22/WBF16 105
194 CDM42-20 42 41 69.8 6.72 2900 136 2 -15℃～+120℃ 7.5 CDLA-22/WBF16 110
195 CDM42-30-2 42 52 69.8 8.53 2900 136 3 -15℃～+120℃ 11 CDLA-22/WBF16 183
196 CDM42-30 42 61 69.8 10 2900 136 3 -15℃～+120℃ 11 CDLA-22/WBF16 183
197 CDM42-40-2 42 73 69.8 11.97 2900 136 4 -15℃～+120℃ 15 CDLA-22/WBF16 197
198 CDM42-40 42 81 69.8 13.28 2900 136 4 -15℃～+120℃ 15 CDLA-22/WBF16 197
199 CDM42-50-2 42 93 69.8 15.25 2900 136 5 -15℃～+120℃ 18.5 CDLA-22/WBF16 221
200 CDM42-50 42 101 69.8 16.56 2900 136 5 -15℃～+120℃ 18.5 CDLA-22/WBF16 221
201 CDM42-60-2 42 113 69.8 18.53 2900 136 6 -15℃～+120℃ 22 CDLA-22/WBF16 261
202 CDM42-60 42 122 69.8 20 2900 136 6 -15℃～+120℃ 22 CDLA-22/WBF16 261
203 CDM42-70-2 42 134 69.8 21.97 2900 136 7 -15℃～+120℃ 30 CDLA-22/WBF16 320
204 CDM42-70 42 142 69.8 23.28 2900 136 7 -15℃～+120℃ 30 CDLA-22/WBF16 320
205 CDM42-80-2 42 154 69.8 25.25 2900 136 8 -15℃～+120℃ 30 CDLA-22/WBF16 324
206 CDM42-80 42 162 69.8 26.56 2900 136 8 -15℃～+120℃ 30 CDLA-22/WBF16 324
207 CDM42-90-2 42 174 69.8 28.53 2900 136 9 -15℃～+120℃ 30 CDLA-22/WBF16 328
208 CDM42-90 42 183 69.8 30.01 2900 136 9 -15℃～+120℃ 37 CDLA-22/WBF16 352
209 CDM42-100-2 42 194 69.8 31.81 2900 136 10 -15℃～+120℃ 37 CDLA-22/WBF16 355
210 CDM42-100 42 203 69.8 33.29 2900 136 10 -15℃～+120℃ 37 CDLA-22/WBF16 355
211 CDM42-110-2 42 217 69.8 35.58 2900 136 11 -15℃～+120℃ 45 CDLA-22/WBF16 426
212 CDM42-110 42 225 69.8 36.89 2900 136 11 -15℃～+120℃ 45 CDLA-22/WBF16 426
213 CDM42-120-2 42 238 69.8 39.02 2900 136 12 -15℃～+120℃ 45 CDLA-22/WBF16 432
214 CDM42-120 42 247 69.8 40.5 2900 136 12 -15℃～+120℃ 45 CDLA-22/WBF16 432
215 CDM42-130-2 42 259 69.8 42.47 2900 136 13 -15℃～+120℃ 45 CDLA-22/WBF16 438
216 CDM65 CDM65-10-1 65 13 72.3 3.18 2900 142 1 -15℃～+70℃ 4 CDLA-22/WBF16 93
217 CDM65-10 65 20 72.3 4.9 2900 142 1 -15℃～+120℃ 5.5 CDLA-22/WBF16 105
218 CDM65-20-2 65 26 72.3 6.37 2900 142 2 -15℃～+120℃ 7.5 CDLA-22/WBF16 110
219 CDM65-20-1 65 33 72.3 8.08 2900 142 2 -15℃～+120℃ 11 CDLA-22/WBF16 182
220 CDM65-20 65 40 72.3 9.8 2900 142 2 -15℃～+120℃ 11 CDLA-22/WBF16 182
221 CDM65-30-2 65 46 72.3 11.27 2900 142 3 -15℃～+120℃ 15 CDLA-22/WBF16 196
222 CDM65-30-1 65 53 72.3 12.98 2900 142 3 -15℃～+120℃ 15 CDLA-22/WBF16 197
223 CDM65-30 65 60 72.3 14.7 2900 142 3 -15℃～+120℃ 18.5 CDLA-22/WBF16 221
224 CDM65-40-2 65 66 72.3 16.17 2900 142 4 -15℃～+120℃ 18.5 CDLA-22/WBF16 225
225 CDM65-40-1 65 73 72.3 17.88 2900 142 4 -15℃～+120℃ 22 CDLA-22/WBF16 258
226 CDM65-40 65 80 72.3 19.6 2900 142 4 -15℃～+120℃ 22 CDLA-22/WBF16 258
227 CDM65-50-2 65 88 72.3 21.56 2900 142 5 -15℃～+120℃ 30 CDLA-22/WBF16 319
228 CDM65-50-1 65 95 72.3 23.27 2900 142 5 -15℃～+120℃ 30 CDLA-22/WBF16 319
229 CDM65-50 65 102 72.3 24.99 2900 142 5 -15℃～+120℃ 30 CDLA-22/WBF16 320
230 CDM65-60-2 65 110 72.3 26.95 2900 142 6 -15℃～+120℃ 30 CDLA-22/WBF16 325
231 CDM65-60-1 65 117 72.3 28.66 2900 142 6 -15℃～+120℃ 37 CDLA-22/WBF16 349
232 CDM65-60 65 124 72.3 30.38 2900 142 6 -15℃～+120℃ 37 CDLA-22/WBF16 349
233 CDM65-70-2 65 132 72.3 32.34 2900 142 7 -15℃～+120℃ 37 CDLA-22/WBF16 353
234 CDM65-70-1 65 139 72.3 34.05 2900 142 7 -15℃～+120℃ 37 CDLA-22/WBF16 353
235 CDM65-70 65 146 72.3 35.77 2900 142 7 -15℃～+120℃ 45 CDLA-22/WBF16 420
236 CDM65-80-2 65 154 72.3 37.73 2900 142 8 -15℃～+120℃ 45 CDLA-22/WBF16 424
237 CDM65-80-1 65 161 72.3 39.44 2900 142 8 -15℃～+120℃ 45 CDLA-22/WBF16 424
238 CDM85 CDM85-10-1 85 14 73.9 4.39 2900 145.3 1 -15℃～+120℃ 5.5 CDLA-22/WBF16 105
239 CDM85-10 85 20 73.9 6.27 2900 146 1 -15℃～+120℃ 7.5 CDLA-22/WBF16 110
240 CDM85-20-2 85 30 73.9 9.4 2900 145.3 2 -15℃～+120℃ 11 CDLA-22/WBF16 181
241 CDM85-20 85 41 73.9 12.85 2900 146 2 -15℃～+120℃ 15 CDLA-22/WBF16 192
242 CDM85-30-2 85 52 73.9 16.3 2900 146 3 -15℃～+120℃ 18.5 CDLA-22/WBF16 215
243 CDM85-30 85 64 73.9 20.06 2900 146 3 -15℃～+120℃ 22 CDLA-22/WBF16 252
244 CDM85-40-2 85 75 73.9 23.51 2900 146 4 -15℃～+120℃ 30 CDLA-22/WBF16 312
245 CDM85-40 85 86 73.9 26.96 2900 146 4 -15℃～+120℃ 30 CDLA-22/WBF16 312
246 CDM85-50-2 85 98 73.9 30.72 2900 146 5 -15℃～+120℃ 37 CDLA-22/WBF16 336
247 CDM85-50 85 110 73.9 34.48 2900 146 5 -15℃～+120℃ 37 CDLA-22/WBF16 336
248 CDM85-60-2 85 122 73.9 38.24 2900 146 6 -15℃～+120℃ 45 CDLA-22/WBF16 407
249 CDM85-60 85 134 73.9 42 2900 146 6 -15℃～+120℃ 45 CDLA-22/WBF16 407
250 CDM120 CDM120-10 120 18.5 74.7 8.1 2950 143.7 1 -15℃～+120℃ 11 CDLA-32/WBF16 230
251 CDM120-20-2 120 28.5 74.7 12.48 2950 132 2 -15℃～+120℃ 15 CDLA-32/WBF16 245
252 CDM120-20-1 120 34.5 74.7 15.1 2950 143.7 2 -15℃～+120℃ 18.5 CDLA-32/WBF16 250
253 CDM120-20 120 40 74.7 17.51 2950 143.7 2 -15℃～+120℃ 22 CDLA-32/WBF16 285
254 CDM120-30-2 120 49 74.7 21.45 2950 143.7 3 -15℃～+120℃ 30 CDLA-32/WBF16 360
255 CDM120-30-1 120 55.5 74.7 24.3 2950 143.7 3 -15℃～+120℃ 30 CDLA-32/WBF16 360
256 CDM120-30 120 61 74.7 26.7 2950 143.7 3 -15℃～+120℃ 30 CDLA-32/WBF16 360
257 CDM120-40-2 120 69 74.7 30.2 2950 143.7 4 -15℃～+120℃ 37 CDLA-32/WBF16 400
258 CDM120-40-1 120 76 74.7 33.27 2950 143.7 4 -15℃～+120℃ 37 CDLA-32/WBF16 400
259 CDM120-40 120 81 74.7 35.46 2950 143.7 4 -15℃～+120℃ 45 CDLA-32/WBF16 460
260 CDM120-50-2 120 90 74.7 39.4 2950 143.7 5 -15℃～+120℃ 45 CDLA-32/WBF16 470
261 CDM120-50-1 120 97 74.7 42.46 2950 143.7 5 -15℃～+120℃ 45 CDLA-32/WBF16 470
262 CDM120-50 120 101.5 74.7 44.43 2950 143.7 5 -15℃～+120℃ 55 CDLA-32/WBF16 575
263 CDM120-60-2 120 110 74.7 48.15 2950 143.7 6 -15℃～+120℃ 55 CDLA-32/WBF16 585
264 CDM120-60-1 120 118 74.7 51.65 2950 143.7 6 -15℃～+120℃ 55 CDLA-32/WBF16 585
265 CDM120-60 120 123 74.7 53.84 2950 143.7 6 -15℃～+120℃ 75 CDLA-32/WBF16 705
266 CDM120-70-2 120 130 74.7 56.91 2950 143.7 7 -15℃～+120℃ 75 CDLA-32/WBF16 715
267 CDM120-70-1 120 137.5 74.7 60.19 2950 143.7 7 -15℃～+120℃ 75 CDLA-32/WBF16 715
268 CDM120-70 120 145 74.7 63.47 2950 143.7 7 -15℃～+120℃ 75 CDLA-32/WBF16 715
269 CDM150 CDM150-10-1 150 12.5 75.8 6.74 2950 139 1 -15℃～+120℃ 11 CDLA-32/WBF16 230
270 CDM150-10 150 18.5 75.8 9.98 2950 151.5 1 -15℃～+120℃ 15 CDLA-32/WBF16 235
271 CDM150-20-2 150 27.5 75.8 14.83 2950 139 2 -15℃～+120℃ 18.5 CDLA-32/WBF16 250
272 CDM150-20-1 150 35 75.8 18.87 2950 151.5 2 -15℃～+120℃ 22 CDLA-32/WBF16 295
273 CDM150-20 150 40 75.8 21.57 2950 151.5 2 -15℃～+120℃ 30 CDLA-32/WBF16 350
274 CDM150-30-2 150 49 75.8 26.42 2950 151.5 3 -15℃～+120℃ 30 CDLA-32/WBF16 360
275 CDM150-30-1 150 56 75.8 30.2 2950 151.5 3 -15℃～+120℃ 37 CDLA-32/WBF16 360
276 CDM150-30 150 63 75.8 33.97 2950 151.5 3 -15℃～+120℃ 37 CDLA-32/WBF16 385
277 CDM150-40-2 150 70.5 75.8 38.02 2950 151.5 4 -15℃～+120℃ 45 CDLA-32/WBF16 460
278 CDM150-40-1 150 77 75.8 41.52 2950 151.5 4 -15℃～+120℃ 45 CDLA-32/WBF16 460
279 CDM150-40 150 84 75.8 45.3 2950 151.5 4 -15℃～+120℃ 55 CDLA-32/WBF16 560
280 CDM150-50-2 150 92 75.8 49.61 2950 151.5 5 -15℃～+120℃ 55 CDLA-32/WBF16 570
281 CDM150-50-1 150 99 75.8 53.39 2950 151.5 5 -15℃～+120℃ 75 CDLA-32/WBF16 690
282 CDM150-50 150 106.5 75.8 57.43 2950 151.5 5 -15℃～+120℃ 75 CDLA-32/WBF16 690
283 CDM150-60-2 150 112 75.8 60.4 2950 151.5 6 -15℃～+120℃ 75 CDLA-32/WBF16 700
284 CDM150-60-1 150 120.5 75.8 64.98 2950 151.5 6 -15℃～+120℃ 75 CDLA-32/WBF16 700
285 CDM150-60 150 130 75.8 70.1 2950 151.5 6 -15℃～+120℃ 75 CDLA-32/WBF16 700
286 CDM200 CDM200-10-B 200 20 80.8 13.49 2950 167.568 1 -15℃～+120℃ 18.5 CDLA-36/WBF16 311
287 CDM200-10-A 200 24 80.8 16.19 2950 173.851 1 -15℃～+120℃ 22 CDLA-36/WBF16 347
288 CDM200-10 200 34 80.8 22.93 2950 188.567 1 -15℃～+120℃ 30 CDLA-36/WBF16 403
289 CDM200-20-2B 200 41 80.8 27.65 2950 167.568 2 -15℃～+120℃ 37 CDLA-36/WBF16 447
290 CDM200-20-2A 200 49 80.8 33.05 2950 173.851 2 -15℃～+120℃ 45 CDLA-36/WBF16 504
291 CDM200-20-A 200 59 80.8 39.8 2950 188.567 2 -15℃～+120℃ 55 CDLA-36/WBF16 595
292 CDM200-20 200 69 80.8 46.54 2950 188.567 2 -15℃～+120℃ 55 CDLA-36/WBF16 595
293 CDM200-30-2B 200 75 80.8 50.59 2950 188.567 3 -15℃～+120℃ 75 CDLA-36/WBF16 748
294 CDM200-30-A-B 200 79 80.8 53.29 2950 188.567 3 -15℃～+120℃ 75 CDLA-36/WBF16 748
295 CDM200-30-2A 200 84 80.8 56.66 2950 188.567 3 -15℃～+120℃ 75 CDLA-36/WBF16 748
296 CDM200-30-B 200 89 80.8 60.03 2950 188.567 3 -15℃～+120℃ 75 CDLA-36/WBF16 748
297 CDM200-30-A 200 93 80.8 62.73 2950 188.567 3 -15℃～+120℃ 75 CDLA-36/WBF16 748
298 CDM200-30 200 103 80.8 69.47 2950 188.567 3 -15℃～+120℃ 90 CDLA-36/WBF16 817
299 CDM200-40-2B 200 110 80.8 74.2 2950 188.567 4 -15℃～+120℃ 90 CDLA-36/WBF16 830
300 CDM200-40-2A 200 118 80.8 79.59 2950 188.567 4 -15℃～+120℃ 110 CDLA-36/WBF16 1180
301 CDM200-40-A 200 128 80.8 86.34 2950 188.567 4 -15℃～+120℃ 110 CDLA-36/WBF16 1180
302 CDM200-40 200 138 80.8 93.08 2950 188.567 4 -15℃～+120℃ 110 CDLA-36/WBF16 1180
Items Group Model Flow Head Eta Power Speed Impeller Dia Stage Medium Temperature Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number Power Seal (kg)
1 CDM1 CDM1-2 1 16.6 39 0.12 3500 74.5 2 -15℃～+70℃ 0.37 CDLA-12/WBF14 19
2 CDM1-3 1 25 39 0.17 3500 74.5 3 -15℃～+70℃ 0.37 CDLA-12/WBF14 19
3 CDM1-4 1 33 39 0.23 3500 74.5 4 -15℃～+70℃ 0.37 CDLA-12/WBF14 20
4 CDM1-5 1 41.5 39 0.29 3500 74.5 5 -15℃～+70℃ 0.55 CDLA-12/WBF14 21
5 CDM1-6 1 50 39 0.35 3500 74.5 6 -15℃～+70℃ 0.55 CDLA-12/WBF14 21
6 CDM1-7 1 58 39 0.41 3500 74.5 7 -15℃～+70℃ 0.75 CDLA-12/WBF14 25
7 CDM1-8 1 66 39 0.46 3500 74.5 8 -15℃～+70℃ 0.75 CDLA-12/WBF14 25
8 CDM1-9 1 75 39 0.52 3500 74.5 9 -15℃～+70℃ 0.75 CDLA-12/WBF14 26
9 CDM1-10 1 83 39 0.58 3500 74.5 10 -15℃～+70℃ 1.1 CDLA-12/WBF14 28
10 CDM1-11 1 91.5 39 0.64 3500 74.5 11 -15℃～+70℃ 1.1 CDLA-12/WBF14 29
11 CDM1-12 1 100 39 0.7 3500 74.5 12 -15℃～+70℃ 1.1 CDLA-12/WBF14 29
12 CDM1-13 1 109 39 0.76 3500 74.5 13 -15℃～+70℃ 1.1 CDLA-12/WBF14 29
13 CDM1-14 1 118 39 0.82 3500 74.5 14 -15℃～+70℃ 1.5 CDLA-12/WBF14 34
14 CDM1-15 1 126 39 0.88 3500 74.5 15 -15℃～+70℃ 1.5 CDLA-12/WBF14 35
15 CDM1-16 1 135 39 0.94 3500 74.5 16 -15℃～+70℃ 1.5 CDLA-12/WBF14 35
16 CDM1-17 1 142 39 0.99 3500 74.5 17 -15℃～+70℃ 1.5 CDLA-12/WBF14 36
17 CDM1-18 1 151 39 1.06 3500 74.5 18 -15℃～+70℃ 2.2 CDLA-12/WBF14 38
18 CDM1-19 1 159 39 1.11 3500 74.5 19 -15℃～+70℃ 2.2 CDLA-12/WBF14 39
19 CDM1-20 1 169 39 1.18 3500 74.5 20 -15℃～+70℃ 2.2 CDLA-12/WBF14 39
20 CDM1-21 1 177 39 1.24 3500 74.5 21 -15℃～+70℃ 2.2 CDLA-12/WBF14 39
21 CDM1-22 1 186 39 1.3 3500 74.5 22 -15℃～+70℃ 2.2 CDLA-12/WBF14 40
22 CDM1-23 1 194 39 1.36 3500 74.5 23 -15℃～+70℃ 2.2 CDLA-12/WBF14 40
23 CDM1-24 1 203 39 1.42 3500 74.5 24 -15℃～+70℃ 2.2 CDLA-12/WBF14 41
24 CDM1-25 1 211 39 1.47 3500 74.5 25 -15℃～+70℃ 2.2 CDLA-12/WBF14 41
25 CDM1-26 1 220 39 1.54 3500 74.5 26 -15℃～+70℃ 2.2 CDLA-12/WBF14 42
26 CDM1-27 1 228 39 1.59 3500 74.5 27 -15℃～+70℃ 3 CDLA-12/WBF14 53
27 CDM1-28 1 237 39 1.66 3500 74.5 28 -15℃～+70℃ 3 CDLA-12/WBF14 53
28 CDM1-29 1 245 39 1.71 3500 74.5 29 -15℃～+70℃ 3 CDLA-12/WBF14 54
29 CDM3 CDM3-2 3 17.7 58 0.25 3500 82 2 -15℃～+70℃ 0.37 CDLA-12/WBF14 22
30 CDM3-3 3 27.6 58 0.39 3500 82 3 -15℃～+70℃ 0.55 CDLA-12/WBF14 21
31 CDM3-4 3 37 58 0.52 3500 82 4 -15℃～+70℃ 0.75 CDLA-12/WBF14 24
32 CDM3-5 3 45.5 58 0.64 3500 82 5 -15℃～+70℃ 1.1 CDLA-12/WBF14 27
33 CDM3-6 3 55.5 58 0.78 3500 82 6 -15℃～+70℃ 1.1 CDLA-12/WBF14 27
34 CDM3-7 3 65.5 58 0.92 3500 82 7 -15℃～+70℃ 1.1 CDLA-12/WBF14 28
35 CDM3-8 3 75 58 1.06 3500 82 8 -15℃～+70℃ 1.5 CDLA-12/WBF14 33
36 CDM3-9 3 85 58 1.2 3500 82 9 -15℃～+70℃ 1.5 CDLA-12/WBF14 33
37 CDM3-10 3 93.5 58 1.32 3500 82 10 -15℃～+70℃ 2.2 CDLA-12/WBF14 36
38 CDM3-11 3 103 58 1.45 3500 82 11 -15℃～+70℃ 2.2 CDLA-12/WBF14 36
39 CDM3-12 3 112 58 1.58 3500 82 12 -15℃～+70℃ 2.2 CDLA-12/WBF14 37
40 CDM3-13 3 122 58 1.72 3500 82 13 -15℃～+70℃ 2.2 CDLA-12/WBF14 37
41 CDM3-14 3 131 58 1.85 3500 82 14 -15℃～+70℃ 2.2 CDLA-12/WBF14 38
42 CDM3-15 3 142 58 2 3500 82 15 -15℃～+70℃ 3 CDLA-12/WBF14 48
43 CDM3-16 3 152 58 2.14 3500 82 16 -15℃～+70℃ 3 CDLA-12/WBF14 49
44 CDM3-17 3 161 58 2.27 3500 82 17 -15℃～+70℃ 3 CDLA-12/WBF14 49
45 CDM3-18 3 171 58 2.41 3500 82 18 -15℃～+70℃ 3 CDLA-12/WBF14 50
46 CDM3-19 3 179 58 2.52 3500 82 19 -15℃～+70℃ 3 CDLA-12/WBF14 50
47 CDM3-20 3 189 58 2.66 3500 82 20 -15℃～+70℃ 4 CDLA-12/WBF14 57
48 CDM3-21 3 199 58 2.8 3500 82 21 -15℃～+70℃ 4 CDLA-12/WBF14 57
49 CDM3-22 3 207 58 2.92 3500 82 22 -15℃～+70℃ 4 CDLA-12/WBF14 58
50 CDM3-23 3 218 58 3.07 3500 82 23 -15℃～+70℃ 4 CDLA-12/WBF14 58
51 CDM5 CDM5-2 5 17.7 67 0.36 3500 82 2 -15℃～+70℃ 0.55 CDLA-12/WBF14 20
52 CDM5-3 5 27.6 67 0.56 3500 82 3 -15℃～+70℃ 0.75 CDLA-12/WBF14 23
53 CDM5-4 5 37 67 0.75 3500 82 4 -15℃～+70℃ 1.1 CDLA-12/WBF14 26
54 CDM5-5 5 47 67 0.96 3500 82 5 -15℃～+70℃ 1.5 CDLA-12/WBF14 32
55 CDM5-6 5 57 67 1.16 3500 82 6 -15℃～+70℃ 1.5 CDLA-12/WBF14 32
56 CDM5-7 5 65.5 67 1.33 3500 82 7 -15℃～+70℃ 2.2 CDLA-12/WBF14 35
57 CDM5-8 5 75.5 67 1.54 3500 82 8 -15℃～+70℃ 2.2 CDLA-12/WBF14 35
58 CDM5-9 5 85.5 67 1.74 3500 82 9 -15℃～+70℃ 2.2 CDLA-12/WBF14 36
59 CDM5-10 5 95 67 1.93 3500 82 10 -15℃～+70℃ 3 CDLA-12/WBF14 46
60 CDM5-11 5 104 67 2.11 3500 82 11 -15℃～+70℃ 3 CDLA-12/WBF14 47
61 CDM5-12 5 115 67 2.34 3500 82 12 -15℃～+70℃ 3 CDLA-12/WBF14 47
62 CDM5-13 5 124 67 2.52 3500 82 13 -15℃～+70℃ 4 CDLA-12/WBF14 54
63 CDM5-14 5 134 67 2.72 3500 82 14 -15℃～+70℃ 4 CDLA-12/WBF14 55
64 CDM5-15 5 144 67 2.93 3500 82 15 -15℃～+70℃ 4 CDLA-12/WBF14 55
65 CDM5-16 5 153 67 3.11 3500 82 16 -15℃～+70℃ 4 CDLA-12/WBF14 56
66 CDM5-17 5 161 67 3.27 3500 82 17 -15℃～+70℃ 5.5 CDLA-12/WBF14 76
67 CDM5-18 5 171 67 3.48 3500 82 18 -15℃～+70℃ 5.5 CDLA-12/WBF14 76
68 CDM5-19 5 181 67 3.68 3500 82 19 -15℃～+70℃ 5.5 CDLA-12/WBF14 77
69 CDM5-20 5 190 67 3.86 3500 82 20 -15℃～+70℃ 5.5 CDLA-12/WBF14 77
70 CDM5-21 5 199 67 4.05 3500 82 21 -15℃～+70℃ 5.5 CDLA-12/WBF14 78
71 CDM5-22 5 208 67 4.23 3500 82 22 -15℃～+70℃ 5.5 CDLA-12/WBF14 78
72 CDM5-23 5 218 67 4.43 3500 82 23 -15℃～+70℃ 5.5 CDLA-12/WBF14 79
73 CDM10 CDM10-1 10 13 70 0.51 3500 100 1 -15℃～+70℃ 0.75 CDLA-16/WBF16 29
74 CDM10-2 10 27 70 1.05 3500 100 2 -15℃～+70℃ 1.5 CDLA-16/WBF16 37
75 CDM10-3 10 40.5 70 1.58 3500 100 3 -15℃～+70℃ 2.2 CDLA-16/WBF16 40
76 CDM10-4 10 54 70 2.1 3500 100 4 -15℃～+70℃ 3 CDLA-16/WBF16 51
77 CDM10-5 10 68 70 2.65 3500 100 5 -15℃～+70℃ 4 CDLA-16/WBF16 60
78 CDM10-6 10 82 70 3.19 3500 100 6 -15℃～+70℃ 4 CDLA-16/WBF16 61
79 CDM10-7 10 98 70 3.82 3500 100 7 -15℃～+70℃ 5.5 CDLA-16/WBF16 82
80 CDM10-8 10 112 70 4.36 3500 100 8 -15℃～+70℃ 5.5 CDLA-16/WBF16 83
81 CDM10-9 10 126.5 70 4.92 3500 100 9 -15℃～+70℃ 7.5 CDLA-16/WBF16 87
82 CDM10-10 10 139.5 70 5.43 3500 100 10 -15℃～+70℃ 7.5 CDLA-16/WBF16 88
83 CDM10-11 10 153 70 5.96 3500 100 11 -15℃～+70℃ 7.5 CDLA-16/WBF16 89
84 CDM10-12 10 169 70 6.58 3500 100 12 -15℃～+70℃ 7.5 CDLA-16/WBF16 90
85 CDM10-13 10 185 70 7.2 3500 100 13 -15℃～+70℃ 11 CDLA-16/WBF16 160
86 CDM10-14 10 197 70 7.67 3500 100 14 -15℃～+70℃ 11 CDLA-16/WBF16 161
87 CDM10-15 10 212 70 8.25 3500 100 15 -15℃～+70℃ 11 CDLA-16/WBF16 162
88 CDM15 CDM15-1 15 16.9 68 1.02 3500 105.2 1 -15℃～+70℃ 1.5 CDLA-16/WBF16 40
89 CDM15-2 15 35 68 2.1 3500 105.2 2 -15℃～+70℃ 3 CDLA-16/WBF16 53
90 CDM15-3 15 53 68 3.19 3500 105.2 3 -15℃～+70℃ 4 CDLA-16/WBF16 61
91 CDM15-4 15 71 68 4.27 3500 105.2 4 -15℃～+70℃ 5.5 CDLA-16/WBF16 83
92 CDM15-5 15 88 68 5.29 3500 105.2 5 -15℃～+70℃ 7.5 CDLA-16/WBF16 87
93 CDM15-6 15 107 68 6.43 3500 105.2 6 -15℃～+70℃ 11 CDLA-16/WBF16 168
94 CDM15-7 15 126 68 7.57 3500 105.2 7 -15℃～+70℃ 11 CDLA-16/WBF16 170
95 CDM15-8 15 144 68 8.66 3500 105.2 8 -15℃～+70℃ 11 CDLA-16/WBF16 171
96 CDM15-9 15 164 68 9.86 3500 105.2 9 -15℃～+70℃ 15 CDLA-16/WBF16 173
97 CDM15-10 15 182 68 10.94 3500 105.2 10 -15℃～+70℃ 15 CDLA-16/WBF16 174
98 CDM15-11 15 200 68 12.02 3500 105.2 11 -15℃～+70℃ 15 CDLA-16/WBF16 175
99 CDM15-12 15 219 68 13.16 3500 105.2 12 -15℃～+70℃ 18.5 CDLA-16/WBF16 185
100 CDM20 CDM20-1 20 17 71 1.3 3500 105.5 1 -15℃～+70℃ 2.2 CDLA-16/WBF16 40
101 CDM20-2 20 35.5 71 2.72 3500 105.5 2 -15℃～+70℃ 4 CDLA-16/WBF16 58
102 CDM20-3 20 54 71 4.15 3500 105.5 3 -15℃～+70℃ 5.5 CDLA-16/WBF16 80
103 CDM20-4 20 73 71 5.6 3500 105.5 4 -15℃～+70℃ 7.5 CDLA-16/WBF16 84
104 CDM20-5 20 91 71 6.99 3500 105.5 5 -15℃～+70℃ 11 CDLA-16/WBF16 151
105 CDM20-6 20 110 71 8.44 3500 105.5 6 -15℃～+70℃ 11 CDLA-16/WBF16 153
106 CDM20-7 20 128 71 9.83 3500 105.5 7 -15℃～+70℃ 15 CDLA-16/WBF16 169
107 CDM20-8 20 147 71 11.28 3500 105.5 8 -15℃～+70℃ 15 CDLA-16/WBF16 170
108 CDM20-9 20 167 71 12.82 3500 105.5 9 -15℃～+70℃ 18.5 CDLA-16/WBF16 180
109 CDM20-10 20 186 71 14.28 3500 105.5 10 -15℃～+70℃ 18.5 CDLA-16/WBF16 181
Items Group Model Flow Head Eta Power Speed Impeller Dia Stage Medium Temperature Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number Power Seal (kg)
1 CDMF1 CDMF1-2 1 10.5 42 0.068 2900 74.5 2 -15℃～+180℃ 0.37KW CDLA-12/WBF14 26
2 CDMF1-3 1 16 42 0.104 2900 74.5 3 -15℃～+180℃ 0.37KW CDLA-12/WBF14 26
3 CDMF1-4 1 21.5 42 0.139 2900 74.5 4 -15℃～+180℃ 0.37KW CDLA-12/WBF14 27
4 CDMF1-5 1 27 42 0.175 2900 74.5 5 -15℃～+180℃ 0.37KW CDLA-12/WBF14 27
5 CDMF1-6 1 32.5 42 0.211 2900 74.5 6 -15℃～+180℃ 0.37KW CDLA-12/WBF14 28
6 CDMF1-7 1 38.5 42 0.25 2900 74.5 7 -15℃～+180℃ 0.37KW CDLA-12/WBF14 28
7 CDMF1-8 1 43.5 42 0.282 2900 74.5 8 -15℃～+180℃ 0.55KW CDLA-12/WBF14 30
8 CDMF1-9 1 49 42 0.318 2900 74.5 9 -15℃～+180℃ 0.55KW CDLA-12/WBF14 30
9 CDMF1-10 1 54.5 42 0.354 2900 74.5 10 -15℃～+180℃ 0.55KW CDLA-12/WBF14 31
10 CDMF1-11 1 60 42 0.389 2900 74.5 11 -15℃～+180℃ 0.55KW CDLA-12/WBF14 31
11 CDMF1-12 1 66 42 0.428 2900 74.5 12 -15℃～+180℃ 0.75KW CDLA-12/WBF14 34
12 CDMF1-13 1 72 42 0.467 2900 74.5 13 -15℃～+180℃ 0.75KW CDLA-12/WBF14 34
13 CDMF1-14 1 78 42 0.506 2900 74.5 14 -15℃～+180℃ 0.75KW CDLA-12/WBF14 35
14 CDMF1-15 1 83 42 0.539 2900 74.5 15 -15℃～+180℃ 0.75KW CDLA-12/WBF14 35
15 CDMF1-16 1 89 42 0.577 2900 74.5 16 -15℃～+180℃ 0.75KW CDLA-12/WBF14 38
16 CDMF1-17 1 94 42 0.61 2900 74.5 17 -15℃～+180℃ 1.1KW CDLA-12/WBF14 38
17 CDMF1-18 1 100 42 0.649 2900 74.5 18 -15℃～+180℃ 1.1KW CDLA-12/WBF14 39
18 CDMF1-19 1 105 42 0.681 2900 74.5 19 -15℃～+180℃ 1.1KW CDLA-12/WBF14 39
19 CDMF1-20 1 111 42 0.72 2900 74.5 20 -15℃～+180℃ 1.1KW CDLA-12/WBF14 40
20 CDMF1-21 1 116 42 0.753 2900 74.5 21 -15℃～+180℃ 1.1KW CDLA-12/WBF14 40
21 CDMF1-22 1 122 42 0.792 2900 74.5 22 -15℃～+180℃ 1.1KW CDLA-12/WBF14 40
22 CDMF1-23 1 128 42 0.83 2900 74.5 23 -15℃～+180℃ 1.1KW CDLA-12/WBF14 46
23 CDMF1-24 1 134 42 0.869 2900 74.5 24 -15℃～+180℃ 1.1KW CDLA-12/WBF14 46
24 CDMF1-25 1 139 42 0.902 2900 74.5 25 -15℃～+180℃ 1.5KW CDLA-12/WBF14 47
25 CDMF1-26 1 145 42 0.941 2900 74.5 26 -15℃～+180℃ 1.5KW CDLA-12/WBF14 47
26 CDMF1-27 1 150 42 0.973 2900 74.5 27 -15℃～+180℃ 1.5KW CDLA-12/WBF14 48
27 CDMF1-28 1 156 42 1.012 2900 74.5 28 -15℃～+180℃ 1.5KW CDLA-12/WBF14 48
28 CDMF1-29 1 161 42 1.045 2900 74.5 29 -15℃～+180℃ 1.5KW CDLA-12/WBF14 49
29 CDMF1-30 1 167 42 1.084 2900 74.5 30 -15℃～+180℃ 1.5KW CDLA-12/WBF14 49
30 CDMF1-31 1 175 42 1.135 2900 74.5 31 -15℃～+180℃ 1.5KW CDLA-12/WBF14 51
31 CDMF1-32 1 180 42 1.168 2900 74.5 32 -15℃～+180℃ 2.2KW CDLA-12/WBF14 52
32 CDMF1-33 1 186 42 1.207 2900 74.5 33 -15℃～+180℃ 2.2KW CDLA-12/WBF14 52
33 CDMF1-34 1 192 42 1.246 2900 74.5 34 -15℃～+180℃ 2.2KW CDLA-12/WBF14 53
34 CDMF1-35 1 197 42 1.278 2900 74.5 35 -15℃～+180℃ 2.2KW CDLA-12/WBF14 53
35 CDMF1-36 1 203 42 1.317 2900 74.5 36 -15℃～+180℃ 2.2KW CDLA-12/WBF14 54
36 CDMF1-37 1 209 42 1.356 2900 74.5 37 -15℃～+180℃ 2.2KW CDLA-12/WBF14 54
37 CDMF1-38 1 215 42 1.395 2900 74.5 38 -15℃～+180℃ 2.2KW CDLA-12/WBF14 54
38 CDMF1-39 1 220 42 1.427 2900 74.5 38 -15℃～+180℃ 2.2KW CDLA-12/WBF14 55
39 CDMF1-40 1 226 42 1.466 2900 74.5 40 -15℃～+180℃ 2.2KW CDLA-12/WBF14 55
40 CDMF3 CDMF3-2 3 11 58 0.155 2900 82 2 -15℃～+180℃ 0.37KW CDLA-12/WBF14 27
41 CDMF3-3 3 17 58 0.24 2900 82 3 -15℃～+180℃ 0.37KW CDLA-12/WBF14 27
42 CDMF3-4 3 23 58 0.324 2900 82 4 -15℃～+180℃ 0.37KW CDLA-12/WBF14 28
43 CDMF3-5 3 29 58 0.409 2900 82 5 -15℃～+180℃ 0.55KW CDLA-12/WBF14 29
44 CDMF3-6 3 35 58 0.493 2900 82 6 -15℃～+180℃ 0.55KW CDLA-12/WBF14 30
45 CDMF3-7 3 41 58 0.578 2900 82 7 -15℃～+180℃ 0.75KW CDLA-12/WBF14 33
46 CDMF3-8 3 47 58 0.662 2900 82 8 -15℃～+180℃ 0.75KW CDLA-12/WBF14 33
47 CDMF3-9 3 53 58 0.747 2900 82 9 -15℃～+180℃ 1.1KW CDLA-12/WBF14 35
48 CDMF3-10 3 59 58 0.832 2900 82 10 -15℃～+180℃ 1.1KW CDLA-12/WBF14 36
49 CDMF3-11 3 65 58 0.916 2900 82 11 -15℃～+180℃ 1.1KW CDLA-12/WBF14 36
50 CDMF3-12 3 71 58 1.001 2900 82 12 -15℃～+180℃ 1.1KW CDLA-12/WBF14 37
51 CDMF3-13 3 77 58 1.085 2900 82 13 -15℃～+180℃ 1.5KW CDLA-12/WBF14 42
52 CDMF3-14 3 83 58 1.17 2900 82 14 -15℃～+180℃ 1.5KW CDLA-12/WBF14 43
53 CDMF3-15 3 90 58 1.269 2900 82 15 -15℃～+180℃ 1.5KW CDLA-12/WBF14 43
54 CDMF3-16 3 96 58 1.353 2900 82 16 -15℃～+180℃ 1.5KW CDLA-12/WBF14 44
55 CDMF3-17 3 102 58 1.438 2900 82 17 -15℃～+180℃ 2.2KW CDLA-12/WBF14 45
56 CDMF3-18 3 108 58 1.522 2900 82 18 -15℃～+180℃ 2.2KW CDLA-12/WBF14 46
57 CDMF3-19 3 114 58 1.607 2900 82 19 -15℃～+180℃ 2.2KW CDLA-12/WBF14 47
58 CDMF3-20 3 120 58 1.691 2900 82 20 -15℃～+180℃ 2.2KW CDLA-12/WBF14 47
59 CDMF3-21 3 126 58 1.776 2900 82 21 -15℃～+180℃ 2.2KW CDLA-12/WBF14 48
60 CDMF3-22 3 132 58 1.861 2900 82 22 -15℃～+180℃ 2.2KW CDLA-12/WBF14 48
61 CDMF3-23 3 138 58 1.945 2900 82 23 -15℃～+180℃ 2.2KW CDLA-12/WBF14 49
62 CDMF3-24 3 144 58 2.03 2900 82 24 -15℃～+180℃ 2.2KW CDLA-12/WBF14 59
63 CDMF3-25 3 150 58 2.11 2900 82 25 -15℃～+180℃ 3KW CDLA-12/WBF14 60
64 CDMF3-26 3 156 58 2.2 2900 82 26 -15℃～+180℃ 3KW CDLA-12/WBF14 60
65 CDMF3-27 3 162 58 2.28 2900 82 27 -15℃～+180℃ 3KW CDLA-12/WBF14 61
66 CDMF3-28 3 168 58 2.37 2900 82 28 -15℃～+180℃ 3KW CDLA-12/WBF14 61
67 CDMF3-29 3 175 58 2.47 2900 82 29 -15℃～+180℃ 3KW CDLA-12/WBF14 61
68 CDMF3-30 3 181 58 2.55 2900 82 30 -15℃～+180℃ 3KW CDLA-12/WBF14 62
69 CDMF3-31 3 187 58 2.64 2900 82 31 -15℃～+180℃ 3KW CDLA-12/WBF14 62
70 CDMF5 CDMF5-2 5 11.5 70 0.224 2900 82 2 -15℃～+180℃ 0.37KW CDLA-12/WBF14 26
71 CDMF5-3 5 17.5 70 0.341 2900 82 3 -15℃～+180℃ 0.55KW CDLA-12/WBF14 28
72 CDMF5-4 5 24 70 0.467 2900 82 4 -15℃～+180℃ 0.55KW CDLA-12/WBF14 29
73 CDMF5-5 5 30 70 0.584 2900 82 5 -15℃～+180℃ 0.75KW CDLA-12/WBF14 32
74 CDMF5-6 5 36.5 70 0.71 2900 82 6 -15℃～+180℃ 1.1KW CDLA-12/WBF14 34
75 CDMF5-7 5 42.5 70 0.827 2900 82 7 -15℃～+180℃ 1.1KW CDLA-12/WBF14 34
76 CDMF5-8 5 49 70 0.954 2900 82 8 -15℃～+180℃ 1.1KW CDLA-12/WBF14 35
77 CDMF5-9 5 55 70 1.071 2900 82 9 -15℃～+180℃ 1.5KW CDLA-12/WBF14 40
78 CDMF5-10 5 62 70 1.207 2900 82 10 -15℃～+180℃ 1.5KW CDLA-12/WBF14 41
79 CDMF5-11 5 68 70 1.324 2900 82 11 -15℃～+180℃ 1.5KW CDLA-12/WBF14 41
80 CDMF5-12 5 74 70 1.44 2900 82 12 -15℃～+180℃ 2.2KW CDLA-12/WBF14 44
81 CDMF5-13 5 80 70 1.557 2900 82 13 -15℃～+180℃ 2.2KW CDLA-12/WBF14 44
82 CDMF5-14 5 87 70 1.693 2900 82 14 -15℃～+180℃ 2.2KW CDLA-12/WBF14 45
83 CDMF5-15 5 93 70 1.81 2900 82 15 -15℃～+180℃ 2.2KW CDLA-12/WBF14 45
84 CDMF5-16 5 99 70 1.927 2900 82 16 -15℃～+180℃ 2.2KW CDLA-12/WBF14 46
85 CDMF5-17 5 105 70 2.04 2900 82 17 -15℃～+180℃ 2.2KW CDLA-12/WBF14 57
86 CDMF5-18 5 111 70 2.16 2900 82 18 -15℃～+180℃ 3KW CDLA-12/WBF14 57
87 CDMF5-19 5 118 70 2.3 2900 82 19 -15℃～+180℃ 3KW CDLA-12/WBF14 58
88 CDMF5-20 5 124 70 2.41 2900 82 20 -15℃～+180℃ 3KW CDLA-12/WBF14 58
89 CDMF5-21 5 130 70 2.53 2900 82 21 -15℃～+180℃ 3KW CDLA-12/WBF14 59
90 CDMF5-22 5 135 70 2.63 2900 82 22 -15℃～+180℃ 3KW CDLA-12/WBF14 66
91 CDMF5-23 5 142 70 2.76 2900 82 23 -15℃～+180℃ 4KW CDLA-12/WBF14 67
92 CDMF5-24 5 149 70 2.9 2900 82 24 -15℃～+180℃ 4KW CDLA-12/WBF14 67
93 CDMF5-25 5 155 70 3.02 2900 82 25 -15℃～+180℃ 4KW CDLA-12/WBF14 68
94 CDMF5-26 5 161 70 3.13 2900 82 26 -15℃～+180℃ 4KW CDLA-12/WBF14 68
95 CDMF5-27 5 167 70 3.25 2900 82 27 -15℃～+180℃ 4KW CDLA-12/WBF14 69
96 CDMF5-28 5 174 70 3.39 2900 82 28 -15℃～+180℃ 4KW CDLA-12/WBF14 69
97 CDMF5-29 5 180 70 3.5 2900 82 29 -15℃～+180℃ 4KW CDLA-12/WBF14 89
98 CDMF5-30 5 186 70 3.62 2900 82 30 -15℃～+180℃ 5.5KW CDLA-12/WBF14 90
99 CDMF5-31 5 193 70 3.76 2900 82 31 -15℃～+180℃ 5.5KW CDLA-12/WBF14 90
100 CDMF5-32 5 200 70 3.89 2900 82 32 -15℃～+180℃ 5.5KW CDLA-12/WBF14 91
101 CDMF5-33 5 206 70 4.01 2900 82 33 -15℃～+180℃ 5.5KW CDLA-12/WBF14 91
Items Group Model Flow Head Eta Power Speed Impeller Dia Stage Medium Temperature Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number Power Seal (kg)
1 CDMF1 CDMF1-2 1 16.6 39 0.12 3500 74.5 2 -15℃～+70℃ 0.37 CDLA-12/WBF14 19
2 CDMF1-3 1 25 39 0.17 3500 74.5 3 -15℃～+70℃ 0.37 CDLA-12/WBF14 19
3 CDMF1-4 1 33 39 0.23 3500 74.5 4 -15℃～+70℃ 0.37 CDLA-12/WBF14 20
4 CDMF1-5 1 41.5 39 0.29 3500 74.5 5 -15℃～+70℃ 0.55 CDLA-12/WBF14 21
5 CDMF1-6 1 50 39 0.35 3500 74.5 6 -15℃～+70℃ 0.55 CDLA-12/WBF14 21
6 CDMF1-7 1 58 39 0.41 3500 74.5 7 -15℃～+70℃ 0.75 CDLA-12/WBF14 25
7 CDMF1-8 1 66 39 0.46 3500 74.5 8 -15℃～+70℃ 0.75 CDLA-12/WBF14 25
8 CDMF1-9 1 75 39 0.52 3500 74.5 9 -15℃～+70℃ 0.75 CDLA-12/WBF14 26
9 CDMF1-10 1 83 39 0.58 3500 74.5 10 -15℃～+70℃ 1.1 CDLA-12/WBF14 28
10 CDMF1-11 1 91.5 39 0.64 3500 74.5 11 -15℃～+70℃ 1.1 CDLA-12/WBF14 29
11 CDMF1-12 1 100 39 0.7 3500 74.5 12 -15℃～+70℃ 1.1 CDLA-12/WBF14 29
12 CDMF1-13 1 109 39 0.76 3500 74.5 13 -15℃～+70℃ 1.1 CDLA-12/WBF14 29
13 CDMF1-14 1 118 39 0.82 3500 74.5 14 -15℃～+70℃ 1.5 CDLA-12/WBF14 34
14 CDMF1-15 1 126 39 0.88 3500 74.5 15 -15℃～+70℃ 1.5 CDLA-12/WBF14 35
15 CDMF1-16 1 135 39 0.94 3500 74.5 16 -15℃～+70℃ 1.5 CDLA-12/WBF14 35
16 CDMF1-17 1 142 39 0.99 3500 74.5 17 -15℃～+70℃ 1.5 CDLA-12/WBF14 36
17 CDMF1-18 1 151 39 1.06 3500 74.5 18 -15℃～+70℃ 2.2 CDLA-12/WBF14 38
18 CDMF1-19 1 159 39 1.11 3500 74.5 19 -15℃～+70℃ 2.2 CDLA-12/WBF14 39
19 CDMF1-20 1 169 39 1.18 3500 74.5 20 -15℃～+70℃ 2.2 CDLA-12/WBF14 39
20 CDMF1-21 1 177 39 1.24 3500 74.5 21 -15℃～+70℃ 2.2 CDLA-12/WBF14 39
21 CDMF1-22 1 186 39 1.3 3500 74.5 22 -15℃～+70℃ 2.2 CDLA-12/WBF14 40
22 CDMF1-23 1 194 39 1.36 3500 74.5 23 -15℃～+70℃ 2.2 CDLA-12/WBF14 40
23 CDMF1-24 1 203 39 1.42 3500 74.5 24 -15℃～+70℃ 2.2 CDLA-12/WBF14 41
24 CDMF1-25 1 211 39 1.47 3500 74.5 25 -15℃～+70℃ 2.2 CDLA-12/WBF14 41
25 CDMF1-26 1 220 39 1.54 3500 74.5 26 -15℃～+70℃ 2.2 CDLA-12/WBF14 42
26 CDMF1-27 1 228 39 1.59 3500 74.5 27 -15℃～+70℃ 3 CDLA-12/WBF14 53
27 CDMF1-28 1 237 39 1.66 3500 74.5 28 -15℃～+70℃ 3 CDLA-12/WBF14 53
28 CDMF1-29 1 245 39 1.71 3500 74.5 29 -15℃～+70℃ 3 CDLA-12/WBF14 54
29 CDMF3 CDMF3-2 3 17.7 58 0.25 3500 82 2 -15℃～+70℃ 0.37 CDLA-12/WBF14 22
30 CDMF3-3 3 27.6 58 0.39 3500 82 3 -15℃～+70℃ 0.55 CDLA-12/WBF14 21
31 CDMF3-4 3 37 58 0.52 3500 82 4 -15℃～+70℃ 0.75 CDLA-12/WBF14 24
32 CDMF3-5 3 45.5 58 0.64 3500 82 5 -15℃～+70℃ 1.1 CDLA-12/WBF14 27
33 CDMF3-6 3 55.5 58 0.78 3500 82 6 -15℃～+70℃ 1.1 CDLA-12/WBF14 27
34 CDMF3-7 3 65.5 58 0.92 3500 82 7 -15℃～+70℃ 1.1 CDLA-12/WBF14 28
35 CDMF3-8 3 75 58 1.06 3500 82 8 -15℃～+70℃ 1.5 CDLA-12/WBF14 33
36 CDMF3-9 3 85 58 1.2 3500 82 9 -15℃～+70℃ 1.5 CDLA-12/WBF14 33
37 CDMF3-10 3 93.5 58 1.32 3500 82 10 -15℃～+70℃ 2.2 CDLA-12/WBF14 36
38 CDMF3-11 3 103 58 1.45 3500 82 11 -15℃～+70℃ 2.2 CDLA-12/WBF14 36
39 CDMF3-12 3 112 58 1.58 3500 82 12 -15℃～+70℃ 2.2 CDLA-12/WBF14 37
40 CDMF3-13 3 122 58 1.72 3500 82 13 -15℃～+70℃ 2.2 CDLA-12/WBF14 37
41 CDMF3-14 3 131 58 1.85 3500 82 14 -15℃～+70℃ 2.2 CDLA-12/WBF14 38
42 CDMF3-15 3 142 58 2 3500 82 15 -15℃～+70℃ 3 CDLA-12/WBF14 48
43 CDMF3-16 3 152 58 2.14 3500 82 16 -15℃～+70℃ 3 CDLA-12/WBF14 49
44 CDMF3-17 3 161 58 2.27 3500 82 17 -15℃～+70℃ 3 CDLA-12/WBF14 49
45 CDMF3-18 3 171 58 2.41 3500 82 18 -15℃～+70℃ 3 CDLA-12/WBF14 50
46 CDMF3-19 3 179 58 2.52 3500 82 19 -15℃～+70℃ 3 CDLA-12/WBF14 50
47 CDMF3-20 3 189 58 2.66 3500 82 20 -15℃～+70℃ 4 CDLA-12/WBF14 57
48 CDMF3-21 3 199 58 2.8 3500 82 21 -15℃～+70℃ 4 CDLA-12/WBF14 57
49 CDMF3-22 3 207 58 2.92 3500 82 22 -15℃～+70℃ 4 CDLA-12/WBF14 58
50 CDMF3-23 3 218 58 3.07 3500 82 23 -15℃～+70℃ 4 CDLA-12/WBF14 58
51 CDMF5 CDMF5-2 5 17.7 67 0.36 3500 82 2 -15℃～+70℃ 0.55 CDLA-12/WBF14 20
52 CDMF5-3 5 27.6 67 0.56 3500 82 3 -15℃～+70℃ 0.75 CDLA-12/WBF14 23
53 CDMF5-4 5 37 67 0.75 3500 82 4 -15℃～+70℃ 1.1 CDLA-12/WBF14 26
54 CDMF5-5 5 47 67 0.96 3500 82 5 -15℃～+70℃ 1.5 CDLA-12/WBF14 32
55 CDMF5-6 5 57 67 1.16 3500 82 6 -15℃～+70℃ 1.5 CDLA-12/WBF14 32
56 CDMF5-7 5 65.5 67 1.33 3500 82 7 -15℃～+70℃ 2.2 CDLA-12/WBF14 35
57 CDMF5-8 5 75.5 67 1.54 3500 82 8 -15℃～+70℃ 2.2 CDLA-12/WBF14 35
58 CDMF5-9 5 85.5 67 1.74 3500 82 9 -15℃～+70℃ 2.2 CDLA-12/WBF14 36
59 CDMF5-10 5 95 67 1.93 3500 82 10 -15℃～+70℃ 3 CDLA-12/WBF14 46
60 CDMF5-11 5 104 67 2.11 3500 82 11 -15℃～+70℃ 3 CDLA-12/WBF14 47
61 CDMF5-12 5 115 67 2.34 3500 82 12 -15℃～+70℃ 3 CDLA-12/WBF14 47
62 CDMF5-13 5 124 67 2.52 3500 82 13 -15℃～+70℃ 4 CDLA-12/WBF14 54
63 CDMF5-14 5 134 67 2.72 3500 82 14 -15℃～+70℃ 4 CDLA-12/WBF14 55
64 CDMF5-15 5 144 67 2.93 3500 82 15 -15℃～+70℃ 4 CDLA-12/WBF14 55
65 CDMF5-16 5 153 67 3.11 3500 82 16 -15℃～+70℃ 4 CDLA-12/WBF14 56
66 CDMF5-17 5 161 67 3.27 3500 82 17 -15℃～+70℃ 5.5 CDLA-12/WBF14 76
67 CDMF5-18 5 171 67 3.48 3500 82 18 -15℃～+70℃ 5.5 CDLA-12/WBF14 76
68 CDMF5-19 5 181 67 3.68 3500 82 19 -15℃～+70℃ 5.5 CDLA-12/WBF14 77
69 CDMF5-20 5 190 67 3.86 3500 82 20 -15℃～+70℃ 5.5 CDLA-12/WBF14 77
70 CDMF5-21 5 199 67 4.05 3500 82 21 -15℃～+70℃ 5.5 CDLA-12/WBF14 78
71 CDMF5-22 5 208 67 4.23 3500 82 22 -15℃～+70℃ 5.5 CDLA-12/WBF14 78
72 CDMF15 CDMF5-23 5 218 67 4.43 3500 82 23 -15℃～+70℃ 5.5 CDLA-12/WBF14 79
73 CDMF10-1 10 13 70 0.51 3500 100 1 -15℃～+70℃ 0.75 CDLA-16/WBF16 29
74 CDMF10-2 10 27 70 1.05 3500 100 2 -15℃～+70℃ 1.5 CDLA-16/WBF16 37
75 CDMF10-3 10 40.5 70 1.58 3500 100 3 -15℃～+70℃ 2.2 CDLA-16/WBF16 40
76 CDMF10-4 10 54 70 2.1 3500 100 4 -15℃～+70℃ 3 CDLA-16/WBF16 51
77 CDMF10-5 10 68 70 2.65 3500 100 5 -15℃～+70℃ 4 CDLA-16/WBF16 60
78 CDMF10-6 10 82 70 3.19 3500 100 6 -15℃～+70℃ 4 CDLA-16/WBF16 61
79 CDMF10-7 10 98 70 3.82 3500 100 7 -15℃～+70℃ 5.5 CDLA-16/WBF16 82
80 CDMF10-8 10 112 70 4.36 3500 100 8 -15℃～+70℃ 5.5 CDLA-16/WBF16 83
81 CDMF10-9 10 126.5 70 4.92 3500 100 9 -15℃～+70℃ 7.5 CDLA-16/WBF16 87
82 CDMF10-10 10 139.5 70 5.43 3500 100 10 -15℃～+70℃ 7.5 CDLA-16/WBF16 88
83 CDMF10-11 10 153 70 5.96 3500 100 11 -15℃～+70℃ 7.5 CDLA-16/WBF16 89
84 CDMF10-12 10 169 70 6.58 3500 100 12 -15℃～+70℃ 7.5 CDLA-16/WBF16 90
85 CDMF10-13 10 185 70 7.2 3500 100 13 -15℃～+70℃ 11 CDLA-16/WBF16 160
86 CDMF10-14 10 197 70 7.67 3500 100 14 -15℃～+70℃ 11 CDLA-16/WBF16 161
87 CDMF10-15 10 212 70 8.25 3500 100 15 -15℃～+70℃ 11 CDLA-16/WBF16 162
88 CDMF15-1 15 16.9 68 1.02 3500 105.2 1 -15℃～+70℃ 1.5 CDLA-16/WBF16 40
89 CDMF15-2 15 35 68 2.1 3500 105.2 2 -15℃～+70℃ 3 CDLA-16/WBF16 53
90 CDMF15-3 15 53 68 3.19 3500 105.2 3 -15℃～+70℃ 4 CDLA-16/WBF16 61
91 CDMF15-4 15 71 68 4.27 3500 105.2 4 -15℃～+70℃ 5.5 CDLA-16/WBF16 83
92 CDMF15-5 15 88 68 5.29 3500 105.2 5 -15℃～+70℃ 7.5 CDLA-16/WBF16 87
93 CDMF15-6 15 107 68 6.43 3500 105.2 6 -15℃～+70℃ 11 CDLA-16/WBF16 168
94 CDMF15-7 15 126 68 7.57 3500 105.2 7 -15℃～+70℃ 11 CDLA-16/WBF16 170
95 CDMF15-8 15 144 68 8.66 3500 105.2 8 -15℃～+70℃ 11 CDLA-16/WBF16 171
96 CDMF15-9 15 164 68 9.86 3500 105.2 9 -15℃～+70℃ 15 CDLA-16/WBF16 173
97 CDMF15-10 15 182 68 10.94 3500 105.2 10 -15℃～+70℃ 15 CDLA-16/WBF16 174
98 CDMF15-11 15 200 68 12.02 3500 105.2 11 -15℃～+70℃ 15 CDLA-16/WBF16 175
99 CDMF15-12 15 219 68 13.16 3500 105.2 12 -15℃～+70℃ 18.5 CDLA-16/WBF16 185
100 CDMF20 CDMF20-1 20 17 71 1.3 3500 105.5 1 -15℃～+70℃ 2.2 CDLA-16/WBF16 40
101 CDMF20-2 20 35.5 71 2.72 3500 105.5 2 -15℃～+70℃ 4 CDLA-16/WBF16 58
102 CDMF20-3 20 54 71 4.15 3500 105.5 3 -15℃～+70℃ 5.5 CDLA-16/WBF16 80
103 CDMF20-4 20 73 71 5.6 3500 105.5 4 -15℃～+70℃ 7.5 CDLA-16/WBF16 84
104 CDMF20-5 20 91 71 6.99 3500 105.5 5 -15℃～+70℃ 11 CDLA-16/WBF16 151
105 CDMF20-6 20 110 71 8.44 3500 105.5 6 -15℃～+70℃ 11 CDLA-16/WBF16 153
106 CDMF20-7 20 128 71 9.83 3500 105.5 7 -15℃～+70℃ 15 CDLA-16/WBF16 169
107 CDMF20-8 20 147 71 11.28 3500 105.5 8 -15℃～+70℃ 15 CDLA-16/WBF16 170
108 CDMF20-9 20 167 71 12.82 3500 105.5 9 -15℃～+70℃ 18.5 CDLA-16/WBF16 180
109 CDMF20-10 20 186 71 14.28 3500 105.5 10 -15℃～+70℃ 18.5 CDLA-16/WBF16 181
