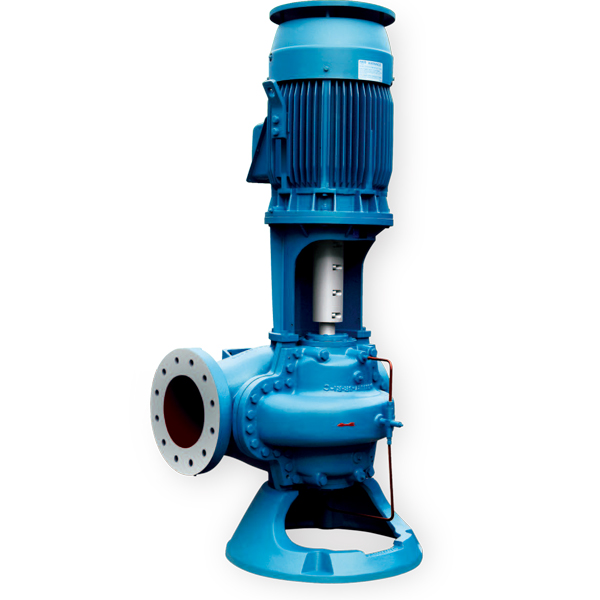

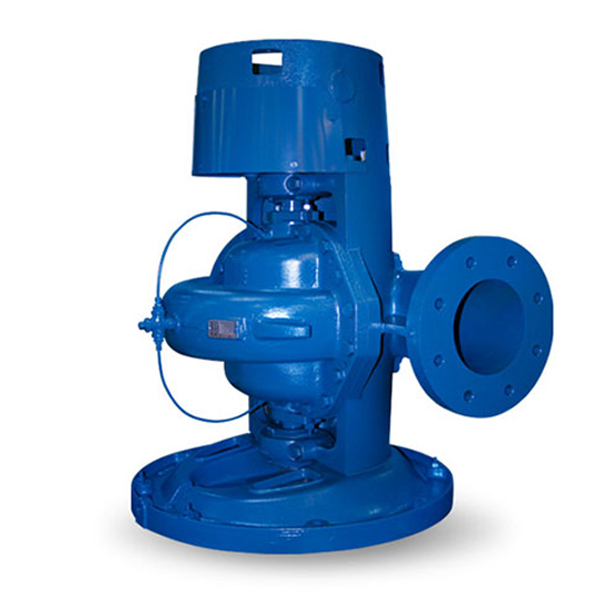

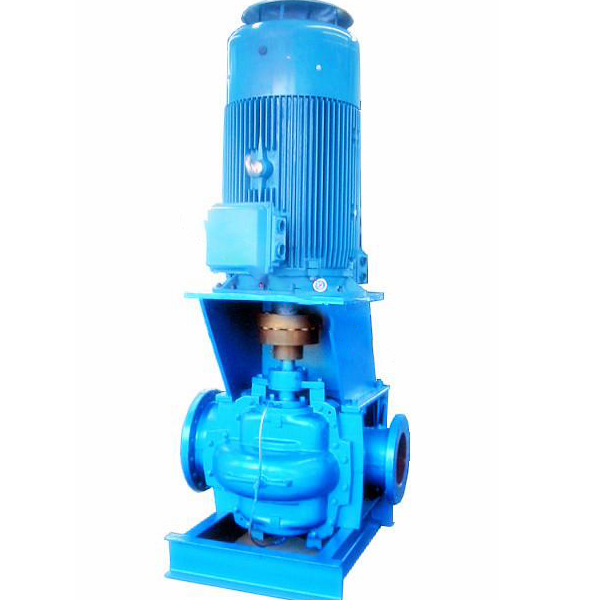

SLZ Vertical Split case pump

Hanthing Fluid Group
      Performance range:
  • Flow: 50 - 20,000 m3/h
  • Delivery Head: 7-220m
  • Outlet Dia.: DN80-DN1600
  • Working Pressure (Max): 5Mpa
  • Solid Particle (Max): 80mg/L
  • Liquid Temperature: 0 - 105 C
      • Application:
  • General industrial water supply and discharge, Irrigation & Drainage,flood disposal, Oil, gas & petrochemical liquid processing, Hot water transferring, raw water intaking, Sea water desalination & transferring, Power station water circulation, Factory & warehouse & residential fire fighting, Mining water supply & drainage, Water treatment.

Model		 Capcity Q(m3/s) Capcity Q(L/s) Head (m) Speed(r/min) Shaft Power(kw) Motor Power
(kw)		 Motor Model Eff η(%) NPSH(m) Impeller Dia(mm) Suction& discharge Dia.(mm) Pump Weight(kg)
8SLZ-6 200
280
316		 55.6
77.8
87.8		 131
120
110		 2970 93.9
114.5
121.4		 160 Y315L1-2 76
80
78		 4.0
5.5
8.8		 302 200
125		 380
8SLZ-9 218
280
340		 60.6
77.8
94.4		 77
70
59.5		 2970 56.5
67.3
78.3		 90 Y280M-2 80
85
80.5		 3.5
4.4
6.2		 238 200
150		 360
8SLZ-12 235
280
380		 66.1
77.8
105.6		 51
48
36		 2970 41.9
44.7
46.6		 55 Y250M-2 78
82
80		 7.5 197 200
150		 330
8SLZ-18 250
280
335		 69.4
77.8
93.1		 31
30
24.5		 2980 27.1
27.4
27		 37 Y200L2-2 78
83.5
83		 8.0 172 200
150		 320
10SLZ-4 350
485
530		 97.2
134.7
155.6		 108
100
92		 1480 139
167
187		 220 Y355M1-4 74
79
75		 2.0
2.6
3.1		 538 250
200		 1120
10SLZ-6 335
485
530		 93.1
134.7
147.2		 73
65
61		 1480 86.5
104.8
110		 132 Y315M-4 77
82
80		 2.4
3.4
5.0		 451 250
200		 890
10SLZ-9 395
485
610		 109.7
134.7
169.4		 45
42
34		 1480 58.4
63.4
69.3		 90 Y280M-4 83
87.5
81.5		 2.1
2.6
3.6		 365 250
200		 750
10SLZ-12 382
485
610		 106.1
134.7
169.1		 29
26
20		 1480 37.7
40
40.5		 55 Y250M-4 80
86
82		 4.1 291 250
200		 670
12SLZ-4 547
745
820		 151.9
206.9
227.8		 142
135.5
126		 1480 284
346
363		 400 YLS400-4 74.5
79.5
77.5		 2.6
2.8
3.6		 622 300
200		 1980
12SLZ-6 472
790
865		 131.1
219.4
240.6		 102.5
90
82		 1480 180.5
239
249		 280 YLS355-4 73
80
78		 2.9
4.8
6.8		 532 300
200		 1850
12SLZ-9 595
790
1030		 165.3
219.4
286.1		 64
60
49		 1480 125.8
148.5
169.8		 200 Y315L2-4 82.5
87
81		 3.1
3.4
5.2		 435 300
250		 1620
12SLZ-12 650
790
1040		 180.6
219.4
288.9		 41
38
29		 1480 90.2
96.8
99.6		 110 Y315S-4 80.5
84.5
82.5		 6.1 347 300
250		 1280
12SLZ-18 625
790
958		 173.6
219.6
266.1		 24
22
18.5		 1480 50.8
54.4
57.2		 75 Y280S-4 80.5
87
84.5		 3.8
4.4
5.6		 296 300
250		 1150
14SLZ-6 770
1260
1400		 213.9
350.0
388.9		 141.5
125
117		 1480 393
517
551		 630 YLS450-4 75.5
83
81		 4.0
6.4
9.3		 626 350
250		 2060
14SLZ-9 972
1260
1440		 270.0
350.0
400.0		 80
75
65		 1480 271
304
349		 400 YLS400-4 78
85
80		 5.3 492 350
250		 1820
14SLZ-12 1030
1260
1645		 286.1
350.0
456.9		 56
50
39.5		 1480 196.5
202
216		 250 YLS355-4 80
85
82		 8.3 403 350
300		 1640
14SLZ-18 1060
1260
1625		 294.4
350.0
451.4		 31.5
30
23		 1480 112
121
121		 160 Y315L1-4 81
85
84		 5.5
5.9
8.0		 345 350
300		 1420
14SLZ-30 972
1260
1476		 270.0
350.0
410.0		 20
16
13.4		 1480 64
64.4
71		 90 Y280M-4 83
86
74		 7.1 290 350
350		 1300
16SLZ-9 1120
1650
1870		 311.1
458.3
519.4		 97
88
82		 1480 370
460
492		 560 YLS400-4 80
86
85		 6.0
7.4
8.4		 533 400
300		 2200
16SLZ-12 1320
1650
1950		 366.7
458.3
541.7		 64
57
49		 1480 271
290
299		 355 YLS400-4 85
88.5
87		 5.4 437 400
.300		 1950
16SLZ-18 1340
1650
1950		 372.2
458.3
541.7		 38
36
32		 1480 167
182
200		 220 YLS355-4 83
89
85		 7.8 377 400
350		 1700
16SLZ-25 1320
1650
1865		 366.7
458.3
518.1		 23.5
20
17		 1480 104
107
108		 132 Y315M-4 81
84
80		 7.0
8.0
8.5		 330 400
400		 1780
20SLZ-6 1580
2160
2310		 438.9
600.0
641.7		 108
95
90		 980 567
666
699		 800 YLS500-6 82
84
81		 3.8
6.3
8.4		 818 500
350		 4710
20SLZ-10 1500
2160
2500		 416.7
600.0
694.4		 65.5
60
55.5		 980 339
400
434		 500 YLS450-6 79
88
87		 6.6 690 500
400		 4550
20SLZ-12 1615
2160
2585		 448.6
600.0
718.1		 43.5
38
30.5		 980 235
257
260		 280 YLS400-6 81.5
87
83		 6.5 540 500
400		 3400
20SLZ-18 1635
2160
2285		 454.2
600.0
634.7		 24
22
18		 980 129
149
137		 160 Y355M1-6 83
87
82		 4.2
5.2
6.6		 466 500
400		 2650
24SLZ-9 2180
3240
3770		 605.6
900.0
1047.2		 87
79
73		 980 630
793
882		 1000 YLS500-6 82
88
85		 5.0
6.7
8.5		 765 600
400		 4850
24SLZ-12 2250
3240
4050		 625.0
900.0
1125.0		 59
50
40		 980 436
496
519		 560 YLS450-6 83
89
85		 7.5 625 600
450		 4540
24SLZ-18 2700
3240
3600		 750.0
900.0
1000.0		 33.5
32
26		 980 291.7
317
298		 355 YLS400-6 84.5
89
85.5		 7.0 550 600
500		 4220
24SLZ-21 2016
2992
3456		 560.0
831.1
960.0		 33
25.3
21		 980 218
232
227		 250 YLS355-6 83
89
87		 4.2
5.0
6.3		 525 600
500		 2070
24SLZ-25 2390
2790
3120		 663.9
775.0
866.7		 18.5
16
13.5		 980 145
140
142		 160 Y355M-6 83
87
81		 5.8
6.2
6.8		 447 600
600		 3800
