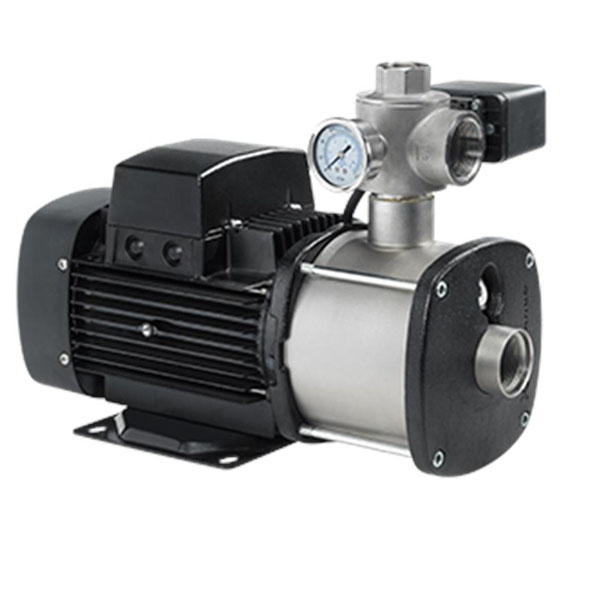

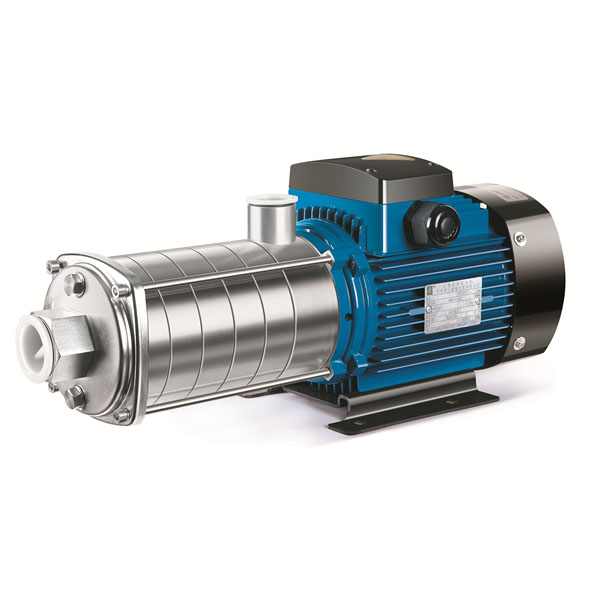

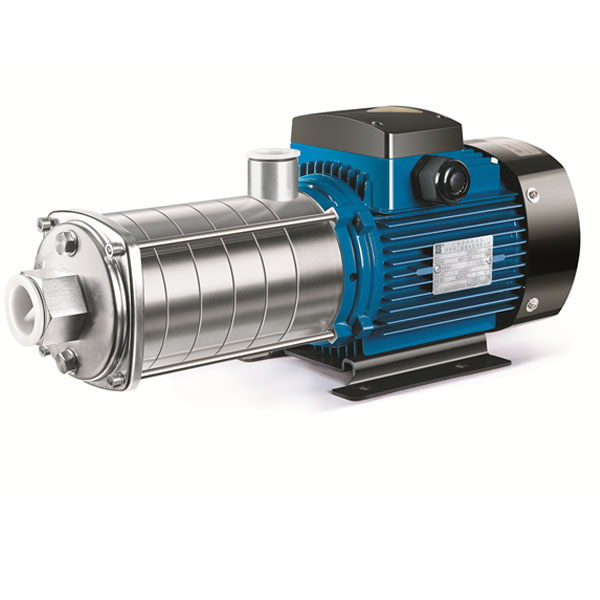

CL/M Horizontal Multi-Stage Pump

Hanthing Fluid Group
      Performance range:
  • Capacity: to 4M3/H
  • Lift Head: to 50 M
      • Features
  • Motor efficiency class: IE3
  • Non-self-priming vertical multistage centrifugal pumps(Abbr. as
  • European standard
  • Efficiency achieved MEI≥0.7
  • Low noise and environment friendly
NO Model Flow(m³/h) Head(m) Eta(%) Power(kw) Speed(rpm) Impeller Dia(mm) Stage Number Medium Temperature MotorPower Mechanical Seal Weight(kg)
1 CL1-2 1 15.5 40.5 0.104 2850 90 2 -15℃～+70℃ 0.25 CM-16/BSF4 7
2 CL1-3 1 24.5 40.5 0.165 2900 90 3 -15℃～+70℃ 0.37 CM-16/BSF4 7
3 CL1-4 1 33 40.5 0.222 2900 90 4 -15℃～+70℃ 0.37 CM-16/BSF4 8
4 CL1-5 1 41 40.5 0.276 2900 90 5 -15℃～+70℃ 0.45 CM-16/BSF4 9
5 CL1-6 1 49.5 40.5 0.333 2900 90 6 -15℃～+70℃ 0.55 CM-16/BSF4 10
6 CL2-2 2 15 46 0.178 2900 90 2 -15℃～+70℃ 0.37 CM-16/BSF4 7
7 CL2-3 2 22 46 0.261 2900 90 3 -15℃～+70℃ 0.37 CM-16/BSF4 8
8 CL2-4 2 29 46 0.344 2900 90 4 -15℃～+70℃ 0.55 CM-16/BSF4 10
9 CL2-5 2 36 46 0.427 2900 90 5 -15℃～+70℃ 0.55 CM-16/BSF4 10
10 CL2-6 2 44 46 0.521 2900 90 6 -15℃～+70℃ 0.75 CM-16/BSF4 11
11 CL4-2 4 15 54 0.303 2900 95 2 -15℃～+70℃ 0.37 CM-16/BSF4 8
12 CL4-3 4 23.5 54 0.474 2900 95 3 -15℃～+70℃ 0.55 CM-16/BSF4 10
13 CL4-4 4 31 54 0.626 2900 95 4 -15℃～+70℃ 0.75 CM-16/BSF4 11
14 CL4-5 4 39 54 0.787 2900 95 5 -15℃～+70℃ 1.1 CM-16/BSF4 14
15 CL4-6 4 47 54 0.949 2900 95 6 -15℃～+70℃ 1.1 CM-16/BSF4 14
1 CM2-2 2 15 41 0.2 2900 90 2 -15℃～+70℃ 0.37 CM-16/BSF4 7
2 CM2-3 2 22 41 0.29 2900 90 3 -15℃～+70℃ 0.37 CM-16/BSF4 7
3 CM2-4 2 29 41 0.39 2900 90 4 -15℃～+70℃ 0.55 CM-16/BSF4 9
4 CM2-5 2 36 41 0.48 2900 90 5 -15℃～+70℃ 0.55 CM-16/BSF4 9.5
5 CM2-6 2 44 41 0.58 2900 90 6 -15℃～+70℃ 0.75 CM-16/BSF4 10
6 CM4-2 4 15 49 0.33 2900 95 2 -15℃～+70℃ 0.37 CM-16/BSF4 7
7 CM4-3 4 23.5 49 0.52 2900 95 3 -15℃～+70℃ 0.55 CM-16/BSF4 9
8 CM4-4 4 31 49 0.69 2900 95 4 -15℃～+70℃ 0.75 CM-16/BSF4 10
9 CM4-5 4 39 49 0.87 2900 95 5 -15℃～+70℃ 1.1 CM-16/BSF4 13
10 CM4-6 4 47 49 1.05 2900 95 6 -15℃～+70℃ 1.1 CM-16/BSF4 13
