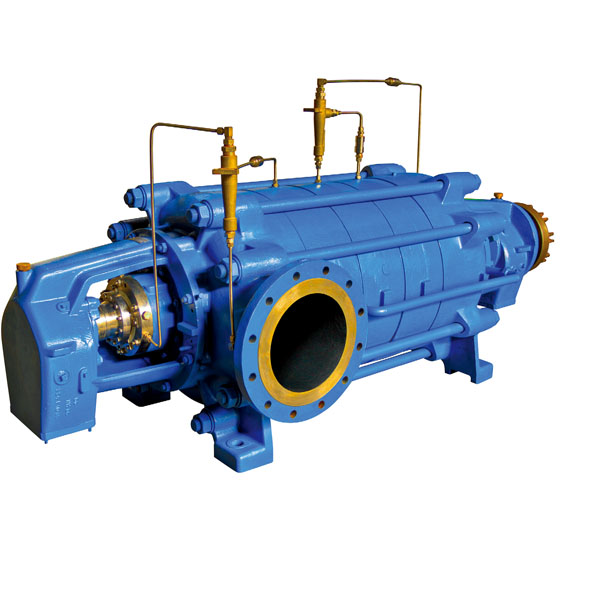

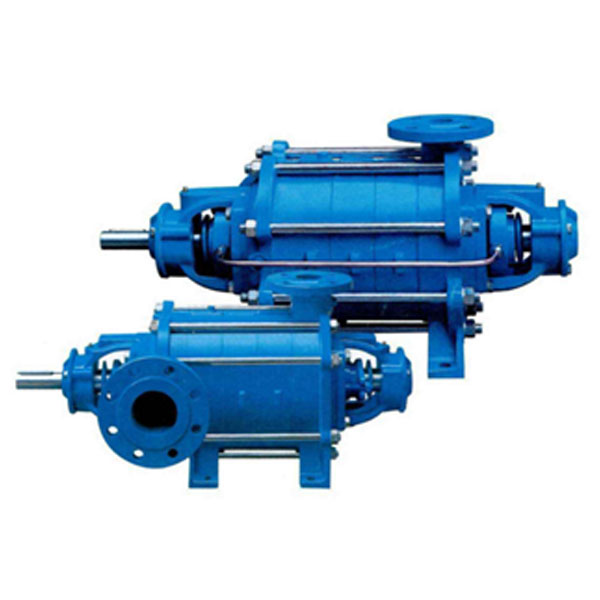

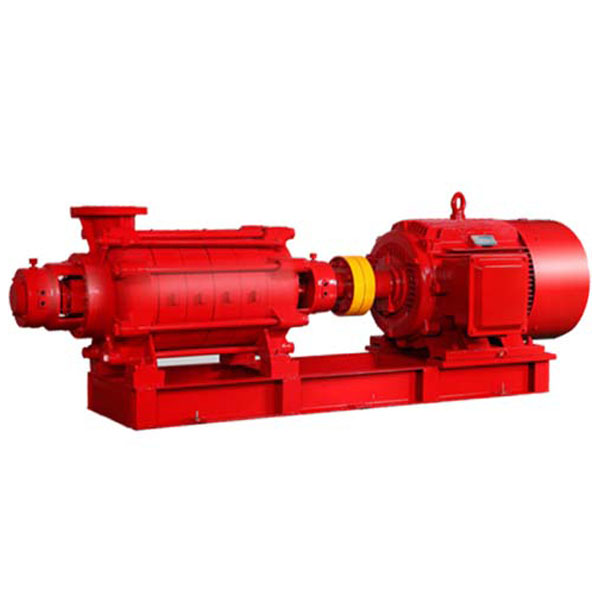

D/DG/MD Multi-Stage Pump

Hanthing Fluid Group

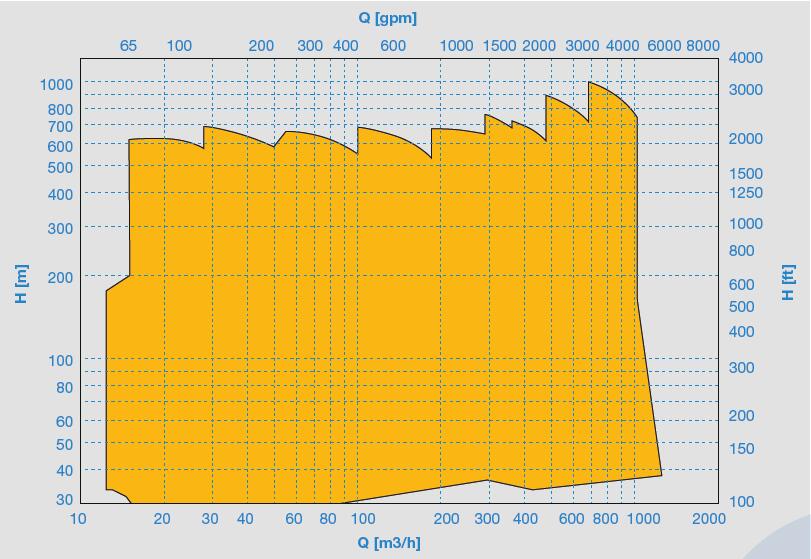

      Performance Range:
  • Flow: 3.75 - 600 m3/h
  • Delivery Head: 19-860m
  • Outlet Dia.: DN40-DN500mm
  • Liquid Temperature: 0 - 105 C
      • Application
  • Industrial water supply and discharge, High building water supply, Fire fighting application, Mining water disposal, Water intaking & long distrance transferring, Civil water supply, etc.

Items Model Stage Capacity(M3/H) Head distance(M) Motor(KW) Speed(rpm)
1 D/DG6-25 2 6.3 50 3 2950
2 3 75 5.5
3 4 100 7.5
4 5 125 7.5
5 6 150 11
6 7 175 11
7 8 200 15
8 9 225 15
9 10 250 18.5
10 11 275 18.5
11 12 300 18.5
12 D/DG12-25 2 12.5 50 5.5
13 3 75 7.5
14 4 100 11
15 5 125 11
16 6 150 15
17 7 175 15
18 8 200 18.5
19 9 225 18.5
20 10 250 22
21 11 275 22
22 12 300 30
23 D/DG12-50 2 100 11
24 3 150 18.5
25 4 200 22
26 5 250 30
27 6 300 30
28 7 350 37
29 8 400 45
30 9 450 45
31 10 500 55
32 11 550 55
33 12 600 75
34 D/DG25-30 2 25 60 11
35 3 90 15
36 4 120 18.5
37 5 150 22
38 6 180 30
39 7 210 30
40 8 240 37
41 9 270 37
42 10 300 45
43 D/DG25-50 2 25 100 18.5 2950
44 3 150 22
45 4 200 30
46 5 250 37
47 6 300 45
48 7 350 55
49 8 400 75
50 9 450 75
51 10 500 75
52 11 550 90
53 12 600 110
54 D/DG46-30 2 46 60 15
55 3 90 22
56 4 120 30
57 5 150 37
58 6 180 37
59 7 210 45
60 8 240 55
61 9 270 55
62 10 300 75
63 D/DG46-50 2 46 100 30
64 3 150 37
65 4 200 45
66 5 250 55
67 6 300 75
68 7 350 90
69 8 400 90
70 9 450 110
71 10 500 132
72 11 550 132
73 12 600 160
74 D/DG85-45 2 85 90 37
75 3 135 55
76 4 180 75
77 4 180 75
78 5 225 90
79 5 225 90
80 6 270 110
81 7 315 132
82 8 360 132
83 9 405 160
84 D/DG85-67 2 85 134 75 2950
85 3 201 90
86 4 280 110
87 5 335 132
88 6 402 160
89 7 469 185
90 8 536 220
91 9 603 250
92 D/DG120-50 2 120 100 55
93 3 150 90
94 4 200 110
95 5 250 132
96 6 300 160
97 7 350 200
98 8 400 200
99 9 450 220
100 D/DG155-30 2 155 60 45 1480
101 2 60 45
102 3 90 75
103 3 90 75
104 4 120 90
105 4 120 90
106 5 150 110
107 5 150 110
108 6 180 132
109 6 180 132
110 7 210 160
111 7 210 160
112 8 240 200
113 9 270 200
114 10 300 220
115 D/DG155-67 2 134 90 2950
116 3 201 132
117 4 268 185
118 5 335 220
119 6 402 280
120 7 469 315
121 8 536 355
122 9 603 450
123 D/DG280-43 2 280 86 110 1480
124 3 129 160
125 4 172 200
126 5 215 250
127 6 258 315
128 7 301 355
129 8 344 450
130 9 387 480
131 D/DG280-65 3 280 195 280 1480
132 4 260 355
133 5 325 450
134 6 390 500
135 7 455 630
136 8 520 710
137 9 585 800
138 10 650 900
139 D/DG360-40 2 360 80 132
140 3 120 185
141 4 160 250
142 5 200 315
143 6 240 400
144 7 280 450
145 8 320 500
146 9 360 560
147 10 400 630
148 D/DG450-60 2 450 120 250
149 3 180 355
150 4 240 500
151 5 300 630
152 6 360 710
153 7 420 800
154 8 480 900
155 9 540 1000
156 10 600 1120
157 D/DG550-50 2 550 100 250
158 3 150 355
159 4 200 450
160 5 250 630
161 6 300 710
162 7 350 800
163 8 400 900
164 9 450 1000
