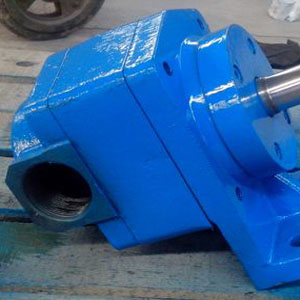

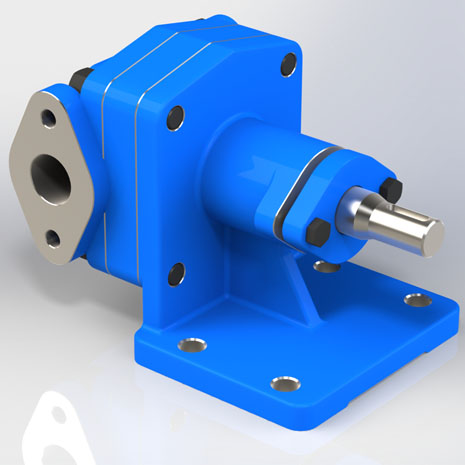

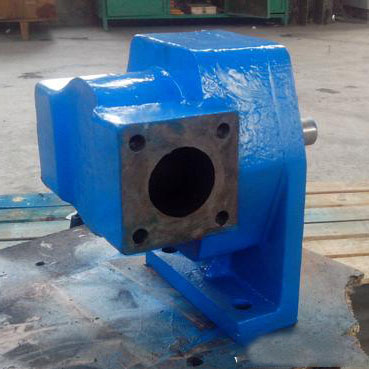

BCB Gear Pump

Vacuum Pump
    Overview:
  • BCB industrial rotary oil gear pump is with compacted structure, stable revolving, high efficiency and long service life
  • It works as a booster pump in fuel transfer system, a transmission, booster or an injection pump in fuel system, and a lubricating pump in all industries
  • Suitable for the transportation of lube or liquid that is similar in nature
      • Performance Range:
  • Working Principle: Double Gears
  • Main applications:        Oil
  • Power Specs: 380/415V 3phase; 50hz/60hz
  • Max.permissible fluid temperature: 150°C(302°F)
  • Type of connection: Flange, Thread, Quick Coupled.
  • Installation position: Horizontal
  • Casing/Inner parts material: Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
  • Free passage: 00 mm
  • Maximum viscosity: 1.5X103C.S.T
  • Maximum drive rating:  7.5KW(10HP)
  • Maximum caliber:   50mm(2inch)
  • Maximum discharge-side pressure: 1.6MPa(16bar)
  • Flow rate range:   10-250L/min(2.6-66US.GPM)
    • Model Capacity Pressure Suction Height In&Outlet Dia Speed Power Motor
    m3/h L/min Mpa m mm Nr/min kw Model
    BCB10/1.6 0.6 10 1.6 5 G3/8" 1390 0.55 Y80M1-4
    BCB16/1.6 0.96 16 1.6 5 G3/4" 1390 0.75 Y80M2-4
    BCB20/1.6 1.2 20 1.6 5 G3/4" 1400 1.1 Y90S-4
    BCB25/1.6 1.5 25 1.6 5 G3/4" 1400 1.1 Y90S-4
    BCB32/1.6 2 32 1.6 5 G1" 1400 1.5 Y90L-4
    BCB40/1.6 2.4 40 1.6 5 G1" 1420 2.2 Y100L1-4
    BCB50/1.6 3 50 1.6 5 G1" 1420 2.2 Y100L1-4
    BCB63/1.6 3.8 63 1.6 5 G1" 1420 3 Y100L2-4
    BCB80/1.6 4.8 80 1.6 5 G11/2" 1420 3 Y100L2-4
    BCB100/1.6 6 100 1.6 5 G11/2" 1440 4 Y112M-4
    BCB125/1.6 7.5 125 1.6 5 G11/2" 1440 5.5 Y132S-4
    BCB-160/1.6 9.6 160 1.6 4.5 G2" 1440 7.5 Y132M-4
    BCB-200/1.6 12 200 1.6 4.5 G2" 1440 11 Y160M-4
    BCB-250/1.6 15 250 1.6 4.5 G2" 1440 11 Y160M-4
    BCB-300/1.6 18 300 1.6 4.5 65 1440 15 Y160L-4
    BCB-350/1.6 21 350 1.6 4.5 65 1440 18.5 Y180M-4
    BCB-400/1.6 24 400 1.6 4.5 65 1440 22 Y180L-4
