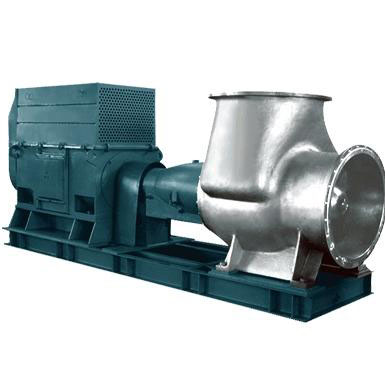

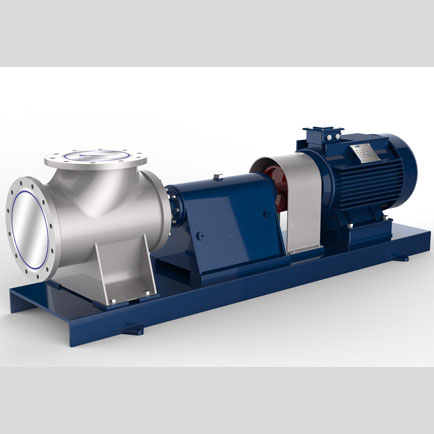

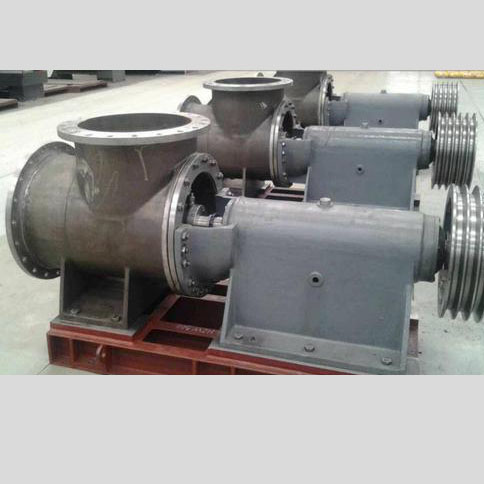

HZW Chemical Axial Flow Pump

Vacuum Pump
    Performance Range:
  • Current capacity: 500 ~ 19000m3/h;
  • Lifts: 2 ~ 10m;
  • Rotational speed: 2900r/min;
  • Power: 0.37 ~ 160kw;
  • Caliber: 300 ~ 1500mm;
  • Is suitable the temperature: -20 ~ 250 °C
  • Materials: For wetted parts in contact with medium, the common materials are as follows: 304, 316, OCr25Ni6, 316L, SAF2205, 310S, 904L, TA2, Ni6, Monel.
      • Application:
  • HZW chemical axial-flow pump is a single-stage, single-suction cantilever type and is mainly used in chemical process with large flow rate and low delivery head, especially suitable for forced circulation process of material conveyance, vaporizing concentration, crystallization in alkali, salt, fermentation, metallurgical, phosphorous fertilizer industries.

    • Model

    Capacity

    M3/h

    Head

    M

    Speed

    R/min

    Motor

    KW

    HZW100

    82-105

    3

    1450

    1.1-2.2

    HZW150

    170-145

    3

    1450

    1.5-3

    HZW200

    280-358

    4-5

    1450

    4-7.5

    HZW250

    680-840

    3-6

    1450

    5.5-11

    HZW300-A

    500-700

    2.75-3.5

    1450

    30

    HZW300-B

    460-900

    3

    1450

    22

    HZW350-A

    760-1500

    4.8-5.5

    1450

    45

    HZW350-B

    800-900

    5

    1450

    30

    HZW400-A

    1500-2000

    4

    720

    55

    HZW400-B

    800-1800

    2-8

    600-1000

    55

    HZW500-A

    2300

    4.4

    740

    75

    HZW500-B

    1300

    4

    740

    55

    HZW500-C

    1400

    5.5

    840

    75

    HZW500-D

    1750

    5.5

    980

    75

    HZW500-F

    2500-2800

    4

    720

    75

    HZW500-G

    1200-2500

    2-6

    570-675

    75

    HZW600-A

    3000-3500

    4

    630

    110

    HZW600-B

    2650

    4

    740

    75

    HZW600-C

    3000

    4

    740

    90

    HZW600-D

    2000-3500

    2-6

    300-600

    90

    HZW700-A

    4000-6000

    4

    740

    132

    HZW700-B

    4000-6500

    3-5

    750

    132

    HZW700-C

    4000-6000

    2-6

    200-500

    132

    HZW800-A

    5000-8500

    1.1

    740

    160

    HZW800-B

    5000-8500

    2-5

    200-500

    160

    HZW800-C

    6000-9000

    3-5

    750

    160

    HZW900-A

    8500-10000

    3.5

    630

    180
