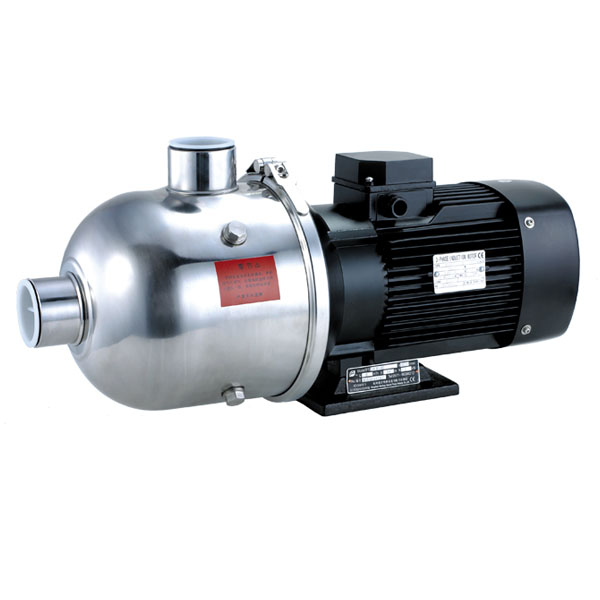

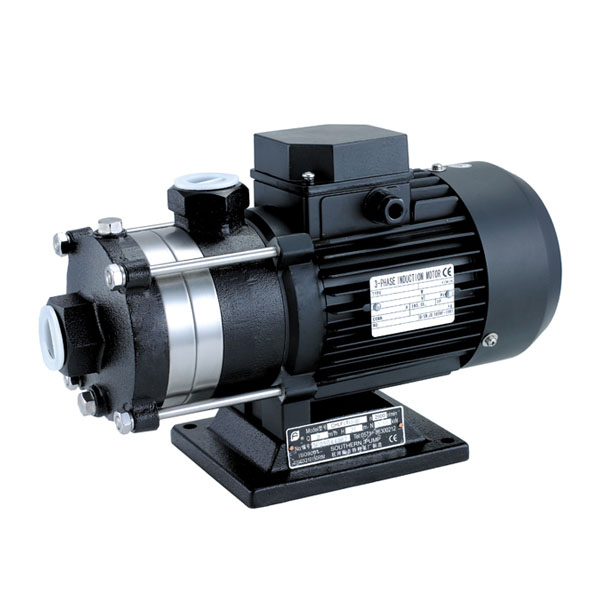

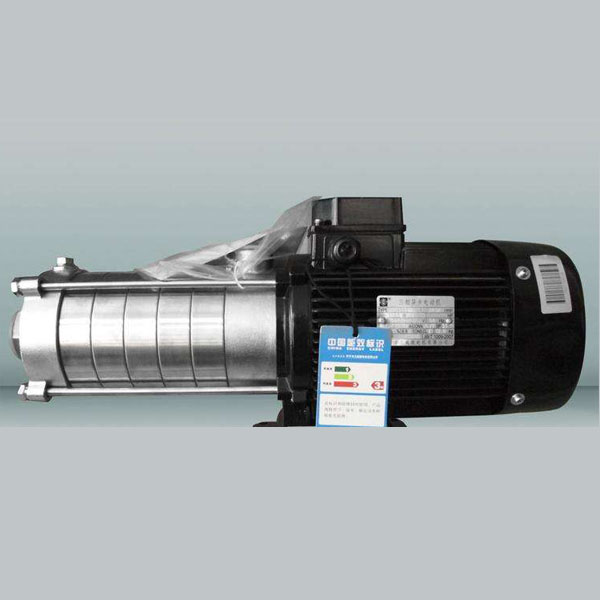

CHL/F Horizontal Muli-Stage Pump

Hanthing Fluid Group
      Performance Range
  • Flow rate up to 30m³/h
  • Head up to 80m
      • Application:
  • It`s widely used to convey industrial liquid: Such as mineral water soft water pure water light oil, circulation and boosting for other weak chemical liquid.
  • Water treatment
  • Industrial cleaner and dishwasher
  • Pressure boosting for the water on processing line, garden sprinkler
  • Heating and cooling for the water on industrial process-ing line
  • Air-conditioning system
  • Air freshening, moistening equipment (soft water)
  • Water supply and boosting(drinking water weak chlorine water)
  • Fertilization/metering system
      • OPERATING CONDITIONS
  • Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers; Liquid temperature:
  • Standard model-20° C~70° C;
  • Hotwater less than 105° C;
  • Max. Environmental temperature: +50° C;
  • Max. Operating pressure: 10 bar

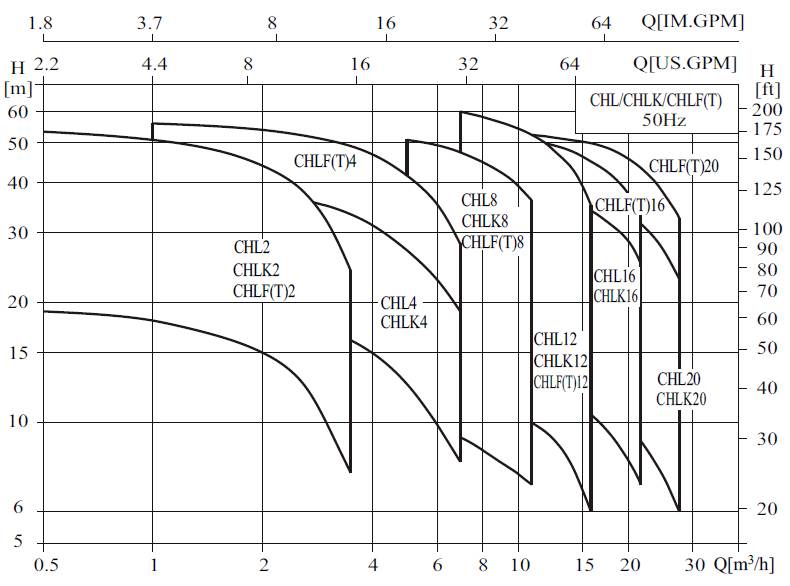

NO Group Model Flow Head Eta Power Speed Impeller Dia Stage Inlet Outlet Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number size Bore Power Seal (kg)
1 CHL2 CHL2-20 2 15 41 0.2 2900 90 2 G1 G1 0.37 CHL-16/BSF4 10
2 CHL2-30 2 22 41 0.29 2900 90 3 G1 G1 0.37 CHL-16/BSF4 10
3 CHL2-40 2 29 41 0.39 2900 90 4 G1 G1 0.55 CHL-16/BSF4 11
4 CHL2-50 2 36 41 0.48 2900 90 5 G1 G1 0.55 CHL-16/BSF4 12
5 CHL2-60 2 44 41 0.58 2900 90 6 G1 G1 0.75 CHL-16/BSF4 14
6 CHL4 CHL4-20 4 15 49 0.33 2900 90 2 G1 1/4 G1 0.37 CHL-16/BSF4 10
7 CHL4-30 4 23.5 49 0.52 2900 90 3 G1 1/4 G1 0.55 CHL-16/BSF4 11
8 CHL4-40 4 31 49 0.69 2900 90 4 G1 1/4 G1 0.75 CHL-16/BSF4 14
9 CHL8 CHL8-10 8 9 57 0.34 2900 96.5 1 G2 G2 0.75 CHL-20/BSF4 18
10 CHL8-20 8 18 57 0.69 2900 96.5 2 G2 G2 0.75 CHL-20/BSF4 19
11 CHL8-30 8 27 57 1.03 2900 96.5 3 G2 G2 1.1 CHL-20/BSF4 22
12 CHL8-40 8 35 57 1.34 2900 96.5 4 G2 G2 1.5 CHL-20/BSF4 27
13 CHL8-50 8 45 57 1.72 2900 96.5 5 G2 G2 2.2 CHL-20/BSF4 32
14 CHL12 CHL12-10 12 9.5 60 0.52 2900 105 1 G2 G2 0.75 CHL-20/BSF4 18
15 CHL12-20 12 19.5 60 1.06 2900 105 2 G2 G2 1.2 CHL-20/BSF4 22
16 CHL12-30 12 29.5 60 1.61 2900 105 3 G2 G2 1.8 CHL-20/BSF4 28
17 CHL12-40 12 39.5 60 2.15 2900 105 4 G2 G2 2.4 CHL-20/BSF4 33
18 CHL12-50 12 50 60 2.73 2900 105 5 G2 G2 3 CHL-20/BSF4 37
19 CHL15 CHL15-10 15 9 66 0.557 2900 104.8 1 G2 G2 1.1 CHL-20/BSF6 20
20 CHL15-20 15 21 66 1.301 2900 104.8 2 G2 G2 2.2 CHL-20/BSF6 26
21 CHL15-30 15 33 66 2.04 2900 104.8 3 G2 G2 3 CHL-20/BSF6 34
22 CHL20 CHL20-10 20 10 64 0.85 2900 106 1 G2 G2 1.1 CHL-20/BSF4 20
23 CHL20-20 20 22 64 1.87 2900 106 2 G2 G2 2.2 CHL-20/BSF4 26
24 CHL20-30 20 34 64 2.9 2900 106 3 G2 G2 4 CHL-20/BSF4 40

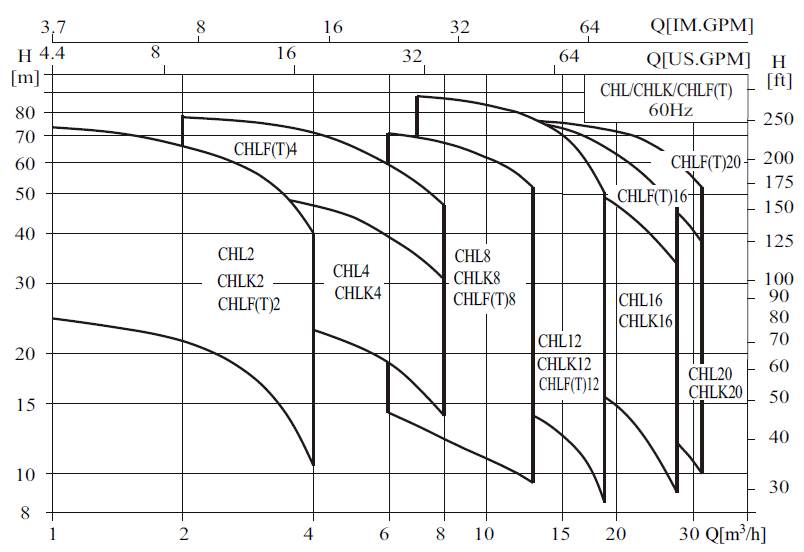

NO Group Model Flow Head Eta Power Speed Impeller Dia Stage Inlet Outlet Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number size Bore Power Seal (kg)
1 CHL2 CHL2-20 2 21.5 40 0.29 3500 90 2 G1 G1 0.55 CHL-16/BSF4 13
2 CHL2-30 2 33 40 0.45 3500 90 3 G1 G1 0.75 CHL-16/BSF4 13
3 CHL2-40 2 45.5 40 0.62 3500 90 4 G1 G1 1.1 CHL-16/BSF4 15
4 CHL2-50 2 55 40 0.75 3500 90 5 G1 G1 1.1 CHL-16/BSF4 15
5 CHL2-60 2 66 40 0.9 3500 90 6 G1 G1 1.1 CHL-16/BSF4 15
6 CHL4 CHL4-20 4 23 48 0.52 3500 90 2 G1 1/4 G1 0.75 CHL-16/BSF4 12
7 CHL4-30 4 36 48 0.82 3500 90 3 G1 1/4 G1 1.1 CHL-16/BSF4 15
8 CHL4-40 4 47 48 1.07 3500 90 4 G1 1/4 G1 1.5 CHL-16/BSF4 20
9 CHL8 CHL8-10 8 12 55 0.48 3500 96.5 1 G2 G2 0.75 CHL-20/BSF4 20
10 CHL8-20 8 26 55 1.03 3500 96.5 2 G2 G2 1.5 CHL-20/BSF4 25
11 CHL8-30 8 40 55 1.59 3500 96.5 3 G2 G2 2.2 CHL-20/BSF4 25
12 CHL8-40 8 53 55 2.1 3500 96.5 4 G2 G2 3 CHL-20/BSF4 30
13 CHL8-50 8 67.5 55 2.68 3500 96.5 5 G2 G2 3 CHL-20/BSF4 30
14 CHL12 CHL12-10 12 14.5 58 0.82 3500 105 1 G2 G2 1.1 CHL-20/BSF4 22
15 CHL12-20 12 31 58 1.75 3500 105 2 G2 G2 2.2 CHL-20/BSF4 25
16 CHL12-30 12 47 58 2.65 3500 105 3 G2 G2 3 CHL-20/BSF4 32
17 CHL12-40 12 63 58 3.55 3500 105 4 G2 G2 4 CHL-20/BSF4 44
18 CHL12-50 12 80 58 4.51 3500 105 5 G2 G2 5.5 CHL-20/BSF4 58
19 CHL15 CHL15-10 15 14 64 0.894 3500 104.8 1 G2 G2 1.5KW CHL-20/BSF4 23
20 CHL15-20 15 33 64 2.11 3500 104.8 2 G2 G2 3KW CHL-20/BSF4 32
21 CHL15-30 15 51.5 64 3.29 3500 104.8 3 G2 G2 4KW CHL-20/BSF4 45
22 CHL20 CHL20-10 20 17 62 1.49 3500 106 1 G2 G2 2.2 CHL-20/BSF4 26
23 CHL20-20 20 34 62 2.99 3500 106 2 G2 G2 4 CHL-20/BSF4 43
24 CHL20-30 20 53 62 4.66 3500 106 3 G2 G2 5.5 CHL-20/BSF4 56
NO Group Model Flow Head Eta Power Speed Impeller Dia Stage Inlet Outlet Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number size Bore Power Seal (kg)
1 CHLF2 CHLF2-20 2 15 41 0.2 2900 90 2 G1 G1 0.37 CHL-16/BSF4 9
2 CHLF2-30 2 22 41 0.29 2900 90 3 G1 G1 0.37 CHL-16/BSF4 10
3 CHLF2-40 2 29 41 0.39 2900 90 4 G1 G1 0.55 CHL-16/BSF4 11
4 CHLF2-50 2 36 41 0.48 2900 90 5 G1 G1 0.55 CHL-16/BSF4 12
5 CHLF2-60 2 44 41 0.58 2900 90 6 G1 G1 0.75 CHL-16/BSF4 15
6 CHLF4 CHLF4-20 4 15 49 0.33 2900 95 2 G1 1/4 G1 0.37 CHL-16/BSF4 10
7 CHLF4-30 4 23.5 49 0.52 2900 95 3 G1 1/4 G1 0.55 CHL-16/BSF4 11
8 CHLF4-40 4 31 49 0.69 2900 95 4 G1 1/4 G1 0.75 CHL-16/BSF4 14
9 CHLF4-50 4 39 49 0.87 2900 95 5 G1 1/4 G1 1.1 CHL-16/BSF4 16
10 CHLF4-60 4 47 49 1.05 2900 95 6 G1 1/4 G1 1.1 CHL-16/BSF4 17
11 CHLF8 CHLF8-10 8 9 57 0.34 2900 96.5 1 G1 1/2 G1 1/4 0.75 CHL-20/BSF4 17
12 CHLF8-20 8 18 57 0.69 2900 96.5 2 G1 1/2 G1 1/4 0.75 CHL-20/BSF4 17
13 CHLF8-30 8 27 57 1.03 2900 96.5 3 G1 1/2 G1 1/4 1.1 CHL-20/BSF4 19
14 CHLF8-40 8 35 57 1.34 2900 96.5 4 G1 1/2 G1 1/4 1.5 CHL-20/BSF4 22
15 CHLF8-50 8 45 57 1.72 2900 96.5 5 G1 1/2 G1 1/4 2.2 CHL-20/BSF4 25
16 CHLF12 CHLF12-10 12 9.5 60 0.52 2900 105 1 G1 1/2 G1 1/2 0.75 CHL-20/BSF4 18
17 CHLF12-20 12 19.5 60 1.06 2900 105 2 G1 1/2 G1 1/2 1.2 CHL-20/BSF4 19
18 CHLF12-30 12 29.5 60 1.61 2900 105 3 G1 1/2 G1 1/2 1.8 CHL-20/BSF4 28
19 CHLF12-40 12 39.5 60 2.15 2900 105 4 G1 1/2 G1 1/2 2.4 CHL-20/BSF4 30
20 CHLF12-50 12 50 60 2.73 2900 105 5 G1 1/2 G1 1/2 3 CHL-20/BSF4 36
21 CHLF15 CHLF15-10 15 9 66 0.557 2900 104.8 1 G2 G2 1.1 CHL-20/BSF6 19
22 CHLF15-20 15 21 66 1.301 2900 104.8 2 G2 G2 2.2 CHL-20/BSF6 27
23 CHLF15-30 15 33 66 2.04 2900 104.8 3 G2 G2 3 CHL-20/BSF6 34
24 CHLF15-40 15 45 66 2.79 2900 104.8 4 G2 G2 4 CHL-20/BSF6 41
25 CHLF20 CHLF20-10 20 10 64 0.85 2900 106 1 G2 G2 1.1 CHL-20/BSF4 19
26 CHLF20-20 20 22 64 1.87 2900 106 2 G2 G2 2.2 CHL-20/BSF4 27
27 CHLF20-30 20 34 64 2.9 2900 106 3 G2 G2 4 CHL-20/BSF4 40
28 CHLF20-40 20 46.5 64 3.96 2900 106 4 G2 G2 4.4 CHL-20/BSF4 42
NO Group Model Flow Head Eta Power Speed Impeller Dia Stage Inlet Outlet Motor Mechanical Weight
(m³/h) (m) (%) (kw) (rpm) (mm) Number size Bore Power Seal (kg)
1 CHLF2 CHLF2-20 2 21.5 40 0.29 3500 90 2 G1 G1 0.55 CHL-16/BSF4 15
2 CHLF2-30 2 33 40 0.45 3500 90 3 G1 G1 0.75 CHL-16/BSF4 17
3 CHLF2-40 2 45.5 40 0.62 3500 90 4 G1 G1 1.1 CHL-16/BSF4 17
4 CHLF2-50 2 55 40 0.75 3500 90 5 G1 G1 1.1 CHL-16/BSF4 17
5 CHLF2-60 2 66 40 0.9 3500 90 6 G1 G1 1.1 CHL-16/BSF4 17
6 CHLF4 CHLF4-20 4 23 48 0.52 3500 95 2 G1 1/4 G1 0.75 CHL-16/BSF4 15
7 CHLF4-30 4 36 48 0.82 3500 95 3 G1 1/4 G1 1.1 CHL-16/BSF4 17
8 CHLF4-40 4 47 48 1.07 3500 95 4 G1 1/4 G1 1.5 CHL-16/BSF4 20
9 CHLF4-50 4 59 48 1.34 3500 95 5 G1 1/4 G1 2.2 CHL-16/BSF4 25
10 CHLF4-60 4 71.5 48 1.62 3500 95 6 G1 1/4 G1 2.2 CHL-16/BSF4 25
11 CHLF8 CHLF8-10 8 12 55 0.48 3500 96.5 1 G1 1/2 G1 1/4 0.75 CHL-20/BSF4 22
12 CHLF8-20 8 26 55 1.03 3500 96.5 2 G1 1/2 G1 1/4 1.5 CHL-20/BSF4 25
13 CHLF8-30 8 40 55 1.59 3500 96.5 3 G1 1/2 G1 1/4 2.2 CHL-20/BSF4 27
14 CHLF8-40 8 53 55 2.1 3500 96.5 4 G1 1/2 G1 1/4 3 CHL-20/BSF4 32
15 CHLF8-50 8 67.5 55 2.68 3500 96.5 5 G1 1/2 G1 1/4 3 CHL-20/BSF4 32
16 CHLF12 CHLF12-10 12 14.5 58 0.82 3500 105 1 G1 1/2 G1 1/2 1.1 CHL-20/BSF4 22
17 CHLF12-20 12 31 58 1.75 3500 105 2 G1 1/2 G1 1/2 2.2 CHL-20/BSF4 25
18 CHLF12-30 12 47 58 2.65 3500 105 3 G1 1/2 G1 1/2 3 CHL-20/BSF4 32
19 CHLF12-40 12 63 58 3.55 3500 105 4 G1 1/2 G1 1/2 4 CHL-20/BSF4 44
20 CHLF12-50 12 80 58 4.51 3500 105 5 G2 G2 5.5 CHL-20/BSF4 58
21 CHLF15 CHLF15-10 15 14 64 0.894 3500 104.8 1 G2 G2 1.5KW CHL-20/BSF4 24
22 CHLF15-20 15 33 64 2.11 3500 104.8 2 G2 G2 3KW CHL-20/BSF4 36
23 CHLF15-30 15 51.5 64 3.29 3500 104.8 3 G2 G2 4KW CHL-20/BSF4 45
24 CHLF15-40 15 69.5 64 4.44 3500 104.8 4 G2 G2 5.5KW CHL-20/BSF4 54
25 CHLF20 CHLF20-10 20 17 62 1.49 3500 106 1 G2 G2 2.2 CHL-20/BSF4 26
26 CHLF20-20 20 34 62 2.99 3500 106 2 G2 G2 4 CHL-20/BSF4 43
27 CHLF20-30 20 53 62 4.66 3500 106 3 G2 G2 5.5 CHL-20/BSF4 56
28 CHLF20-40 20 72 62 6.33 3500 106 4 G2 G2 7.5 CHL-20/BSF4 63
