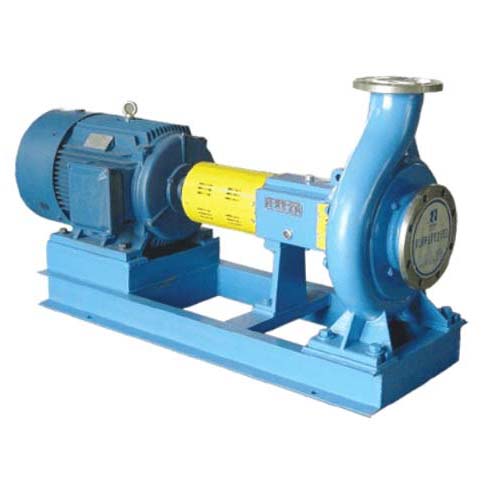

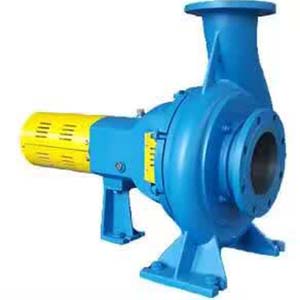

WS Plup Pump

plup pump
    Overview:
  • WS type high efficiency non clogging non leaking pulp pump in the digestion on the basis of absorbing foreign advanced pump products, combined with the domestic paper pulp pump requirements and developed a new generation of pulp pump products, efficient, anti-clogging, good performance, no leakage, easy installation and maintenance advantages, widely used in papermaking, pulp mills, pulp medium of transportation, also applies to enterprise sugar, starch processing, chemical raw materials, such as the transmission medium.
      • Scope of work:
  • Capacity:40-3300m3, Head:5-100m,Pulp Concentration ≤6%, Working Temperature ≤1200C
      • Application:
  • Pulp and Paper, Sugar Starch, Chemical Raw Material, Industrial Wastewater, Environmental Engineering, City Road Project
      • Structure Features :
  • 1. The pump is back door structure, do not have to disassemble pipeline maintenance.
  • 2. Pumpoutlet flanges of pressure1.6Mpa design.

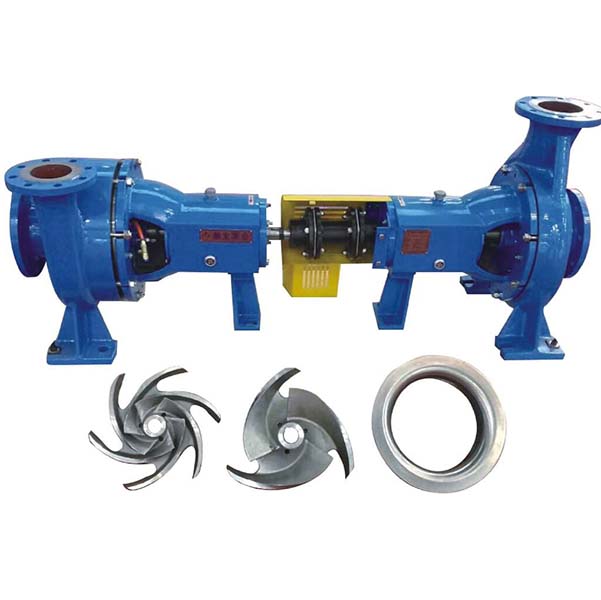

  • 3. Impeller with three blades(or six blades), open impeller, very efficient and does not require the axial thrust compensation, easy maintenance, low clogging opportunity.
  • 4. The pump shaft use oil lubrication and overloaded abrasion imports SKF cylindrical roller thrust bearings and radial ball bearings(angular contact ball bearings)combination of support, cylindrical roller bearings installed in the pump end, radial thrust ball bearings face to face installed in the drive end.
  • 5. Shaft seal mainly has standard single mechanical seal, tandem mechanical seals, dual mechanical seals, packing seals, dynamic seals of five types, the user can select according to the requirements and conditions of actual use.
  • 6. Impeller use the paraffin wax precision casting and do dynamic balancing test.
  • 7. The material is cast iron, cast steel, stainless steel, duplex stainless steel four kinds.

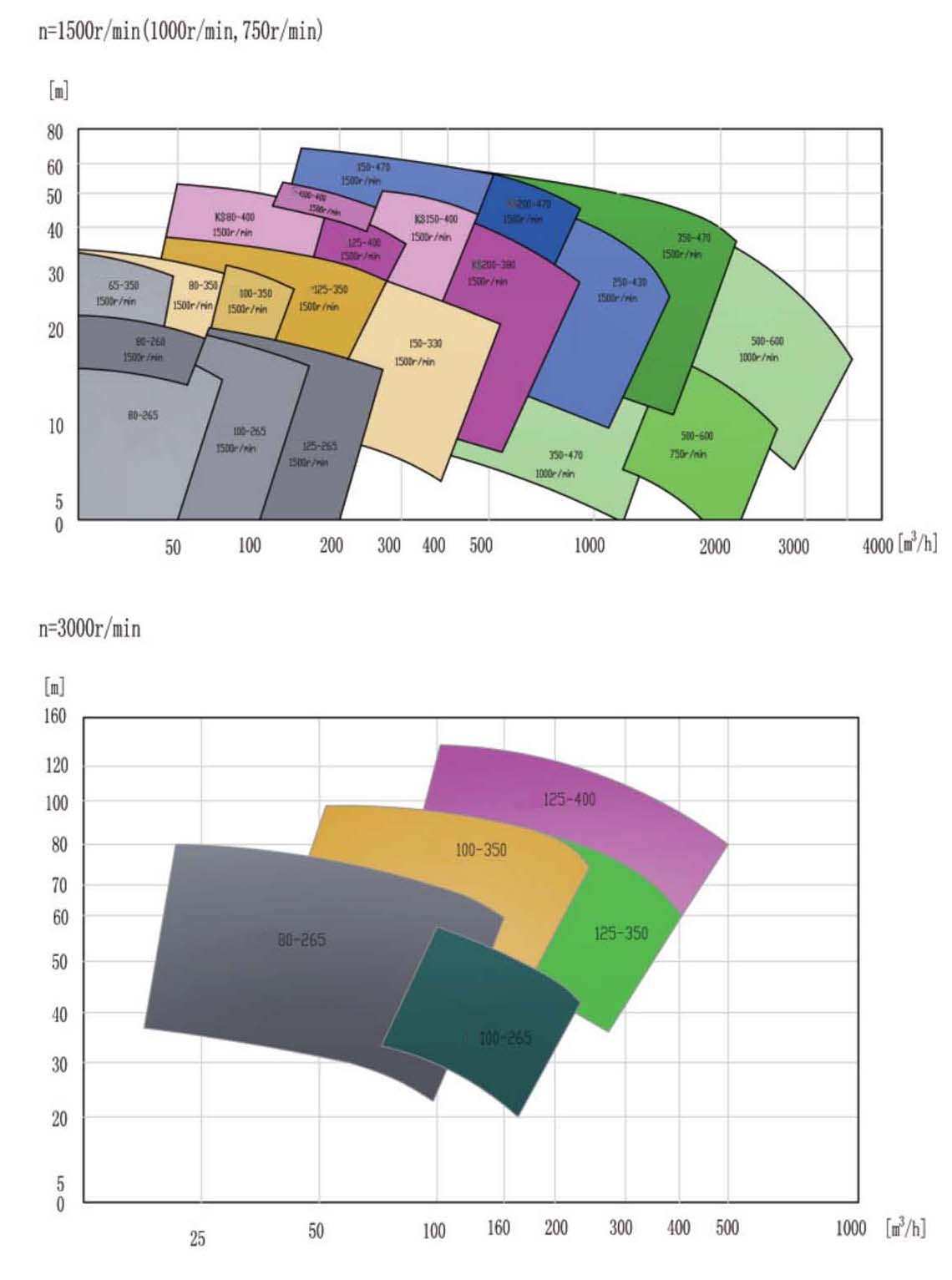

    • Model Flow Lift  Speed Power Efficiency Impeller
    Type Impeller cut m3/h l/s m r/min KW （%） Diameter
    WS80-265   114 31.6 66.1 2900 55 60 265
    180 50 53.9
    220 61.2 44.9
    A 104 28.8 61.2 45 60 255
    160 44.4 51.5
    214 59.4 39.6
    B 94 26.2 57.2 37 60 245
    154 42.8 44.9
    204 56.6 33.5
    C 84 23.4 52.3 37 60 235
    140 38.8 40.8
    194 53.8 28.6
    D 80 22.2 47 30 60 225
    130 36.2 36.7
    184 51.2 24.5
    E 160 44.4 41.6 22 60 215
    120 33.4 32.7
    174 48.4 20.4
    WS100-265   132 36.7 53 2900 45 68 230
    220 61.5 42
    264 73.3 33
    A 126 35 50 45 68 225
    210 58.3 39
    252 70 32
    B 117 32.5 45 37 67 215
    195 54.2 33
    234 65 28
    C 108 30 40 30 66 205
    180 50 29
    216 60 24
    D 102 28.3 36 22 65 195
    170 47.2 25
    204 56.7 21
    E 99 27.5 30 18.5 62 185
    165 45.8 20
    198 55 15
    WS125-265   120 33.3 18.2 1450 15 74 265
    185 51.4 15.2
    260 72.2 9
    A 115 31.9 16.4 11 70 255
    175 48.6 13.8
    252 70 8.6
    B 100 27.8 14.9 11 70 245
    165 45.8 12.5
    240 67 8
    C 95 26.4 13.9 7.5 65 235
    150 41.7 11
    220 61.1 7
    D 75 20.8 11.8 7.5 65 225
    140 38.9 9.3
    200 55.6 6.2
    E 70 19.4 9 5.5 60 215
    125 34.7 8
    175 48.6 5.6
    WS100-350   168 46.7 90 2950 110 65 310
    280 77.8 72
    336 93.3 59
    A 165 45.8 80 90 67 300
    275 76.4 65
    330 91.7 54
    B 162 45 76 75 70 290
    270 75 59
    324 90 48
    C 156 43.3 66 75 71 280
    260 72.2 54
    312 86.7 44
    D 150 41.7 62 55 72 270
    250 69.4 48
    300 83.3 40
    WS125-350   240 66.7 78 2950 110 72 280
    400 111.1 59
    480 133.3 47
    A 228 63.3 70 110 71 270
    380 105.6 55
    456 126.7 43
    B 216 60 64 90 65 260
    360 100 46
    432 120 36
    C 198 55 58 75 60 250
    330 91.7 40
    396 110 30
    D 180 50 50 75 55 240
    300 83.3 36
    360 100 28
    WS150-330   270 75 28 1470 37 78 330
    410 113.9 24
    570 158.3 16.5
    A 260 72.2 25 37 78 320
    400 111.1 21.5
    550 152.8 15
    B 2580 69.4 23 30 75 310
    380 105.6 20
    500 138.9 14.5
    C 240 66.7 21 30 70 300
    360 100 17.5
    470 130.6 13
    D 200 55.6 19 22 70 290
    350 97.2 15
    450 125 11.5
    E 190 52.8 17.5 18.5 70 280
    330 91.7 13
    420 116.7 10.5
    WS125-400   264 73.3 118 2970 160 85 330
    440 122.2 95
    528 146.7 80
    A 252 70 112 132 88 320
    420 116.7 88
    504 140 75
    B 246 68.3 102 132 86 310
    410 113.9 82
    492 136.7 68
    C 240 66.7 95 110 82 300
    400 111.1 77
    480 113.3 60
    B 222 61.7 86 110 80 290
    370 102.8 68
    444 123.3 57
    E 216 59.2 78 90 78 280
    360 100 62
    432 120 50
    WS150-400   325 90.3 43 1450 75 77 400
    400 111.1 40
    470 130.6 37
    A 315 87.5 41 55 76 390
    390 108.3 38
    460 127.8 36
    B 300 83.3 38 55 76 380
    375 104.2 34
    450 125 32
    C 290 80.6 35 45 75 370
    360 100 32
    445 123.6 27
    D 275 76.4 33 37 75 360
    350 97.2 29
    425 118.1 25
      260 72.2 31 37 74 350
    340 94.4 27
    410 113.9 23
    WS150-470   350 97.2 57 1480 110 78 470
    530 147.2 53
    715 198.6 40
    A 330 91.7 55 90 78 450
    500 138.9 47
    690 191.7 35
    B 310 86.1 50 90 75 430
    480 133.3 42
    650 180.6 31
    C 290 80.6 45 75 70 410
    450 125 37
    620 172.2 28
    D 270 75 40 55 70 390
    420 116.7 32
    570 158.3 24
    E 260 72.2 35 45 70 370
    400 111.1 28
    540 150 20
    WS220-470   550 152.8 58 1480 160 80 470
    780 216.7 50
    980 272.2 40
    A 500 138.9 54 132 75 450
    700 194.4 47
    930 258.3 36
    B 470 130.6 48 110 75 430
    650 180.6 42
    880 244.4 31
    C 400 111.1 38 90 75 410
    600 166.7 37
    800 222.2 29
    D 370 102.8 36 75 75 390
    550 152.8 32
    720 200 25
    E 300 83.3 35 55 70 370
    500 138.9 28
    650 180.6 21
    SRZ200-380   490 136.1 36 1450 90 82 380
    690 191.7 32
    870 241.7 26
    A 470 130.6 33 75 80 370
    650 180.6 29.5
    850 236.1 23
    B 450 125 32 75 80 360
    620 172.2 28
    840 233.3 21
    C 425 118.1 30 55 75 350
    600 166.7 26
    820 227.8 20
    D 400 111.1 28 55 75 340
    550 152.8 24
    800 222.2 18
    E 380 105.6 26 70 70 330
    525 145.8 23
    760 211.1 15
    WS250-430   750 208.3 46 1450 200 80 430
    1150 319.4 40
    1500 416.7 28
    A 700 194.4 41 160 75 410
    1070 297.2 35
    1400 388.9 26
    B 600 166.7 36 132 75 390
    1000 277.8 30
    1300 361.1 23
    C 500 138.9 32 110 70 370
    950 263.9 25
    1200 333.3 19
    D 480 133.3 31 90 70 350
    900 250 21
    1160 322.2 14
    E 400 111.1 25 75 70 330
    800 222.2 19
    1100 305.6 13
    WS350-470   1160 322.2 51 1450 280 84 470
    1600 444.4 44
    2100 583.3 32
    A 1000 277.8 46 250 82 450
    1450 402.8 40
    2000 555.6 29
    B 900 250 42 200 82 430
    1400 388.9 36
    1900 527.8 26
    C 800 222.2 38 185 75 410
    1300 36, 1.1 32
    1800 500 23
    D 700 194.4 33 160 75 390
    1200 333.3 28
    1700 472.2 20
    E 600 166.7 29 132 75 370
    1100 305.6 21<, /SPAN>
    1620 450 18
    WS500-600   1750 486.1 35 960 280 85 600
    2600 722.2 28.5
    3250 902.8 21.5
    A 1600 444.4 32.5 250 83 575
    2400 666.7 26
    3200 888.9 19
    B 1300 361.1 30 220 80 550
    2200 61.1 24
    3000 833.3 15
    C 1200 333.3 26 185 80 525
    2000 555.6 22
    2800 777.8 14
    D 1100 305.6 23 160 75 500
    1900 527.8 19
    2600 722.2 13
    E 1000 277.8 21 132 75 475
    1800 500 18
    2500 694.4 12
