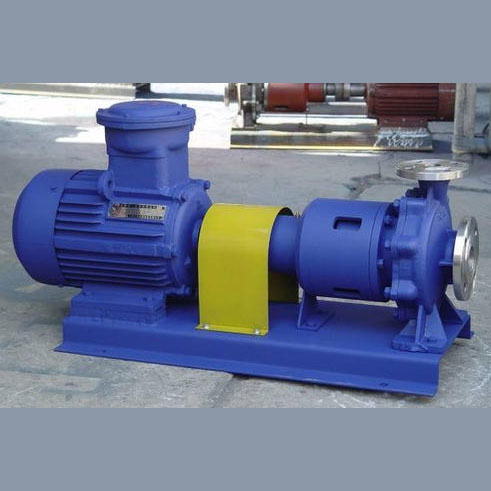

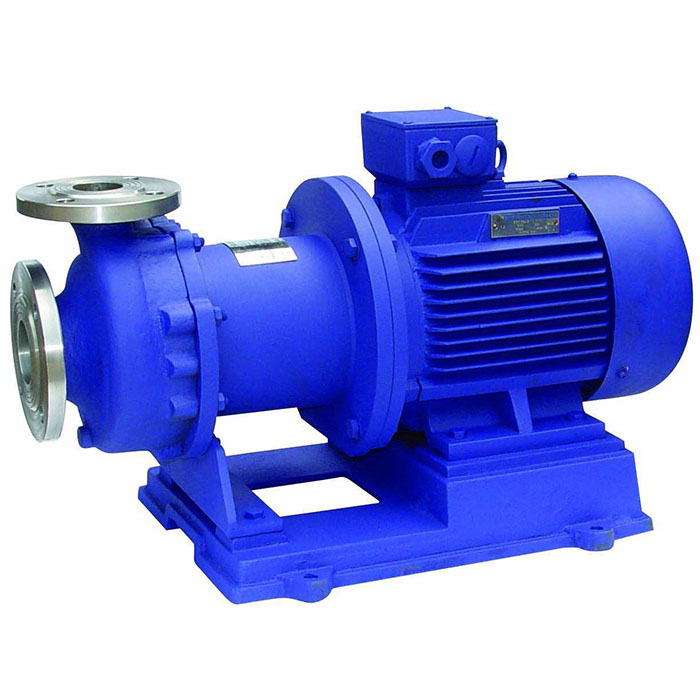

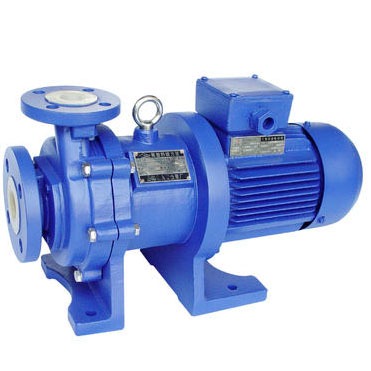

CQ Magnetic Drive Chemical Pump

Vacuum Pump
    Performance Range:
  • Current capacity: 0.8 ~ 200m3/h;
  • Lifts: 12 ~ 80m;
  • Rotational speed: 2900r/min;
  • Power: 0.37 ~ 160kw;
  • Caliber: 10 ~ 150mm;
  • Is suitable the temperature: -20 ~ 100 °C
      • Application:
  • pharmacy,
  • petroleum industry,
  • chemical industry,
  • electroplating industry,
  • environmental protection,
  • water treatment, textile industry, medical and health work, etc
    • Model Inlet(mm) Outlet(mm) Lift head(m) Flow(L/min) Suction head(m) Power(kw) Speed(r/min)
    8CQ-2 8 6 2 15 2 0.025 2800
    10CQ-3 10 10 3 19 2.5 0.025 2800
    14CQ-5 14 10 5 20 3 0.12 2800
    16CQ-8 16 12 8 30 8 0.13 2800
    20CQ-12 20 12 12 50 4 0.37 2800
    25CQ-15 25 20 15 110 4 1.1 2800
    32CQ-15 32 25 15 110 4 1.1 2800
    32CQ-25 32 25 25 110 4 1.1 2800
    40CQ-20 40 32 20 180 7.5 2.2 2800
    40CQ-32 40 32 32 200 8 4 2800
    50CQ-25 50 40 25 240 8.3 4 2800
    50CQ-40 50 40 40 220 7 4 2800
    50CQ-50 50 40 50 130 8 5.5 2800
    65CQ-25 65 50 25 280 7 5.5 2800
    65CQ-35 65 50 35 450 6 7.5 2800
    80CQ-35 80 65 35 850 7 11 2800
    80CQ-50 80 65 50 850 7 15 2800
