KDY Multi-stage Spit Case Pump

Hanthing Fluid Group
      Overview

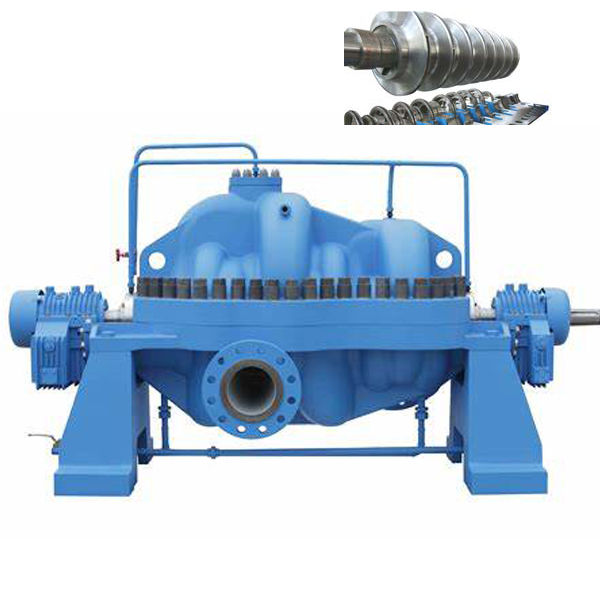

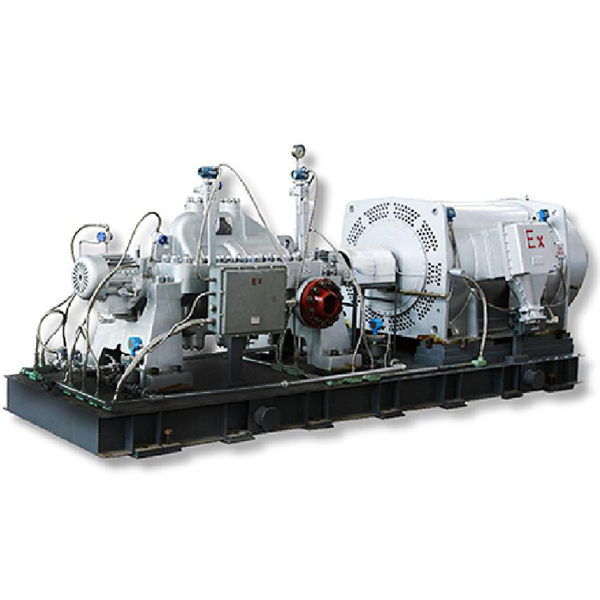

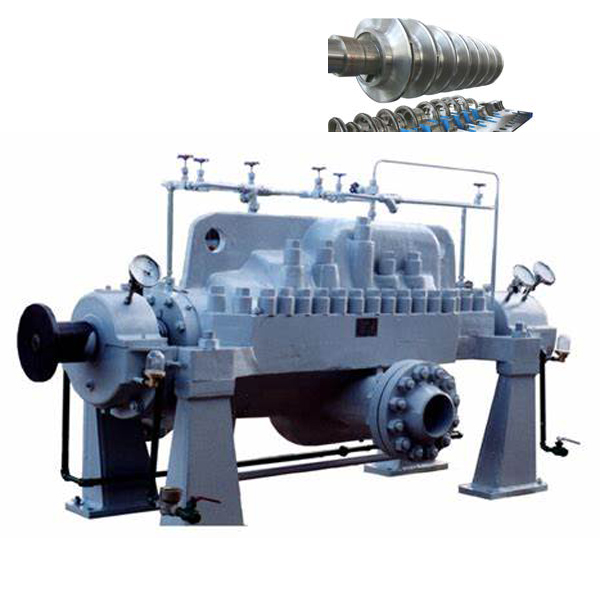

  • KY, KDY series splitcase two-stage and multistage centrifugal pump are API BB1, BB3 pumps designed and manufactured completely in accordance with API610 11th Edition for guaranteed service life Min. 30 years and 3 years continuous operation without any trouble.
      • Application:
  • Crude oil and refined oil pipeline transportation
  • Oil tanker loading & unloading
  • Oil depot crude oil and refined oil delivery
  • Airport aviation kerosene delivery
  • Petrochemical process
  • Oil field water injection
  • Long distance water supply
  • Coal processing industry
  • High pressure boiler feed water
      • Performance range:
  • Flow rate: Q = 25 ~ 2500m3/h
  • Disch. Head: H = 60 ~ 2750m
  • Speed: n≤5200rpm
  • Medium temp: T = - 40 ~ +200℃
  • Applicable media: crude oil, refined oil products, petrochemical products or similar liquids with viscosity up to 880mm2/S and solid particles not exceeding 3%.

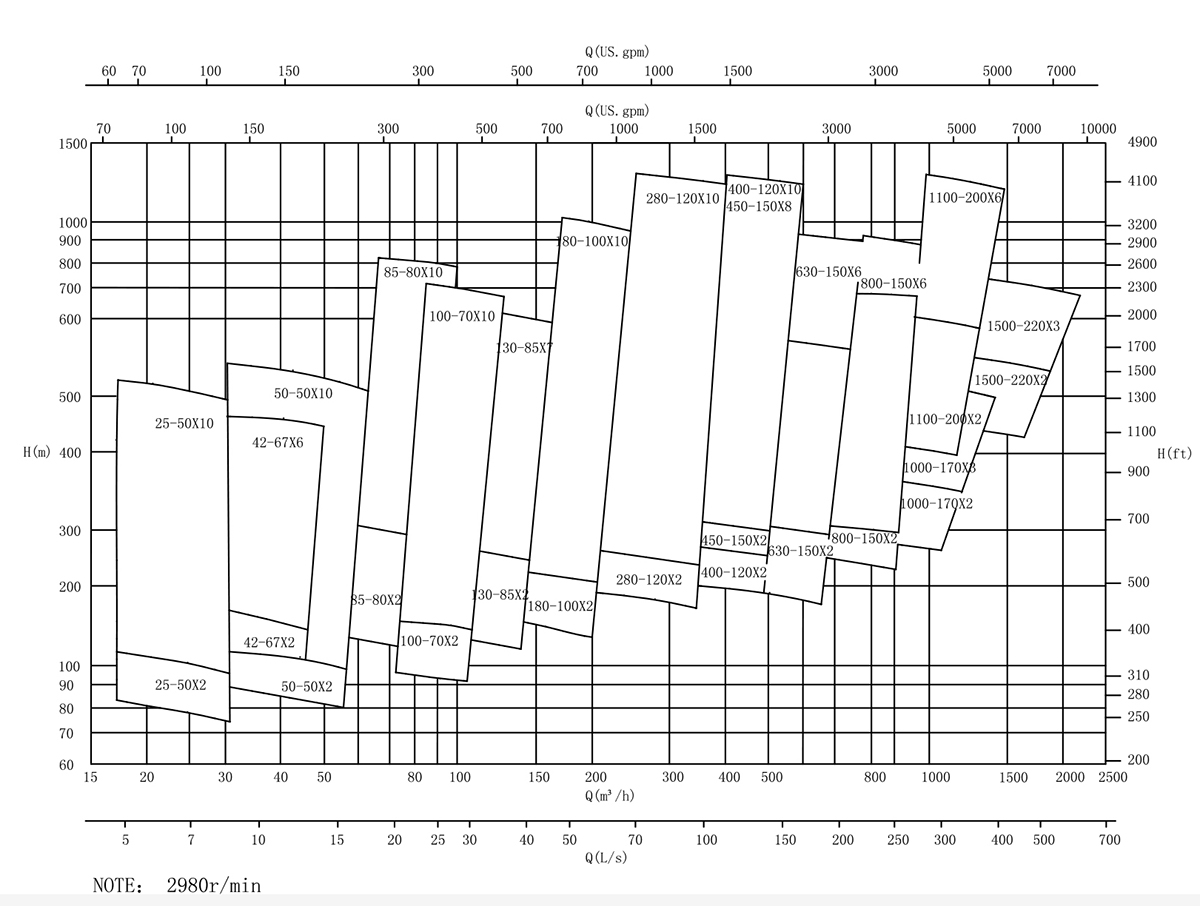

Model Flow rate (m3/h) Disch. Head (m) Speed (r/min) Eff.(%) NPSHr(m) Shaft power(kW) Motor power (kW)
KY25-50×2 25 100 2980 54.5 1.9 12 22
KDY25-50×4 25 200 2980 54.5 1.9 25 37
KDY25-50×6 25 300 2980 54.5 1.9 37 55
KDY25-50×8 25 400 2980 54.5 1.9 50 75
KDY25-50×10 25 500 2980 54.5 1.9 62 90
KY42-67×2 42 134 2980 54 2.4 28 45
KDY42-67×4 42 268 2980 54 2.4 57 75
KDY42-67×6 42 402 2980 54 2.4 85 110
KDY42-67×8 42 536 2980 54 2.4 113 160
KY50-50×2 50 100 2980 65 2.6 21 30
KDY50-50×4 50 200 2980 65 2.6 42 55
KDY50-50×6 50 300 2980 65 2.6 63 90
KDY50-50×8 50 400 2980 65 2.6 84 110
KDY50-50×10 50 500 2980 65 2.6 105 132
KY85-80×2 85 160 2980 68 3 54 75
KDY85-80×4 85 320 2980 68 3 109 132
KDY85-80×6 85 480 2980 68 3 163 220
KDY85-80×8 85 640 2980 68 3 218 280
KDY85-80×10 85 800 2980 68 3 272 355
KY100-70×2 100 140 2980 71 4 54 75
KDY100-70×4 100 280 2980 71 4 107 132
KDY100-70×6 100 420 2980 71 4 161 220
KDY100-70×8 100 560 2980 71 4 215 280
KY130-85×2 130 170 2980 70.5 4 85 110
KDY130-85×3 130 255 2980 70.5 2.7 128 160
KDY130-85×4 130 340 2980 70.5 4 171 220
KDY130-85×5 130 425 2980 70.5 2.7 213 250
KDY130-85×6 130 510 2980 70.5 4 256 315
KDY130-85×7 130 595 2980 70.5 2.7 299 400
KDY130-85×8 130 680 2980 70.5 4 341 400
KDY130-85×9 130 765 2980 70.5 2.7 384 500
KDY130-85×10 130 850 2980 70.5 4 427 500
KY180-100×2 180 200 2980 73 5.6 134 185
KDY180-100×3 180 300 2980 73 4 201 250
KDY180-100×4 180 400 2980 73 5.6 268 315
KDY180-100×5 180 500 2980 73 4 336 400
KDY180-100×6 180 600 2980 73 5.6 403 500
KDY180-100×7 180 700 2980 73 4 470 560
KDY180-100×8 180 800 2980 73 5.6 537 630
KDY180-100×9 180 900 2980 73 4 604 800
KDY180-100×10 180 1000 2980 73 5.6 671 800
KY280-120×2 280 240 2980 76.5 6.8 239 315
KDY280-120×3 280 360 2980 76.5 4.8 359 450
KDY280-120×4 280 480 2980 76.5 6.8 478 630
KDY280-120×5 280 600 2980 76.5 4.8 598 710
KDY280-120×6 280 720 2980 76.5 6.8 717 900
KDY280-120×7 280 840 2980 76.5 4.8 837 1125
KDY280-120×8 280 960 2980 76.5 6.8 957 1250
KY400-120×2 400 240 2980 81 8 323 400
KDY400-120×3 400 360 2980 81 5.6 484 630
KDY400-120×4 400 480 2980 81 8 645 800
KDY400-120×5 400 600 2980 81 5.6 807 1000
KDY400-120×6 400 720 2980 81 8 968 1250
KDY400-120×7 400 840 2980 81 5.6 1129 1400
KDY400-120×8 400 960 2980 81 8 1291 1600
KDY400-120×9 400 1080 2980 81 5.6 1452 1800
KDY400-120×10 400 1200 2980 81 8 1613 2000
KY450-150×2 450 300 2980 80 8.5 459 560
KDY450-150×3 450 450 2980 80 6 689 900
KDY450-150×4 450 600 2980 80 8.5 919 1120
KDY450-150×5 450 750 2980 80 6 1148 1400
KDY450-150×6 450 900 2980 80 8.5 1378 1800
KDY450-150×7 450 1050 2980 80 6 1608 2000
KDY450-150×8 450 1200 2980 80 8.5 1838 2240
KY630-150×2 630 300 2980 82 10.5 627 800
KDY630-150×3 630 450 2980 82 7 941 1120
KDY630-150×4 630 600 2980 82 10.5 1255 1600
KDY630-150×5 630 750 2980 82 7 1569 1800
KDY630-150×6 630 900 2980 82 10.5 1882 2240
KY800-150×2 800 300 2980 84 16 778 1000
KDY800-150×3 800 450 2980 84 11 1167 1400
KDY800-150×4 800 600 2980 84 16 1556 2000
KDY800-150×5 800 750 2980 84 11 1944 2500
KDY800-150×6 800 900 2980 84 16 2333 2800
KY1000-170×2 1000 340 2980 85 11 1089 1400
KDY1000-170×3 1000 510 2980 85 11 1633 2000
KY1100-200×2 1100 400 2980 84.5 18.5 1417 1800
KDY1100-200×3 1100 600 2980 84.5 11.5 2126 2500
KDY1100-200×4 1100 800 2980 84.5 18.5 2835 3550
KDY1100-200×5 1100 1000 2980 84.5 11.5 3544 4000
KDY1100-200×6 1100 1200 2980 84.5 18.5 4252 5000
KY1500-220×2 1500 440 2980 84.8 21 2119 2500
KDY1500-220×3 1500 660 2980 84.8 14 3178 3550

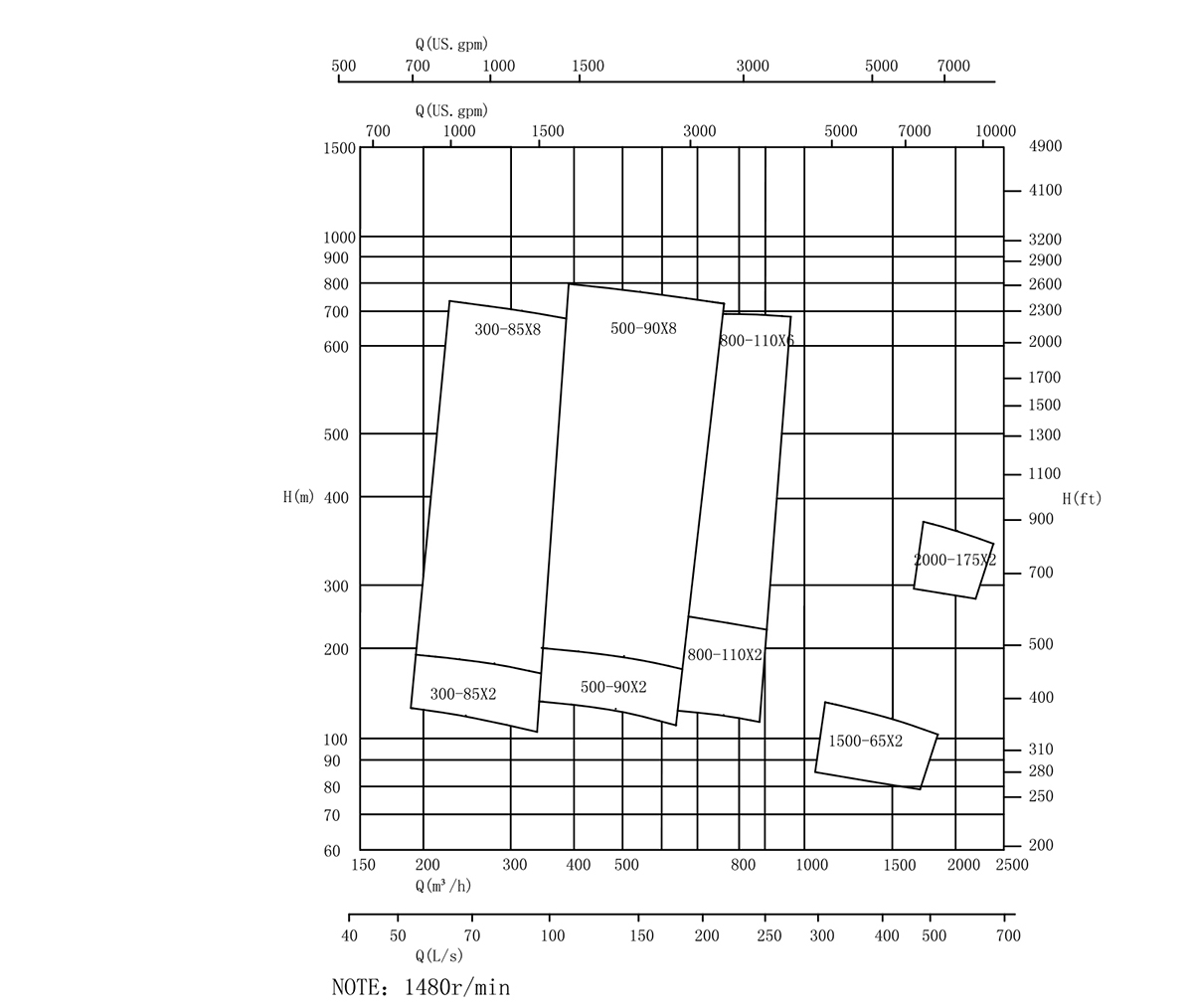

KY300-85×2 300 170 1480 72 3 193 250
KDY300-85×3 300 255 1480 72 1.9 289 355
KDY300-85×4 300 340 1480 72 3 386 500
KDY300-85×5 300 425 1480 72 1.9 482 630
KDY300-85×6 300 510 1480 72 3 578 710
KDY300-85×7 300 595 1480 72 1.9 675 800
KDY300-85×8 300 680 1480 72 3 771 1000
KY500-90×2 500 180 1480 77 4.5 318 400
KDY500-90×3 500 270 1480 77 2.5 477 560
KDY500-90×4 500 360 1480 77 4.5 636 800
KDY500-90×5 500 450 1480 77 2.5 795 1000
KDY500-90×6 500 540 1480 77 4.5 955 1250
KY800-110×2 800 220 1480 81 6 591 710
KDY800-110×3 800 330 1480 81 4 887 1120
KDY800-110×4 800 440 1480 81 6 1183 1400
KDY800-110×5 800 550 1480 81 4 1479 1800
KDY800-110×6 800 660 1480 81 6 1774 2240
KY1500-65×2 1500 130 1480 85 2.5 625 800
KY2000-175×2 2000 350 1480 80 7 2382 2800
Model Flow rate (m3/h) Disch. Head (m) Speed (r/min) Eff.(%) NPSHr(m) Shaft power(kW) Motor power (kW)
KY25-50×2 25 100 2980 54.5 1.9 12 22
KDY25-50×4 25 200 2980 54.5 1.9 25 37
KDY25-50×6 25 300 2980 54.5 1.9 37 55
KDY25-50×8 25 400 2980 54.5 1.9 50 75
KDY25-50×10 25 500 2980 54.5 1.9 62 90
KY42-67×2 42 134 2980 54 2.4 28 45
KDY42-67×4 42 268 2980 54 2.4 57 75
KDY42-67×6 42 402 2980 54 2.4 85 110
KDY42-67×8 42 536 2980 54 2.4 113 160
KY50-50×2 50 100 2980 65 2.6 21 30
KDY50-50×4 50 200 2980 65 2.6 42 55
KDY50-50×6 50 300 2980 65 2.6 63 90
KDY50-50×8 50 400 2980 65 2.6 84 110
KDY50-50×10 50 500 2980 65 2.6 105 132
KY85-80×2 85 160 2980 68 3 54 75
KDY85-80×4 85 320 2980 68 3 109 132
KDY85-80×6 85 480 2980 68 3 163 220
KDY85-80×8 85 640 2980 68 3 218 280
KDY85-80×10 85 800 2980 68 3 272 355
KY100-70×2 100 140 2980 71 4 54 75
KDY100-70×4 100 280 2980 71 4 107 132
KDY100-70×6 100 420 2980 71 4 161 220
KDY100-70×8 100 560 2980 71 4 215 280
KY130-85×2 130 170 2980 70.5 4 85 110
KDY130-85×3 130 255 2980 70.5 2.7 128 160
KDY130-85×4 130 340 2980 70.5 4 171 220
KDY130-85×5 130 425 2980 70.5 2.7 213 250
KDY130-85×6 130 510 2980 70.5 4 256 315
KDY130-85×7 130 595 2980 70.5 2.7 299 400
KDY130-85×8 130 680 2980 70.5 4 341 400
KDY130-85×9 130 765 2980 70.5 2.7 384 500
KDY130-85×10 130 850 2980 70.5 4 427 500
KY180-100×2 180 200 2980 73 5.6 134 185
KDY180-100×3 180 300 2980 73 4 201 250
KDY180-100×4 180 400 2980 73 5.6 268 315
KDY180-100×5 180 500 2980 73 4 336 400
KDY180-100×6 180 600 2980 73 5.6 403 500
KDY180-100×7 180 700 2980 73 4 470 560
KDY180-100×8 180 800 2980 73 5.6 537 630
KDY180-100×9 180 900 2980 73 4 604 800
KDY180-100×10 180 1000 2980 73 5.6 671 800
KY280-120×2 280 240 2980 76.5 6.8 239 315
KDY280-120×3 280 360 2980 76.5 4.8 359 450
KDY280-120×4 280 480 2980 76.5 6.8 478 630
KDY280-120×5 280 600 2980 76.5 4.8 598 710
KDY280-120×6 280 720 2980 76.5 6.8 717 900
KDY280-120×7 280 840 2980 76.5 4.8 837 1125
KDY280-120×8 280 960 2980 76.5 6.8 957 1250
KY400-120×2 400 240 2980 81 8 323 400
KDY400-120×3 400 360 2980 81 5.6 484 630
KDY400-120×4 400 480 2980 81 8 645 800
KDY400-120×5 400 600 2980 81 5.6 807 1000
KDY400-120×6 400 720 2980 81 8 968 1250
KDY400-120×7 400 840 2980 81 5.6 1129 1400
KDY400-120×8 400 960 2980 81 8 1291 1600
KDY400-120×9 400 1080 2980 81 5.6 1452 1800
KDY400-120×10 400 1200 2980 81 8 1613 2000
KY450-150×2 450 300 2980 80 8.5 459 560
KDY450-150×3 450 450 2980 80 6 689 900
KDY450-150×4 450 600 2980 80 8.5 919 1120
KDY450-150×5 450 750 2980 80 6 1148 1400
KDY450-150×6 450 900 2980 80 8.5 1378 1800
KDY450-150×7 450 1050 2980 80 6 1608 2000
KDY450-150×8 450 1200 2980 80 8.5 1838 2240
KY630-150×2 630 300 2980 82 10.5 627 800
KDY630-150×3 630 450 2980 82 7 941 1120
KDY630-150×4 630 600 2980 82 10.5 1255 1600
KDY630-150×5 630 750 2980 82 7 1569 1800
KDY630-150×6 630 900 2980 82 10.5 1882 2240
KY800-150×2 800 300 2980 84 16 778 1000
KDY800-150×3 800 450 2980 84 11 1167 1400
KDY800-150×4 800 600 2980 84 16 1556 2000
KDY800-150×5 800 750 2980 84 11 1944 2500
KDY800-150×6 800 900 2980 84 16 2333 2800
KY1000-170×2 1000 340 2980 85 11 1089 1400
KDY1000-170×3 1000 510 2980 85 11 1633 2000
KY1100-200×2 1100 400 2980 84.5 18.5 1417 1800
KDY1100-200×3 1100 600 2980 84.5 11.5 2126 2500
KDY1100-200×4 1100 800 2980 84.5 18.5 2835 3550
KDY1100-200×5 1100 1000 2980 84.5 11.5 3544 4000
KDY1100-200×6 1100 1200 2980 84.5 18.5 4252 5000
KY1500-220×2 1500 440 2980 84.8 21 2119 2500
KDY1500-220×3 1500 660 2980 84.8 14 3178 3550
Model Flow rate (m3/h) Disch. Head (m) Speed (r/min) Eff.(%) NPSHr(m) Shaft power(kW) Motor power (kW)
KY300-85×2 300 170 1480 72 3 193 250
KDY300-85×3 300 255 1480 72 1.9 289 355
KDY300-85×4 300 340 1480 72 3 386 500
KDY300-85×5 300 425 1480 72 1.9 482 630
KDY300-85×6 300 510 1480 72 3 578 710
KDY300-85×7 300 595 1480 72 1.9 675 800
KDY300-85×8 300 680 1480 72 3 771 1000
KY500-90×2 500 180 1480 77 4.5 318 400
KDY500-90×3 500 270 1480 77 2.5 477 560
KDY500-90×4 500 360 1480 77 4.5 636 800
KDY500-90×5 500 450 1480 77 2.5 795 1000
KDY500-90×6 500 540 1480 77 4.5 955 1250
KY800-110×2 800 220 1480 81 6 591 710
KDY800-110×3 800 330 1480 81 4 887 1120
KDY800-110×4 800 440 1480 81 6 1183 1400
KDY800-110×5 800 550 1480 81 4 1479 1800
KDY800-110×6 800 660 1480 81 6 1774 2240
KY1500-65×2 1500 130 1480 85 2.5 625 800
KY2000-175×2 2000 350 1480 80 7 2382 2800
